Gigabyte G1.Sniper A88X (rev. 3.0)
Logs
chipChipset
cpuSockets
Socket FM2 (PGA904) Socket FM2+ (PGA906)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 225mm
chipCache
None/Integrated in the CPU
ramMax RAM size
64GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
HDMI
1x
PS/2 KB+MS Combo
1x
RJ-45 LAN
8x
SATA III
1x
Serial
1x
Toslink
9x
USB 2.0
4x
USB 3.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
3x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x4
Last updated 2025-07-07T22:43:53Z
Board info score is 9/10
bios 10 BIOS files available

vendor AMI - 10 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-041312-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-041312-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-041312-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-041312-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-122211-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-122211-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-041312-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-041312-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-122211-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-041312-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
10.001.0505.2015
OS support
Windows 10
Arch
x86 , x86-64
Size
9.4MB
Filename
Name
Version
7.082.0317.2014
OS support
Windows 7
Arch
x86 , x86-64
Size
3.7MB
Filename
Name
Version
8.029.0314.2014
OS support
Windows 8.x
Arch
x86 , x86-64
Size
3.6MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2015-11
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2011-02-11
File
Logs
Chip
Release date
2011-02-11
File
Logs

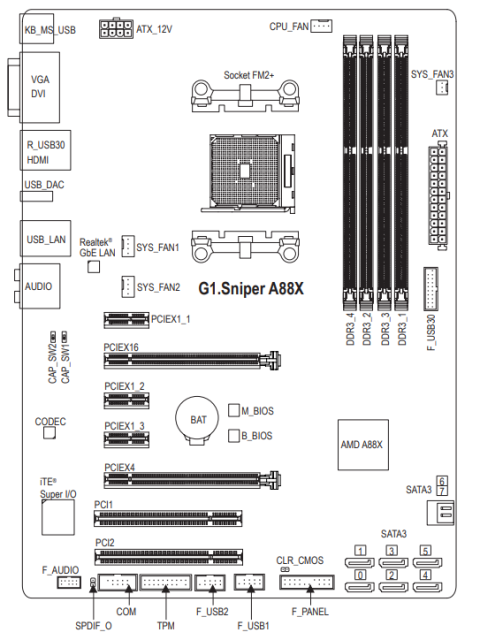

image1 Image 1 of 4 (Gigabyte)
image2 Image 2 of 4 (Gigabyte)

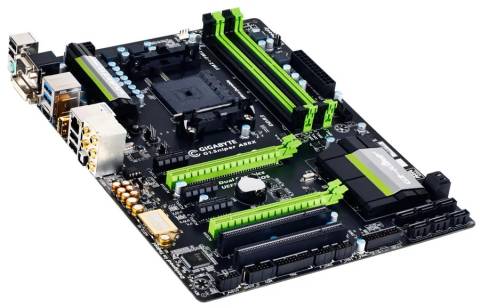

image3 Image 3 of 4 (Gigabyte)

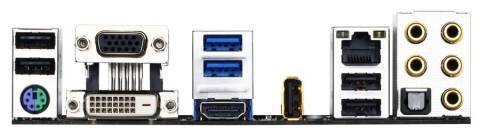

image4 Image 4 of 4 (Gigabyte)
