Gigabyte G1.Assassin 2 (rev. 1.0)
Logs
chipChipset
cpuSocket
Socket R (LGA2011-0)
speedFSB speed
Empty
moboForm factor
Extended ATX/EATX (max 305 × 330 mm)
dimDimensions
305mm x 264mm
chipCache
None/Integrated in the CPU
ramMax RAM size
32GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
3.5mm Audio Combo
1x
PS/2 KB+MS Combo
1x
S/PDIF
4x
SATA II
4x
SATA III
1x
Toslink
14x
USB 2.0
4x
USB 3.0
2x
eSATA III
cardExpansion slots
1x
32-bit PCI
2x
PCIe x1
2x
PCIe x16
1x
PCIe x16 @ x8
wrench Known issues
  • Underpowered VRM

The onboard VRM may not provide sufficient power for certain processors or configurations.

notes Notes

Subject to a recall due to bad firmware and underpowered VRM.

Will not boot with IvyBridge Xeons

Last updated 2025-07-26T12:06:20Z
Board info score is 9.2/10
bios 7 BIOS files available

vendor AMI - 7 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-031511-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-031511-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-031511-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-041312-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-122211-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-031511-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-031511-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
6.0.0.23
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
72.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
2011-10
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2007-05
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

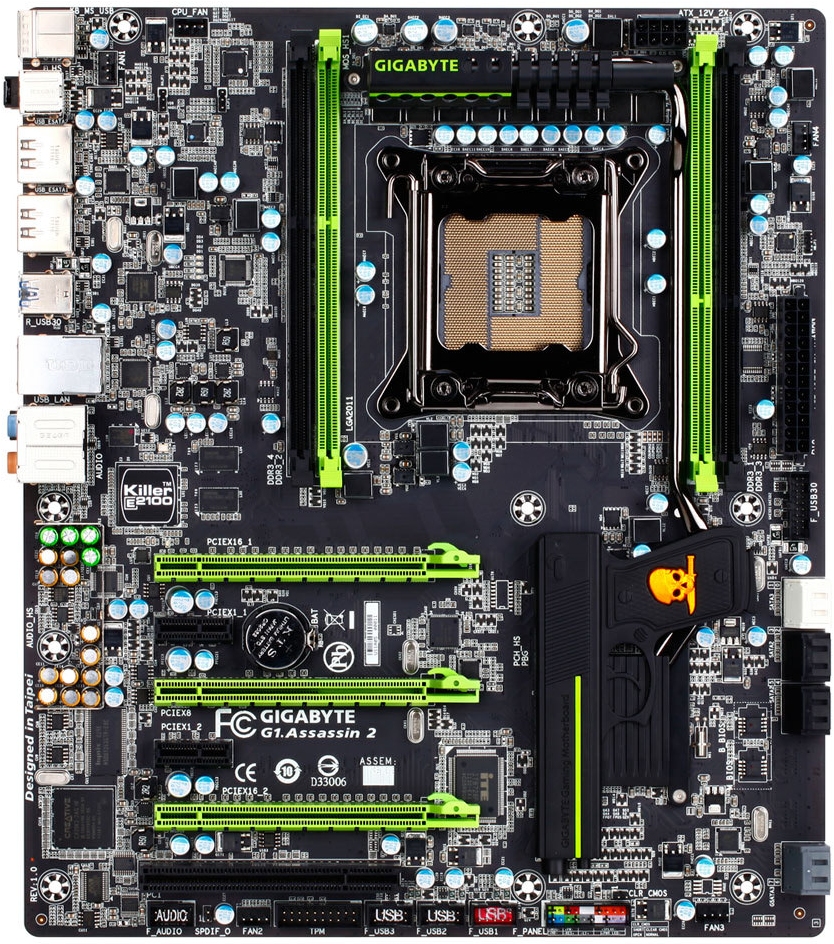

image1 Image 1 of 4 (Gigabyte)
image2 Image 2 of 4 (Gigabyte)
image3 Image 3 of 4 (Gigabyte)

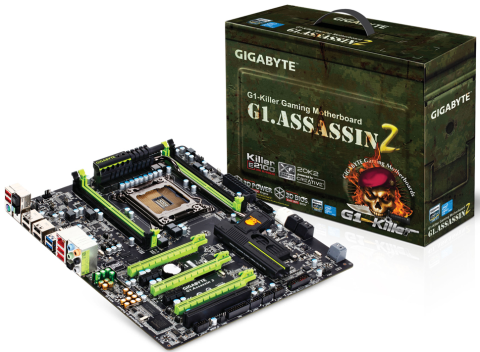

image4 Image 4 of 4 (Gigabyte)
