Fujitsu-Siemens T2-BXV1.61
Logs
chipChipset
cpuSocket
Socket 370 (PGA370)
speedFSB speeds
66MHz100MHz
moboForm factor
OEM / Proprietary
dimDimensions
Empty
ramMax VRAM size
8MB
chipCache
None/Integrated in the CPU
ramMax RAM size
512MB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
Parallel
1x
RJ-45 LAN
1x
Serial
1x
TV-Out
2x
USB 1.x
1x
VGA
cardExpansion slots
Empty
wrench Known issues
  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

notes Notes

has analog and digital RCA audio connectors.

Last updated 2025-11-07T12:23:29Z
Board info score is 8/10
bios 2 BIOS files available

vendor Award - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
03/21/2000-i440BX-W977-20000120C-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
03/21/2000-i440BX-W977-20000120C-00
Note
Core version
4.51PG
BIOS version
Logs
drv 9 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.20.1008
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
N/A
OS support
Windows 9x
Arch
x86
Size
19.9MB
Filename
Name
Version
5.719.0325.2009
OS support
Linux MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Windows 2000 Windows 7 Windows 9x Windows Vista Windows XP/2k3
Arch
x86
Size
39.5MB
Filename
Name
Version
V5.00
OS support
MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Netware Client32 SCO Unix - OpenServer Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86 , PPC
Size
3.3MB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Windows 2000 Windows 9x
Arch
x86
Size
1.5MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
569.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
577.8KB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-04
File
Logs
Chip
Release date
1999-03
File
Logs
Chip
Release date
2010-01
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-02
File
Logs
Family
Release date
2000-02
File
Logs
Family
Release date
2001-06
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1997-05
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-04
File
Logs
Socket
Release date
1999-12
File
Logs
Socket
Release date
2000-07
File
Logs

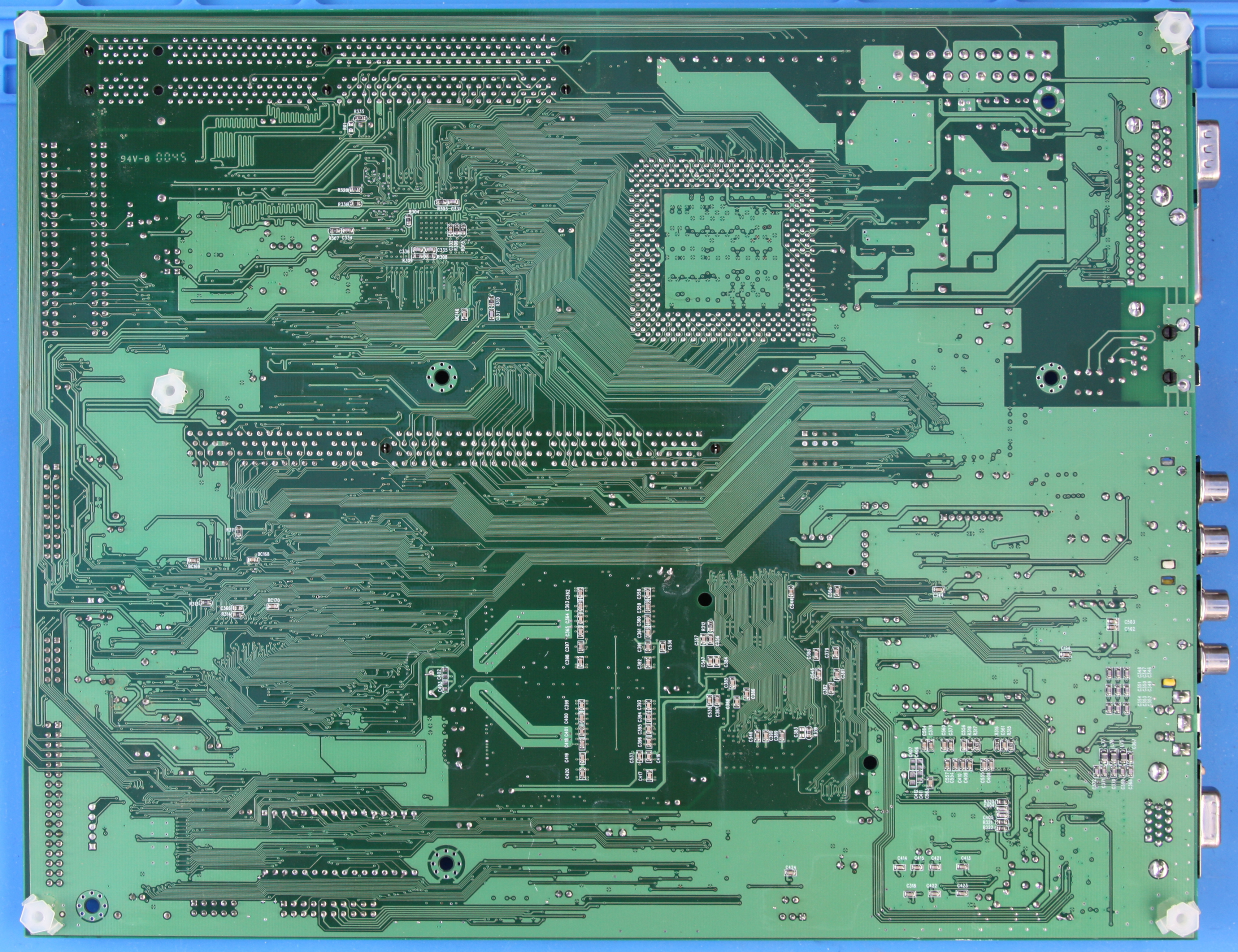

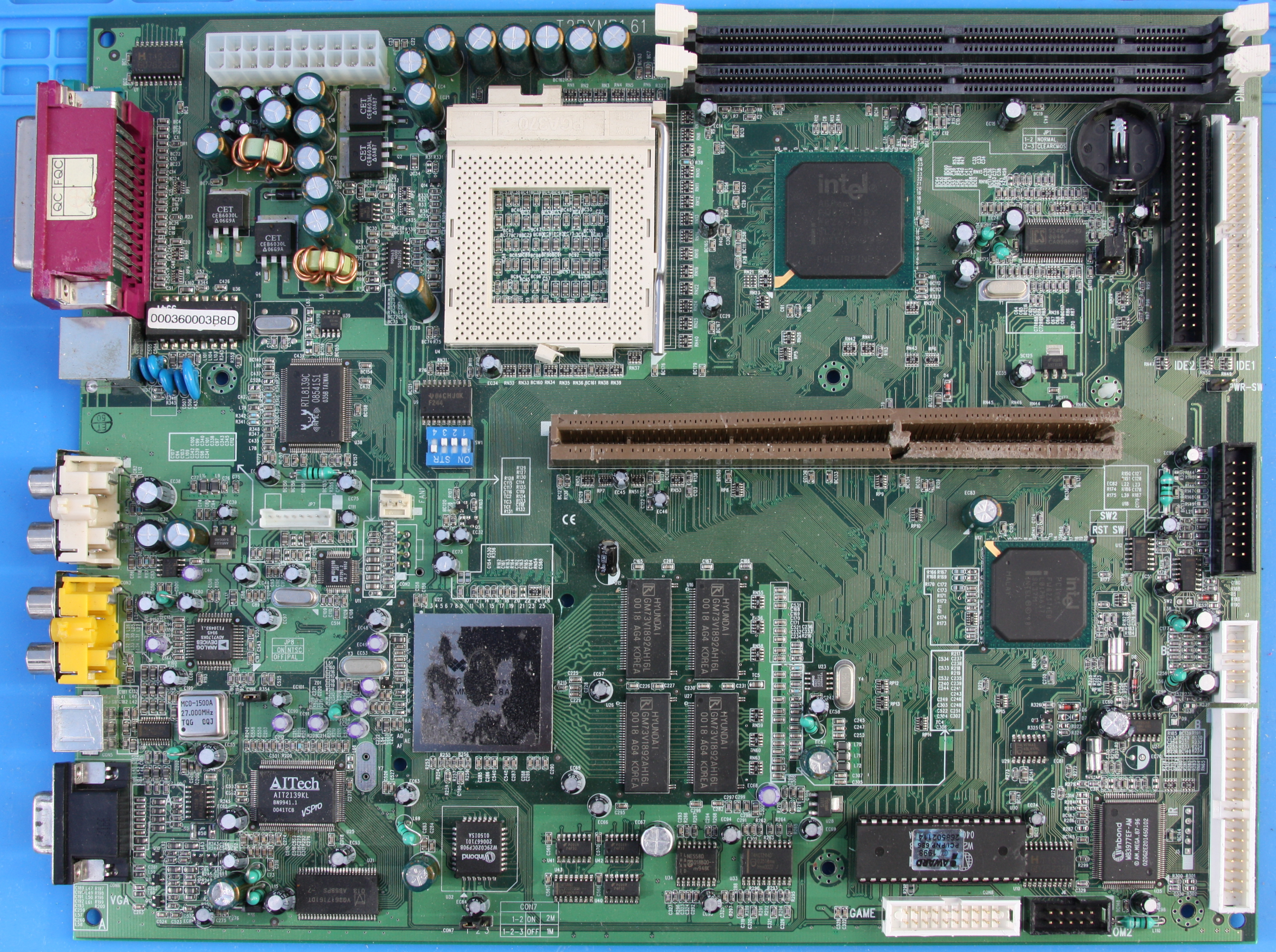

image1 Image 1 of 4 (magus)

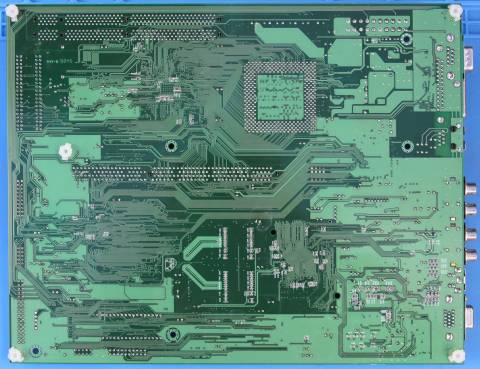

image2 Image 2 of 4 (magus)

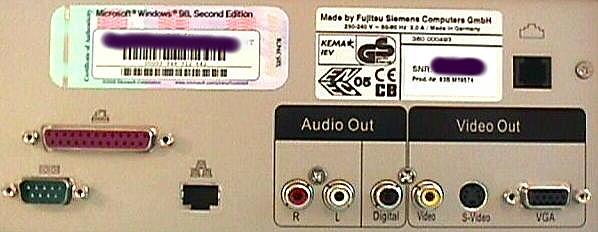

image3 Image 3 of 4 (Fujitsu-Siemens)

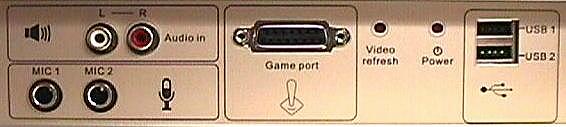

image4 Image 4 of 4 (Fujitsu-Siemens)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
