Freetech/Flexus 586F61
Chipset
Socket
FSB speeds 50MHz60MHz66MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions330mm x 218mm
Cache
256KB512KB
Max RAM size
128MB
RAM types 72-pin FPM72-pin EDO
PSU connector
Also known as
- HOKKINS SYSTEMATION, INC. 586F61
I/O ports1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
Expansion slots4x
16-bit ISA
3x
32-bit PCI
Notes
A VRM module can be added for Split-Voltage CPU support.
Last updated 2024-02-28T18:43:35Z
Board info score is 9.3/10
Chips
-> Chipset part
4 BIOS files available
Award - 4 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x
Windows NT 3.5x
Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 Warp 3.x
Windows 3.1x
Windows 9x
Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
4 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1998-01
File
Logs

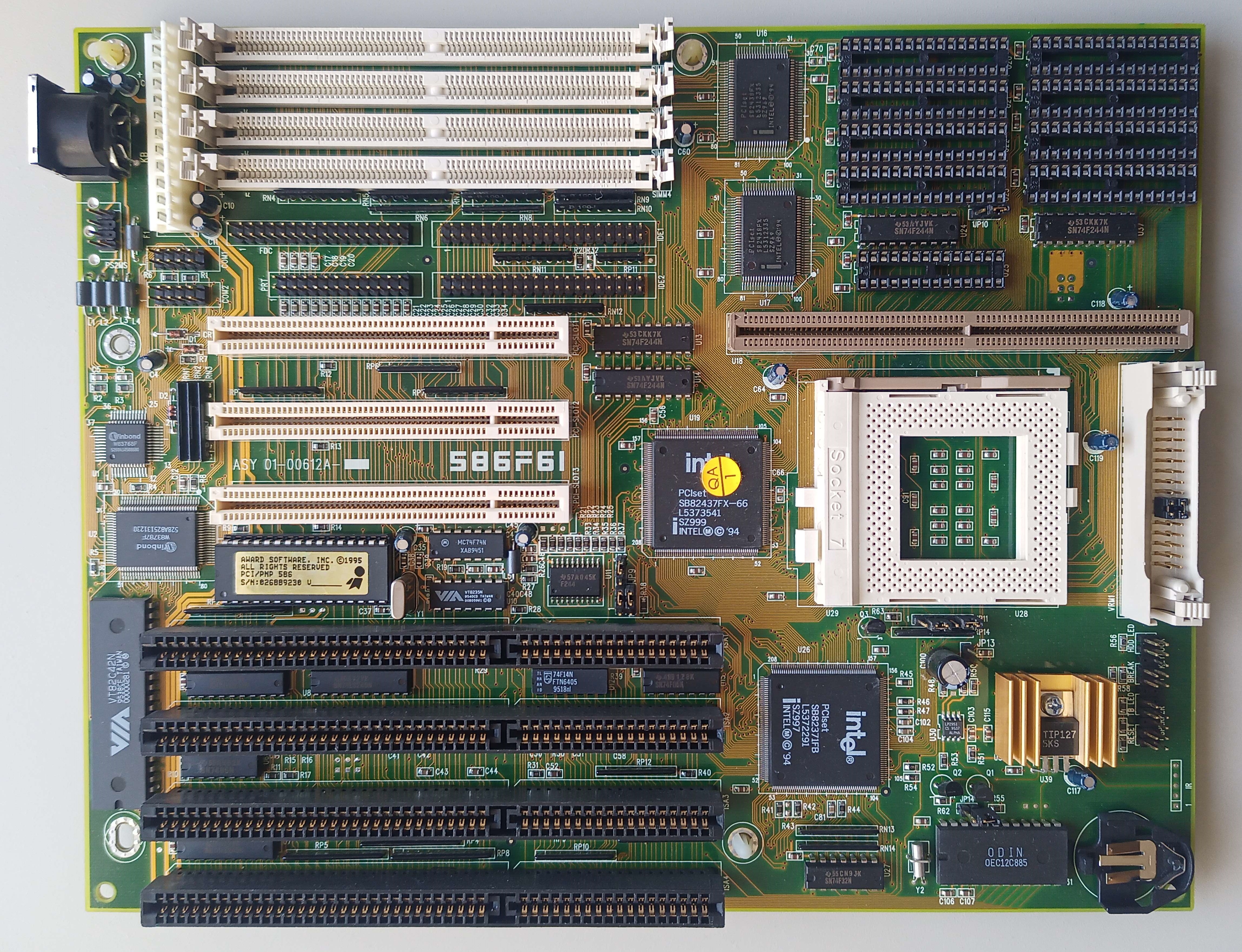

Image 1 of 5 (Microhouse)

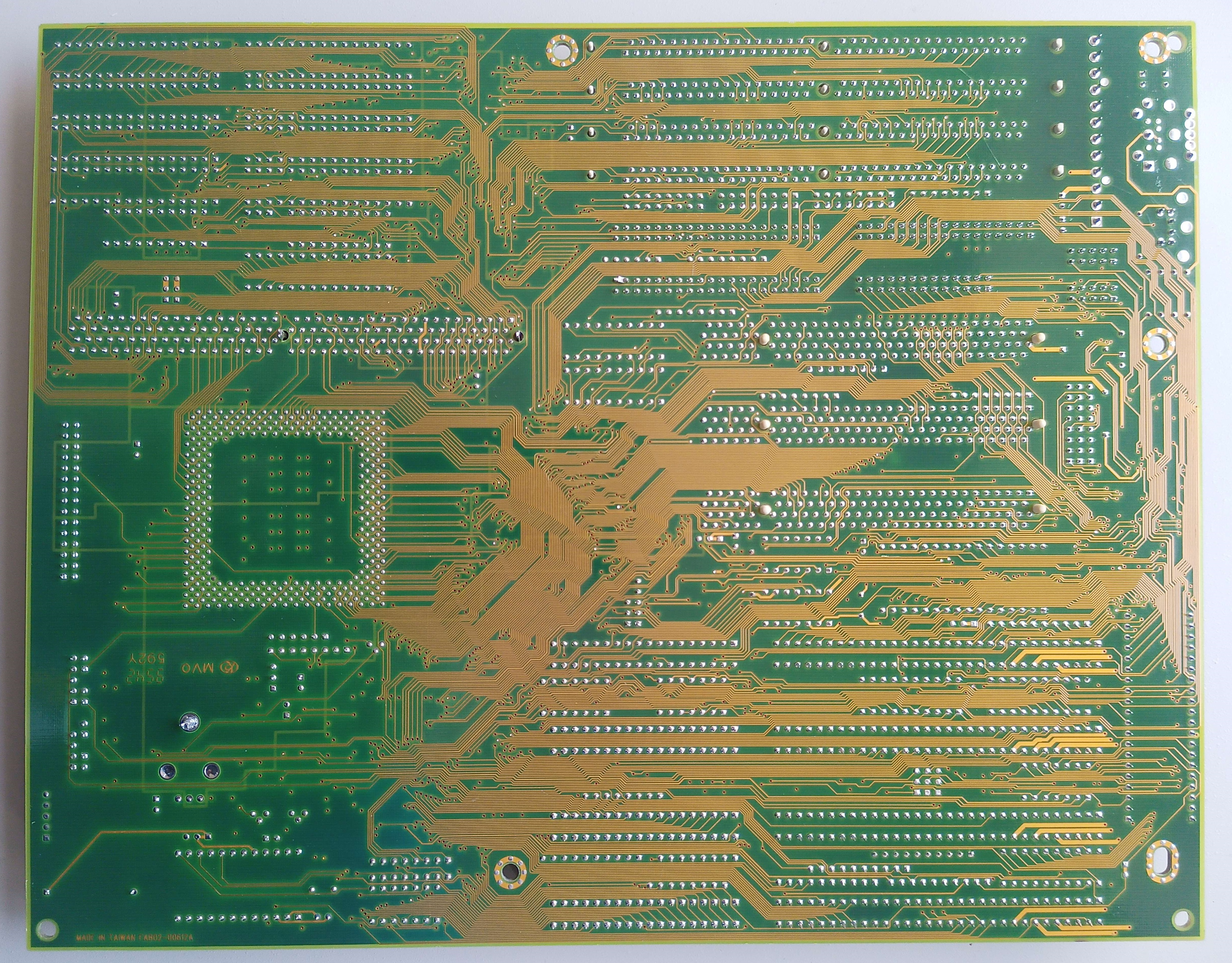

Image 2 of 5

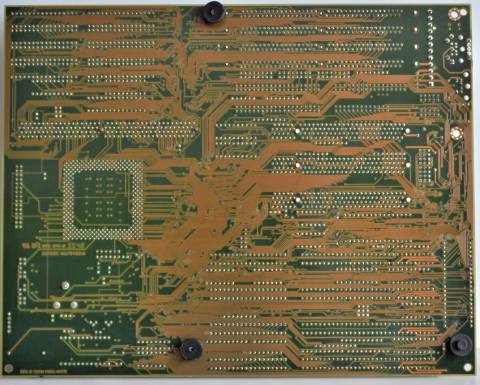

Image 3 of 5 (matt)

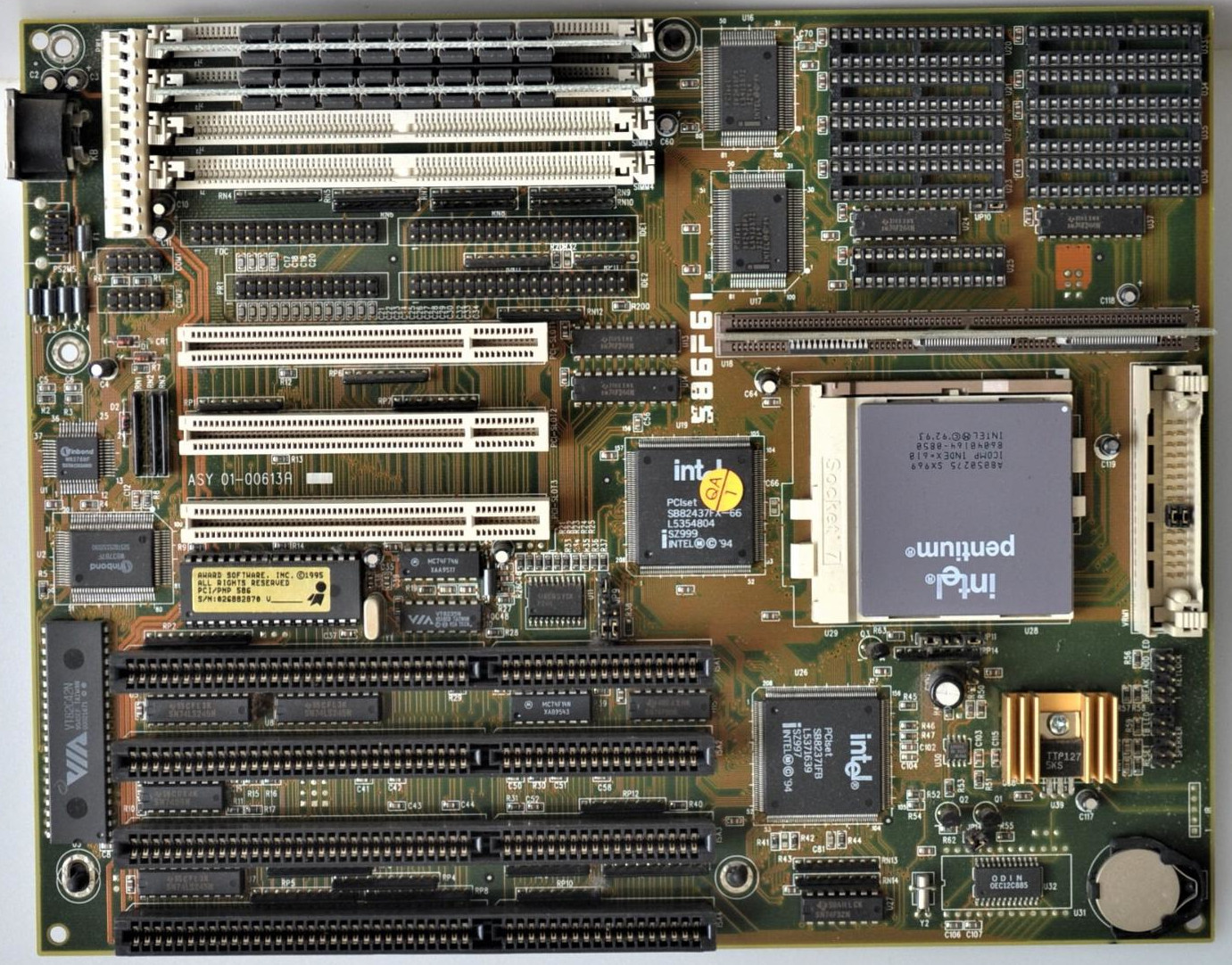

Image 4 of 5

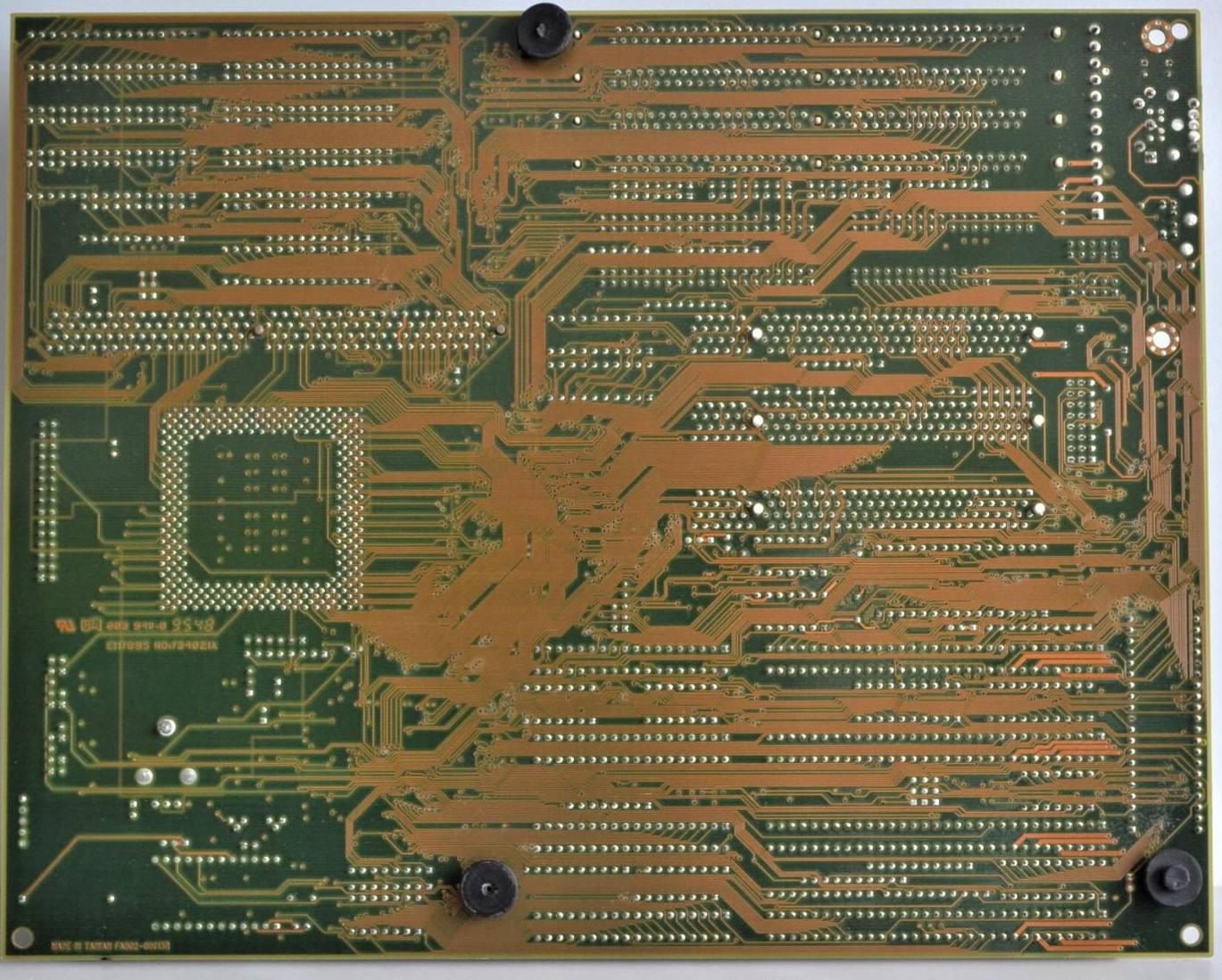

Image 5 of 5 (matt)
