Foxconn Renaissance II
Logs
chipChipset
cpuSocket
Socket B (LGA1366)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
48GB
ramRAM types
DDR3 UDIMMDDR3 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
2x
FireWire 400
1x
IDE interface
1x
PS/2 KB+MS Combo
1x
RJ-45 LAN
1x
S/PDIF
6x
SATA II
1x
Toslink
12x
USB 2.0
cardExpansion slots
1x
32-bit PCI
2x
PCIe x16
2x
PCIe x16 @ x8
1x
PCIe x4
Last updated 2025-05-24T13:38:58Z
Board info score is 8.3/10
bios 4 BIOS files available

vendor AMI - 4 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-2776-009999-00101111-042010-TYLSBURG-853F1P16
Note
Core version
080015
BIOS version
Logs
POST string
64-2776-009999-00101111-081709-TYLSBURG-853F1P14
Note
Core version
080015
BIOS version
Logs
POST string
64-2776-009999-00101111-032409-TYLSBURG-853F1P13
Note
Core version
080015
BIOS version
Logs
POST string
64-2776-009999-00101111-030609-TYLSBURG-853F1P12
Note
Core version
080015
BIOS version
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
9.1.2.1007
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename
Name
Version
3.1.0.2404
OS support
Windows 2000 Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
357.5KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008-10
File
Logs
Chip
Release date
2013-09
File
Logs
Chip
Release date
2008-07
File
Logs
Chip
Release date
2010
File
Logs
Chip
Release date
2001-12
File
Logs
Family
Release date
File
Logs
Family
Release date
2008-08-12
File
Logs
Family
Release date
2008-08-12
File
Logs
Family
Release date
File
Logs
Family
Release date
2010-02
File
Logs
Family
Release date
2010-07
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2017-01
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-09-14
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-09-14
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-09-14
File
Logs
Family
Release date
2011-09-14
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2004
File
Logs

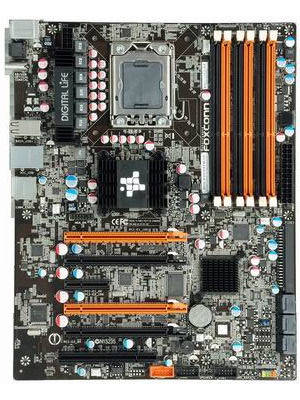

image1 Image 1 of 3 (Foxconn)
image2 Image 2 of 3 (Foxconn)

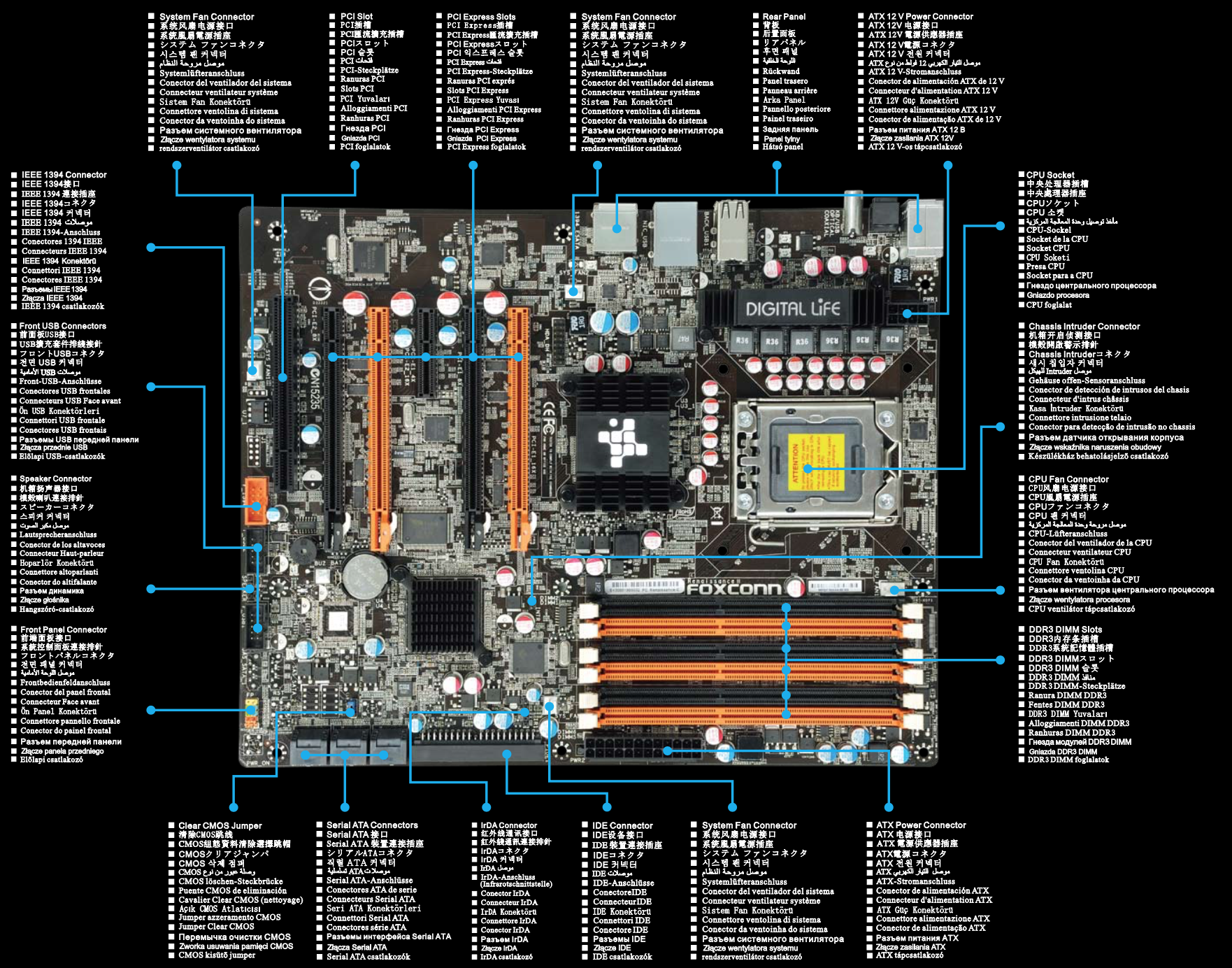

image3 Image 3 of 3 (Foxconn)
