Foxconn MCP73S01 (HP OEM)
Chipset
Socket
FSB speeds 800MHz1066MHz1333MHz
Form factormicroATX (max 244 x 244 mm)
Dimensions190mm x 172mm
Max VRAM size256MB
Cache
None/Integrated in the CPU
Max RAM size
4GB(DDR2-800)
RAM type DDR2 UDIMM
PSU connector

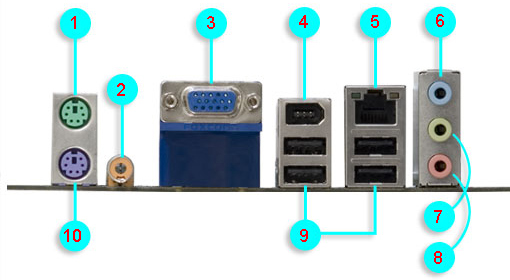

I/O ports1x
3.5mm Audio Combo
1x
FireWire 400
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
2x
S/PDIF
2x
SATA II
10x
USB 2.0
1x
VGA
Expansion slots1x
PCIe x1
1x
PCIe x16
No board specific known issues
- Bumpgate
These cards are likely to suffer a premature failure due to the defective 90nm process node from TSMC used back in the day, where the die underfill used was inappropriate for the chip design.
On Nvidia GPUs it mainly affects all 90/80/65 and some 55 nm GPUs (the A revisons of G9x and GT200 chips).
You can see a very detailed explanation of this issue by RIP Felix on YouTube
Notes
- non-standard power connector.
Last updated 2025-08-05T13:24:01Z
Board info score is 9.6/10
Chips
-> Chipset part
-> Audio
-> Network
CPU family support
- Intel Core 2 Duo (Conroe/Allendale)
- Intel Core 2 Quad (Kentsfield)
- Intel Core 2 Duo (Wolfdale)
- Intel Core 2 Quad (Yorkfield)
- Intel Pentium Dual-Core (Allendale)
- Intel Celeron Dual-Core (Allendale)
- Intel Xeon (Conroe/Allendale)
- Intel Celeron (Conroe-L)
- Intel Core 2 Extreme (Kentsfield)
- Intel Xeon (Kentsfield)
- Intel Pentium Dual-Core (Wolfdale)
- Intel Celeron Dual-Core (Wolfdale)
- Intel Xeon (Wolfdale)
- Intel Core 2 Extreme (Yorkfield)
- Intel Xeon (Yorkfield)
1 BIOS file available
Award - 2 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
02/11/2009-MCP73-6A61NFK2C-00
Note
sp43069
Core version
6.00PG
BIOS version
Logs
POST string
08/13/2008-MCP73-6A61NFK2C-00
Note
Core version
6.00PG
BIOS version
irv5.16
Logs
2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
Windows XP/2k3
Arch
x86
Size
50.9MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
2008-10
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2008-12
File
Logs
Family
Release date
2009-01
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2008-12
File
Logs
Family
Release date
2007-06
File
Logs
Family
Release date
2007-10-30
File
Logs
Family
Release date
2007-10-30
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2007-08
File
Logs
Family
Release date
2007-08
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2007-04
File
Logs
Family
Release date
2007-04
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2007-10
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2007-11-08
File
Logs
Family
Release date
2007-11-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2011-03-21
File
Logs
Socket
Release date
File
Logs

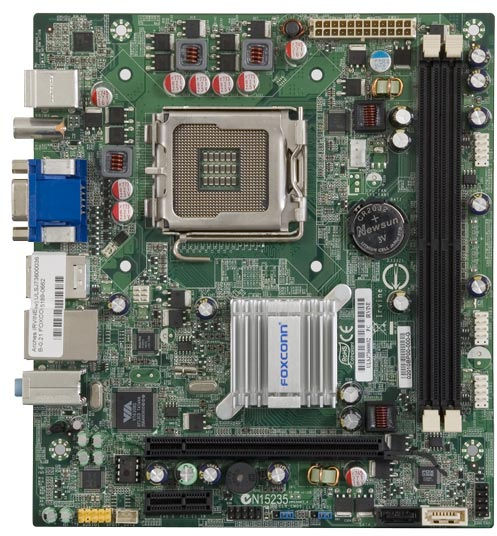

Image 1 of 4
Image 2 of 4

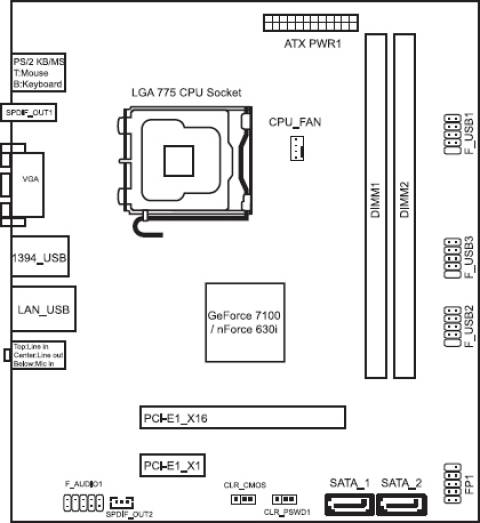

Image 3 of 4

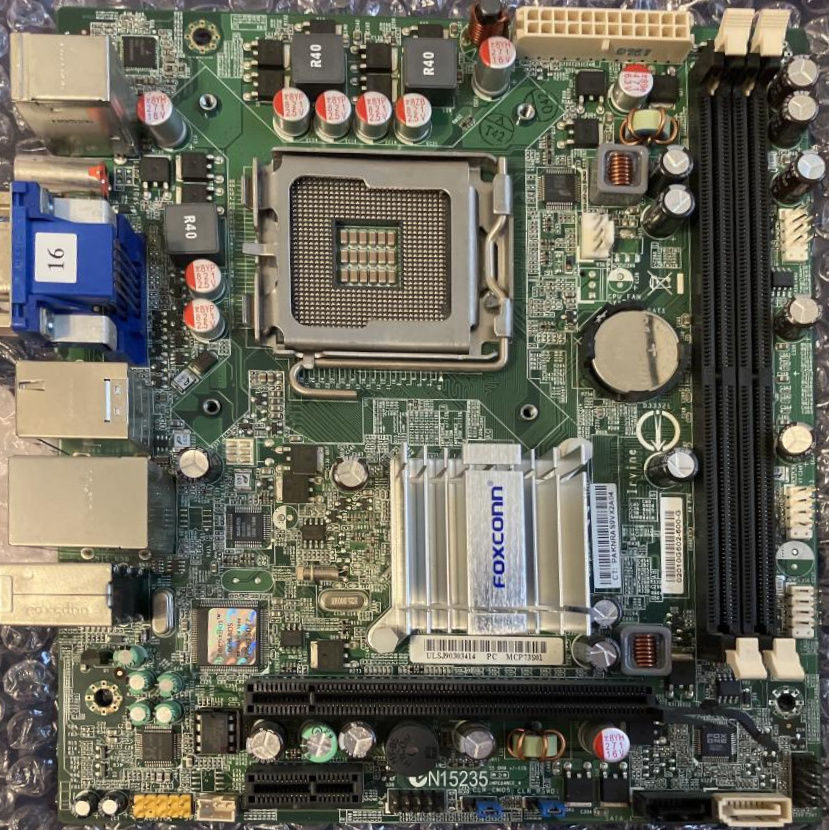

Image 4 of 4 (Marszala)
