Foxconn H-IG41-uATX (REV:1.0)
Chipset
Socket
FSB speeds 800 MHz1066 MHz1333 MHz
Form factormicroATX (max 244 x 244 mm)
DimensionsEmpty
Cache
None/Integrated in the CPU
Max RAM size
8 GB
RAM type DDR3 UDIMM
PSU connector
Also known as
- HP Eton
I/O ports1x
3.5mm Audio Combo
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
6x
USB 2.0
1x
VGA
Expansion slots1x
32-bit PCI
1x
32-bit mini-PCI
2x
PCIe x1
1x
PCIe x16
Notes
Used in various HP PCs, such as the Compaq CQ3212L and HP Compaq 500B
Last updated 2025-10-16T07:40:21Z
Board info score is 8.3/10
Chips
-> Chipset part
-> Audio
-> Network
-> Super I/O
CPU family support
- Intel Core 2 Duo (Conroe/Allendale)
- Intel Pentium D (Presler)
- Intel Core 2 Duo (Wolfdale)
- Intel Xeon (Wolfdale)
- Intel Xeon (Conroe/Allendale)
- Intel Pentium 4 (Cedar Mill)
- Intel Pentium Dual-Core (Allendale)
- Intel Celeron Dual-Core (Allendale)
- Intel Celeron (Conroe-L)
- Intel Celeron D (Cedar Mill-512)
- Intel Pentium Dual-Core (Wolfdale)
- Intel Celeron Dual-Core (Wolfdale)
5 BIOS files available
AMI - 5 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-0100-009999-00101111-030310-Eaglelake-1ETON000
Note
Core version
080014
BIOS version
Logs
POST string
64-0100-009999-00101111-030310-Eaglelake-1ETON000
Note
modded for LGA771 support
Core version
080014
BIOS version
Logs
POST string
64-0100-009999-00101111-012210-Eaglelake-1ETON000
Note
Core version
080014
BIOS version
Logs
POST string
64-0100-009999-00101111-112709-Eaglelake-1ETON000
Note
Core version
080014
BIOS version
Logs
POST string
64-0100-009999-00101111-090909-Eaglelake-1ETON000
Note
Core version
080014
BIOS version
Logs
4 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
14.42.15
Arch
x86
OS support
Windows XP/2k3
Size
9.3MB
Filename
Name
Version
9.2.0.1030
Arch
OS support
Windows 2000
Windows XP/2k3
Size
Empty
Filename
Name
Version
R2.74
Arch
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Size
30.7MB
Filename
Name
Version
1.0
Arch
OS support
MS-DOS
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
490.9KB
Filename
No board documents available
Chip
Release date
File
Logs
Chip
Release date
2010-07
File
Logs
Chip
Release date
2008-09
File
Logs
Chip
Release date
2007-04
File
Logs
Chip
Release date
2005-04
File
Logs
Chip
Release date
2012-05
File
Logs
Chip
Release date
2008-08-08
File
Logs
Family
Release date
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
2007-03
File
Logs
Family
Release date
2008-08
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
2008-10
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2008-12
File
Logs
Family
Release date
2009-01
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2008-12
File
Logs
Family
Release date
File
Logs
Family
Release date
2007-06
File
Logs
Family
Release date
2007-10
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2007-01
File
Logs
Family
Release date
2007-07
File
Logs
Socket
Release date
File
Logs

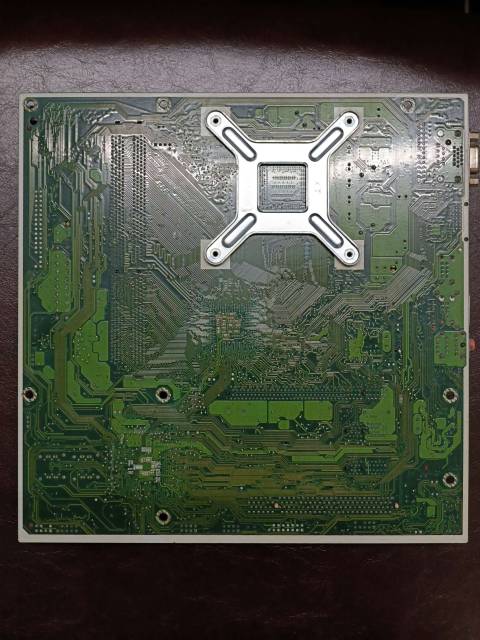

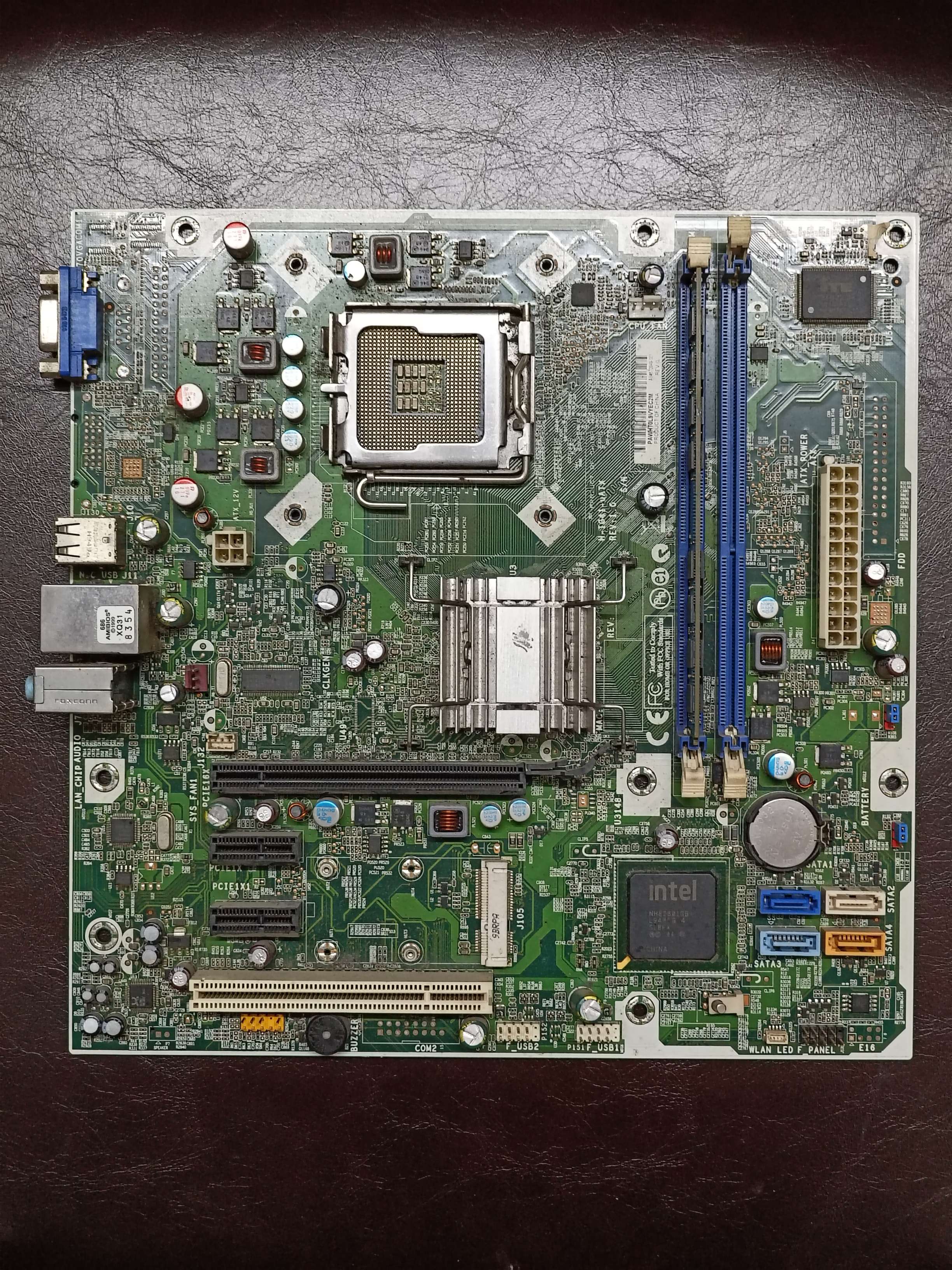

Image 1 of 2 (taptapking)
Image 2 of 2 (taptapking)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
