Ford Lian TX-5IB2
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
60MHz66MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
235mm x 220mm
chipCache
512KB
ramMax RAM size
256MB
ramRAM types
72-pin FPM72-pin EDOSDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
Parallel
2x
Serial
cardExpansion slots
3x
16-bit ISA
4x
32-bit PCI
Last updated 2024-09-04T17:53:20Z
Board info score is 9.4/10
bios 3 BIOS files available

vendor Award - 4 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
03/08/1999-i430TX-ALi513-2A59IF99C-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
03/08/1999-i430TX-ALi513-2A59IF99C-00
Note
128GB disk patch
Core version
4.51PG
BIOS version
Logs
POST string
06/16/1998-i430TX-ALi513-2A59IF99C-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
01/07/98-i430TX-ALi513x-2A59IF99C-00
Note
Core version
4.51PG
BIOS version
1.1
Logs
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Windows 2000 Windows 9x
Arch
x86
Size
1.5MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
569.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
577.8KB
Filename

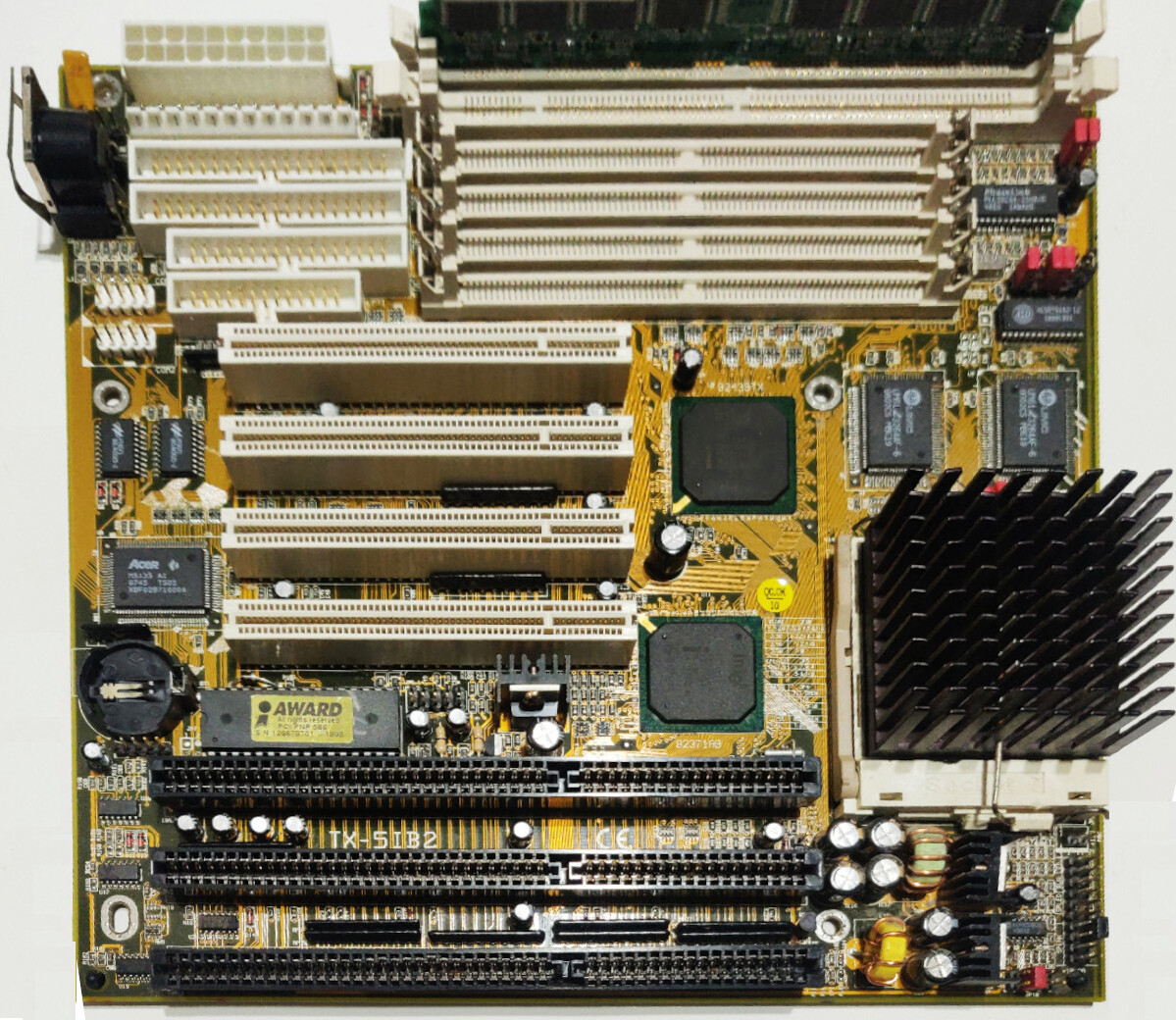

image1 Image 1 of 5 (Robert B)

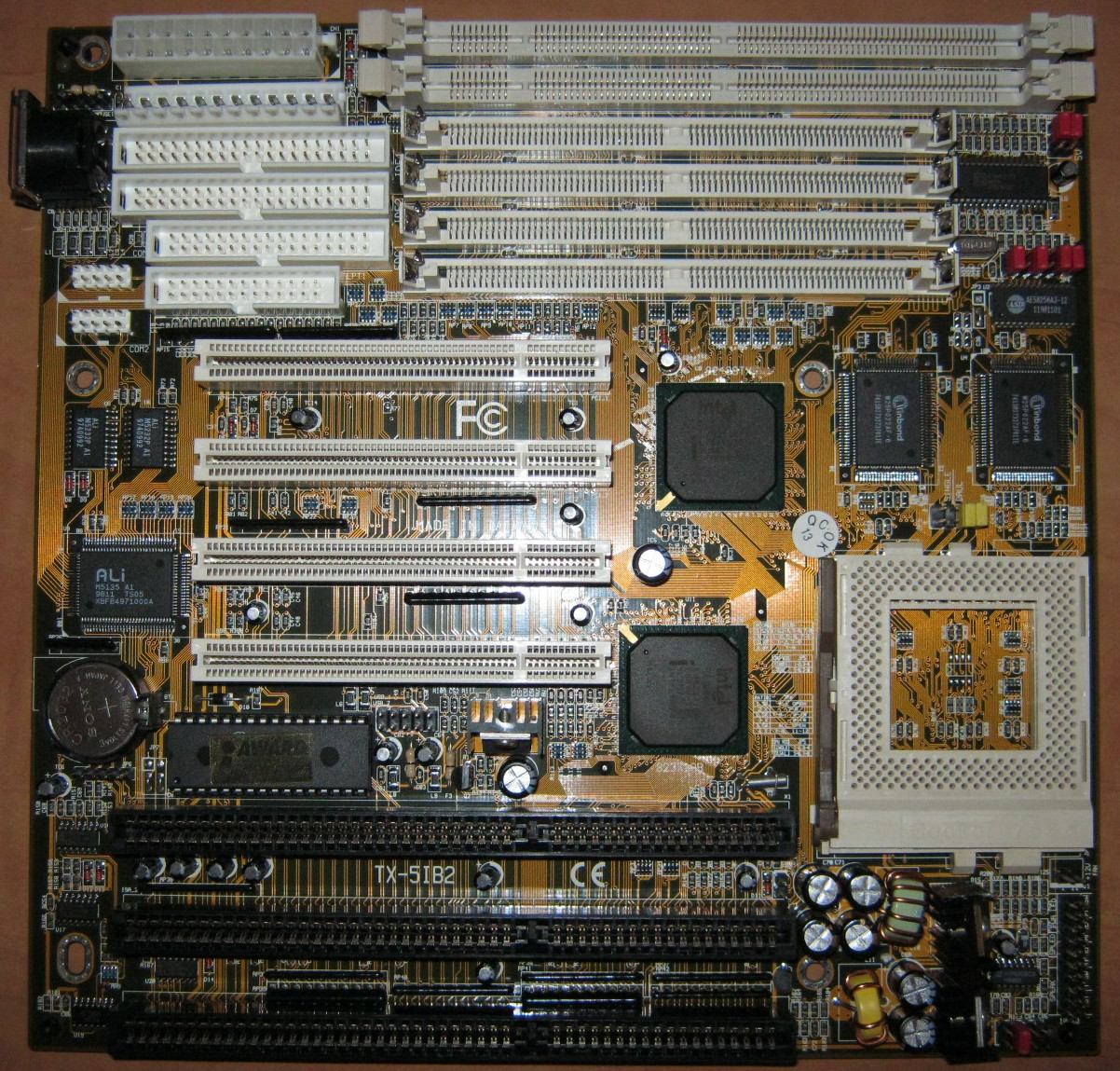

image2 Image 2 of 5 (Clous)

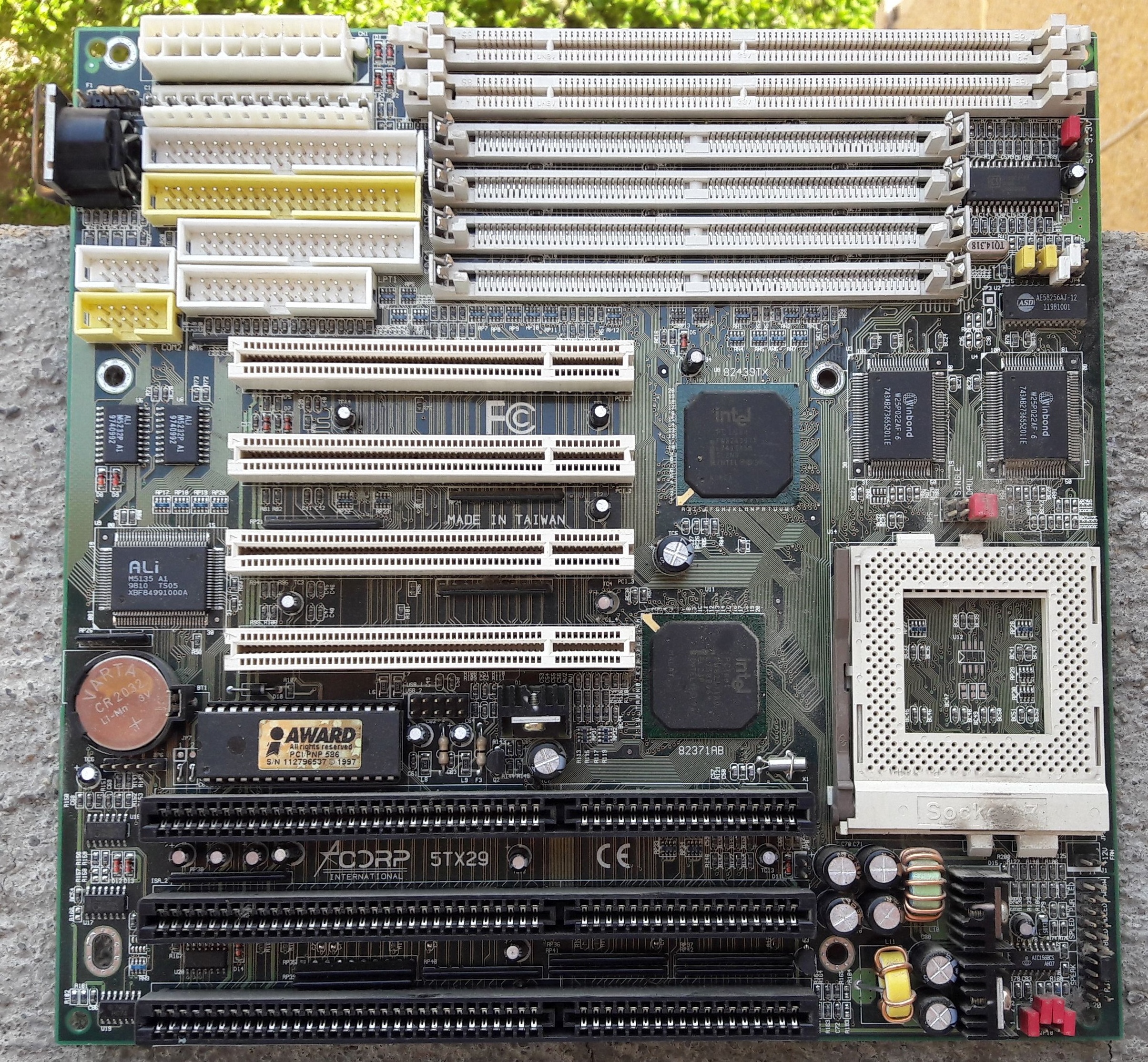

image3 Image 3 of 5

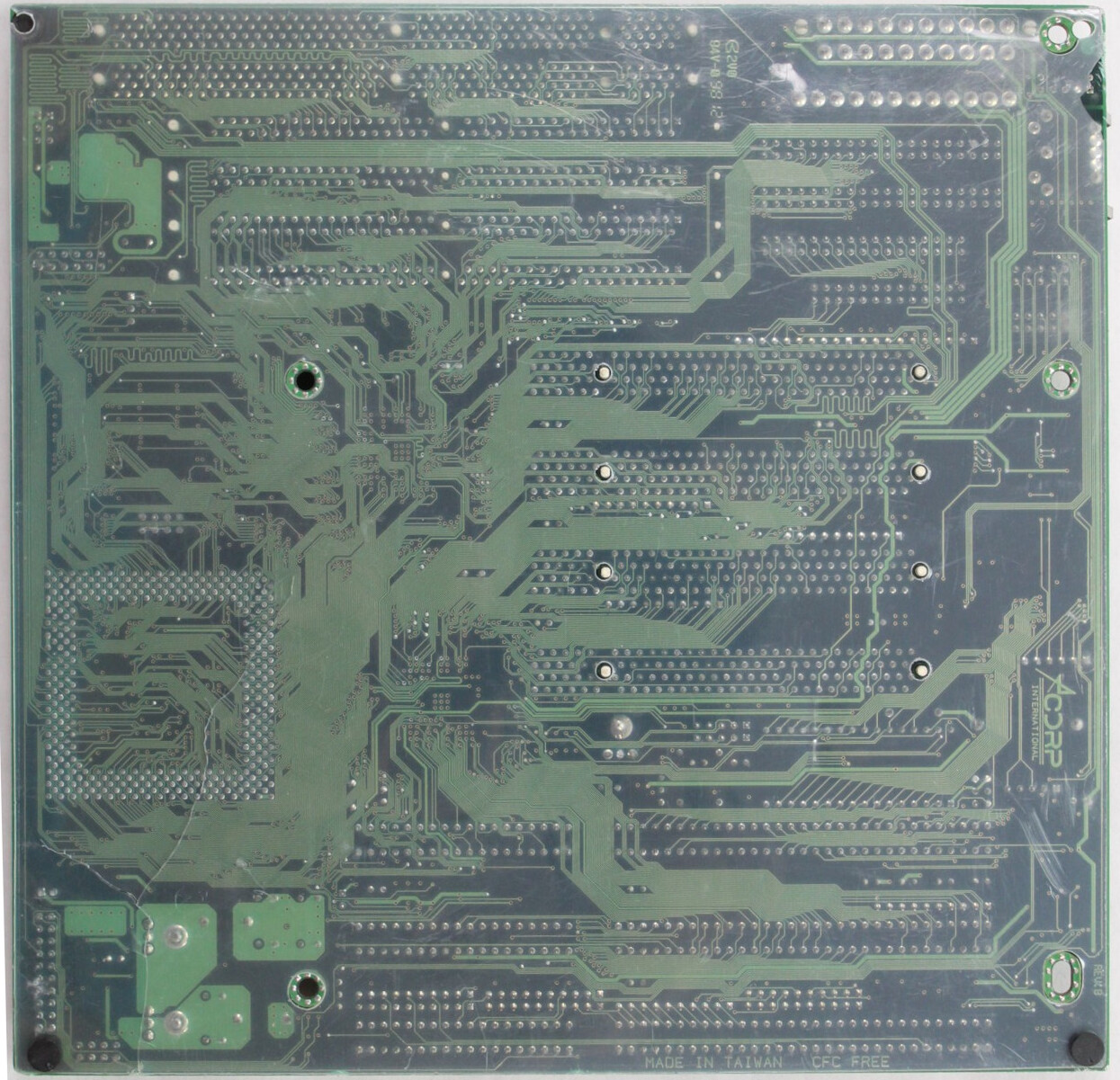

image4 Image 4 of 5 (iulianv)

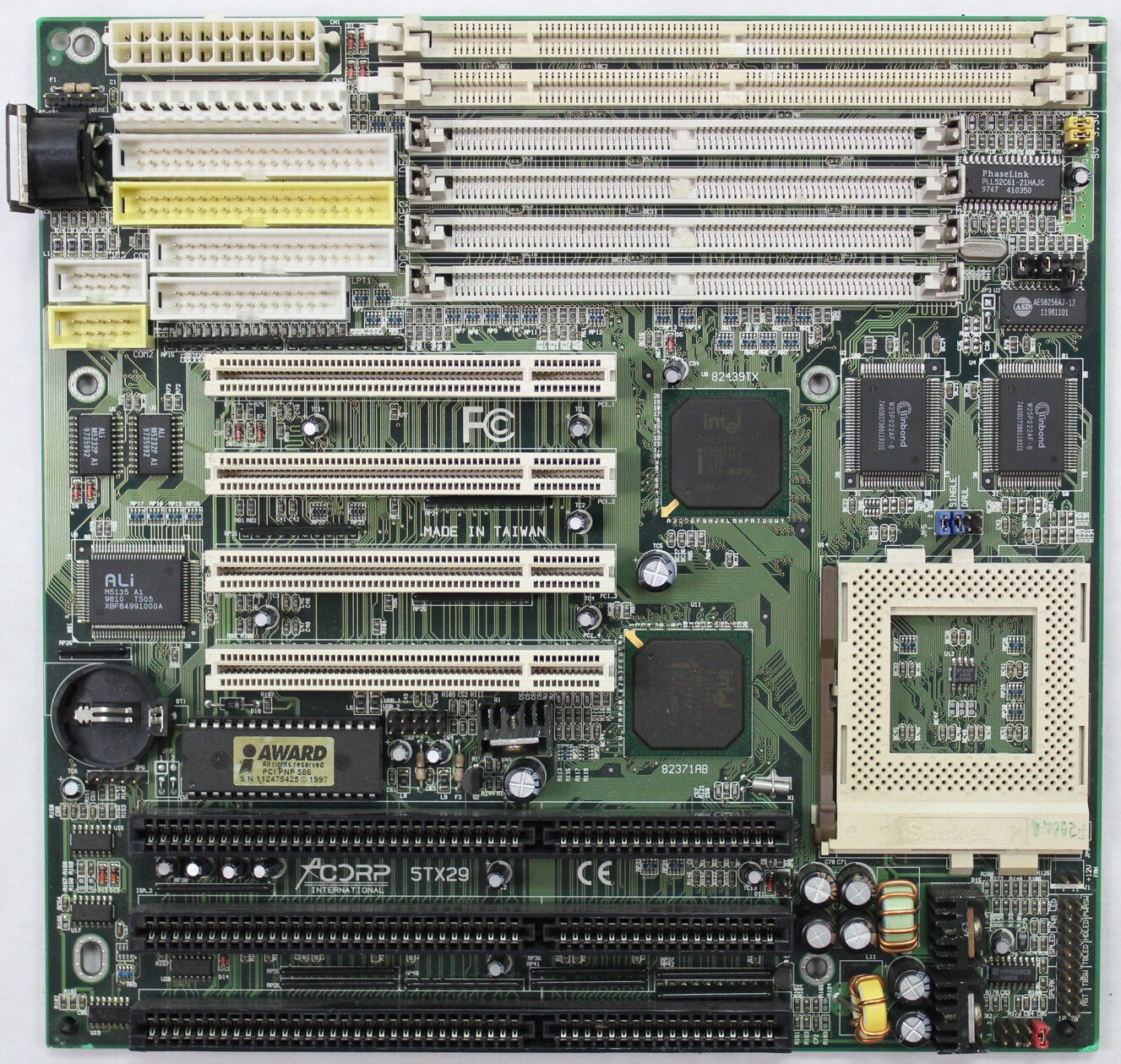

image5 Image 5 of 5 (Clous)
