Fodenn IPC-ATX1151
Logs
chipChipset
cpuSocket
Socket H4 (LGA1151)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
300mm x 242mm
chipCache
None/Integrated in the CPU
ramMax RAM size
64GB
ramRAM type
DDR4 UDIMM
pwrPSU connector
Molex (4-pin) ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
2x
HDMI
1x
LVDS
1x
PS/2 KB+MS Combo
1x
RJ-45 LAN
10x
SATA III
2x
Serial
7x
USB 2.0
34x
USB 3.0
1x
VGA
1x
mSATA
cardExpansion slots
1x
M.2 (M key)
1x
PCIe x16 @ x8
notes Notes

Uses Realtek RTL8111G or RTL8111H Network Chip

Last updated 2025-08-15T19:16:13Z
Board info score is 6.5/10
bios 0 BIOS files available
drv No drivers available

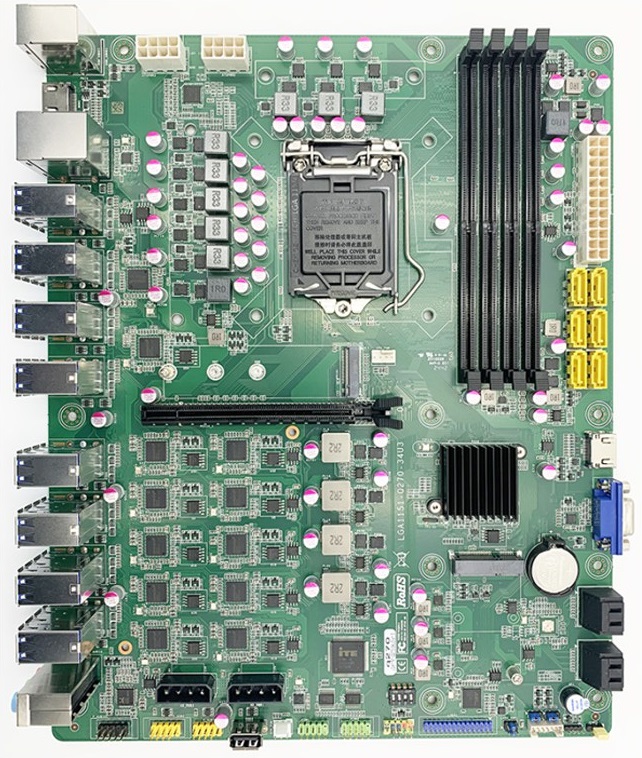

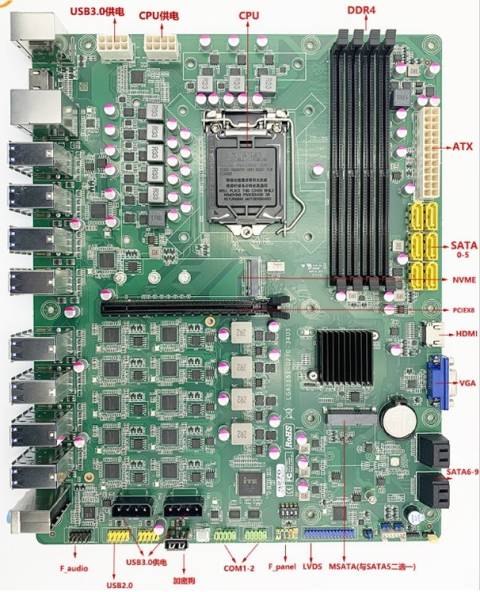

image1 Image 1 of 3 (Fodenn)
image2 Image 2 of 3 (Fodenn)
image3 Image 3 of 3 (Fodenn)
