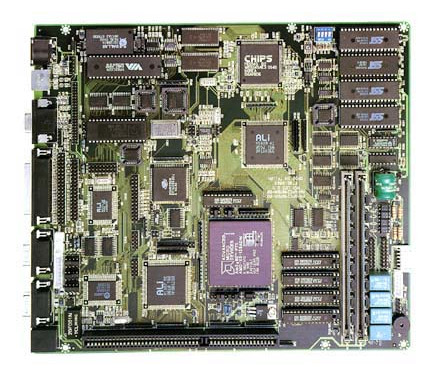

Flytech A57
Logs
chipChipset
cpuSocket
speedFSB speeds
20MHz25MHz33MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
Empty
ramMax VRAM size
1MB
chipCache
128KB
ramMax RAM size
64MB
ramRAM type
72-pin FPM
pwrPSU connector
connI/O ports
1x
AT Keyboard
1x
Floppy interface
1x
IDE interface
1x
PS/2 mouse
2x
Parallel
4x
Serial
1x
VGA
cardExpansion slots
1x
16-bit ISA
wrench Known issues
  • DALLAS RTC coin cell empty

The motherboard's Real-Time Clock (RTC) chip contains a coin cell that may have drained, causing the loss of CMOS settings. This can result in an inability to save settings, causing system instability or failure to boot. To fix this, the RTC chip can be replaced with an equivalent or repaired by cutting into it and soldering on a new external coin cell holder. Replacement guides are available at https://github.com/necroware/nwX287 or https://github.com/necroware/nw12887, depending on the actual chip used.

  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

Last updated 2025-06-24T18:45:52Z
Board info score is 7.7/10
cpufam CPU family support
bios 0 BIOS files available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
BIOS version
Logs
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
MS-DOS Windows 3.0 Windows 3.1x
Arch
x86
Size
1MB
Filename
Name
Version
N/A
OS support
Windows 3.1x
Arch
x86
Size
1MB
Filename
Name
Version
2.43
OS support
Windows 9x
Arch
x86
Size
114.4KB
Filename
Name
Version
1.10
OS support
Windows NT 4.0
Arch
x86
Size
52.9KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
