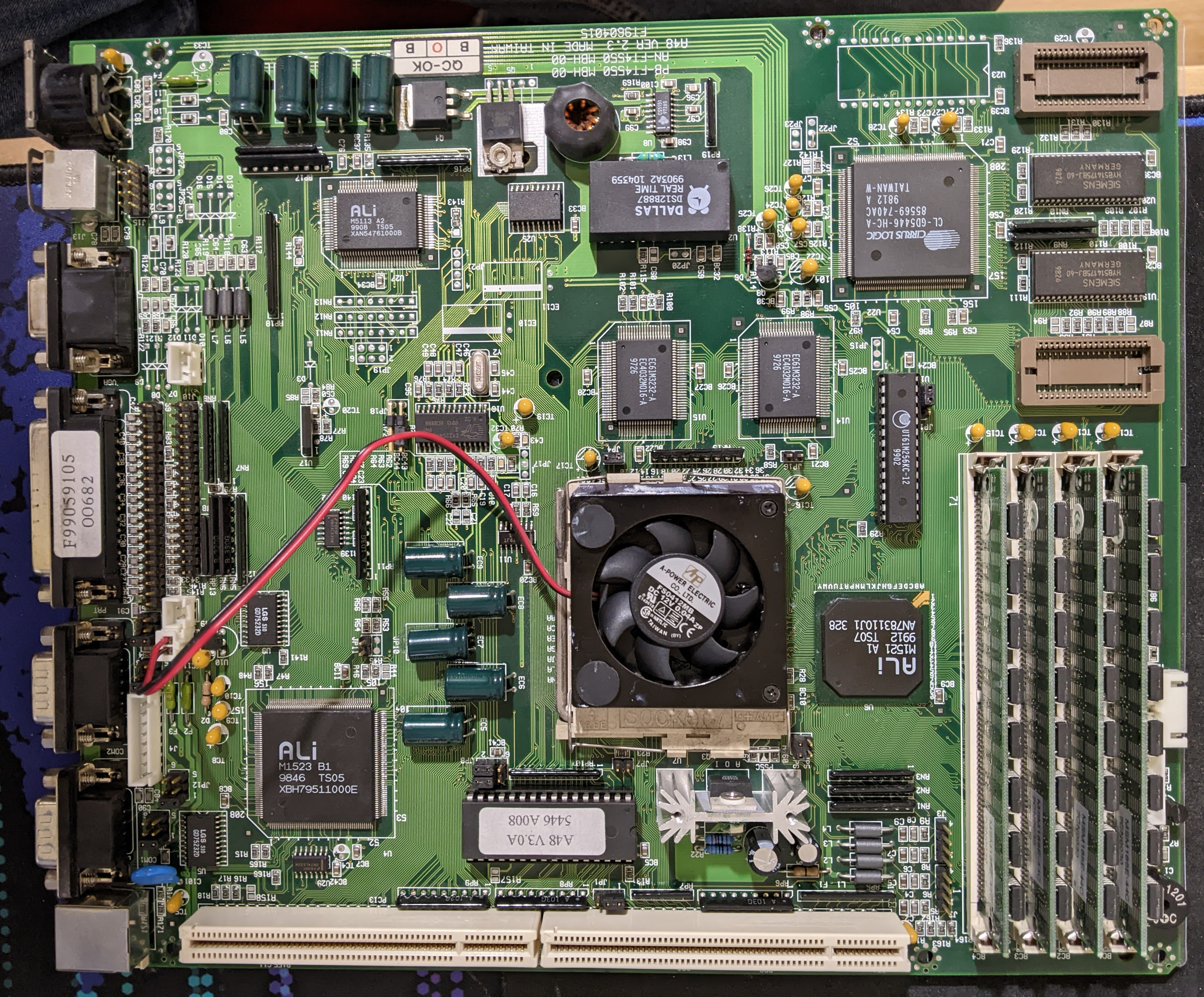

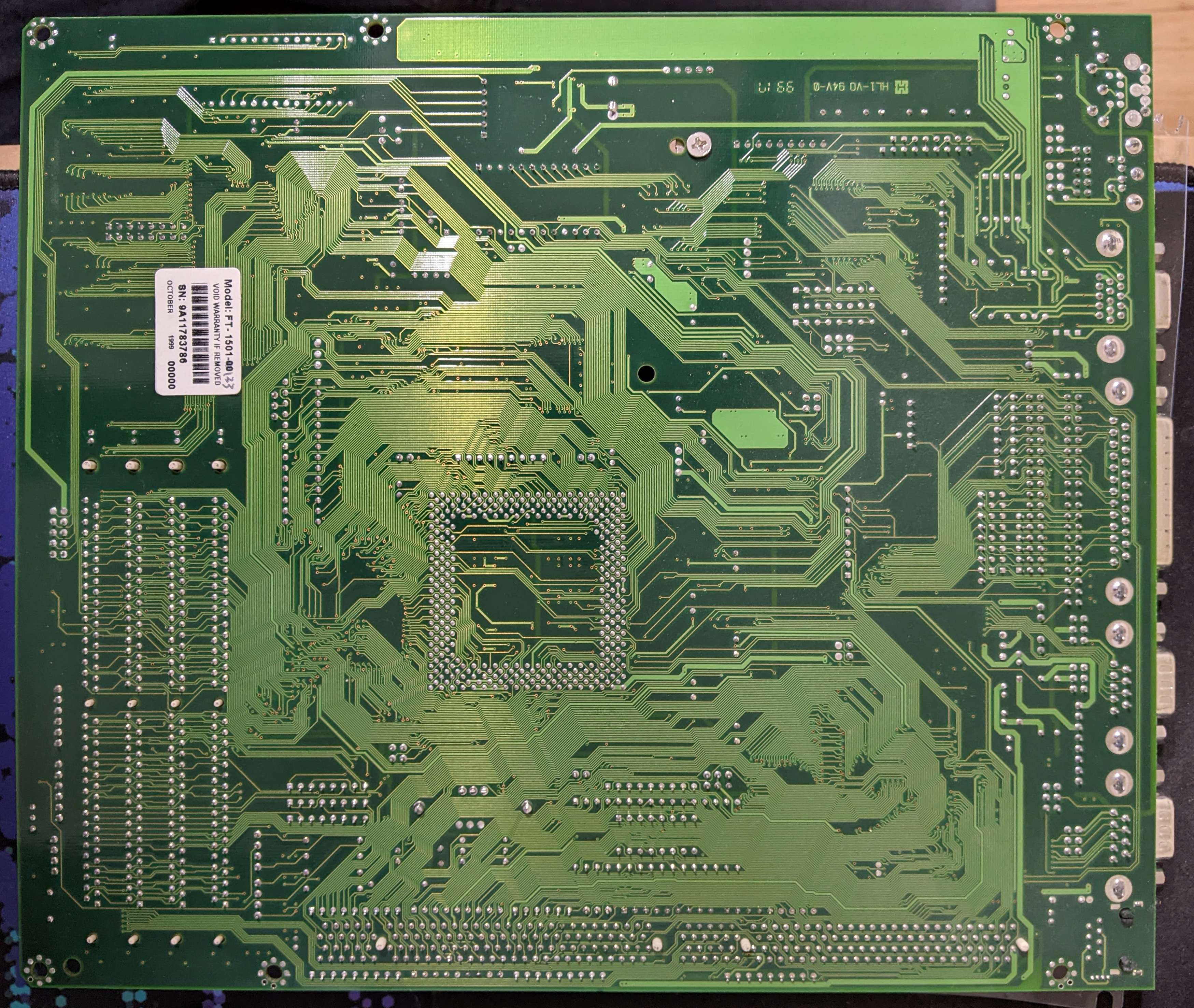

Flytech A48
Logs
chipChipset
cpuSocket
speedFSB speeds
50MHz60MHz66MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
Empty
ramMax VRAM size
2MB
chipCache
256KB512KB
ramMax RAM size
128MB
ramRAM types
72-pin FPM72-pin EDO
pwrPSU connector
tag Also known as
  • Flytech PB-FT4550 MBE-01/AN-FT4550 MBE-00
connI/O ports
1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
1x
32-bit PCI
wrench Known issues
  • DALLAS RTC coin cell empty

The motherboard's Real-Time Clock (RTC) chip contains a coin cell that may have drained, causing the loss of CMOS settings. This can result in an inability to save settings, causing system instability or failure to boot. To fix this, the RTC chip can be replaced with an equivalent or repaired by cutting into it and soldering on a new external coin cell holder. Replacement guides are available at https://github.com/necroware/nwX287 or https://github.com/necroware/nw12887, depending on the actual chip used.

  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

notes Notes

Riser board markings: PB-FT4000 ASK-00 AN-FT4000 ASK-00 4K-240I-2ISA-SLOT CARD MADE IN TAIWAN KCM1 94V-0

Last updated 2025-06-30T17:20:26Z
Board info score is 9.5/10
bios 1 BIOS file available

vendor Award - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
12/02/1998-ALI-1521/23-2A5KFF1KC-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
11/08/96-ALI-1521/23-2A5KFF1BC-00
Note
Core version
4.51PG
BIOS version
Logs
drv 8 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.13x
OS support
Windows 9x
Arch
x86
Size
78.1KB
Filename
Name
Version
1.41
OS support
Windows 9x
Arch
x86
Size
361.8KB
Filename
Name
Version
1.31a
OS support
Windows NT 3.5x
Arch
x86
Size
65KB
Filename
Name
Version
1.41
OS support
Windows NT 4.0
Arch
x86
Size
194.6KB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
