FIC PAC-2003
Chipset
Socket
FSB speeds 50MHz60MHz66MHz
Form factorLPX (max 229 x 330 mm)
Dimensions330mm x 218mm
Max VRAM size2MB
Cache
256KB512KB1MB
Max RAM size
512MB
RAM types 72-pin FPM72-pin EDO
PSU connector
I/O ports1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
Expansion slotsEmpty
Known issues
- Expansion slots are on proprietary riser
The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
Notes
Split-voltage CPU support with optional VRM module
Website stated LPM form factor, we believe this to mean LPX
Last updated 2025-06-30T17:10:50Z
Board info score is 8.9/10
Chips
-> Chipset part
-> Video
8 BIOS files available
Award - 8 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
02/11/99-VT82C580VP-2A5LA008C-00
Note
Y2K ready
Core version
4.51PG
BIOS version
Logs
POST string
11/09/96-VT82C580VP-2A5LA008C-00
Note
FPM VGA
Core version
4.51PG
BIOS version
Logs
8 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.13x
OS support
Windows 9x
Arch
x86
Size
78.1KB
Filename
Name
Version
1.41
OS support
Windows 9x
Arch
x86
Size
361.8KB
Filename
Name
Version
1.31a
OS support
Windows NT 3.5x
Arch
x86
Size
65KB
Filename
Name
Version
1.41
OS support
Windows NT 4.0
Arch
x86
Size
194.6KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS
OS/2 2.x
Windows 3.1x
Windows 9x
Windows NT 4.0
Arch
x86
Size
6.8MB
Filename
Version
OS support
MS-DOS
Windows 3.1x
Windows 9x
Windows NT 4.0
Arch
x86
Size
7MB
Filename
3 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1998-01
File
Logs

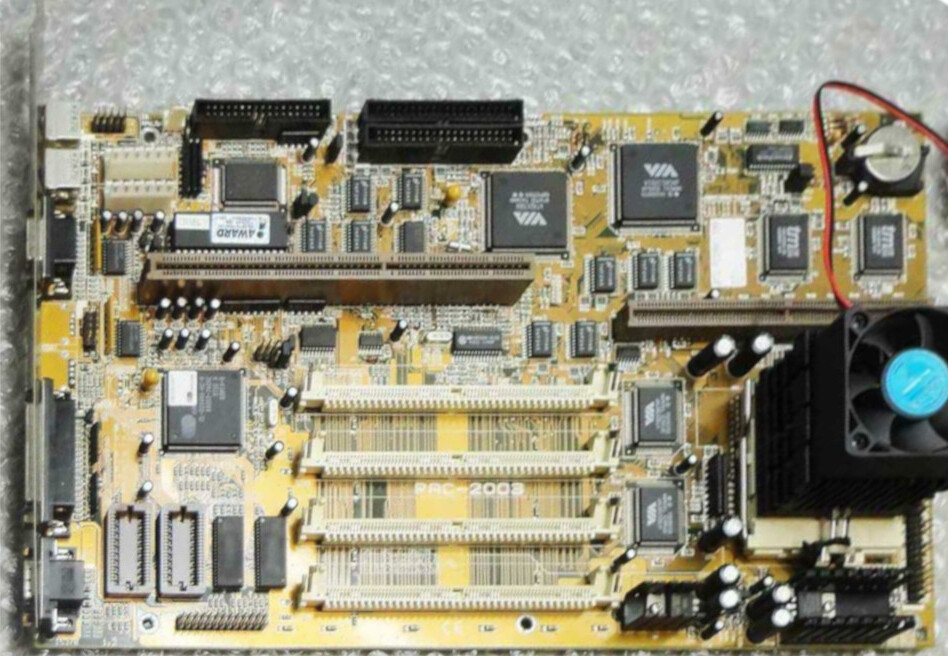

Image 1 of 2 (Microhouse)
Image 2 of 2
