FIC P4M-915GVD1
Logs
chipChipset
cpuSocket
Socket T (LGA775)
speedFSB speeds
533MHz800MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244 mm x 244 mm
ramMax VRAM size
128MB
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as

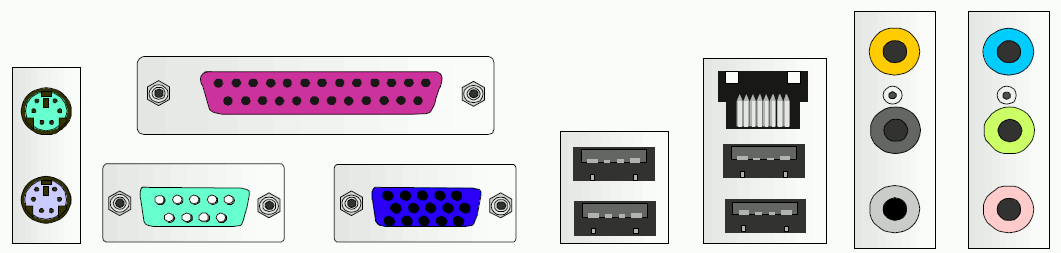

connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA I
2x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
3x
32-bit PCI
1x
PCIe x16 @ x4
wrench Known issues
  • Misleading PCIexpress slot/specification

The motherboard may feature a misleading PCI Express slot/specification. In some instances, an x16 slot may only support x4 speeds. In other cases, the slot may have just a single lane connected to it, significantly limiting its functionality. Be cautious of these discrepancies to ensure compatibility with your PCI Express devices.

notes Notes

The PCIe x16 slot runs at x4 due to chipset limitations

Optional ALC880 8ch Audio and/or RTL8110S Gigabit LAN

Last updated 2026-01-07T20:41:27Z
Board info score is 9.6/10
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
11/05/2004-915GV/L-6A79DF0AC-00
Note
Core version
6.00PG
BIOS version
Logs
drv 8 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
14.17.0.4396
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
14.25.50
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
Empty
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Name
Version
V5.00
OS support
MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Netware Client32 SCO Unix - OpenServer Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86 , PPC
Size
3.3MB
Filename
Name
Version
1.0
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
490.9KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
Empty
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2005-01
File
Logs
Chip
Release date
2007-11
File
Logs
Chip
Release date
2004-10
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-11-05
File
Logs
Chip
Release date
2002-10-01
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2005-02
File
Logs
Family
Release date
2005-05
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-10
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2006-02
File
Logs
Socket
Release date
2004
File
Logs

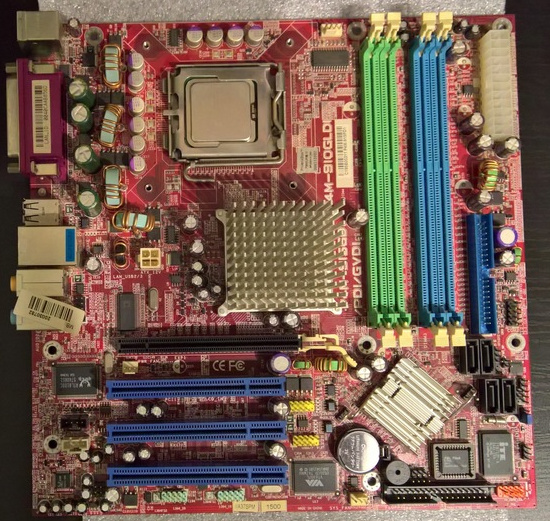

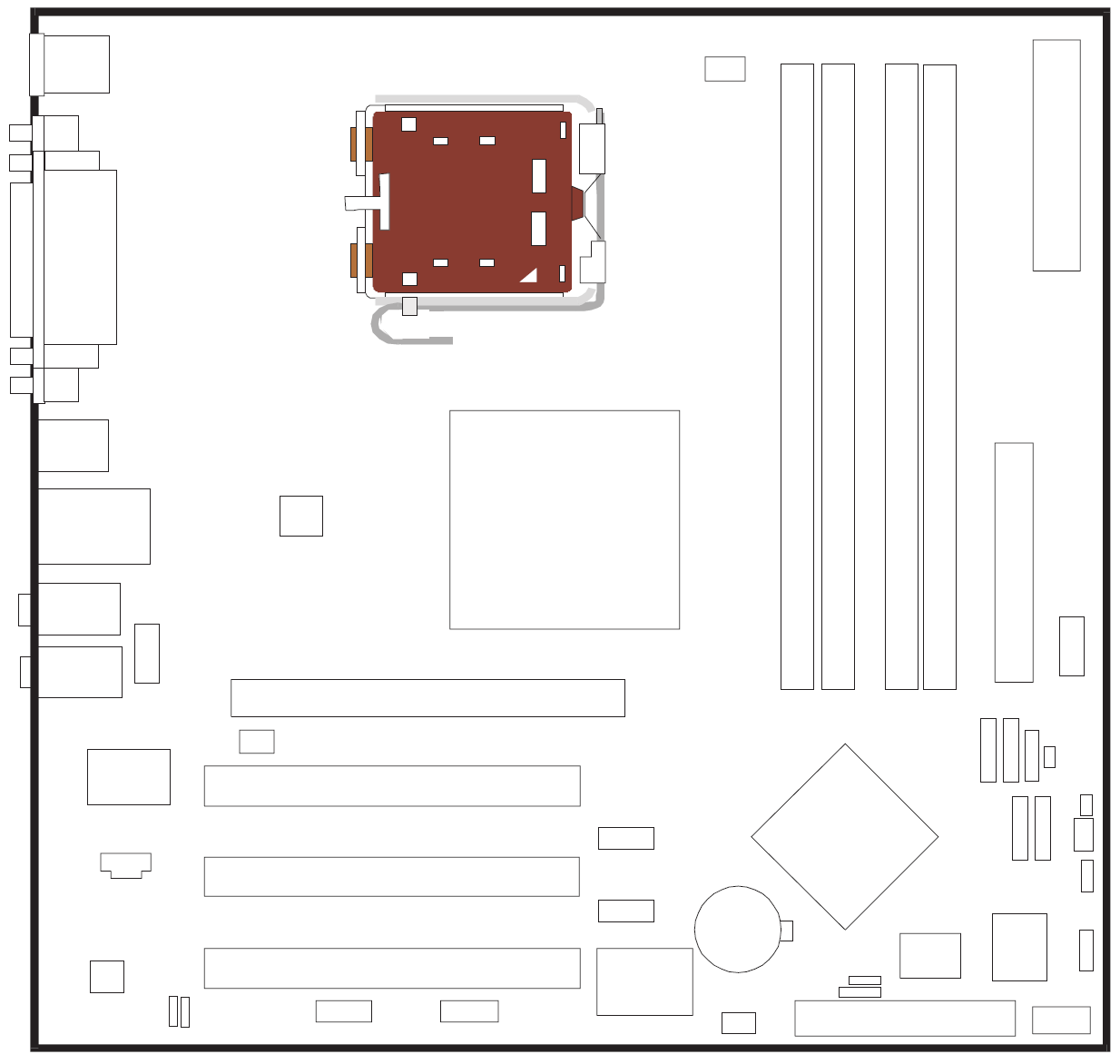

image1 Image 1 of 3 (evasive)
image2 Image 2 of 3
image3 Image 3 of 3

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
