FIC 486-PIO2
Logs
chipChipset
cpuSocket
Socket 3 (PGA237)
speedFSB speeds
25MHz33MHz40MHz50MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
330mm x 218mm
chipCache
128KB256KB512KB
ramMax RAM size
128MB
ramRAM type
72-pin FPM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
Parallel
2x
Serial
cardExpansion slots
4x
16-bit ISA
4x
32-bit PCI
notes Notes

WARNING:
Exists with 3 different Super I/O chips and has 2 different bios versions because of that. Please check before you flash.

Last updated 2025-02-28T21:11:26Z
Board info score is 9.6/10

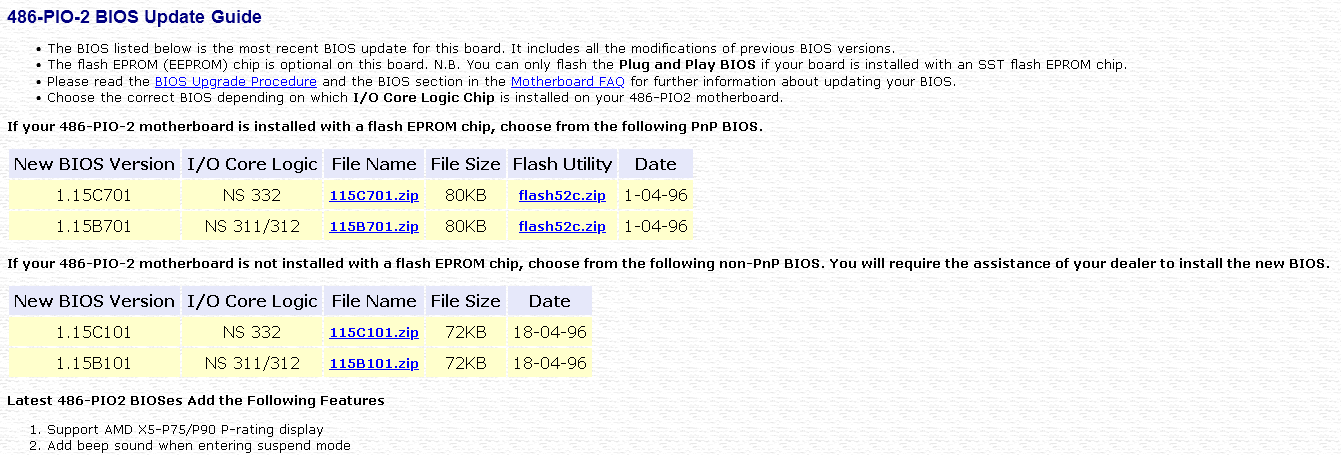

bios 9 BIOS files available

vendor Award - 9 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
07/16/97-VT496G-2A4L6F0IC-00
Note
PC87311/312
Core version
4.50PG
BIOS version
Logs
POST string
07/16/97-VT496G-2A4L6F0IC-00
Note
PC87311/312
Core version
4.50G
BIOS version
Logs
POST string
04/01/96-VT496G-2A4L6F0IC-00
Note
PC87332
Core version
4.50PG
BIOS version
Logs
POST string
04/18/96-VT496G-2A4L6F0IC-00
Note
PC87332
Core version
4.50G
BIOS version
Logs
POST string
04/01/96-VT496G-2A4L6F0IC-00
Note
PC87311/312
Core version
4.50PG
BIOS version
Logs
POST string
04/18/96-VT496G-2A4L6F0IC-00
Note
PC87311/312
Core version
4.50G
BIOS version
Logs
POST string
11/10/95-VT496G-2A4L6F0IC-00
Note
PC87311/312
Core version
4.50G
BIOS version
Logs
POST string
08/29/95-VT496G-505-2A4L6F0IC-00
Note
PC87332
Core version
4.50PG
BIOS version
Logs
POST string
08-21-95-VT496G-505-2A4L6F0A-00
Note
PC87311/312
Core version
4.50G
BIOS version
Logs
drv No drivers available
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1993-10
File
Logs
Chip
Release date
1993-10
File
Logs
Chip
Release date
1995-05
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1996-03
File
Logs
Family
Release date
1995-07
File
Logs
Family
Release date
1995-10
File
Logs
Family
Release date
1995-12
File
Logs
Family
Release date
1989-04
File
Logs
Family
Release date
1990
File
Logs
Family
Release date
1992-10
File
Logs
Family
Release date
1992-02
File
Logs

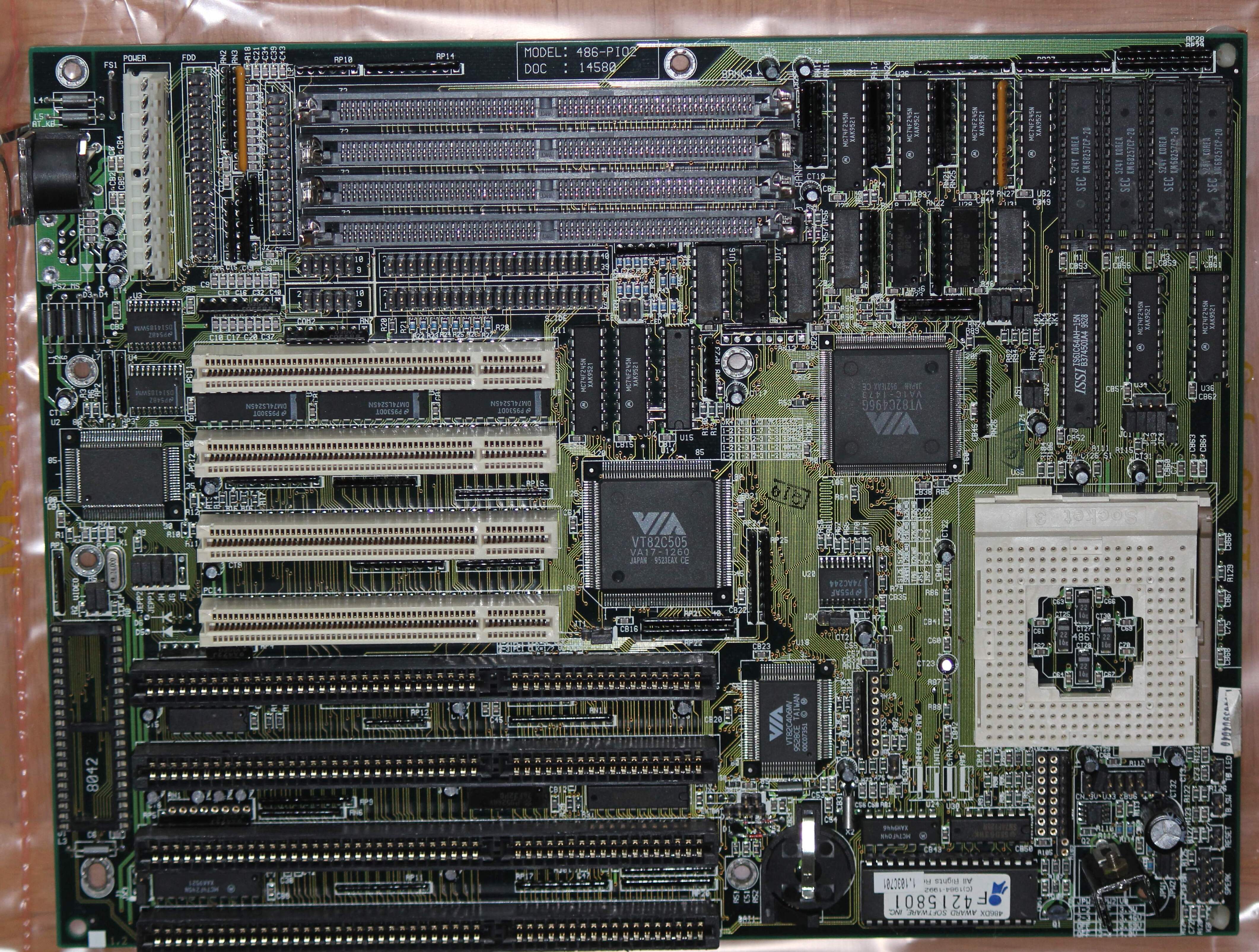

image1 Image 1 of 6 (Microhouse)

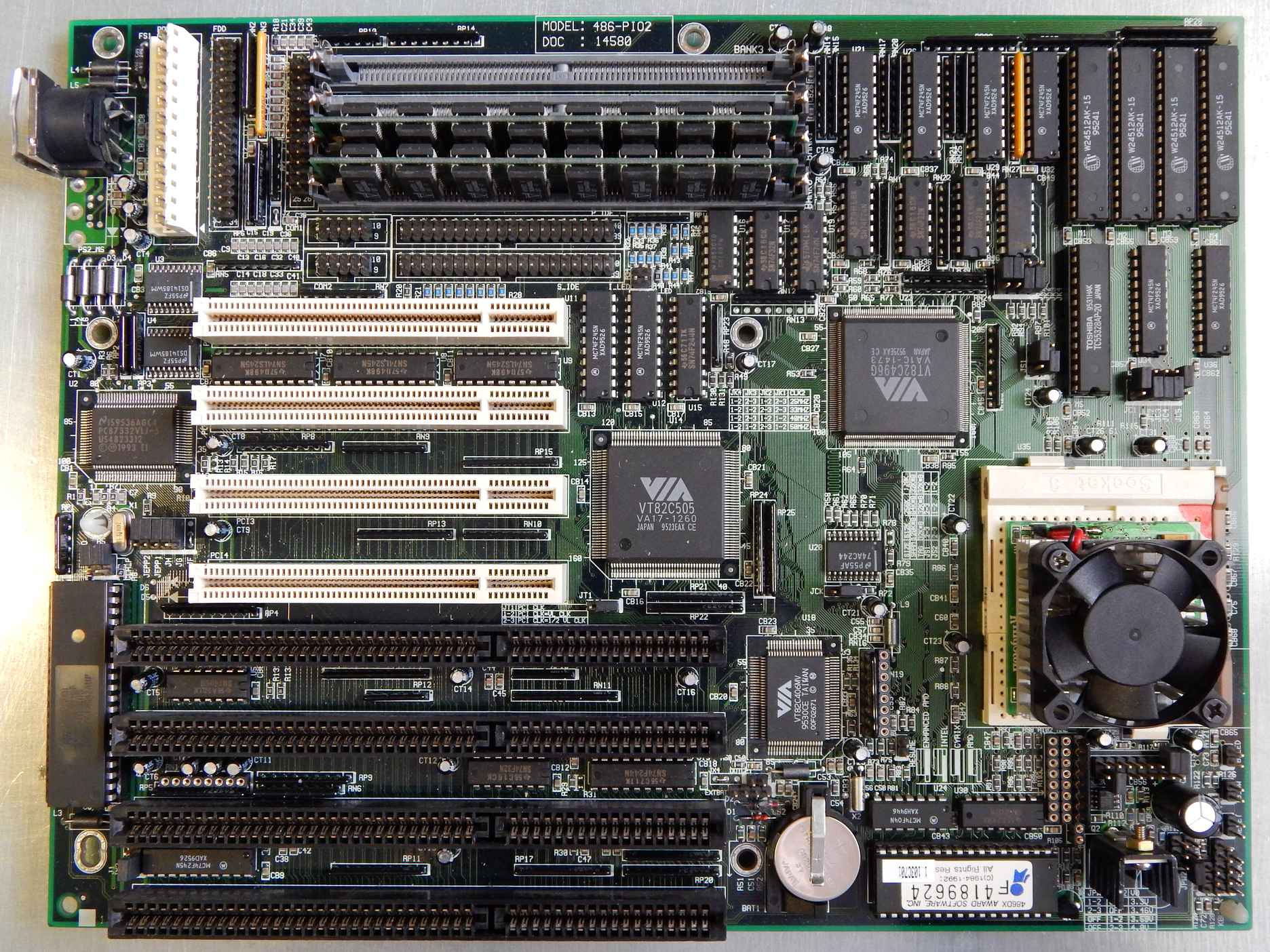

image2 Image 2 of 6 (zoinknoise)
image3 Image 3 of 6 (Predator99)

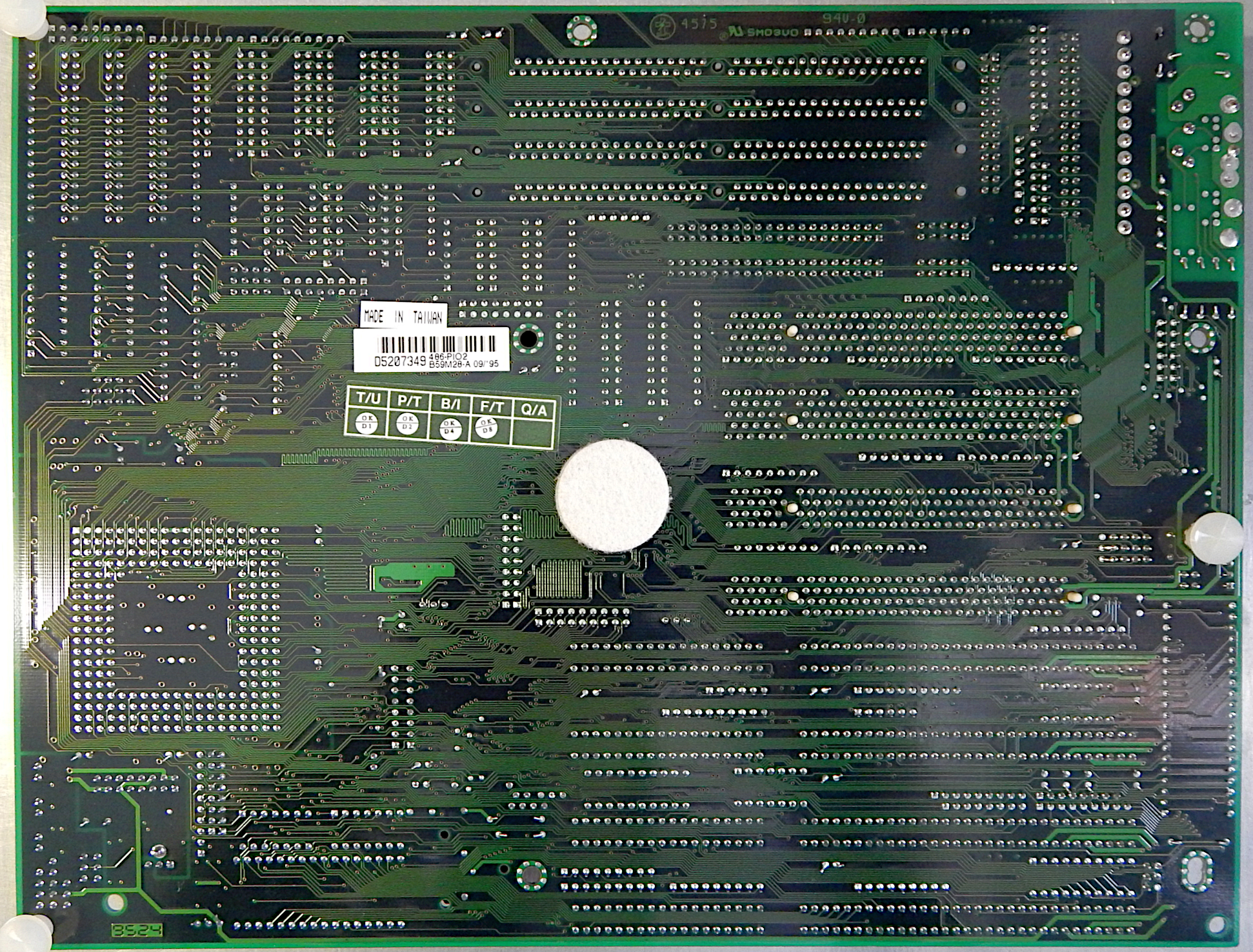

image4 Image 4 of 6 (PhatCJ)
image5 Image 5 of 6 (PhatCJ)
image6 Image 6 of 6
