FIC 486-GAC-V
Logs
chipChipset
cpuSocket
Socket 3 (PGA237)
speedFSB speeds
25MHz33MHz40MHz50MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
330mm x 218mm
ramMax VRAM size
2MB
chipCache
64KB128KB256KB
ramMax RAM size
64MB
ramRAM type
72-pin FPM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
connI/O ports
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
cardExpansion slots
1x
16-bit ISA
1x
32-bit VLB
wrench Known issues
  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

notes Notes

An optional daughterboard is needed for 3.3V CPU support.

Last updated 2025-06-24T17:44:18Z
Board info score is 9.8/10
bios 3 BIOS files available

vendor Award - 3 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
04/08/96-VT82C486A-214L2000-00
Note
with VGA BIOS
Core version
4.50
BIOS version
Logs
POST string
06/16/97-VT82C486A-214L2000-00
Note
beta BIOS (Y2K fix) + VGA BIOS
Core version
4.50
BIOS version
Logs
POST string
10/26/94-VT82C486A-214L2000-00
Note
Core version
4.50
BIOS version
Logs
drv 9 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.43
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
741.9KB
Filename
Name
Version
3.50
OS support
Windows NT 3.1 Windows NT 3.5x
Arch
x86
Size
140KB
Filename
Name
Version
3.3
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 2.x OS/2 Warp 3.x SCO Unix - OpenServer Windows 9x
Arch
x86
Size
343.7KB
Filename
Name
Version
2.60
OS support
OS/2 2.x Windows 3.1x Windows NT 3.1
Arch
Size
130.8KB
Filename
Name
Version
3.31
OS support
MS-DOS OS/2 2.x OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.1 Windows NT 3.5x
Arch
x86
Size
339.6KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
1.4MB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
600.3KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 2.x OS/2 Warp 3.x SCO Unix - OpenServer Windows 3.1x Windows 9x Windows NT 3.1 Windows NT 3.5x
Arch
x86
Size
312.1KB
Filename
Version
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 2.x Windows 3.1x Windows NT 3.1
Arch
x86
Size
227KB
Filename
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
2009-12
File
Logs
Chip
Release date
2009-12
File
Logs
Chip
Release date
1993-10
File
Logs
Chip
Release date
2000-05-21
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs
Family
Release date
File
Logs
Family
Release date
1996-03
File
Logs
Family
Release date
1995-07
File
Logs
Family
Release date
1995-10
File
Logs
Family
Release date
1995-12
File
Logs
Family
Release date
1989-04
File
Logs
Family
Release date
1990
File
Logs
Family
Release date
1992-10
File
Logs
Family
Release date
1992-02
File
Logs

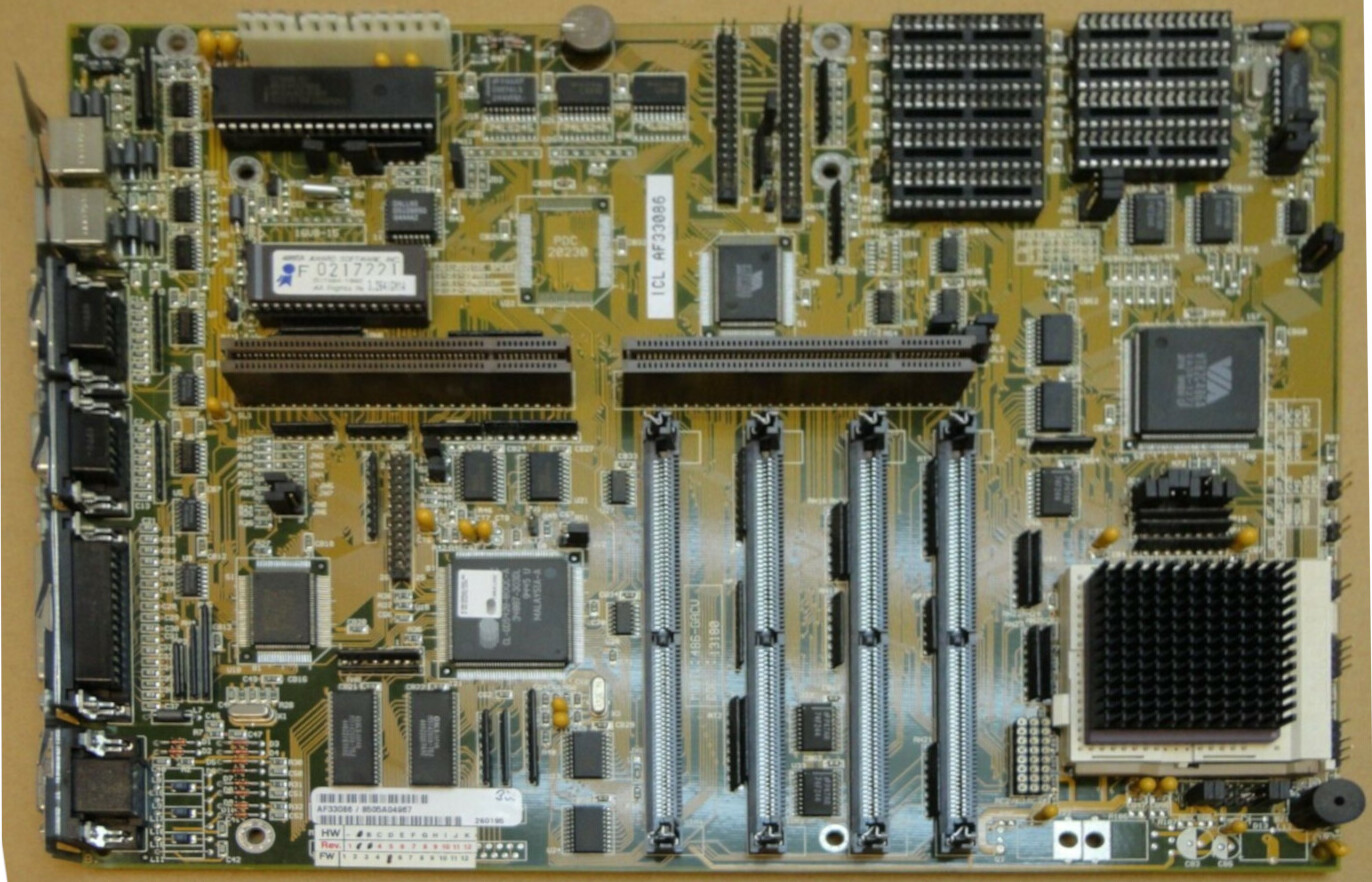

image1 Image 1 of 5 (evasive)

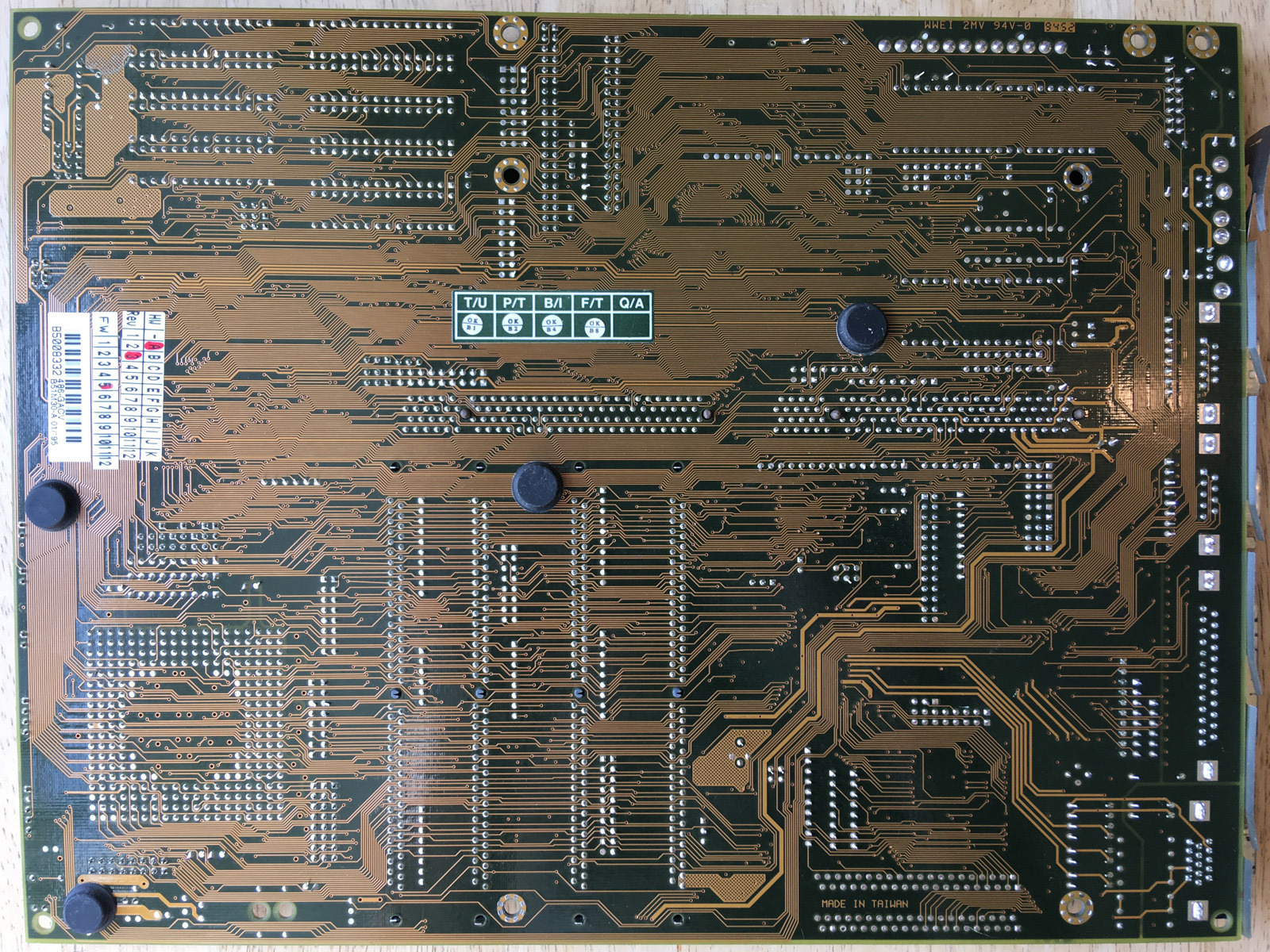

image2 Image 2 of 5 (andunn)

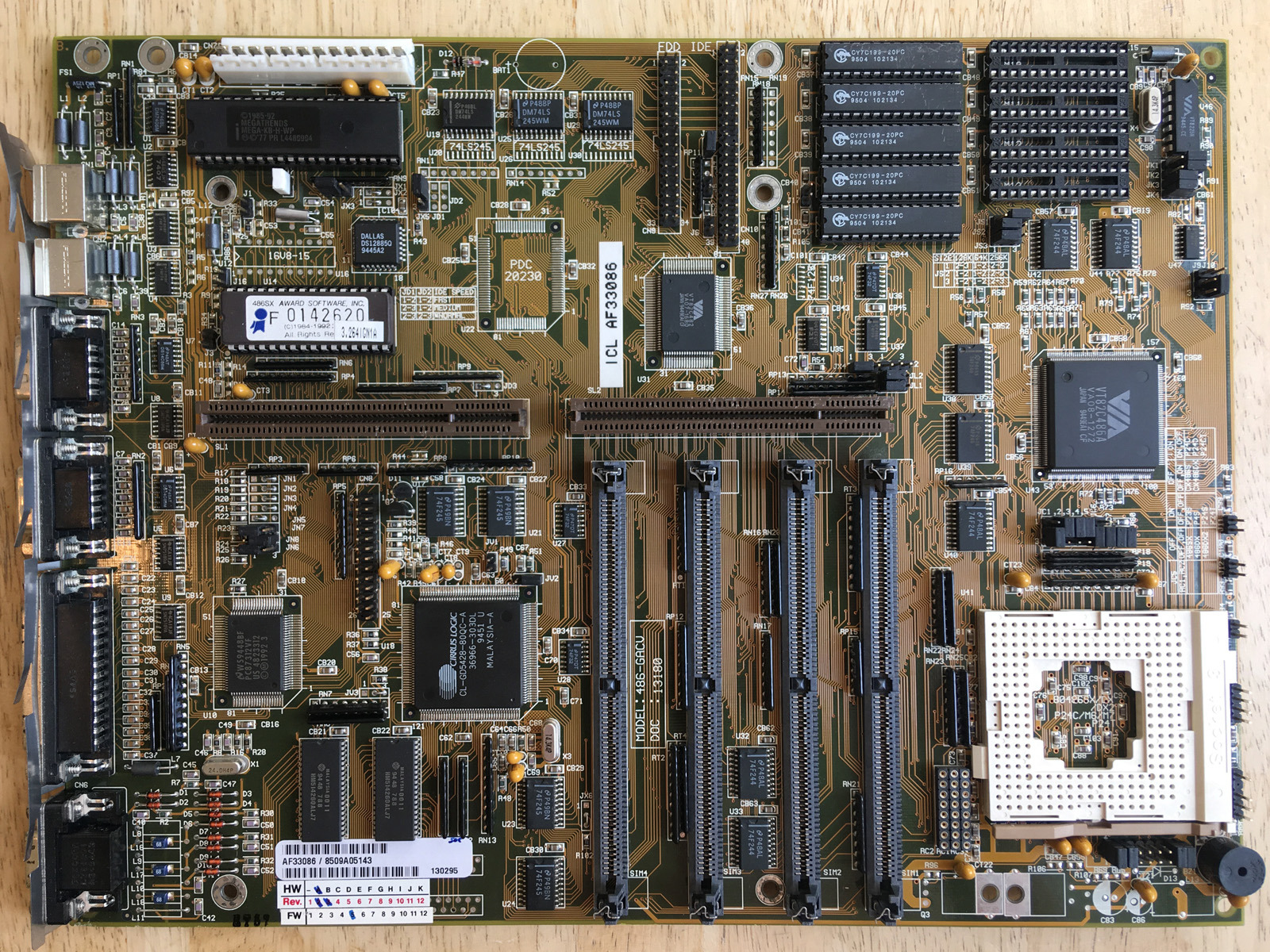

image3 Image 3 of 5 (andunn)

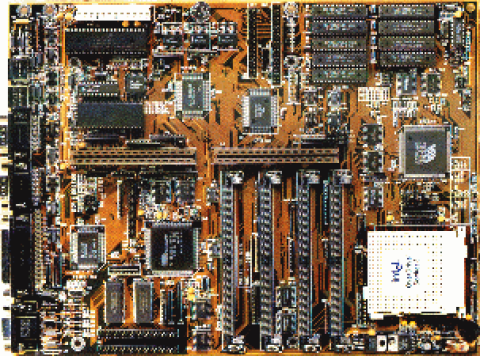

image4 Image 4 of 5

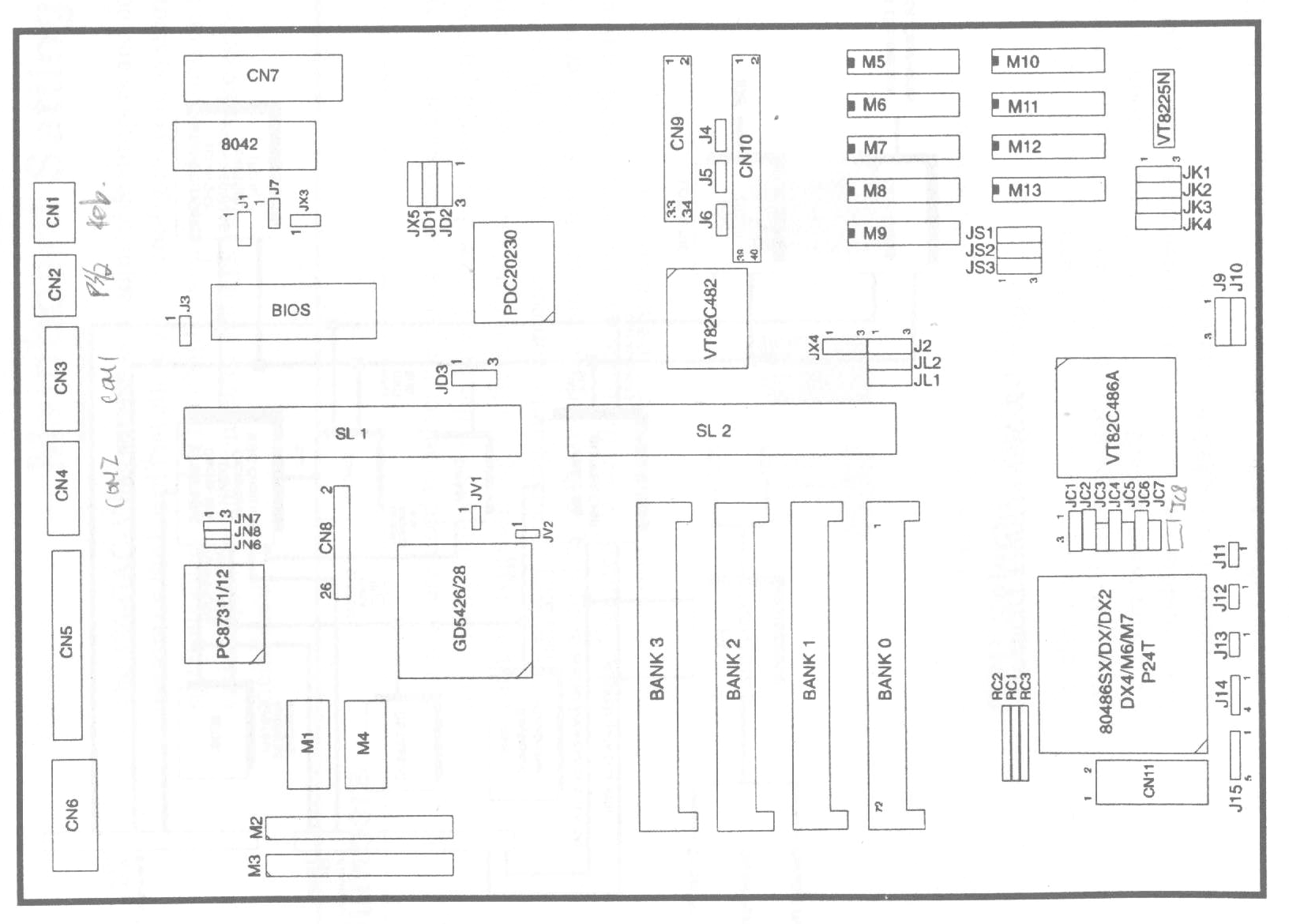

image5 Image 5 of 5
