EVOC ETX-1541CLDNA
Logs
chipChipset
cpuSocket
BGA352
speedFSB speed
Empty
moboForm factor
ETX (max 95 × 114 mm)
dimDimensions
95mm x 114mm
chipCache
None/Integrated in the CPU
ramMax RAM size
512MB
ramRAM type
144-pin SDR SO-DIMM
pwrPSU connector
Empty
tag Also known as
  • EVOC ETX-1541CLDNA -300
connI/O ports
1x
3.5mm Audio Combo
1x
CF Card Slot
1x
IDE interface
1x
IrDA
1x
LVDS
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
4x
32-bit ETX
notes Notes

For use with EDB-ETX01 ETX series expansion baseboard

Last updated 2025-08-16T21:34:25Z
Board info score is 5.5/10
chip Chips
-> Chipset part
National Semiconductor CS5530A
cpufam CPU family support
bios 0 BIOS files available
drv No drivers available
doc No board documents available
image1 Image 1 of 2 (EVOC)

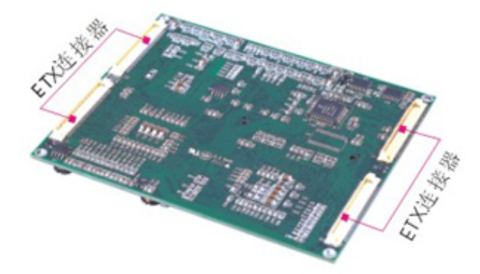

image2 Image 2 of 2 (EVOC)
