EVGA X58 SLI Classified (E760) (E761) (E764) (E769)
Logs
chipChipset
cpuSocket
Socket B (LGA1366)
speedFSB speed
Empty
moboForm factor
Extended ATX/EATX (max 305 × 330 mm)
dimDimensions
305mm x 330mm
chipCache
None/Integrated in the CPU
ramMax RAM size
24 GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
tag Also known as
  • EVGA 141-BL-E760-A1
  • EVGA 141-BL-E761-A1
  • EVGA X58 SLI Classified EVGA ECP
  • EVGA X58 SLI Classified Hydro Copper
  • EVGA 141-BL-E769-A1
  • EVGA 141-BL-E764-A1
connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
IDE interface
1x
PS/2 KB+MS Combo
2x
RJ-45 LAN
1x
S/PDIF
9x
SATA II
1x
Toslink
12x
USB 2.0
1x
eSATA II
cardExpansion slots
1x
32-bit PCI
1x
PCIe x1
2x
PCIe x16
2x
PCIe x16 @ x8
notes Notes

E760 - X58 SLI Classified Without EVGA ECP

E761 - X58 SLI Classified (Includes EVGA ECP)

E764 - X58 SLI Classified With HydroCopper Waterblock Installed

E769 - X58 SLI Classified With HydroCopper Waterblock Installed (Includes EVGA ECP)

All Boards use the same Bios and PCB

Last updated 2025-06-25T15:28:23Z
Board info score is 9.4/10
bios 16 BIOS files available

vendor Award - 16 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
08/25/2011-141-BL-E760-8A79TEVBC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
04/20/2011-141-BL-E760-8A79TEVBC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
04/12/2011-141-BL-E760-8A79TEVBC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
03/29/2011-141-BL-E760-8A79TEVBC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
01/31/2011-141-BL-E760-8A79TEVBC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
10/26/2010-141-BL-E760-8A79TEVBC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
06/30/2010-141-BL-E760-8A79TEVBC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
06/24/2010-141-BL-E760-8A79TEVBC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
05/26/2010-141-BL-E760-8A79TEVBC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
05/11/2010-141-BL-E760-8A79TEVBC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
04/20/2010-141-BL-E760-8A79TEVBC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
04/13/2010-141-BL-E760-8A79TEVBC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
03/30/2010-141-BL-E760-8A79TEVBC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
03/10/2010-141-BL-E760-8A79TEVBC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
02/04/2010-141-BL-E760-8A79TEVBC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
01/13/2010-141-BL-E760-8A79TEVBC-00
Note
Core version
6.00PG
BIOS version
Logs
drv 2 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
9.1.2.1007
Arch
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Size
2.4MB
Filename
Name
Version
R1.17.39
Arch
x86 , x86-64
OS support
Windows 2000 Windows Vista Windows XP/2k3
Size
3.8MB
Filename
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008-10
File
Logs
Chip
Release date
2013-09
File
Logs
Chip
Release date
2008-07
File
Logs
Chip
Release date
2006-02-06
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2008-08-12
File
Logs
Family
Release date
2008-08-12
File
Logs
Family
Release date
File
Logs
Family
Release date
2010-02
File
Logs
Family
Release date
2010-07
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2017-01
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-09-14
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-09-14
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-09-14
File
Logs
Family
Release date
2011-09-14
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2004
File
Logs

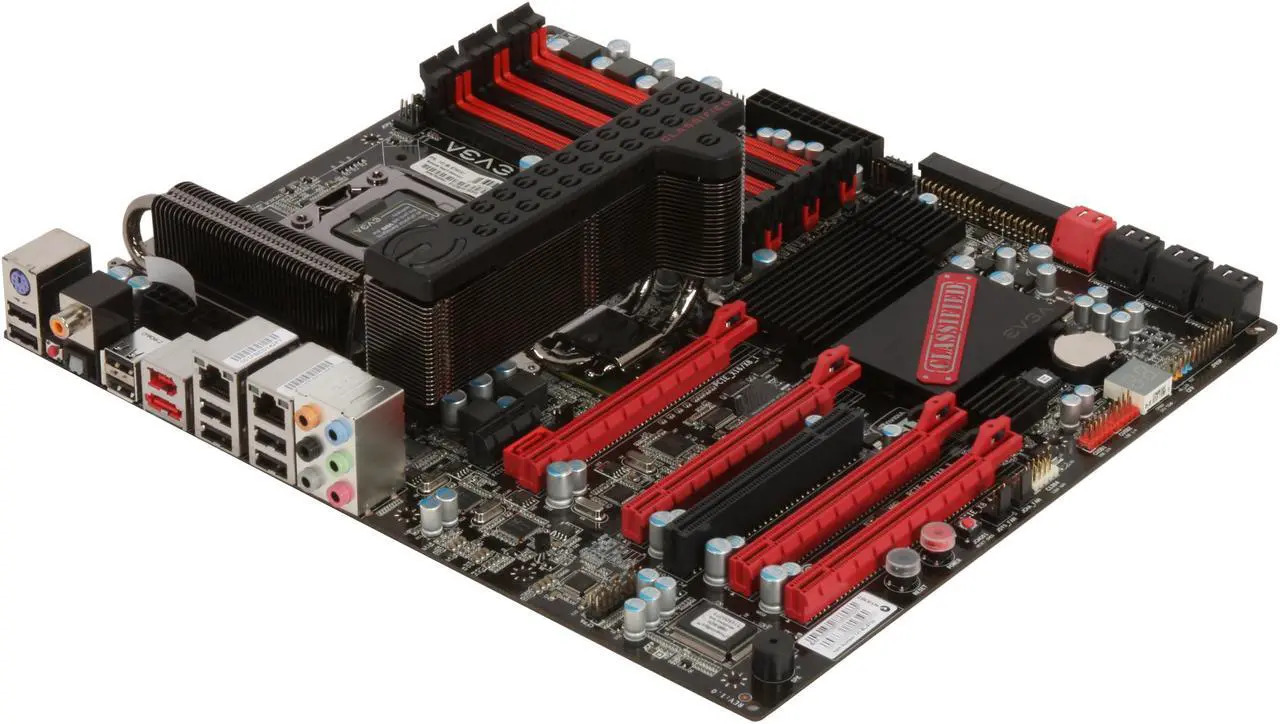

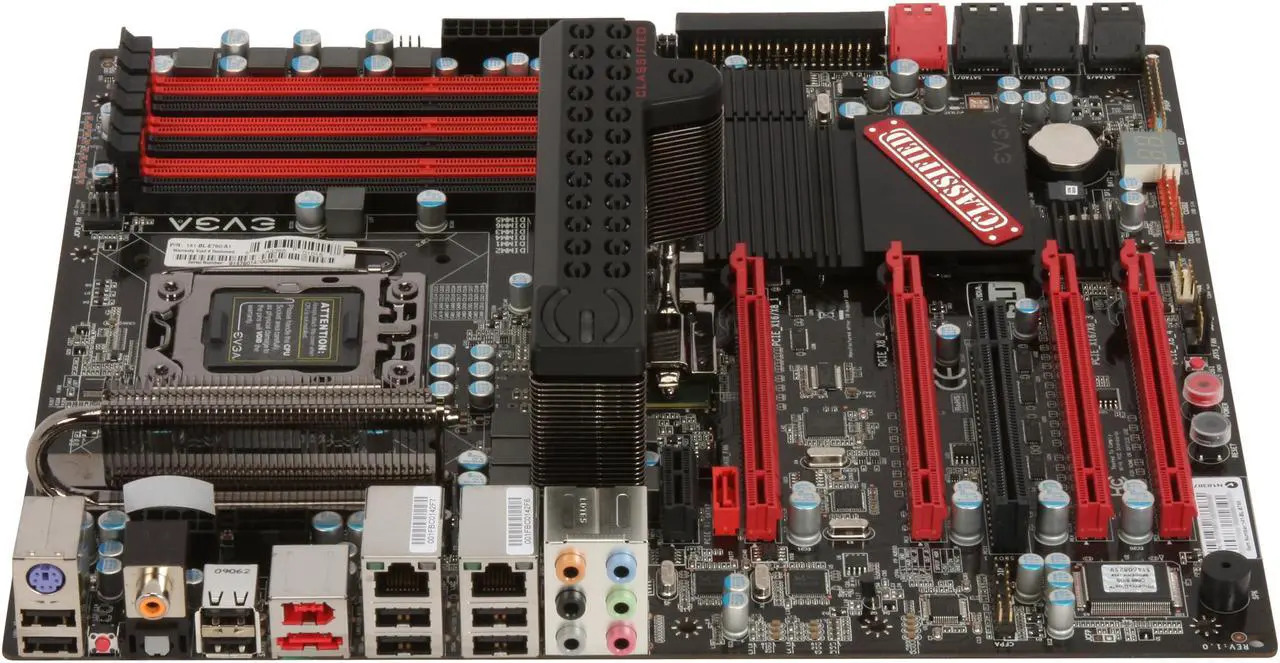

image1 Image 1 of 10 (EVGA)

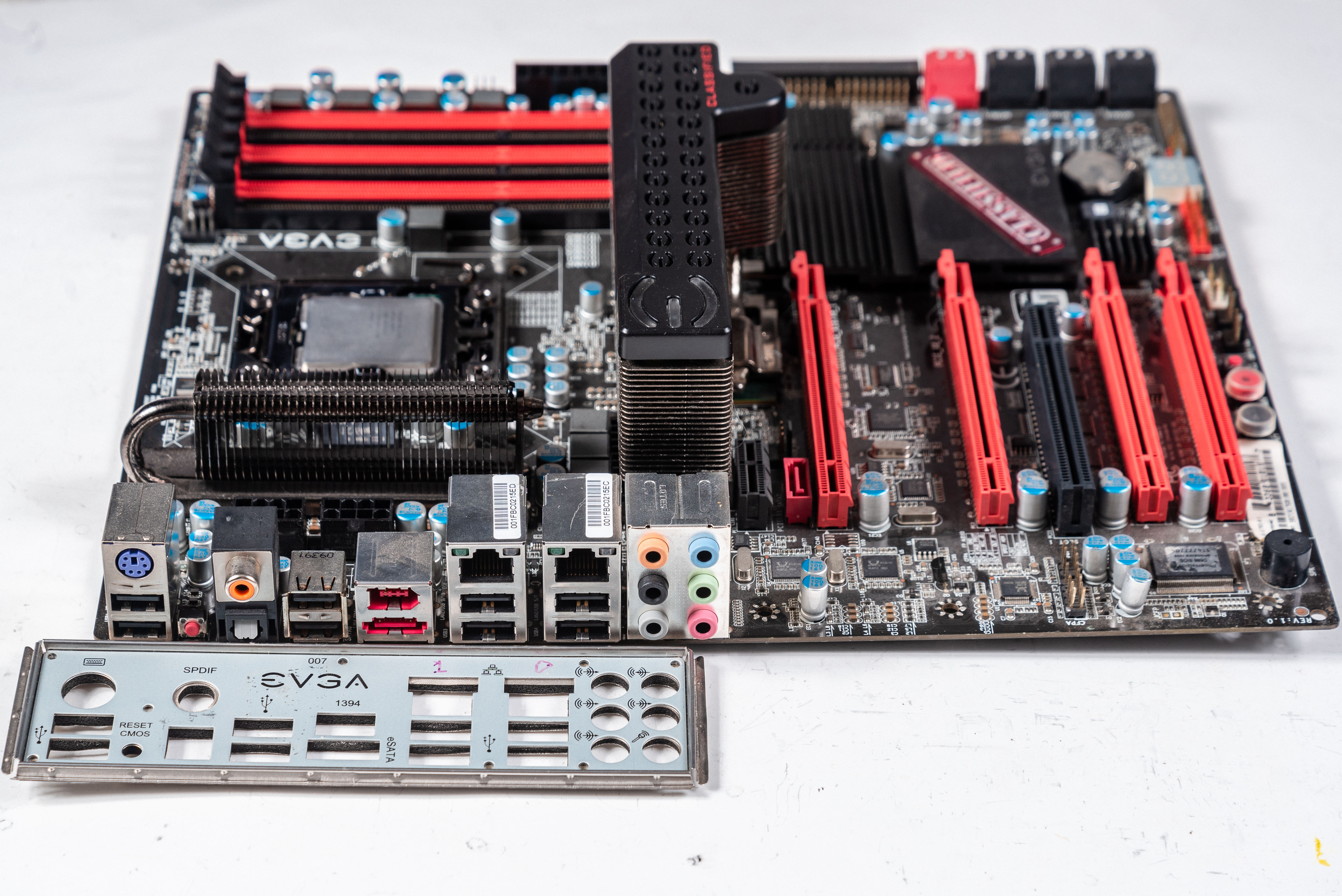

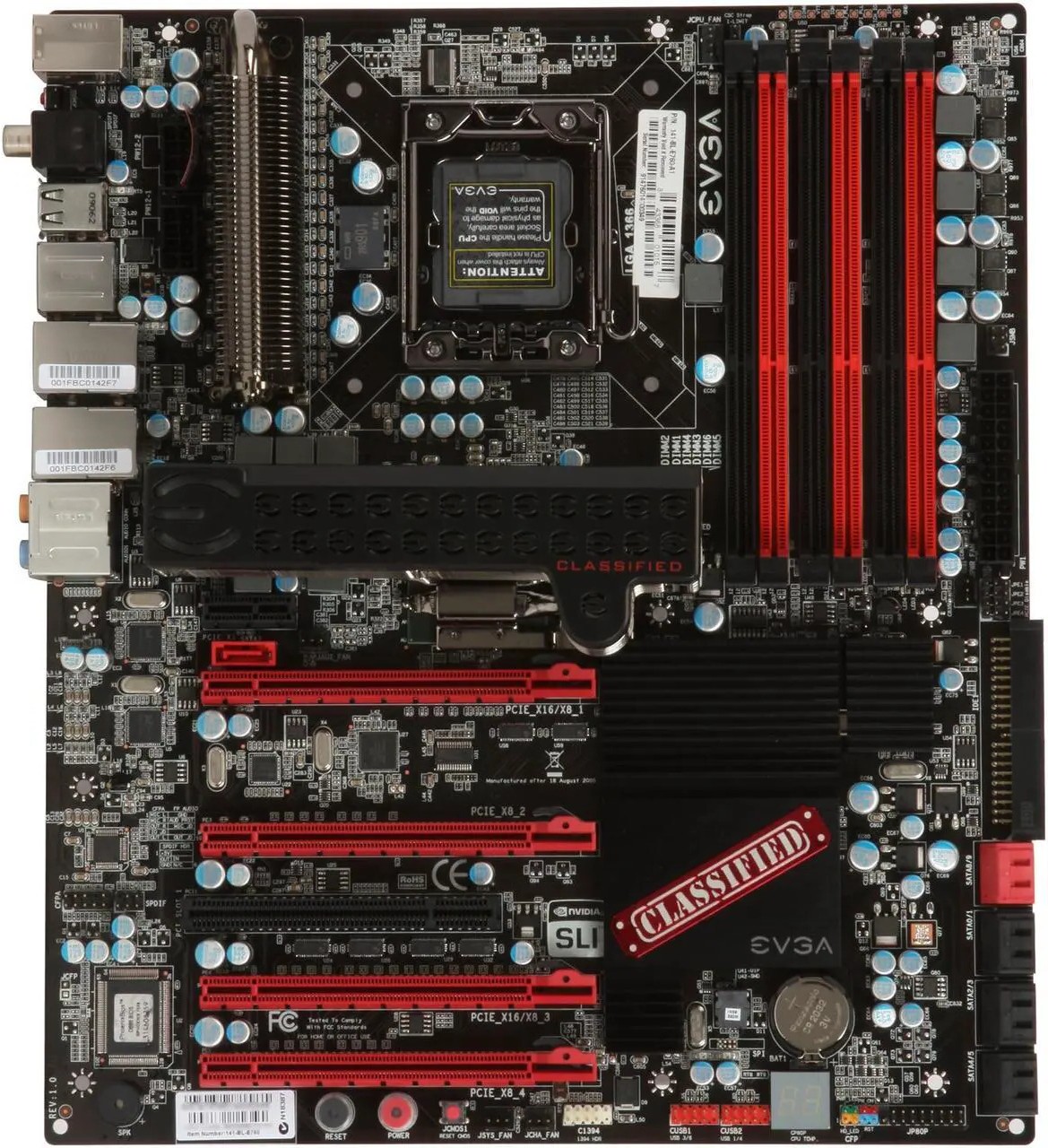

image2 Image 2 of 10 (Motherboard Continuum)

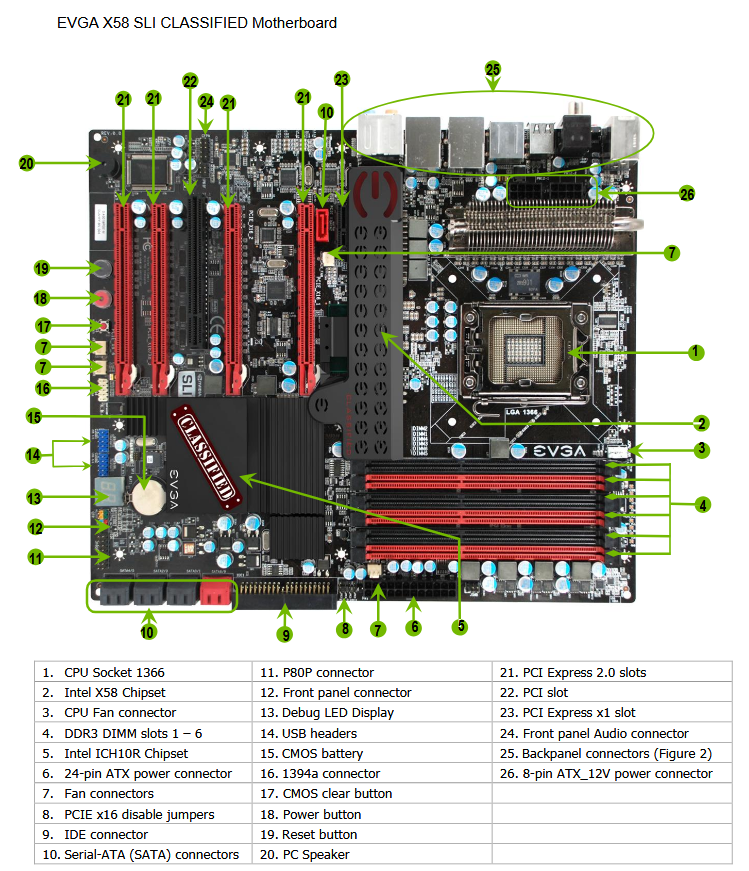

image3 Image 3 of 10 (EVGA)

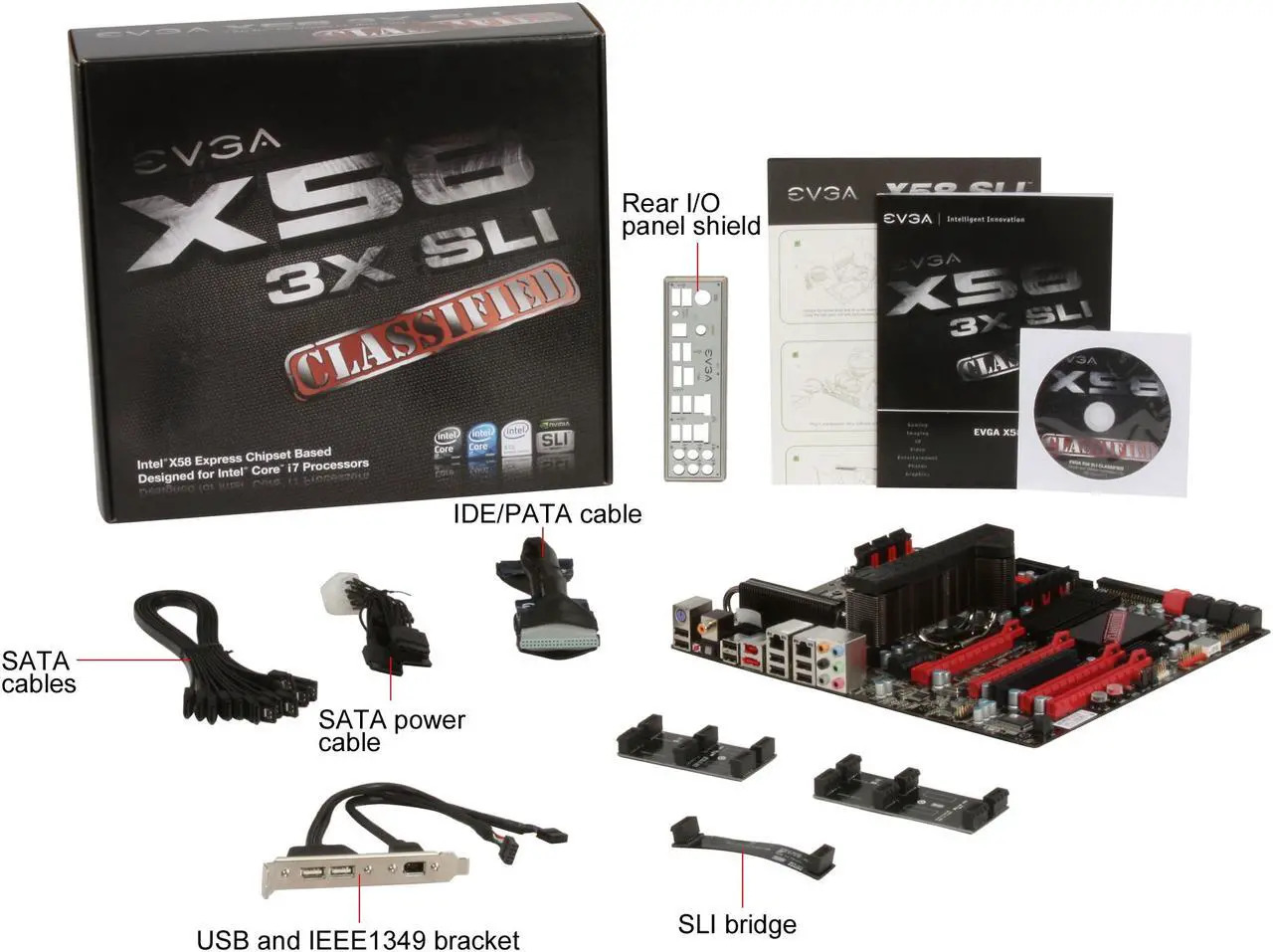

image4 Image 4 of 10 (Motherboard Continuum)

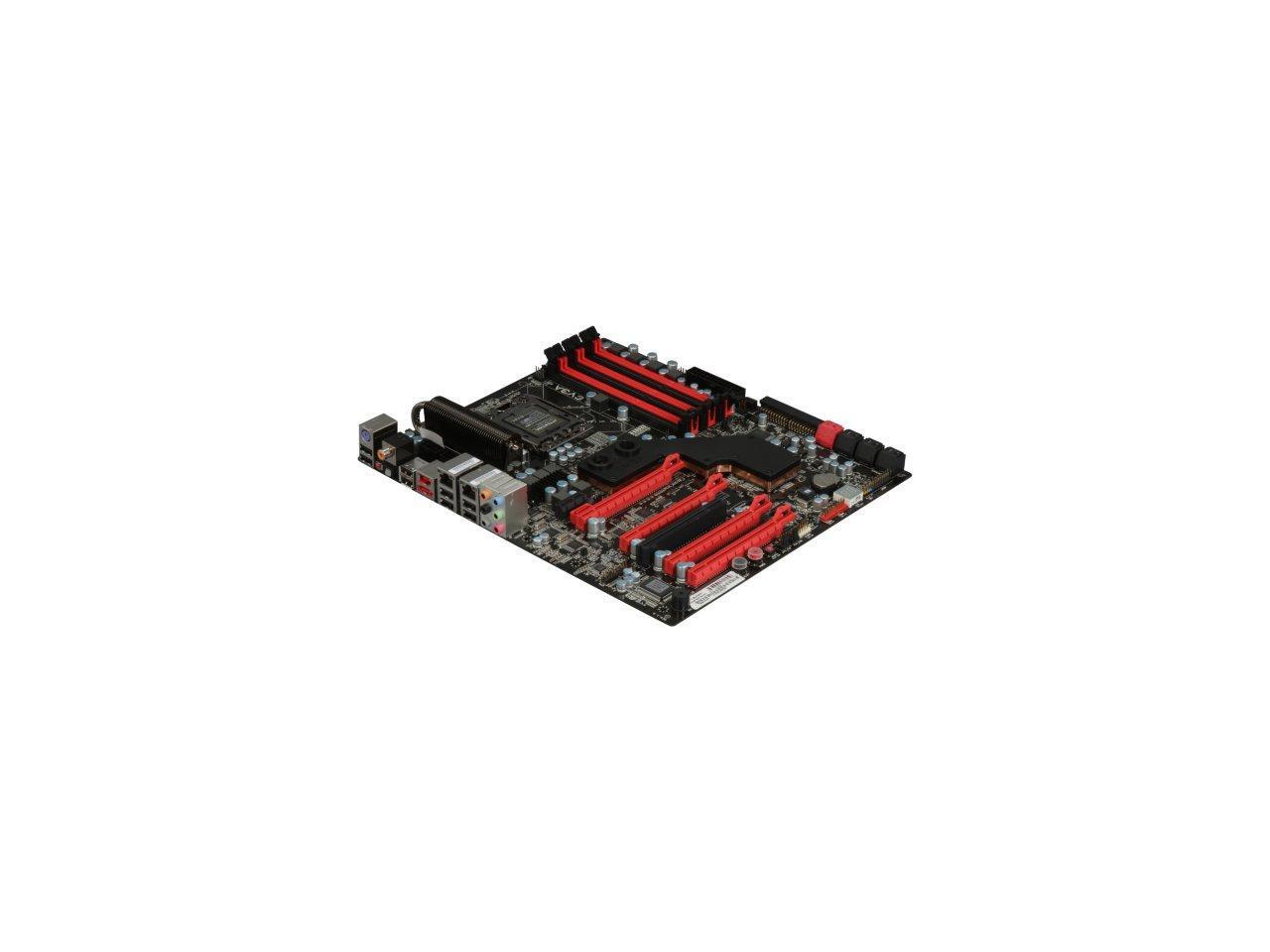

image5 Image 5 of 10 (EVGA)

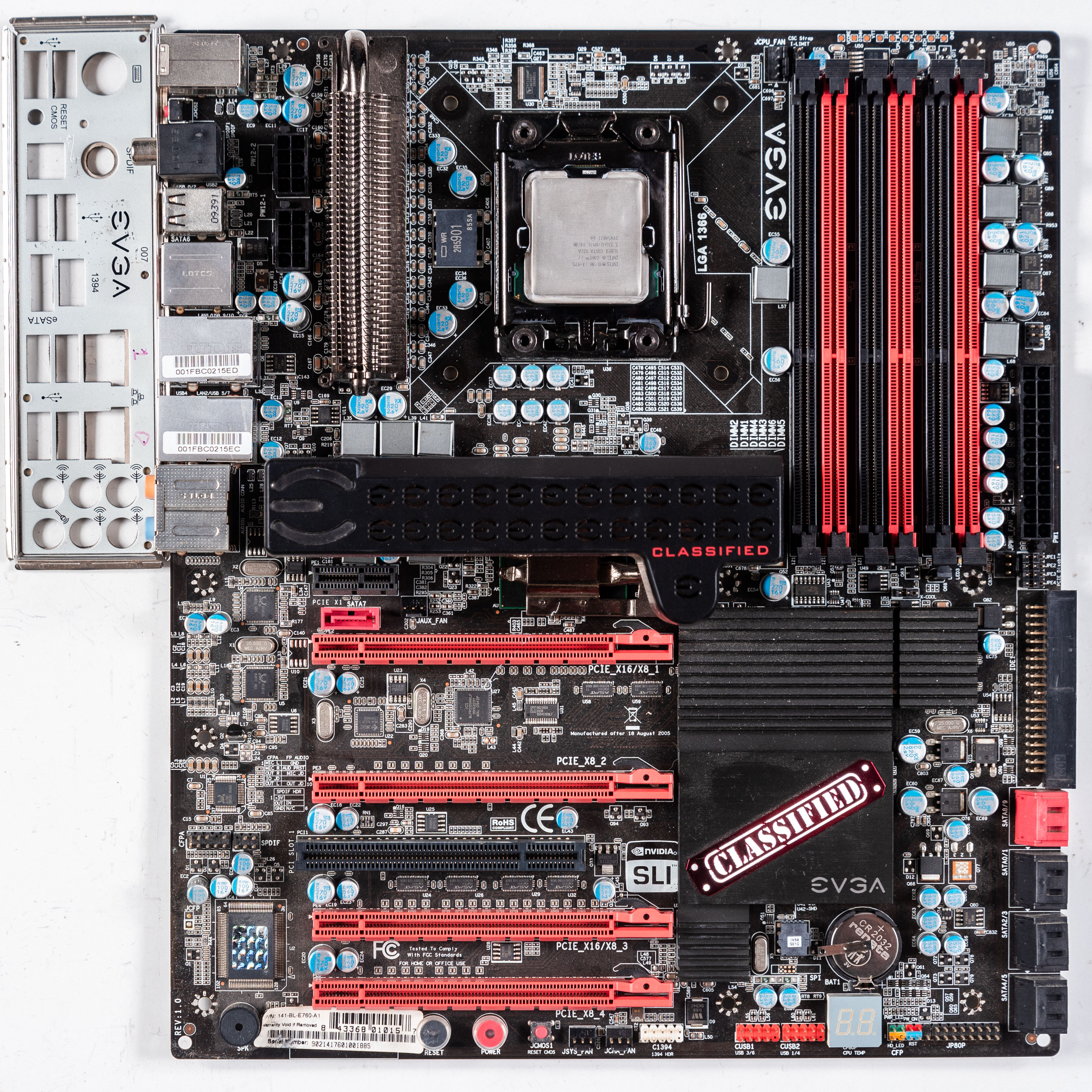

image6 Image 6 of 10 (EVGA)

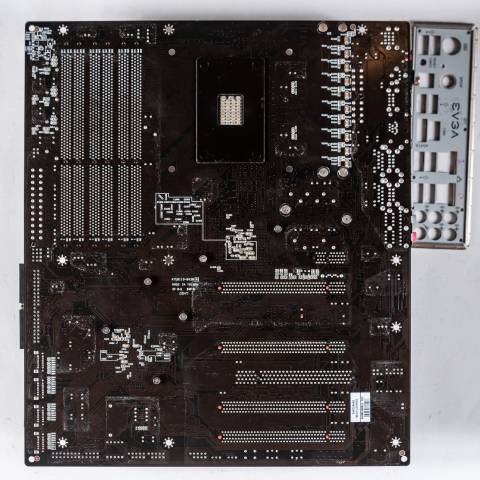

image7 Image 7 of 10 (EVGA)

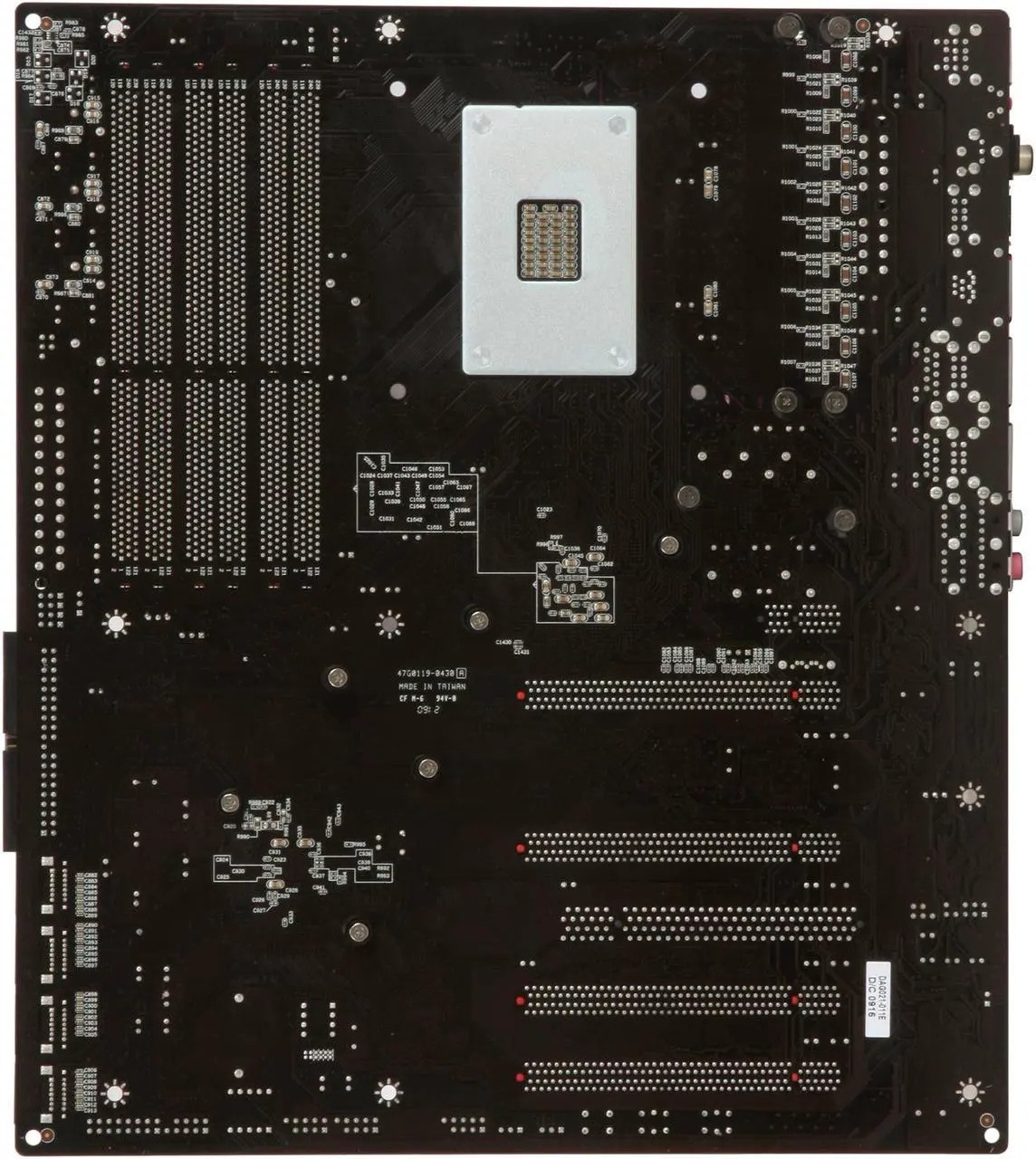

image8 Image 8 of 10 (EVGA)
image9 Image 9 of 10 (Motherboard Continuum)
image10 Image 10 of 10 (EVGA)
