EVGA Classified SR-X (W888)
Logs
chipChipset
cpuSocket
Socket R (LGA2011-0)
speedFSB speed
Empty
moboForm factor
HPTX (345 × 381 mm)
dimDimensions
15.0" x 13.6"
chipCache
None/Integrated in the CPU
ramMax RAM size
96GB
ramRAM types
DDR3 UDIMMDDR3 RDIMM ECCDDR3 UDIMM ECC
pwrPSU connector
PCIe (6-pin) ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
maxcpuMulti CPU support
2 CPUs
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
FireWire 400
2x
Mini-SAS (SFF-8087) Female
1x
PS/2 keyboard
2x
RJ-45 LAN
4x
SATA II
2x
SATA III
1x
Toslink
10x
USB 2.0
6x
USB 3.0
2x
eSATA II
cardExpansion slots
3x
PCIe x16
4x
PCIe x16 @ x8
Last updated 2025-06-28T22:06:03Z
Board info score is 9/10
bios 9 BIOS files available

vendor AMI - 9 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-121412-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-121412-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-121412-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-101111-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-101111-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-101111-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-101111-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-101111-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-121412-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
drv No drivers available
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

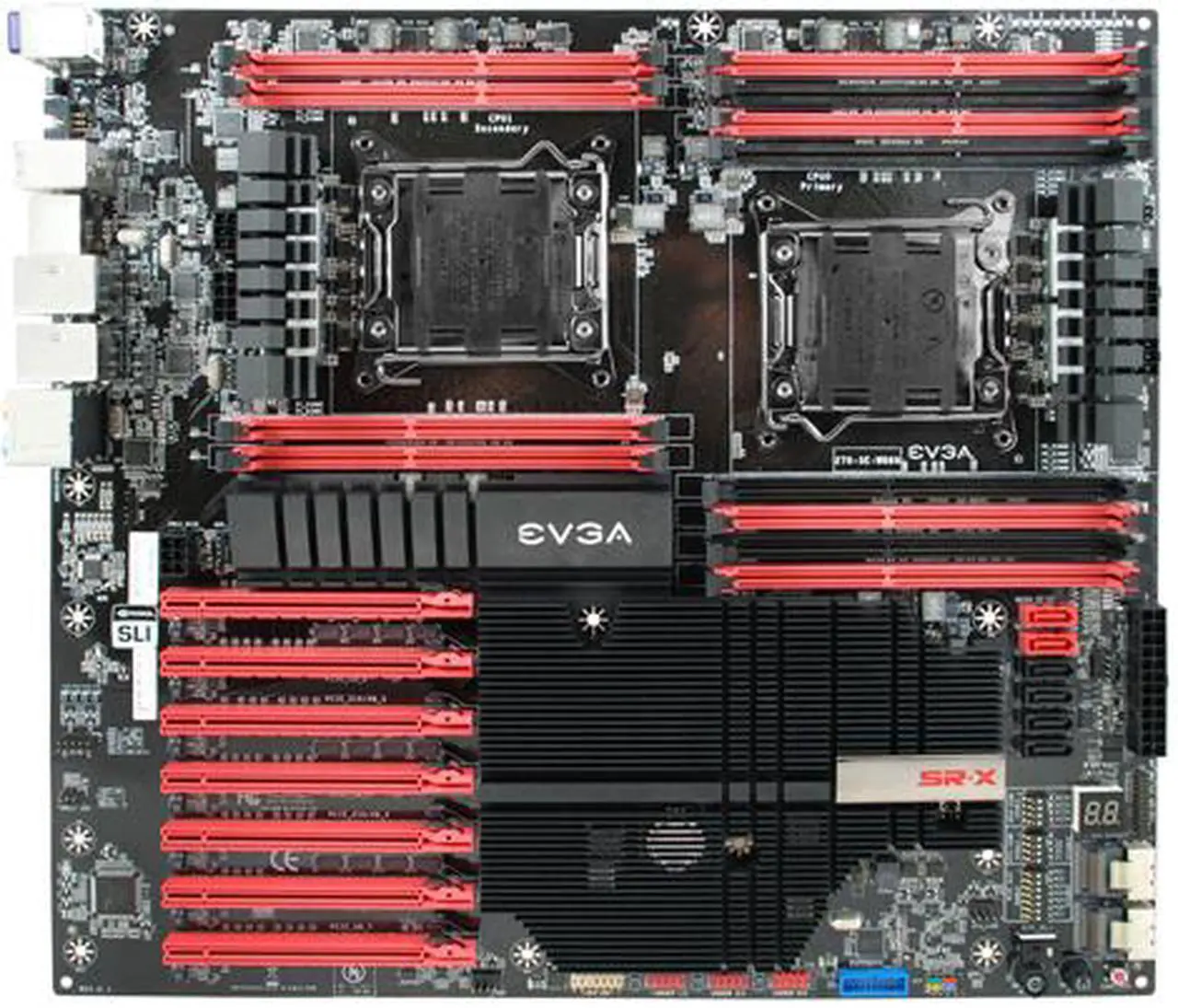

image1 Image 1 of 9 (EVGA)
image2 Image 2 of 9 (EVGA)
image3 Image 3 of 9 (EVGA)
image4 Image 4 of 9 (EVGA)
image5 Image 5 of 9 (EVGA)
image6 Image 6 of 9 (EVGA)
image7 Image 7 of 9 (EVGA)
image8 Image 8 of 9 (EVGA)
image9 Image 9 of 9 (EVGA)
