Esonic / ITZR G31FCAL2
Chipset
Socket
FSB speed Empty
Form factormicroATX (max 244 x 244 mm)
DimensionsEmpty
Cache
None/Integrated in the CPU
Max RAM size
4GB
RAM type DDR2 UDIMM
PSU connector
Also known as
- Advance Digitals G31FCAL2
- WeLink Solutions unknown
I/O ports1x
3.5mm Audio Combo
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
SATA II
1x
Serial
4x
USB 2.0
1x
VGA
Expansion slots2x
32-bit PCI
1x
PCIe x16
Known issues
- Falsely advertised chipset
This motherboard uses a different chipset than the one advertised by the vendor. In most cases, a lower tier chipset was used in order to save costs. It is likely that the board may not have the same levels of performance as one equipped with genuine parts.
Beware that issues regarding BIOS and driver compatibility may arise as well, so double check with any hardware reporting software what chipset is actually installed on the board before proceeding any further.
Notes
Advertised as having a Intel G31 Chipset, but uses a Intel G33 chipset with ICH6-M southbridge
Last updated 2026-01-01T14:55:35Z
Board info score is 7.2/10
Chips
-> Chipset part
-> Audio
-> Network
-> Super I/O
CPU family support
Empty
1 BIOS file available
Award - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
30.7MB
Filename
Name
Version
1.0
OS support
MS-DOS
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
Size
490.9KB
Filename
No board documents available
Chip
Release date
File
Logs
Chip
Release date
2008-08-08
File
Logs
Socket
Release date
File
Logs

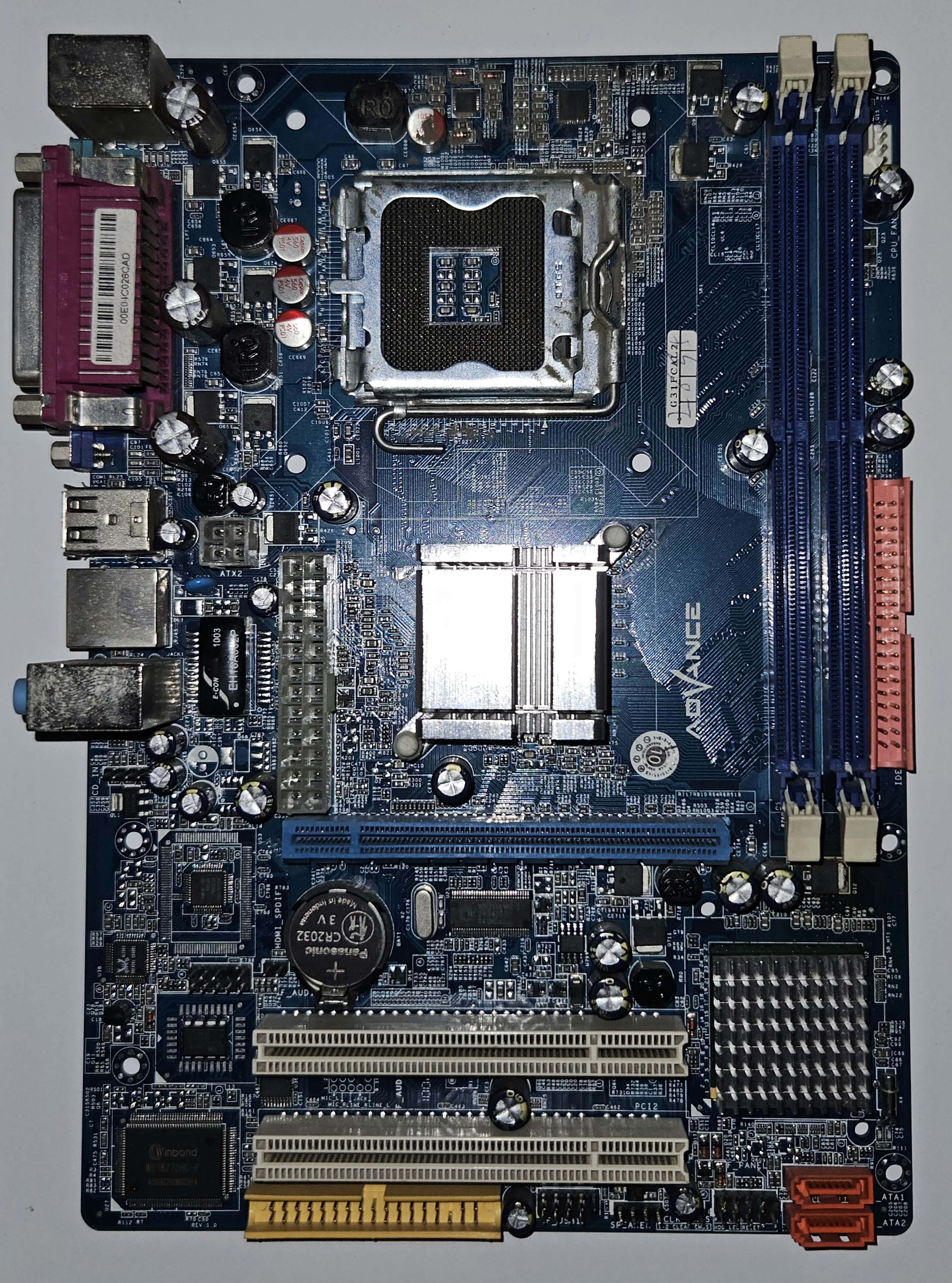

Image 1 of 1 (novacosmic00)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
