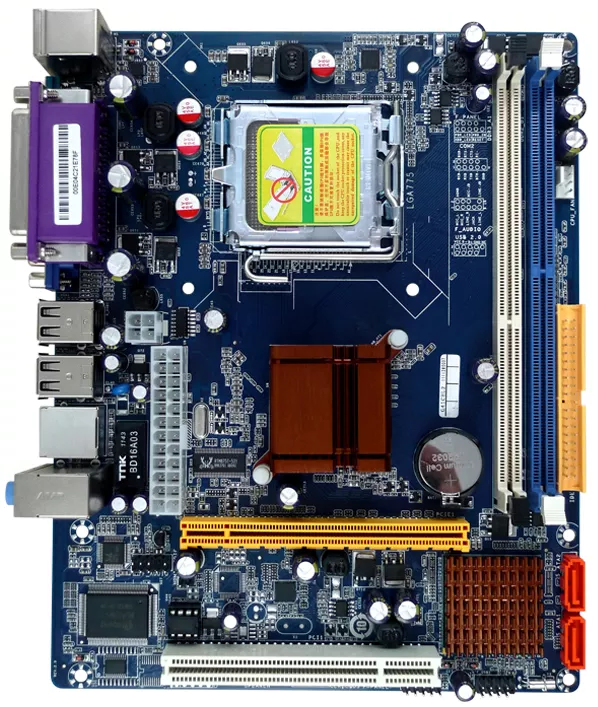

Esonic / ITZR G41CEL2

Description

Chips

BIOS 1

Drivers 4

Documentation 1

Logs

Chipset

Intel G41 (Eaglelake-G)

Socket

Socket T (LGA775)

FSB speeds

800MHz1066MHz1333MHz

Form factor

microATX (max 244 x 244 mm)

Dimensions

210 mm x 168 mm

Max VRAM size

256MB

Cache

None/Integrated in the CPU

Max RAM size

4GB

RAM types

DDR3 UDIMMDDR2 UDIMM

PSU connector

ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)

Also known as

Esonic / ITZR G41 Combo v1.0
ASRock G41C-GS (fake)
WeLink Solutions unknown

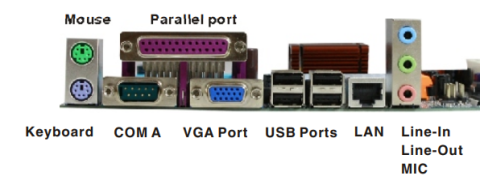

I/O ports

3.5mm Audio Combo

Floppy interface

IDE interface

PS/2 keyboard

PS/2 mouse

Parallel

RJ-45 LAN

SATA II

Serial

USB 2.0

VGA

Expansion slots

32-bit PCI

PCIe x16

Known issues

Counterfeit/fake motherboard

This motherboard is known to be sold as a replica of a genuine model and it usually is of poor quality, by using cheap components and PCB materials. It is likely that the board's specifications will not match the genuine model. As such, there might be BIOS and driver compatibility issues.

If you have such a board, it is recommended to ask other members of the community for more information.

Notes

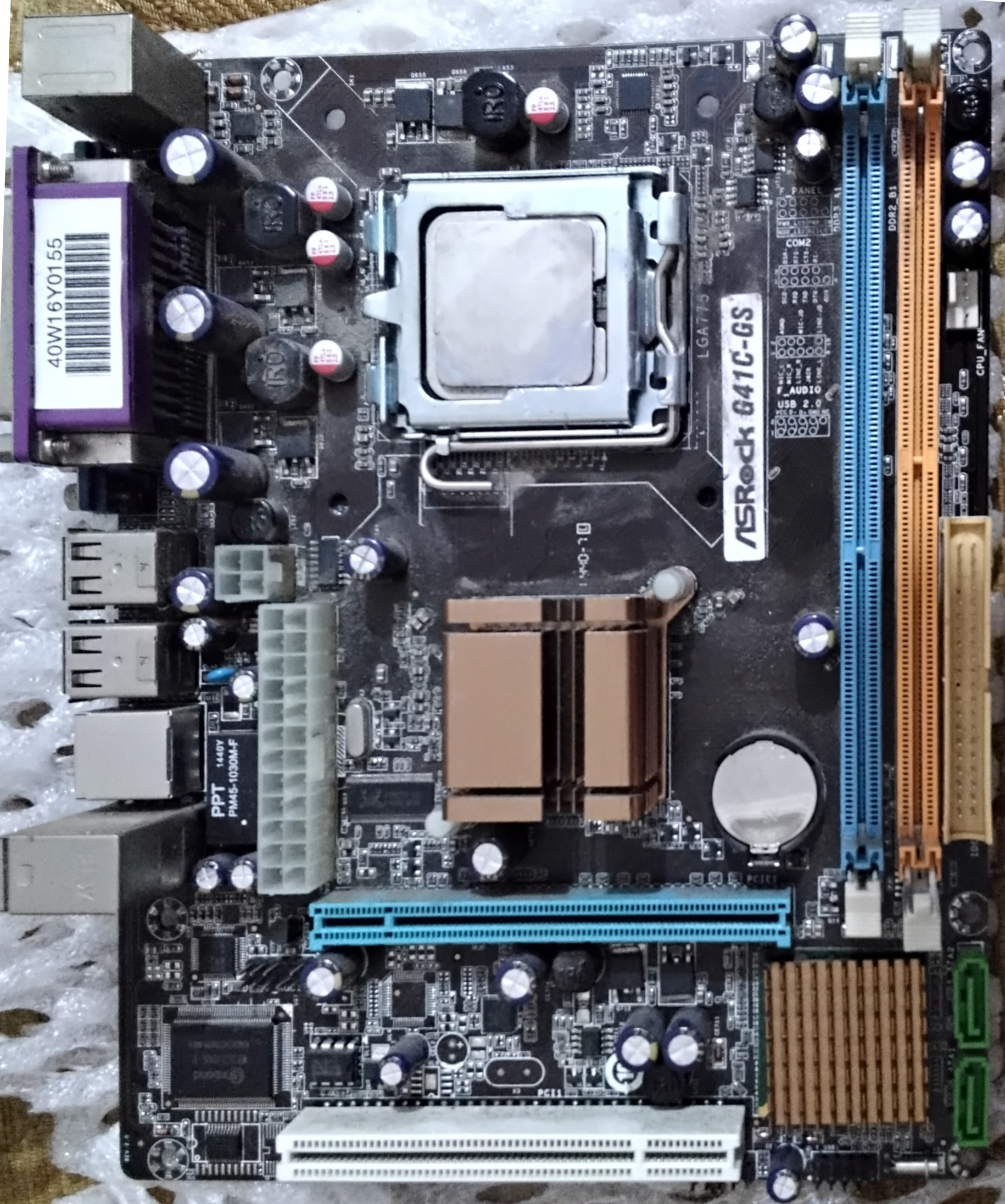

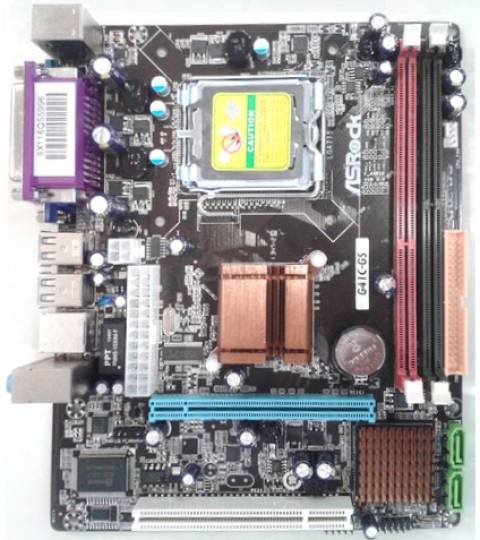

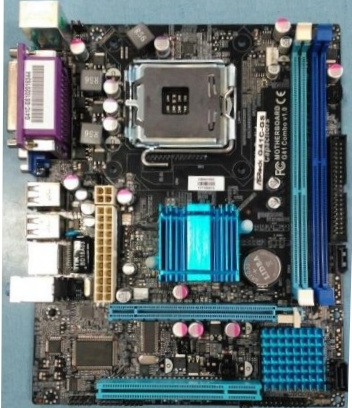

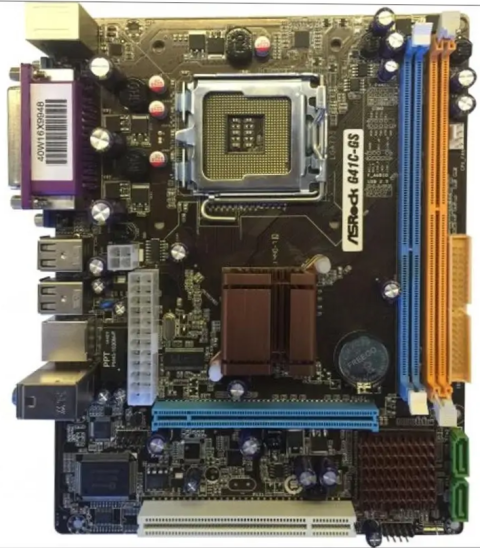

This motherboard is known to be sold as a counterfeit ASRock G41C-GS in Turkey. If you have purchased such a model and suspect it may be counterfeit, physically inspect your motherboard and compare it with the pictures of a genuine motherboard online. If there are any obvious layout changes (such as the placement of the power connectors, chips, jumpers etc.), you most likely have a counterfeit model.

Last updated 2026-01-01T11:12:55Z

Board info score is 9.4/10

Chips

-> Chipset part

Intel 82G41 (GMCH) Intel 82801GB (ICH7)

-> Audio

Realtek ALC662 (High Definition Audio) VIA VT1705 (Vinyl HD High Definition Audio)

-> Network

Realtek RTL8105E (PCIe Fast Ethernet)

-> Video

Intel GMA X4500 (Graphics Media Accelerator X4500)
