ESA ESA-486AVR
Chipset
Socket
FSB speed 33MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions218mm x 259mm
Max VRAM size4MB
Cache
None/Integrated in the CPU
Max RAM size
128MB
RAM type SDRAM
PSU connector
I/O ports1x
AT Keyboard
1x
CF Card Slot
1x
Floppy interface
1x
GPIO
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
Expansion slots8x
16-bit ISA
1x
32-bit PCI
1x
32-bit mini-PCI
Notes
Industrial motherboard, uses 486 compatible SoC
Last updated 2025-06-04T08:03:30Z
Board info score is 7.8/10
Chips
CPU family support
0 BIOS files available
Phoenix - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
BIOS version
Logs
No drivers available
2 board documents available

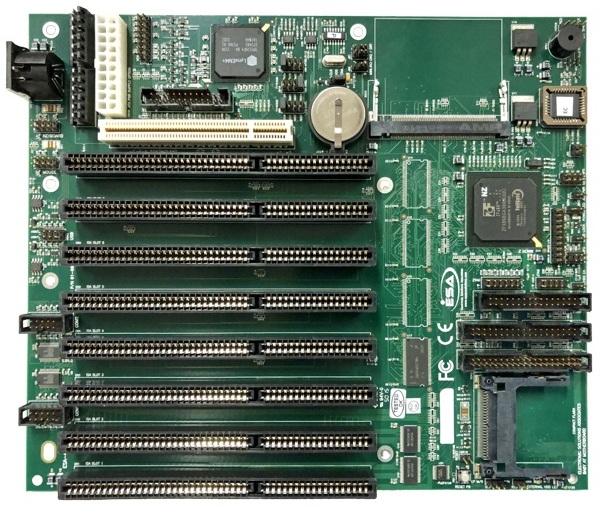

Image 1 of 1
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
