EPoX/ProNiX EP-58MVP3C-M REV 0.x
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
66MHz75MHz83MHz95MHz100MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
Empty
chipCache
512KB1MB
ramMax RAM size
256MB
ramRAM types
SDR UDIMM168-pin EDO UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
cardExpansion slots
3x
16-bit ISA
1x
3.3V AGP
4x
32-bit PCI
notes Notes

Vcore generation part of VRM uses lineral regulation, which causes the Vcore MOSFET to run dangerously hot.
It is recommended to place an radiator ontop of said MOSFET (upper one, closest to CPU socket) or upgrade both MOSFETs to PSMN004-25B (or equivalent) to avoid damage to hardware. Long term running without any prevention fixes can result in self-desoldering of MOSFETs and coils.
This fault seems to be fixed in later revisions. [reported by kotel studios]

Last updated 2025-07-13T19:21:46Z
Board info score is 9.5/10
bios 16 BIOS files available

vendor Award - 16 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
12/06/99-VP3-586B-W877-2A5LEPA9C-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
12/06/99-VP3-586B-W877-2A5LENMCC-00
Note
ENMIC
Core version
4.51PG
BIOS version
Logs
POST string
11/26/98-VP3-586B-W877-2A5LEPA9C-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
09/03/99-VP3-586B-W877-2A5LEPA9C-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
09/03/99-VP3-586B-W877-2A5LENMCC-00
Note
ENMIC
Core version
4.51PG
BIOS version
Logs
POST string
07/08/99-VP3-586B-W877-2A5LEPA9C-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
07/08/99-VP3-586B-W877-2A5LENMCC-00
Note
ENMIC
Core version
4.51PG
BIOS version
Logs
POST string
07/02/99-VP3-586B-W877-2A5LENMCC-00
Note
ENMIC
Core version
4.51PG
BIOS version
Logs
POST string
06/08/99-VP3-586B-W877-2A5LENMCC-00
Note
ENMIC
Core version
4.51PG
BIOS version
Logs
POST string
05/17/99-VP3-586B-W877-2A5LEPA9C-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
05/17/99-VP3-586B-W877-2A5LENMCC-00
Note
ENMIC
Core version
4.51PG
BIOS version
Logs
POST string
03/01/99-VP3-586B-W877-2A5LEPA9C-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
01/04/99-VP3-586B-W877-2A5LEPA9C-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
04/11/00-VP3-586B-W877-2A5LEPA9C-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
04/11/00-VP3-586B-W877-2A5LENMCC-00
Note
ENMIC
Core version
4.51PG
BIOS version
Logs
POST string
08/09/2002-VP3-586B-W877-2A5LEPACC-00
Note
eSupport upgrade
Core version
4.51PG
BIOS version
Logs
drv 5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.6
OS support
Windows 9x
Arch
x86
Size
1.4MB
Filename
Name
Version
2.1.24
OS support
Windows 9x Windows NT 4.0
Arch
x86
Size
1.4MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.1MB
Filename
Version
OS support
Windows 2000 Windows NT 4.0 Windows XP/2k3
Arch
Size
1.1MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
973.7KB
Filename
doc 5 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1997-05-13
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1998-03
File
Logs
Family
Release date
File
Logs
Family
Release date
1999-12
File
Logs
Family
Release date
2000-04
File
Logs
Family
mP6
Release date
1999-05-27
File
Logs
Family
mP6
Release date
1999-05-27
File
Logs
Family
Release date
2000-11
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1998-01
File
Logs

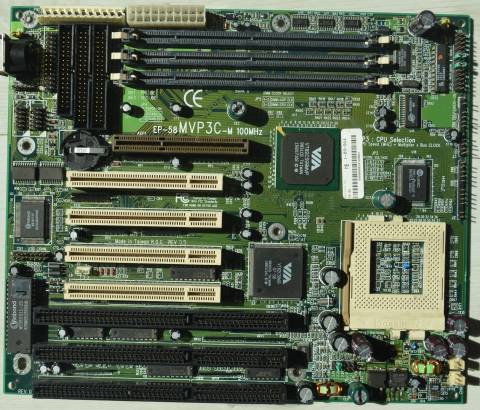

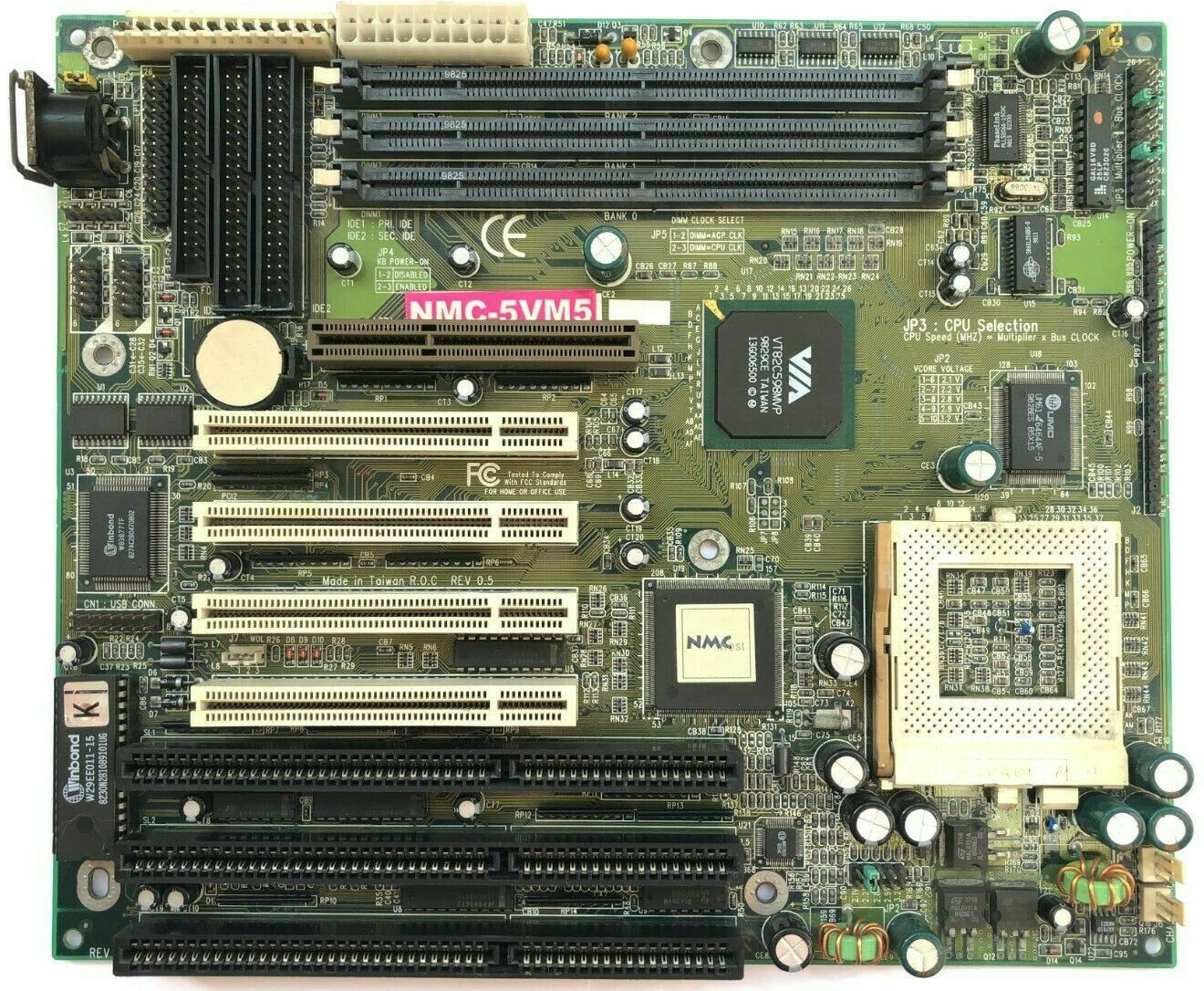

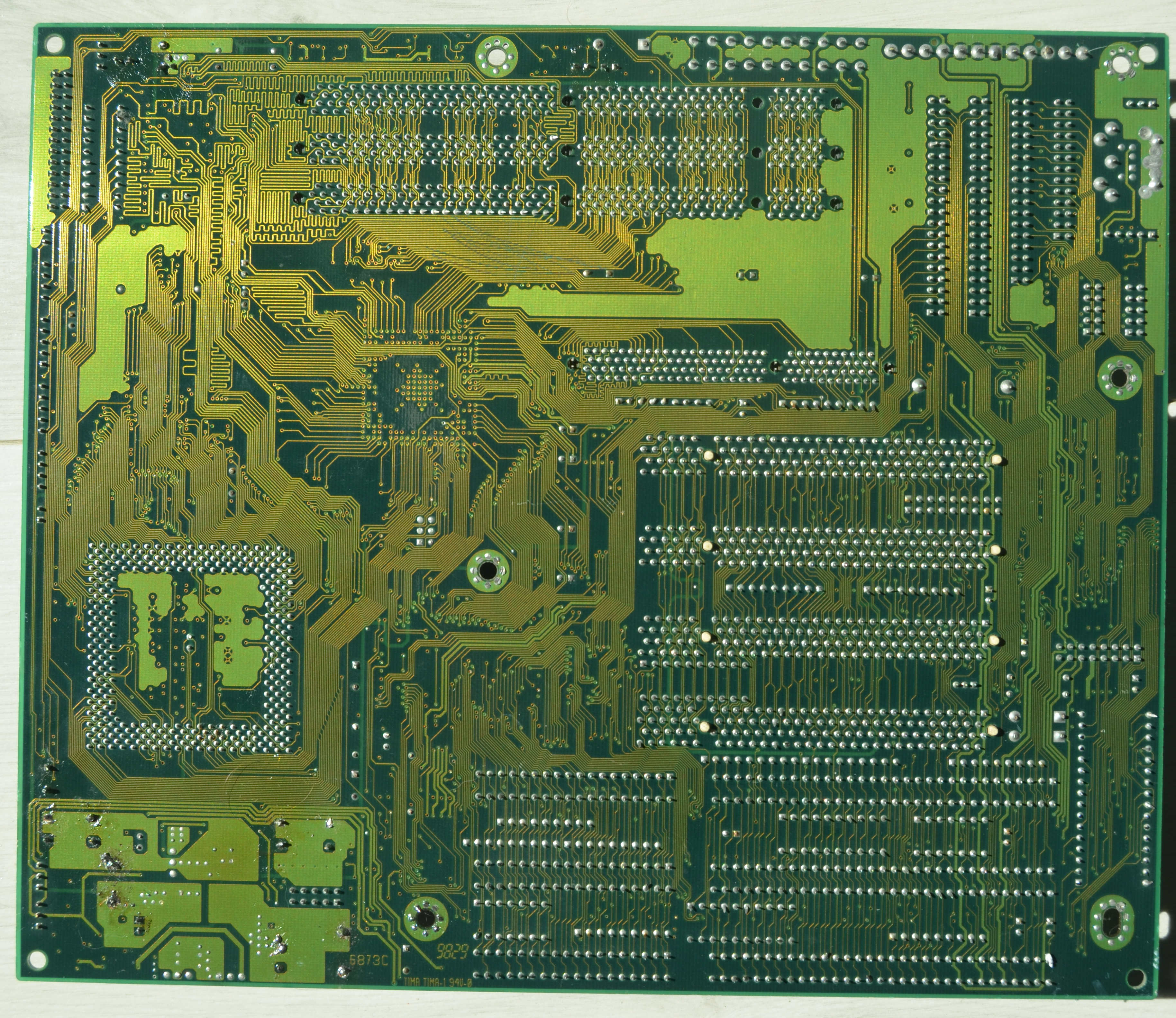

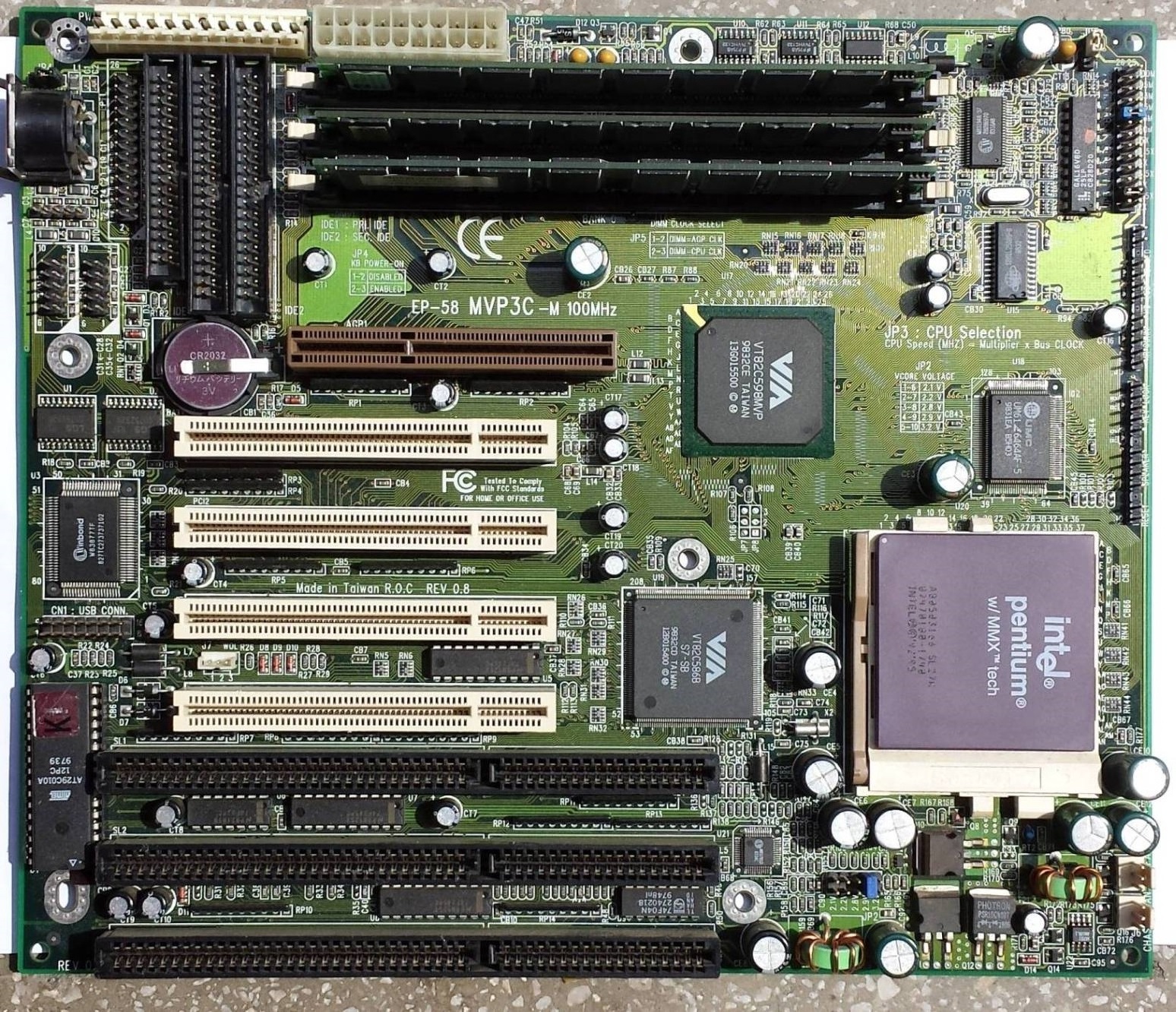

image1 Image 1 of 5 (Microhouse)
image2 Image 2 of 5 (Robert B)
image3 Image 3 of 5 (Elke Wehmer)
image4 Image 4 of 5 (kotelstudios)
image5 Image 5 of 5 (kotelstudios)
