EPoX/ProNiX EP-51MVP3G-M
Chipset
Socket
FSB speeds 60MHz66MHz75MHz83MHz95MHz100MHz
Form factorATX (max 305 x 244 mm)
DimensionsEmpty
Cache
512KB1MB2MB
Max RAM size
384MB768MB(low-density (16chips per side))
RAM type SDR UDIMM
PSU connector
Also known as
- EPoX/ProNiX EP-MVP3G-M
- ENMIC/NMC NMC-5VMX
I/O ports1x
Floppy interface
2x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
SB_Link
2x
Serial
2x
USB 1.x
Expansion slots2x
16-bit ISA
1x
3.3V AGP
5x
32-bit PCI
Last updated 2024-11-15T10:17:12Z
Board info score is 7.8/10
Chips
-> Chipset part
-> Clock Synth / PLL
-> Power Regulation
-> Super I/O
0 BIOS files available
4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.6
OS support
Windows 9x
Arch
x86
Size
1.4MB
Filename
Name
Version
2.1.24
OS support
Windows 9x
Windows NT 4.0
Arch
x86
Size
1.4MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
Size
1.1MB
Filename
Version
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
973.7KB
Filename
3 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1999-12
File
Logs
Family
Release date
2000-04
File
Logs
Family
Release date
2000-11
File
Logs
Family
Release date
1998-01
File
Logs

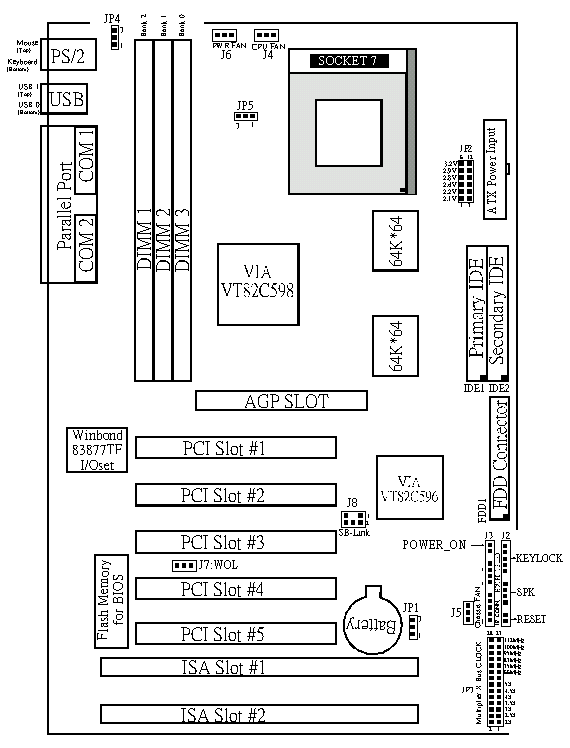

Image 1 of 2 (EPoX/ProNiX)

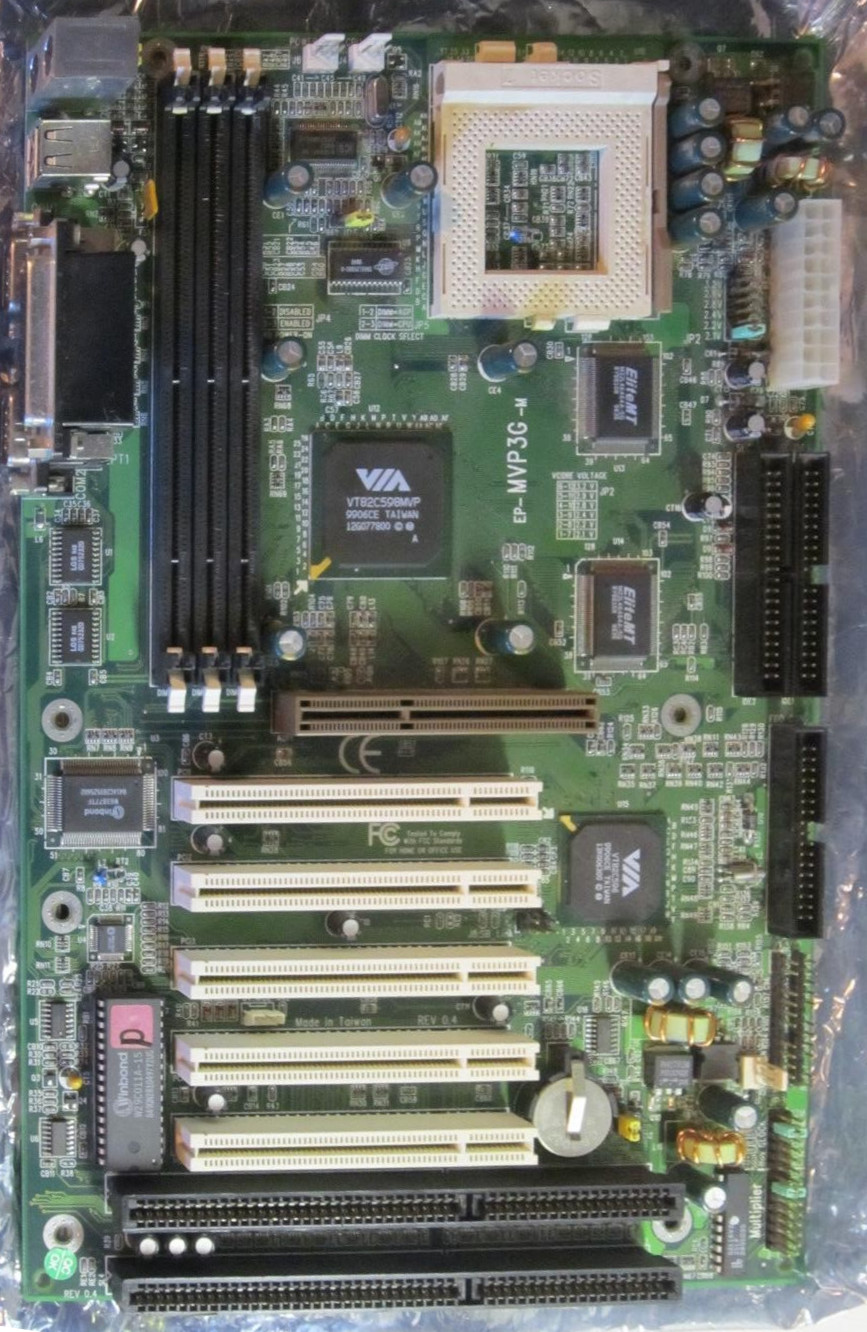

Image 2 of 2
