EPoX/ProNiX EP-4PCA3+ (PCB v.2.x)
Logs
chipChipset
cpuSocket
Socket 478 (mPGA478)
speedFSB speeds
400MHz533MHz800MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
6x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
SATA I
2x
Serial
8x
USB 2.0
cardExpansion slots
1x
1.5V AGP
5x
32-bit PCI
notes Notes

Warning: The MOSFET between the AGP slot and the first PCI slot gets very hot. It is advised to have good airflow or even cool it with a passive heatsink to avoid damage during prolonged use. The electrolytic capacitors nearby may also have suffered due to the heat.

Uses optional HPT374 RAID controller for additional IDE channels.

Uses optional BCM5705 gigabit Ethernet controller.

Last updated 2025-07-29T10:03:31Z
Board info score is 9.4/10
bios 2 BIOS files available

vendor Award - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
11/02/2004-Canterwood-6A79BPA9C-00
Note
4PC34B02.BIN
Core version
6.00PG
BIOS version
Logs
POST string
02/09/2004-Canterwood-6A79BPA9C-00
Note
Core version
6.00PG
BIOS version
Logs
drv 5 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
Empty
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
190.6KB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
220.9KB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
216.1KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-04
File
Logs
Chip
Release date
2004-02
File
Logs
Chip
Release date
2009-04-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2005-02
File
Logs
Family
Release date
2005-05
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-10
File
Logs
Family
Release date
2001-08
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2001-10
File
Logs
Socket
Release date
2002-05
File
Logs
Socket
Release date
2002-10
File
Logs
Socket
Release date
2001-08
File
Logs

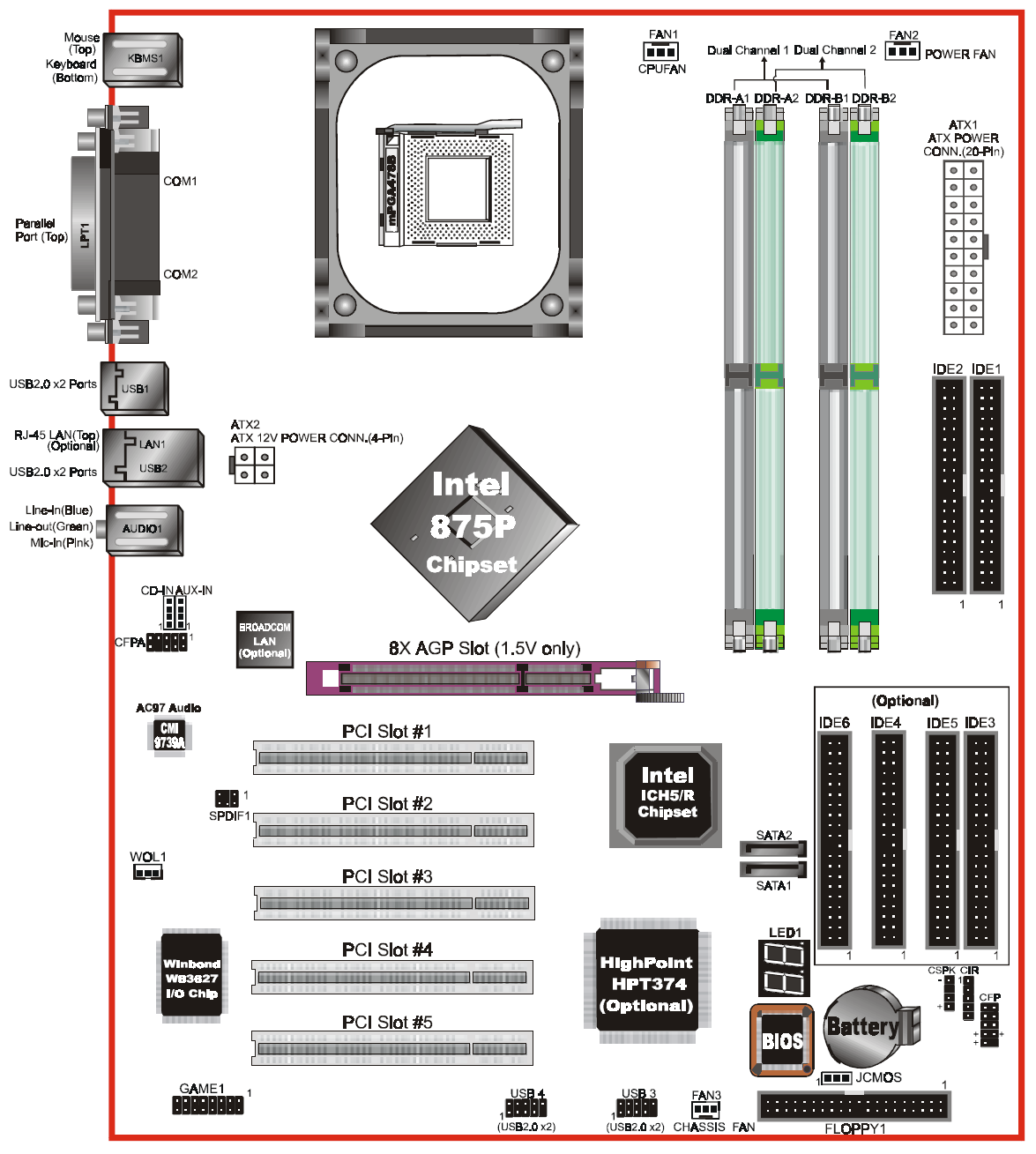

image1 Image 1 of 2 (EPoX/ProNiX)
image2 Image 2 of 2
