EISA TECH CORPORATION JCI-S1S
Logs
chipChipset
cpuSockets
PLCC68 PQFP100
speedFSB speed
25MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
330mm x 218mm
chipCache
None/Integrated in the CPU
ramMax RAM size
32MB
ramRAM type
30-pin SIMM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
connI/O ports
1x
AT Keyboard
cardExpansion slots
6x
16-bit ISA
2x
8-bit ISA
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

Last updated 2025-11-26T18:19:02Z
Board info score is 8.4/10
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
D386-1187-010191
Note
Core version
010191
BIOS version
Logs
drv No drivers available
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs
doc 1 other file available
Title
File
Logs
Title
PAL16R4BCN-UE5 jedec file
File
Logs

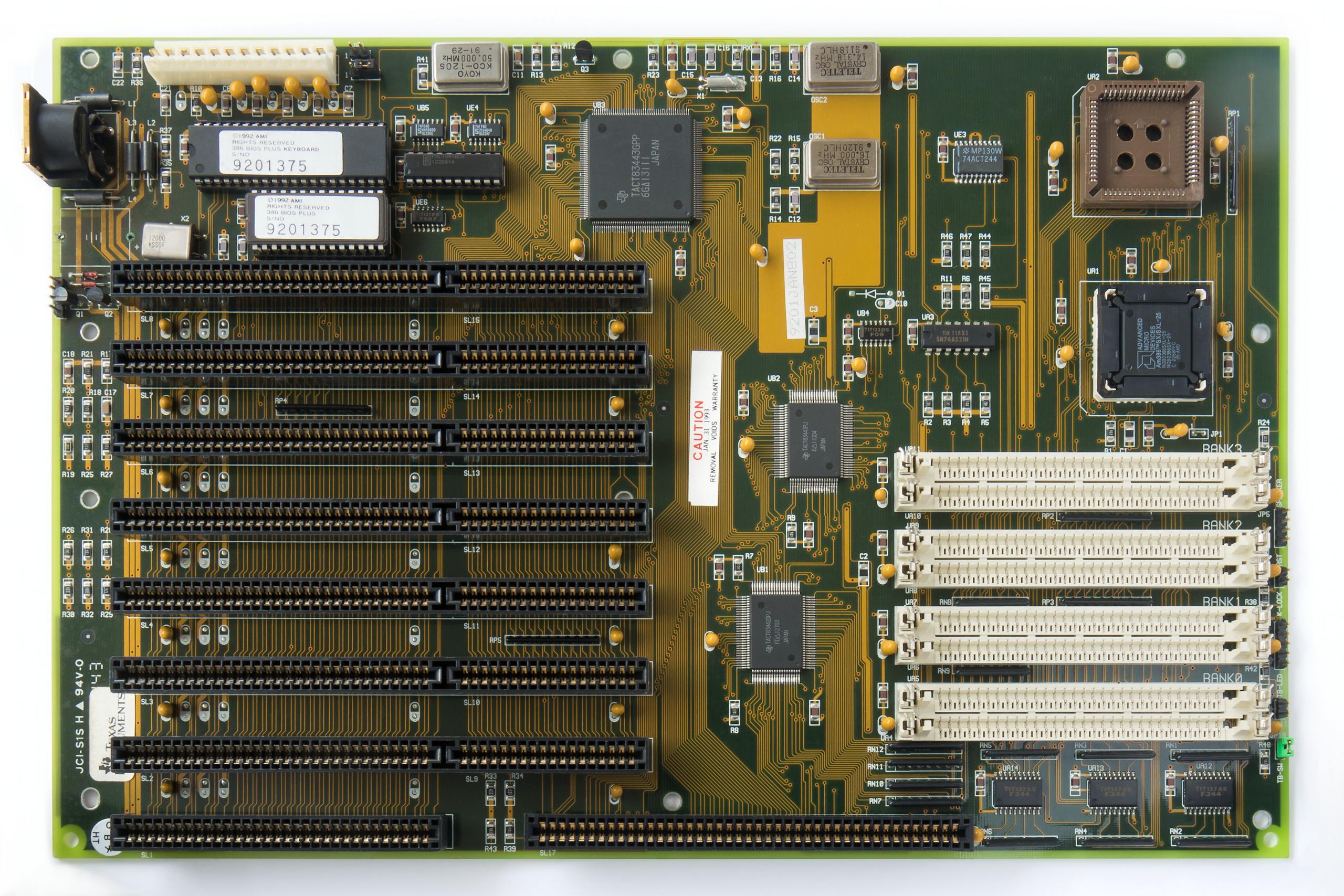

image1 Image 1 of 3 (RayeR)

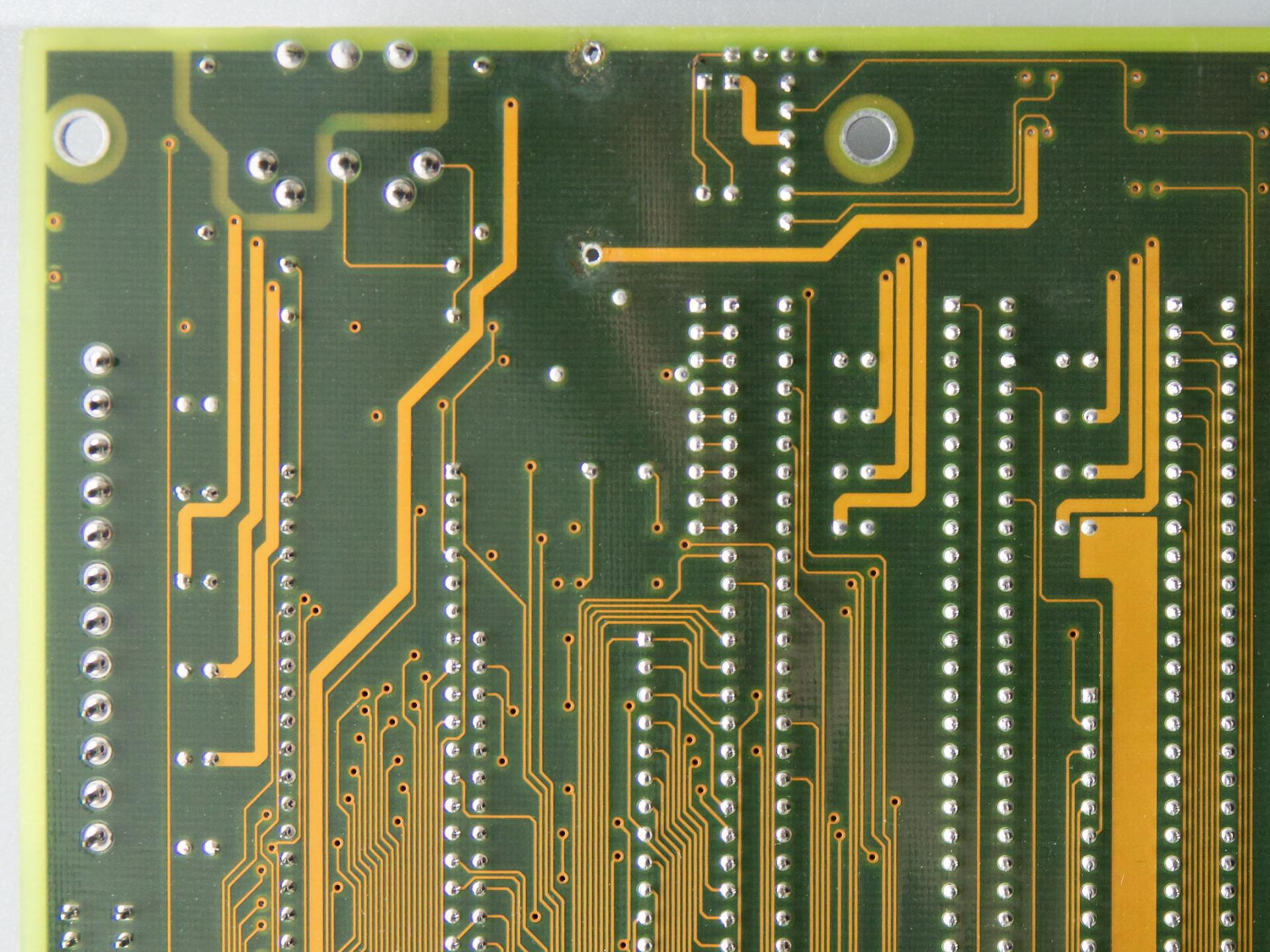

image2 Image 2 of 3 (RayeR)

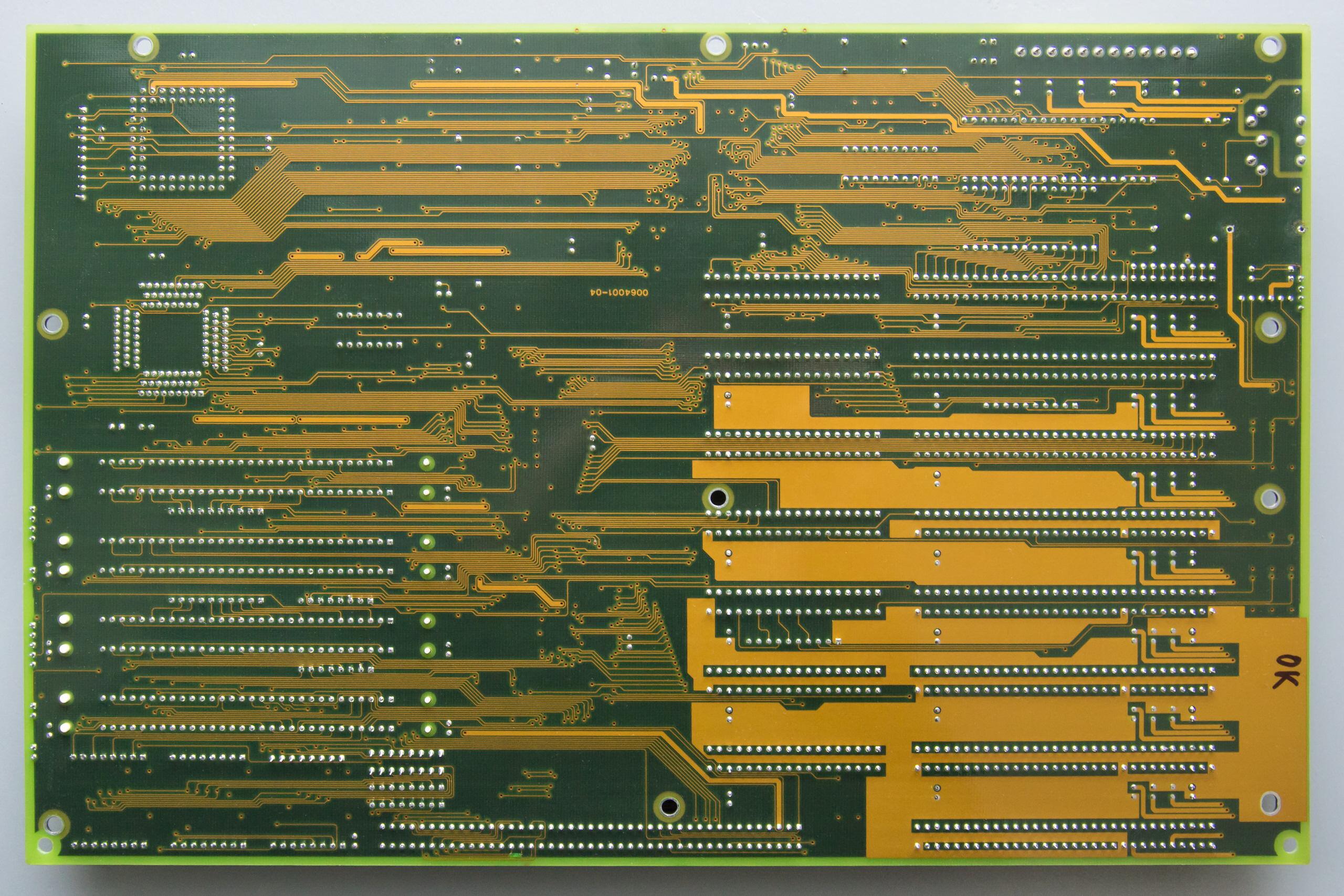

image3 Image 3 of 3 (RayeR)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
