ECS P5TX-LA
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
50MHz60MHz66MHz75MHz83MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
330mm x 218mm
ramMax VRAM size
4MB
chipCache
256KB512KB
ramMax RAM size
256MB
ramRAM type
72-pin EDO
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
Empty
wrench Known issues
  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

notes Notes

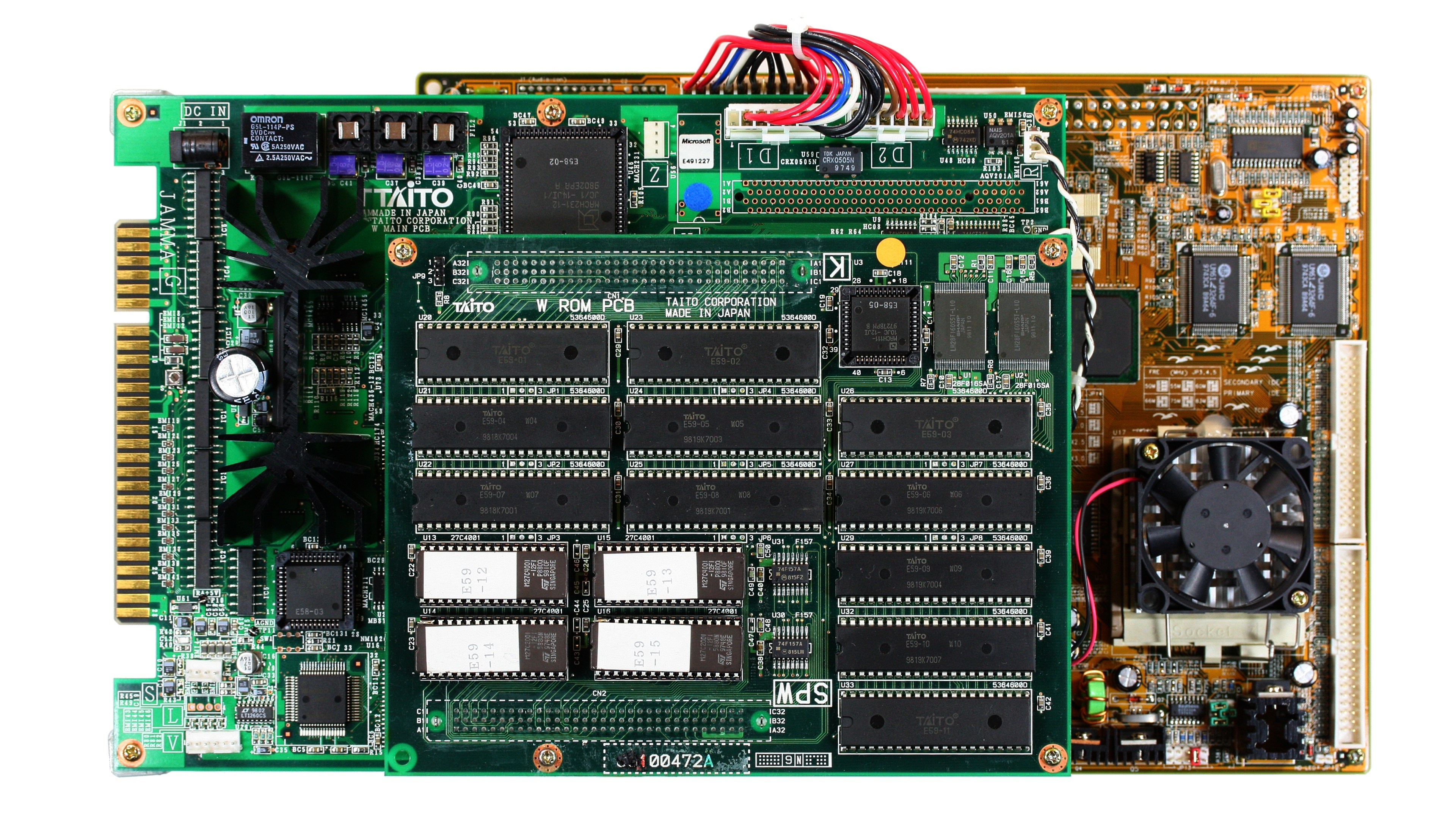

This board was famously used as the base for the "TAITOWOLF" arcade system with the accompanying 1998 arcade game "Psychic Force 2012".

Last updated 2025-06-29T13:09:01Z
Board info score is 9.1/10
bios 3 BIOS files available

vendor Award - 5 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
12/17/97-i430TX-P5TX-LA9C-00
Note
big HDD/AMD K6-2 patched
Core version
4.51PG
BIOS version
1.1+u4 08/30/2021
Logs
POST string
12/17/97-i430TX-P5TX-LA9C-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
09/23/97-i430TX-P5TX-LA9C-00
Note
Core version
4.51PG
BIOS version
1.0d
Logs
POST string
11/03/97-i430TX-P5TX-LA9C-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
06/25/97-i430TX-P5TX-LA9C-00
Note
Core version
4.51PG
BIOS version
Logs
drv 15 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
195KB
Filename
Name
Version
N/A
OS support
OS/2 Warp 3.x OS/2 Warp 4.x
Arch
x86
Size
281.5KB
Filename
Name
Version
4.10.1.3000
OS support
Windows 2000 Windows 9x
Arch
x86
Size
89.1KB
Filename
Name
Version
N/A
OS support
Windows 9x
Arch
x86
Size
2.8MB
Filename
Name
Version
PV2860
OS support
Windows 9x
Arch
x86
Size
932.8KB
Filename
Name
Version
2.00
OS support
Windows 3.1x
Arch
x86
Size
880.7KB
Filename
Name
Version
N/A
OS support
Windows NT 3.5x
Arch
x86
Size
1.7MB
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Windows 2000 Windows 9x
Arch
x86
Size
1.5MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
569.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
577.8KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
517KB
Filename
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2009-10
File
Logs
Chip
Release date
2013-04
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-11
File
Logs
Chip
Release date
2025-10
File
Logs
Chip
Release date
2002-10-20
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-01
File
Logs
Chip
Release date
2002-10-20
File
Logs
Chip
Release date
2004-02-18
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs
Family
Release date
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1998-01
File
Logs

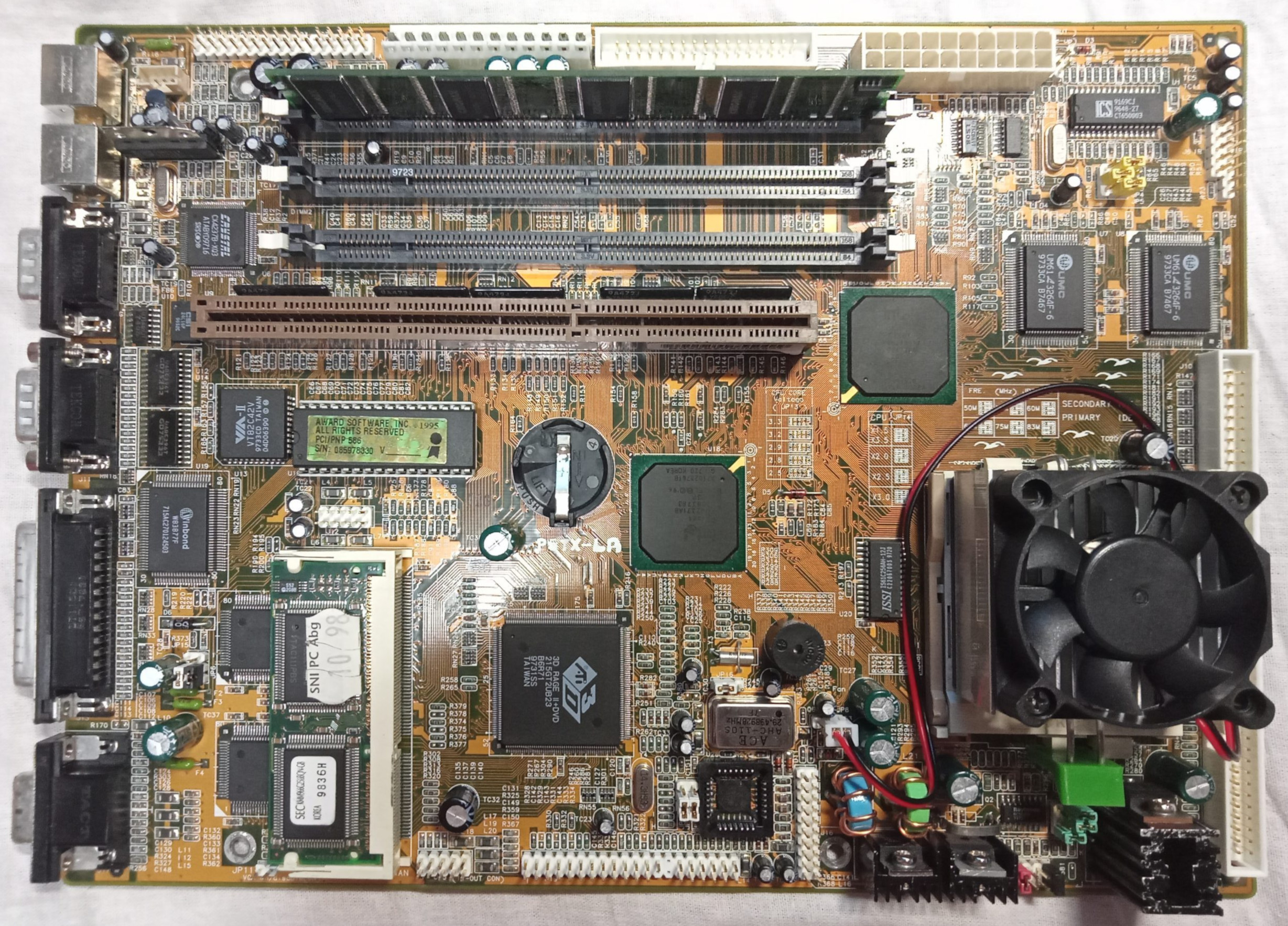

image1 Image 1 of 4 (Microhouse)

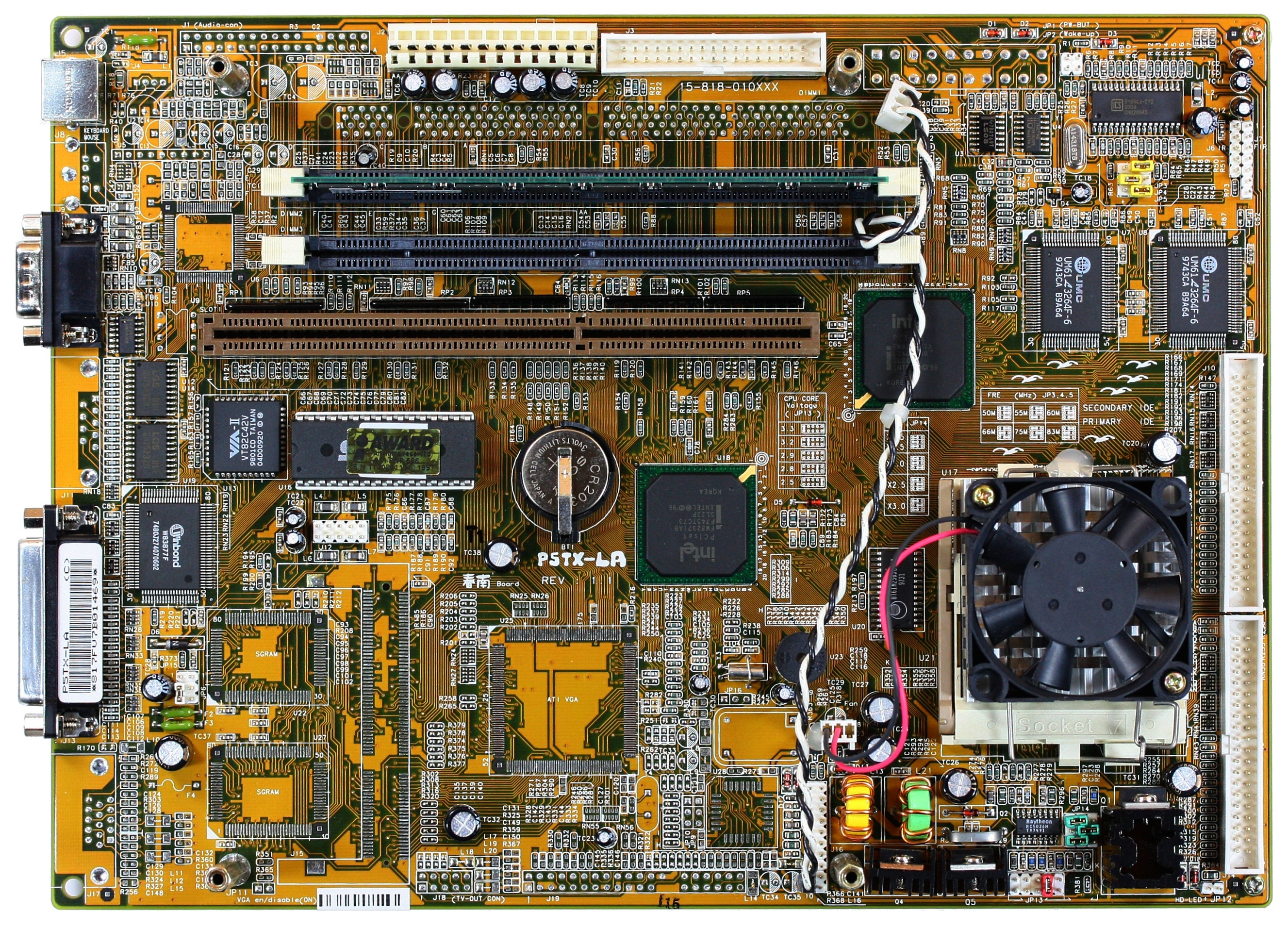

image2 Image 2 of 4 (Stephan W.)
image3 Image 3 of 4
image4 Image 4 of 4 (Stephan W.)
