ECS K7VZA+ 1.0
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speed
200MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 220mm
chipCache
None/Integrated in the CPU
ramMax RAM size
1GB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as

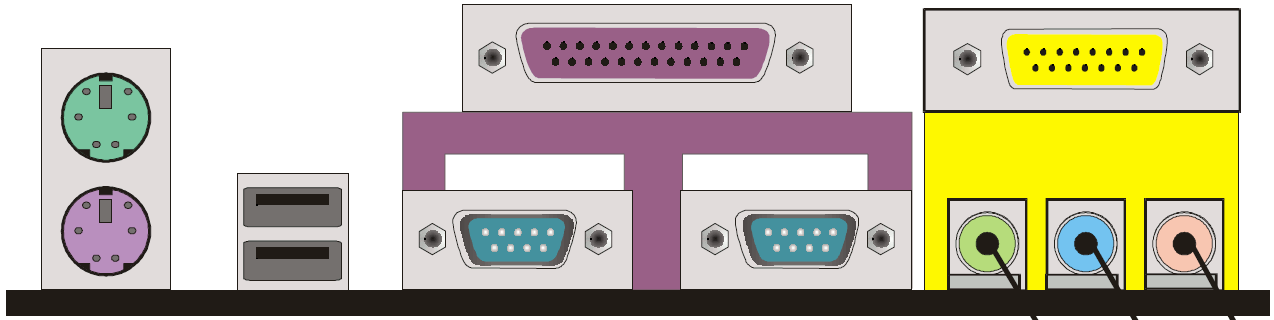

connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
cardExpansion slots
5x
32-bit PCI
1x
AMR
1x
Universal AGP
wrench Known issues
  • Faulty or Leaking Electrolytic Capacitors

Some motherboards may contain faulty or leaking electrolytic capacitors, which can negatively impact system performance or stability. These capacitors may exhibit issues such as bulging, leaking, or even exploding, potentially damaging other components on the motherboard. Users should inspect their capacitors regularly and replace any that are faulty or leaking to avoid damage or system instability.

notes Notes

=K7VZA 1.0 but with 686B southbridge instead of 686A. Uses the same bioses from version 1.1c and up.

Last updated 2024-10-17T08:25:45Z
Board info score is 8.8/10
chip Chips
-> Chipset part
VIA VT8363 (KT133) VIA VT82C686B
-> Audio
VIA VT1612A (2Ch AC'97)
cpufam CPU family support
bios 8 BIOS files available

vendor Award - 8 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
09/04/2002-8363-686-K7VZAC-00
Note
Matsonic OEM
Core version
6.00PG
BIOS version
Logs
POST string
07/19/2001-8363-686-K7VZAC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
12/06/2000-8363-686A-K7VZAC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
11/24/2000-8363-686A-K7VZAC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
10/30/2000-8363-686A-K7VZAC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
10/17/2000-8363-686A-K7VZAC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
09/06/2000-8363-686A-K7VZAC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
08/28/2000-8363-686A-K7VZAC-00
Note
Core version
6.00PG
BIOS version
Logs
drv 7 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
227.7KB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS OS/2 Warp 4.x Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
4.3MB
Filename
Version
OS support
MS-DOS OS/2 Warp 4.x Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
4.3MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.1MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
973.7KB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2002-10-14
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
image1 Image 1 of 4 (ECS)

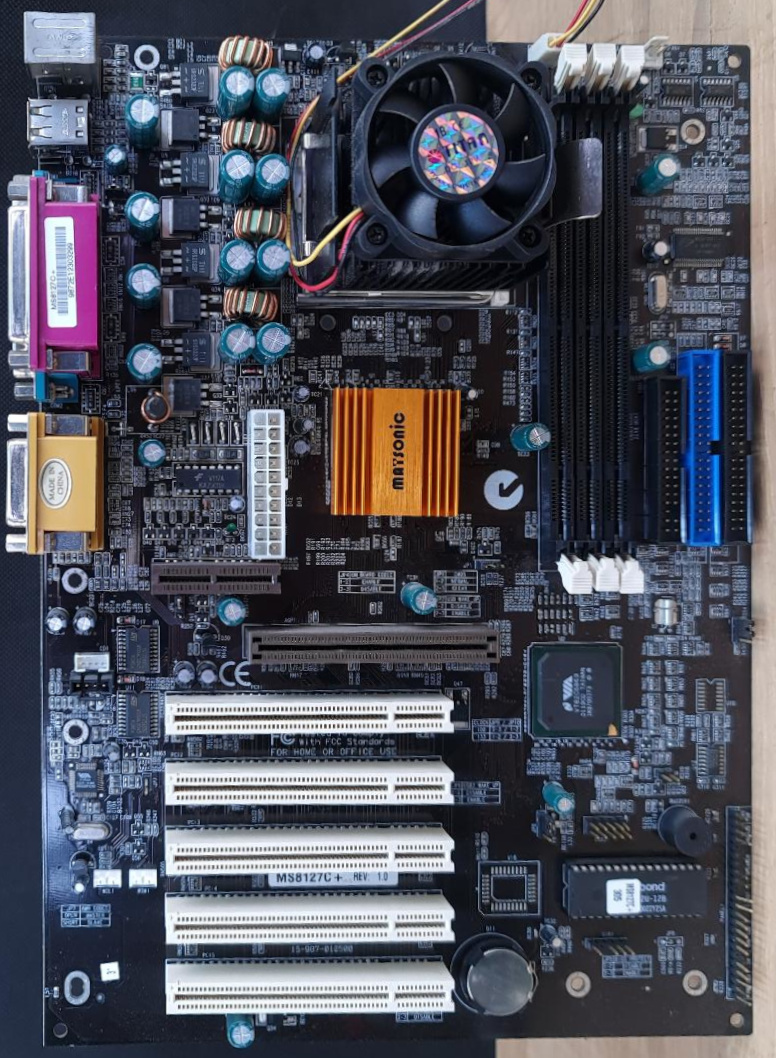

image2 Image 2 of 4 (_tony4)

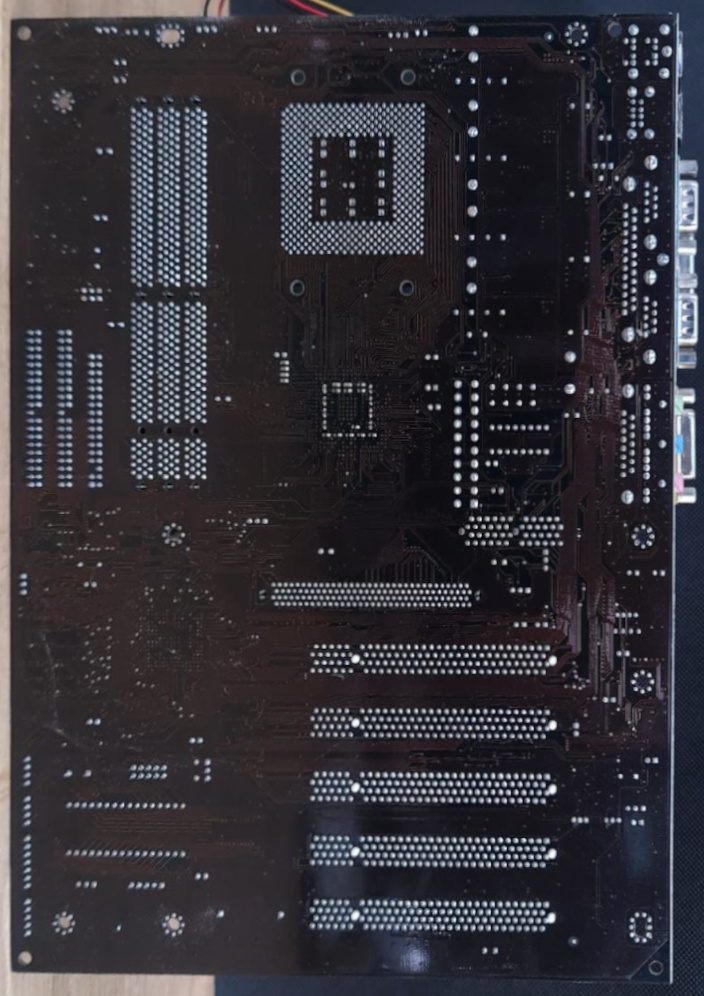

image3 Image 3 of 4 (_tony4)
image4 Image 4 of 4
