ECS K7SEM V1.x
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speeds
200MHz266MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 244mm
ramMax VRAM size
64MB
chipCache
None/Integrated in the CPU
ramMax RAM size
1GB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
  • ECS 15-A01-010100
connI/O ports
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
Serial
2x
USB 1.x
cardExpansion slots
2x
32-bit PCI
1x
AMR
1x
Universal AGP
notes Notes
  • may also come with an ALC101 or ALC100P Audio controller
Last updated 2025-09-21T18:20:39Z
Board info score is 9.8/10
chip Chips
-> Chipset part
SiS 730S SiS 730SE
-> Audio
SiS 7018
-> Clock Synth / PLL
ICS ICS94208EF
-> Network
Realtek RTL8139C (PCI Fast Ethernet)
-> Super I/O
ITE IT8705F
cpufam CPU family support
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
06/30/2004-SiS-730-6A6ISE19C-00
Note
Core version
6.00PG
BIOS version
Logs
drv 9 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
5.719.0325.2009
OS support
Linux MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Windows 2000 Windows 7 Windows 9x Windows Vista Windows XP/2k3
Arch
x86
Size
39.5MB
Filename
Name
Version
V5.00
OS support
MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Netware Client32 SCO Unix - OpenServer Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86 , PPC
Size
3.3MB
Filename
Name
Version
2.08A
OS support
Windows 9x
Arch
Size
Empty
Filename
Name
Version
2.08A
OS support
Windows NT 4.0
Arch
Size
Empty
Filename
Name
Version
1.21
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
2.04A
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
19KB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
16.5KB
Filename
Version
OS support
Windows 2000
Arch
x86
Size
31.9KB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

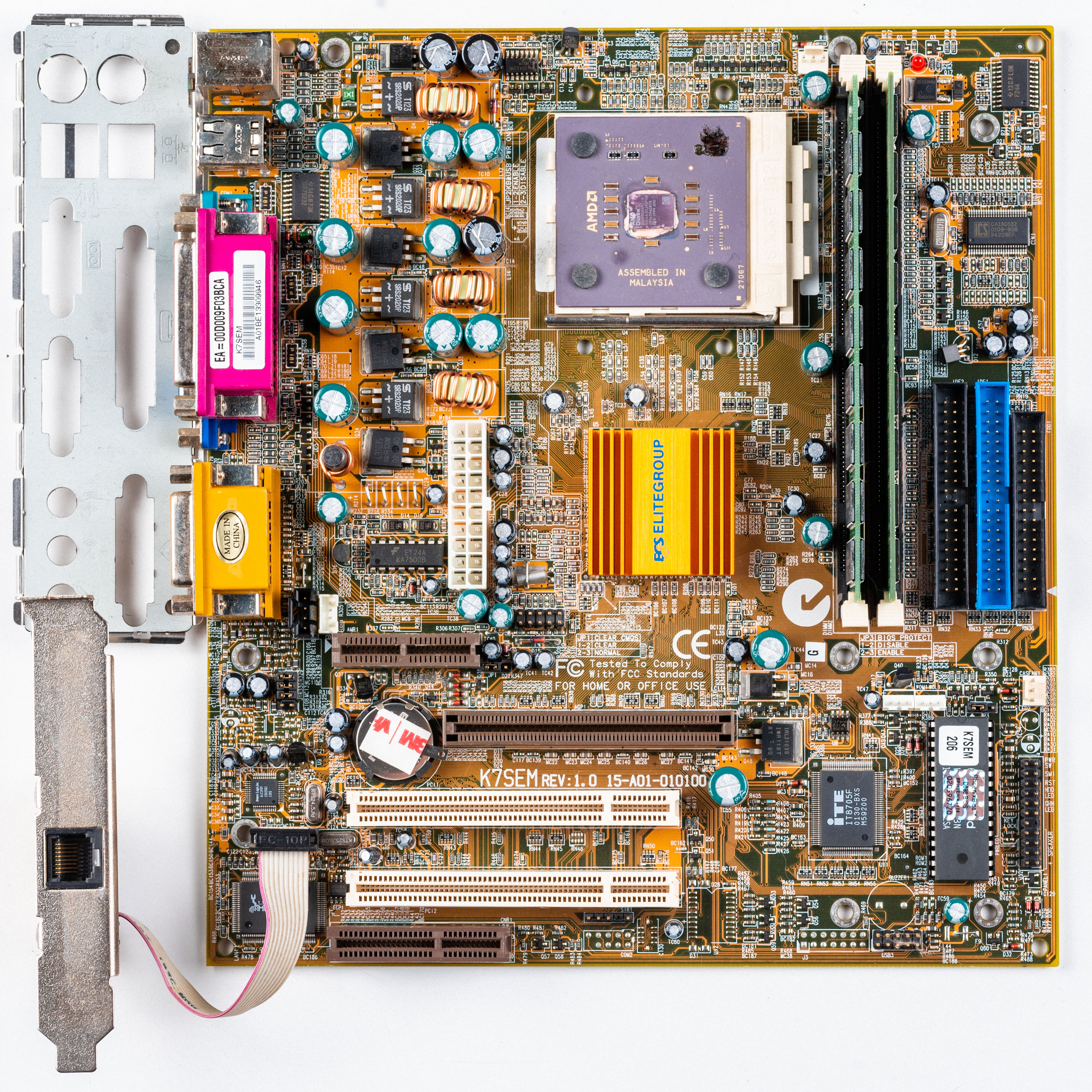

image1 Image 1 of 9 (ECS)

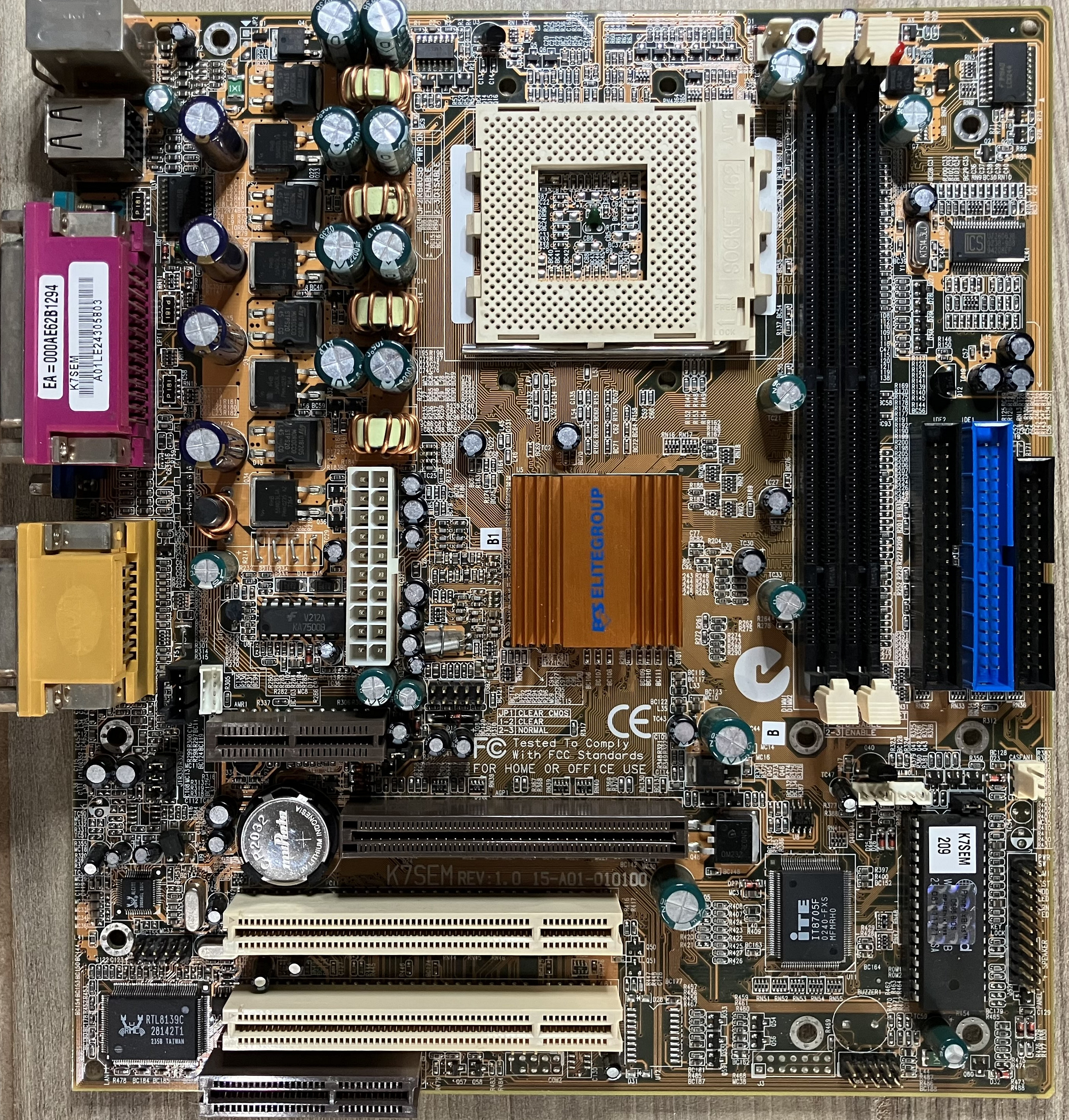

image2 Image 2 of 9 (Motherboard Continuum)

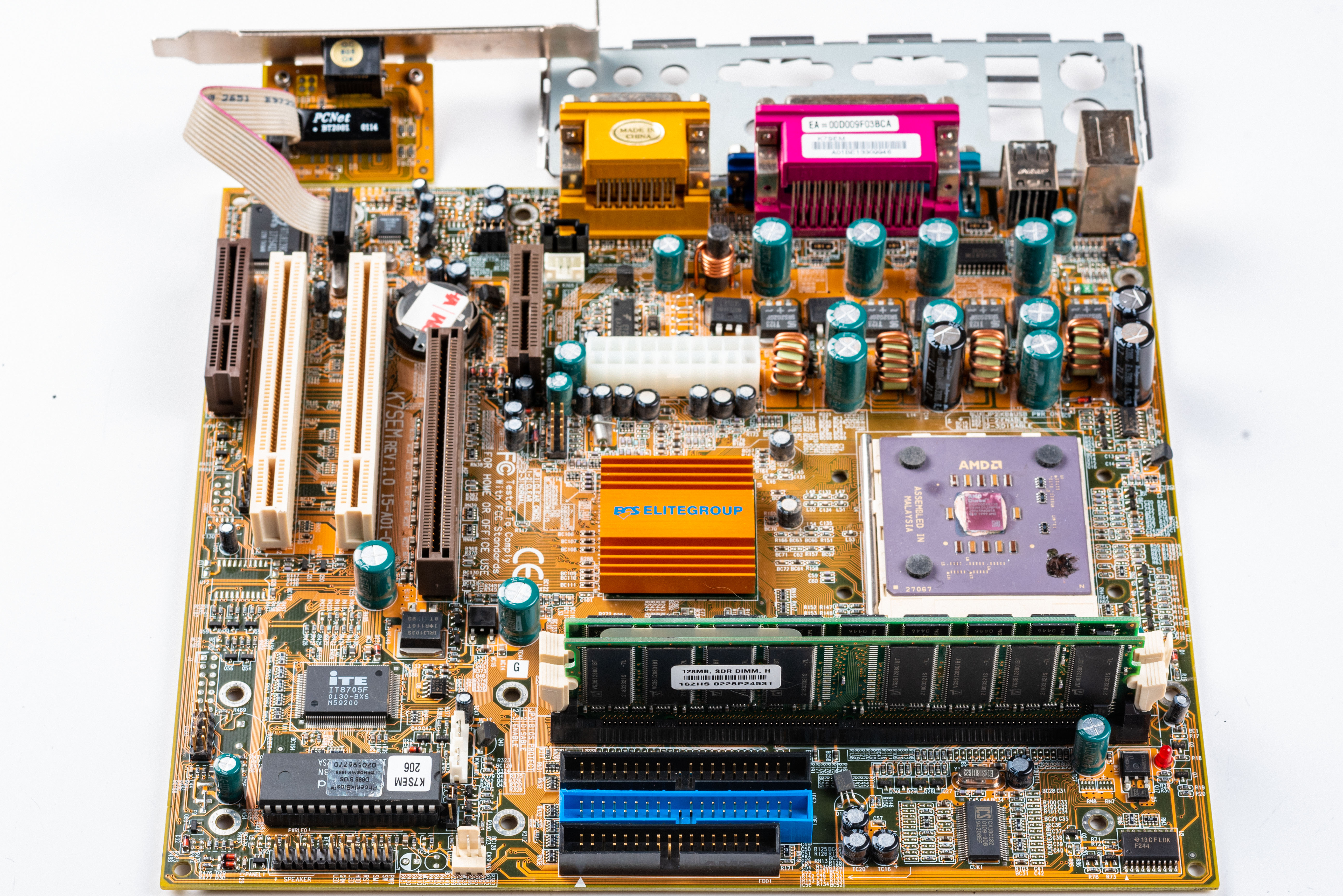

image3 Image 3 of 9 (deadskullz_627)

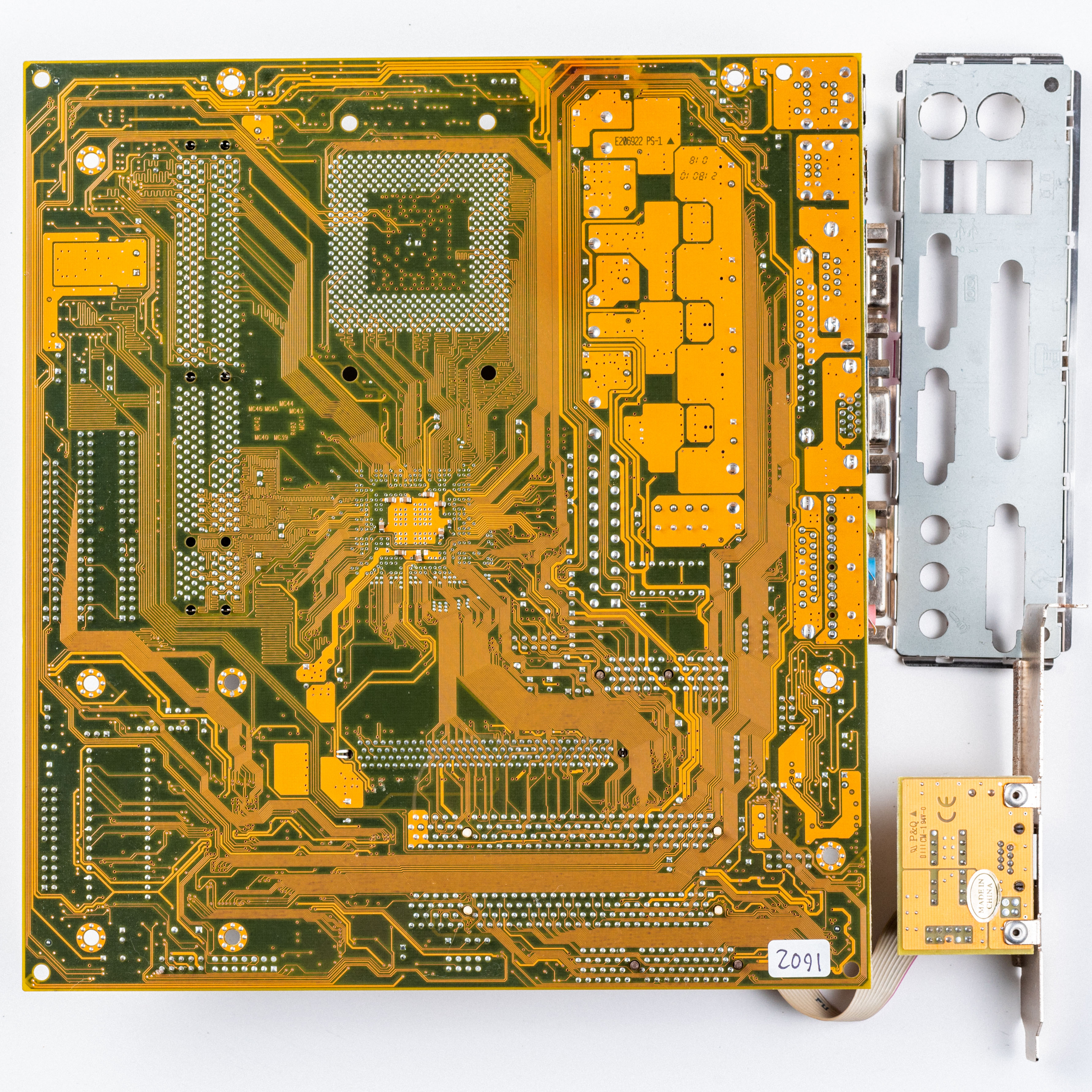

image4 Image 4 of 9 (Motherboard Continuum)

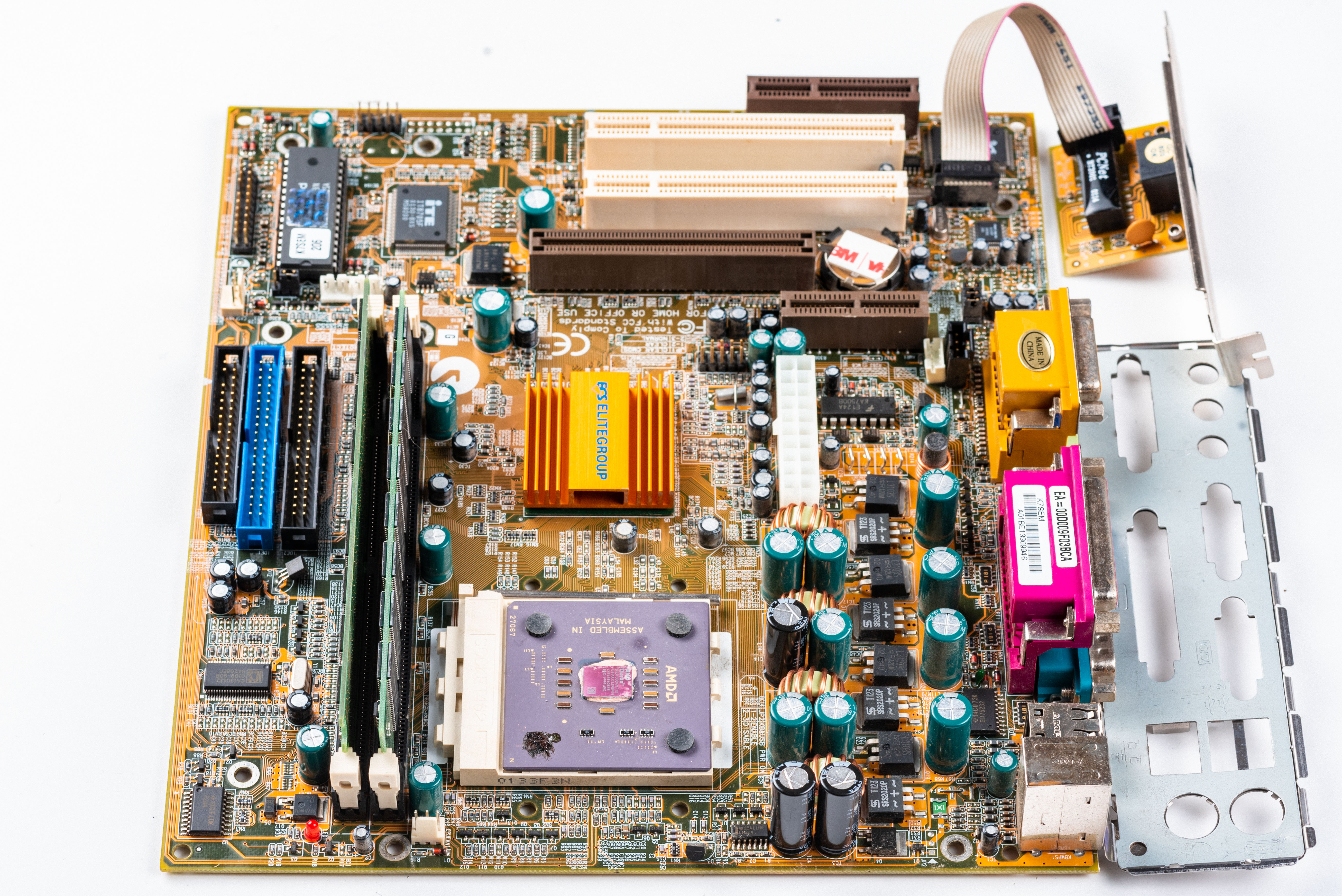

image5 Image 5 of 9 (deadskullz_627)

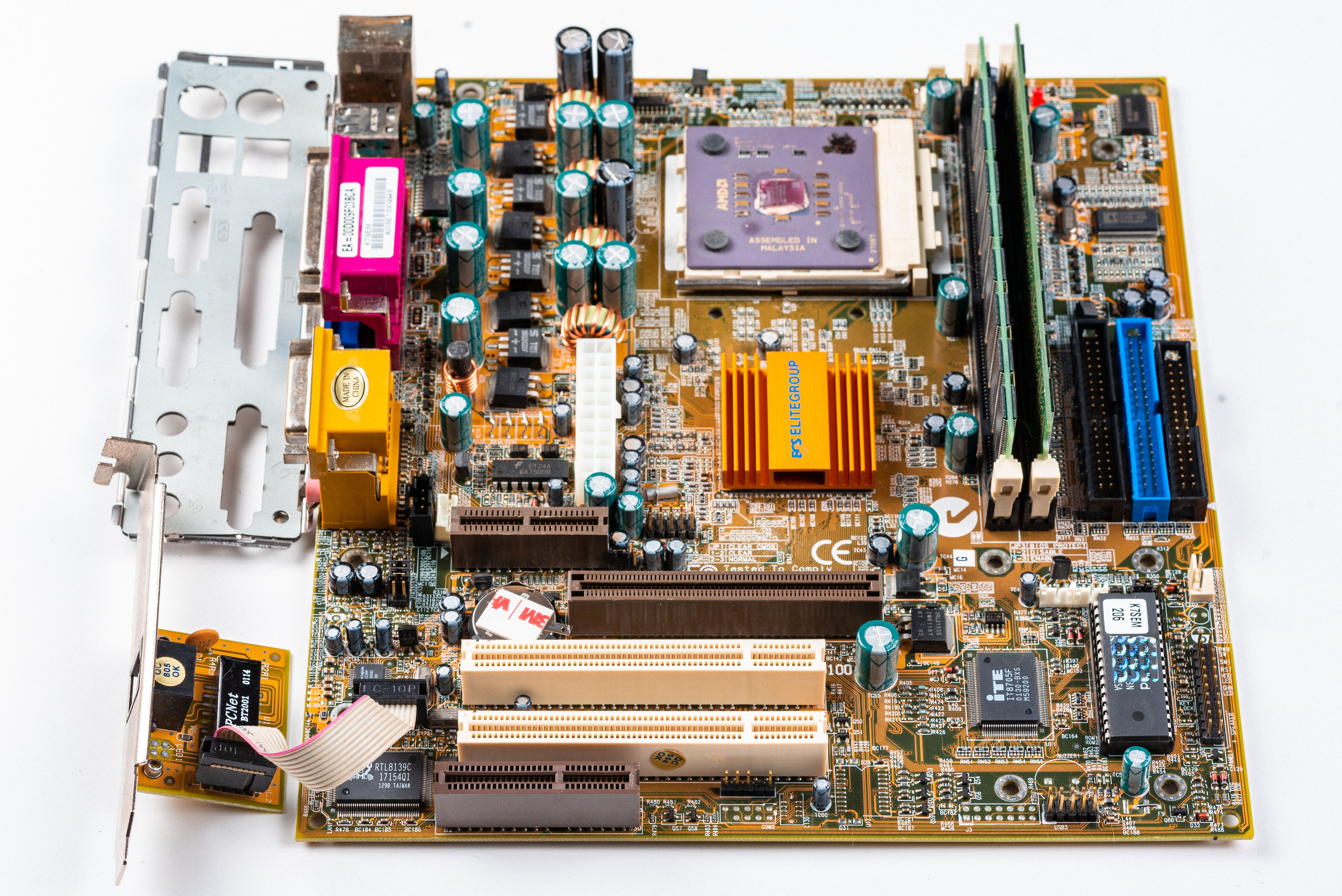

image6 Image 6 of 9 (Motherboard Continuum)

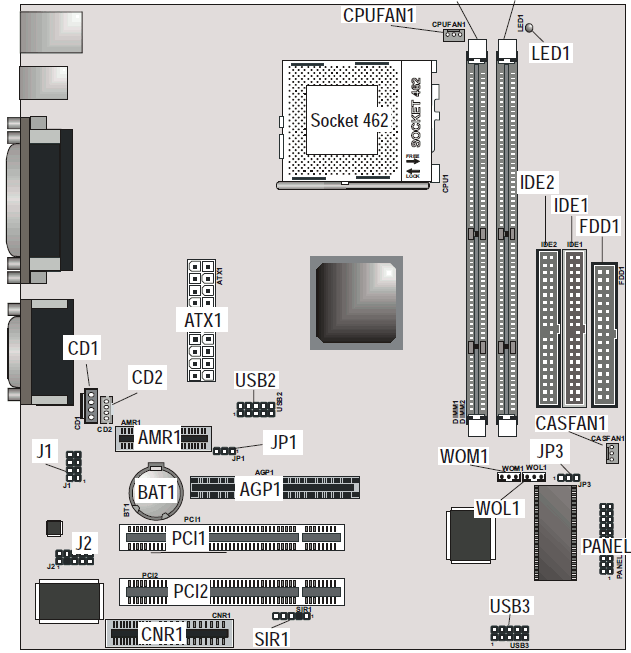

image7 Image 7 of 9 (Motherboard Continuum)

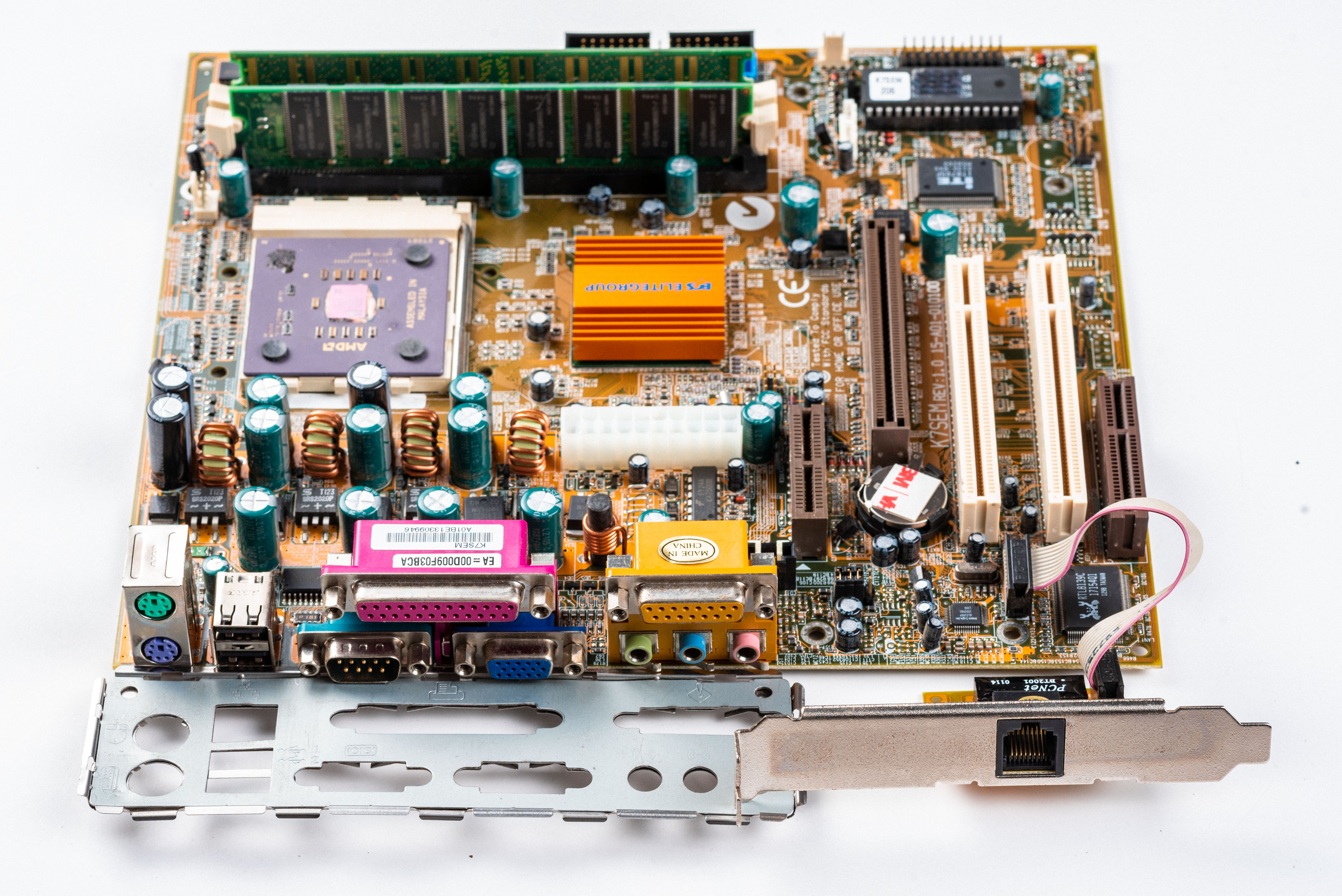

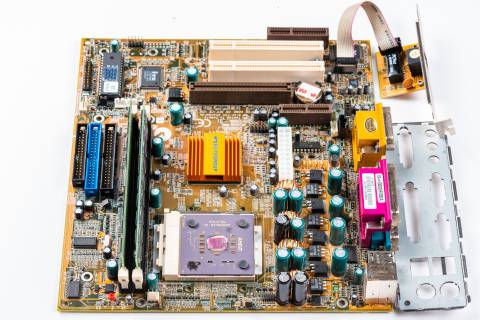

image8 Image 8 of 9 (Motherboard Continuum)
image9 Image 9 of 9 (Motherboard Continuum)
