ECS K7S7AG V1.5
Chipset
Socket
FSB speeds 200MHz266MHz333MHz
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 225mm
Max VRAM size64MB
Cache
None/Integrated in the CPU
Max RAM size
2GB
RAM type DDR UDIMM
PSU connector
Also known as
- PCChips/Hsin Tech M847LU 1.5A
- SYNTAX S746FX 1.5A
I/O ports2x
FireWire 400
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
Serial
6x
USB 2.0
Expansion slots3x
32-bit PCI
1x
CNR
Notes
963L SB
Last updated 2023-02-22T14:06:48Z
Board info score is 9.6/10
Chips
-> Chipset part
-> Audio
-> Super I/O
-> Video
CPU family support
3 BIOS files available
AMI - 3 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
62-0219-001131-00101111-040201-SiS746-K7S7AG
Note
ECS
Core version
070010
BIOS version
Logs
POST string
62-0219-001131-00101111-040201-SiS746-M847
Note
PCChips
Core version
070010
BIOS version
Logs
POST string
62-0211-001131-00101111-040201-SiS746-K7S7AG
Note
ECS
Core version
070010
BIOS version
Logs
5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.21
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
2.04A
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Arch
Size
Filename
3 board documents available
Release date
File
Logs
Chip
Release date
File
Logs

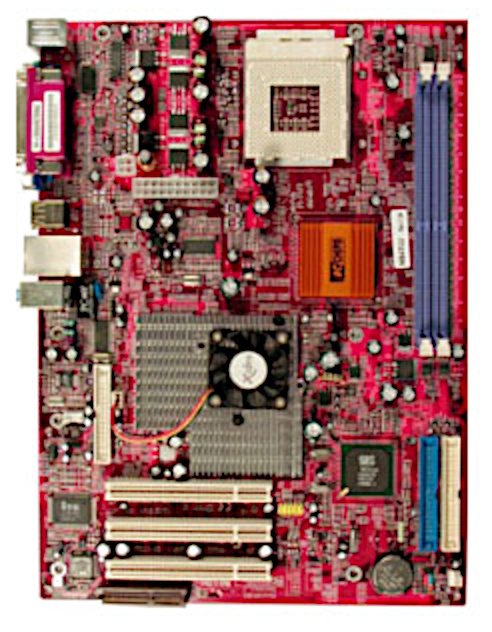

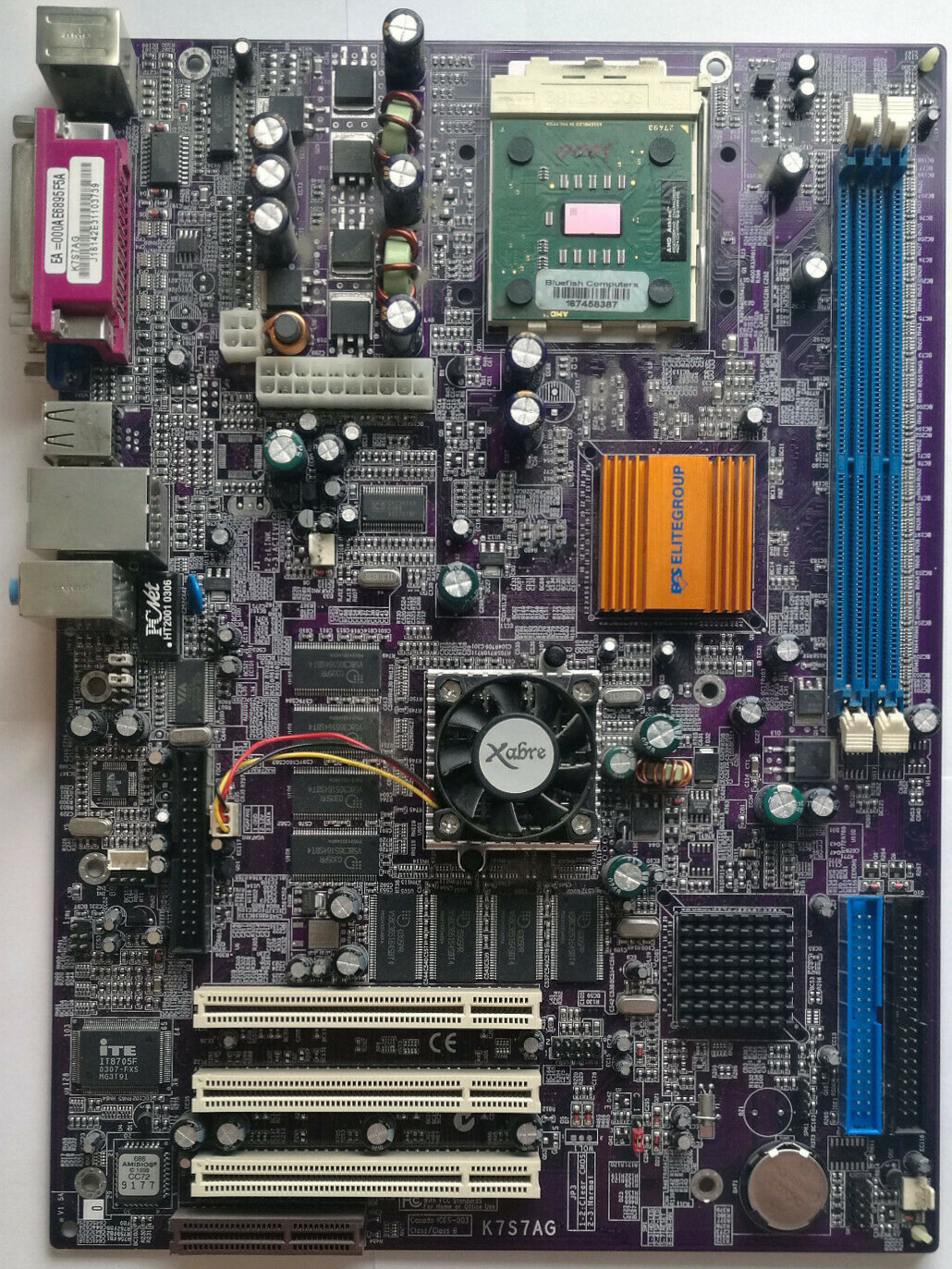

Image 1 of 4 (ECS)
Image 2 of 4
Image 3 of 4
Image 4 of 4
