DTK PAM-0067V E0
Chipset
Socket
FSB speeds 50MHz66MHz
Form factorLPX (max 229 x 330 mm)
Dimensions200 mm x 270 mm
Max VRAM size8MB
Cache
512KB
Max RAM size
256MB
RAM types 72-pin FPM72-pin EDO
PSU connector
I/O ports1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
Expansion slotsEmpty
Known issues
- Expansion slots are on proprietary riser
The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
Notes

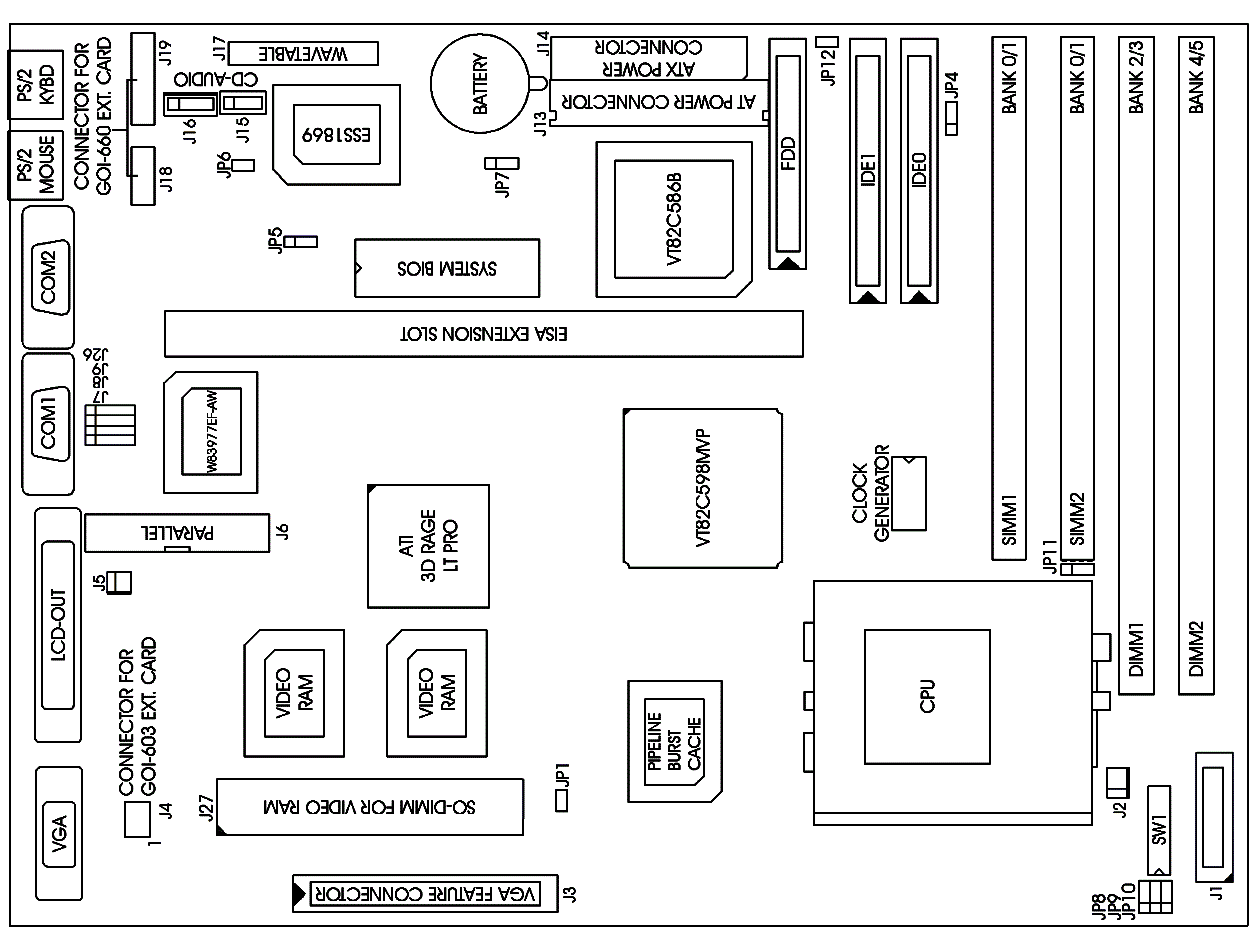

Schema shows 1 "EISA" slot, it is not EISA.
Last updated 2025-06-29T13:00:59Z
Board info score is 8.2/10
Chips
-> Chipset part
-> Audio
-> Video
3 BIOS files available
Award - 3 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.6
OS support
Windows 9x
Arch
x86
Size
1.4MB
Filename
Name
Version
4.35
OS support
Windows 9x
Arch
x86
Size
1.6MB
Filename
Name
Version
2.1.24
OS support
Windows 9x
Windows NT 4.0
Arch
x86
Size
1.4MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
Size
1.1MB
Filename
Version
OS support
Windows 2000
Windows NT 4.0
Windows XP/2k3
Arch
Size
1.1MB
Filename
Version
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
973.7KB
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1997-05-13
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1999-12
File
Logs
Family
Release date
2000-04
File
Logs
Family
Release date
2000-11
File
Logs
Family
Release date
1998-01
File
Logs
Image 1 of 1 (evasive)
