DT Research Inc. DT166 (GX) V1.3
Chipset
Socket
FSB speed Empty
Form factorOEM / Proprietary
Dimensions120mm x 135mm
Max RAM size
RAM type
PSU connector
Also known as
- DT Research Inc. DT166
- DT Research Inc. 15-166-011300
- DT Research Inc. GD166_MB V:1.3

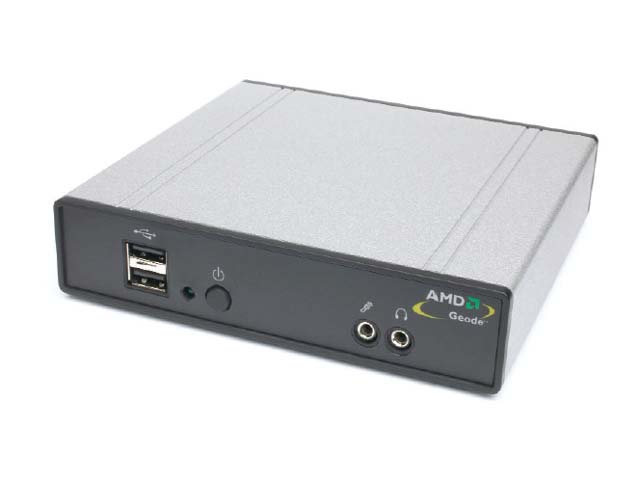

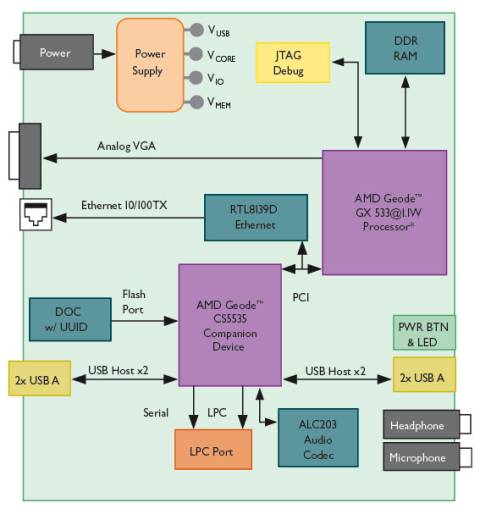

- AMD Geode GX Thin Client Reference Design
- DT Research Inc. WebDT 166 System Board
- BOSaNOVA/10Zig Rabbit Thin Client

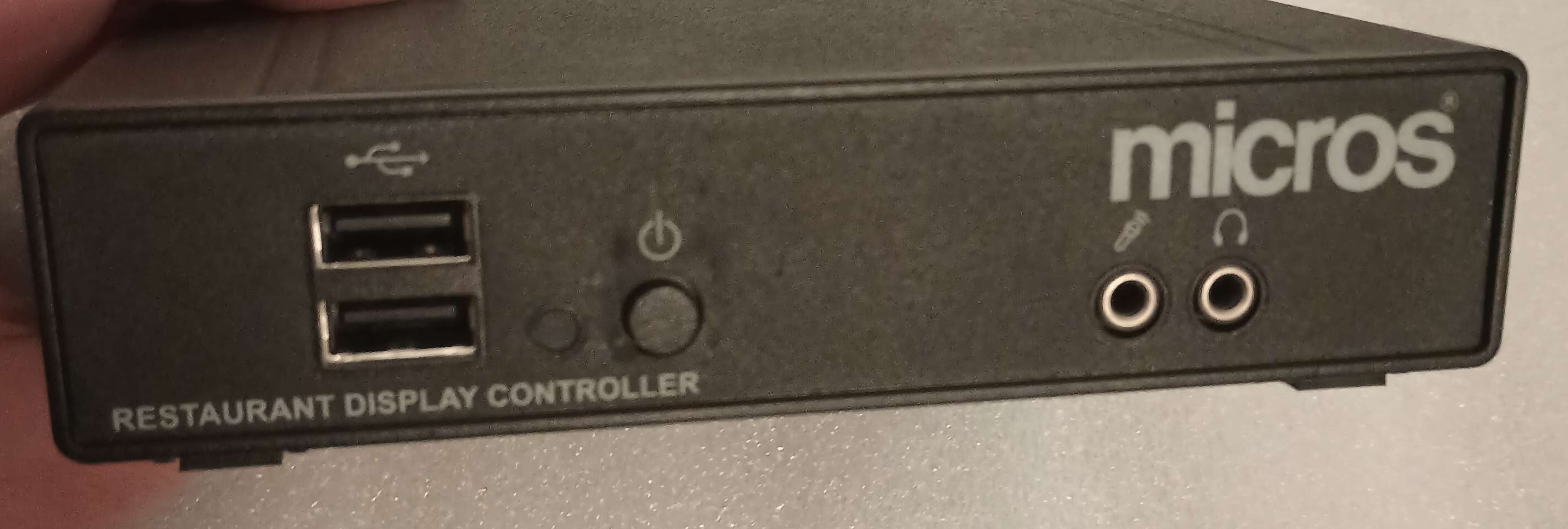

- micros DT166 KDS Restaurant Display Controller
- micros 700876-200
I/O ports1x
3.5mm Line-Out
1x
3.5mm Microphone
1x
IDE interface
1x
RJ-45 LAN
4x
USB 1.x
1x
VGA
Expansion slotsEmpty
Notes
- User Realtek RTL8100BL or RTL8139D Network Chip
- Embedded AMD Geode GX 533
Last updated 2025-10-05T07:10:41Z
Board info score is 7.2/10
Chips
-> Chipset part
-> Audio
-> Network
CPU family support
0 BIOS files available
4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
5.719.0325.2009
OS support
Linux
MS-DOS
Mac OS X
NetWare Server 3
NetWare Server 4
Windows 2000
Windows 7
Windows 9x
Windows Vista
Windows XP/2k3
Arch
x86
Size
39.5MB
Filename
Name
Version
A4.06
OS support
Windows 2000
Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Name
Version
V5.00
OS support
MS-DOS
Mac OS X
NetWare Server 3
NetWare Server 4
Netware Client32
SCO Unix - OpenServer
Windows 2000
Windows 3.1x
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Arch
x86
, PPC
Size
3.3MB
Filename
Name
Version
1.0
OS support
MS-DOS
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
Size
490.9KB
Filename
3 board documents available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001-11-09
File
Logs
Image 1 of 6 (CentaurHauls)
Image 2 of 6 (CentaurHauls)
Image 3 of 6 (CentaurHauls)
Image 4 of 6 (CentaurHauls)
Image 5 of 6 (AMD)
Image 6 of 6 (AMD)
