DIGITAL-LOGIC MSMT3 Series
Logs
Chipset
Empty
Socket Empty
FSB speed Empty
Form factorPC 104 Plus (max 96 × 116 mm)
DimensionsEmpty
Max VRAM size8MB
Cache
None/Integrated in the CPU
Max RAM size
64MB(SDRAM onboard)256MB(SDRAM SO-DIMM)
RAM types 144-pin SDR SO-DIMMSDRAM
PSU connector
Also known as
- DIGITAL-LOGIC MSMT3XEG
- DIGITAL-LOGIC MSMT3SEG
- DIGITAL-LOGIC MSMT3SEN
- DIGITAL-LOGIC MSMT3XEN
- advanced digital logic (ADL) MSMT3XEG
- advanced digital logic (ADL) MSMT3SEG
- advanced digital logic (ADL) MSMT3SEN
- advanced digital logic (ADL) MSMT3XEN
I/O ports1x
CF Card Slot
1x
Floppy interface
1x
IDE interface
1x
PS/2 KB+MS Combo
1x
Parallel
1x
RJ-45 LAN
4x
Serial
2x
USB 1.x
1x
VGA
Expansion slots1x
PC/104+ (PC/104-Plus)
Notes
- MSMT3XEG (801895) Baseboard with LAN, Video, 64MB soldered SDRAM
- MSMT3SEG (801870) Baseboard with LAN, Video, 0MB SDRAM
- MSMT3SEN (801872) Baseboard with LAN, no Video, 0MB SDRAM
- MSMT3XEN (801972) Baseboard with LAN, no Video, 64MB soldered SDRAM
Requires a SmartCoreT3 CPU module to function
Optional CompactFlash, COM3, COM4, PCI/104 and VGA
Last updated 2025-12-08T05:14:37Z
Board info score is 6.4/10
Chips
CPU family support
Empty
1 BIOS file available
Phoenix - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.40.1001
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 Warp 3.x
Windows 3.1x
Windows 9x
Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
3 board documents available
Release date
File
Logs
Chip
Release date
File
Logs

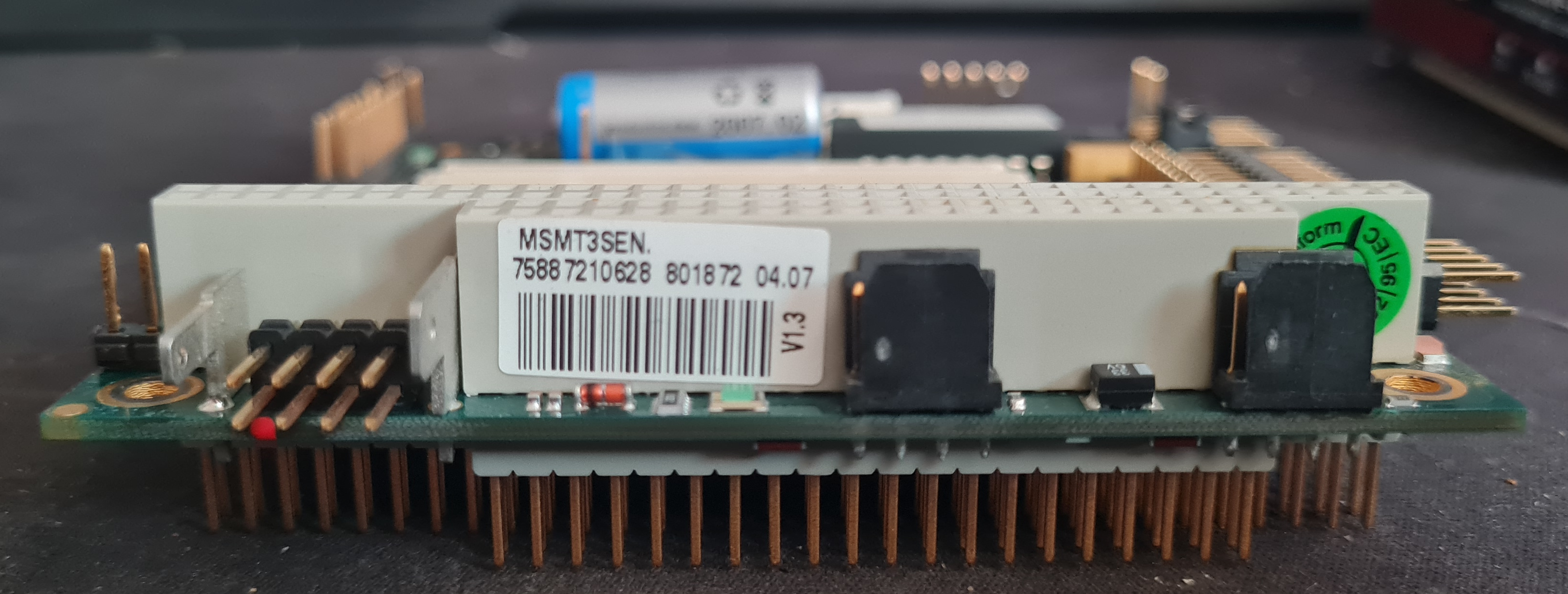

Image 1 of 6 (Xeon3D)

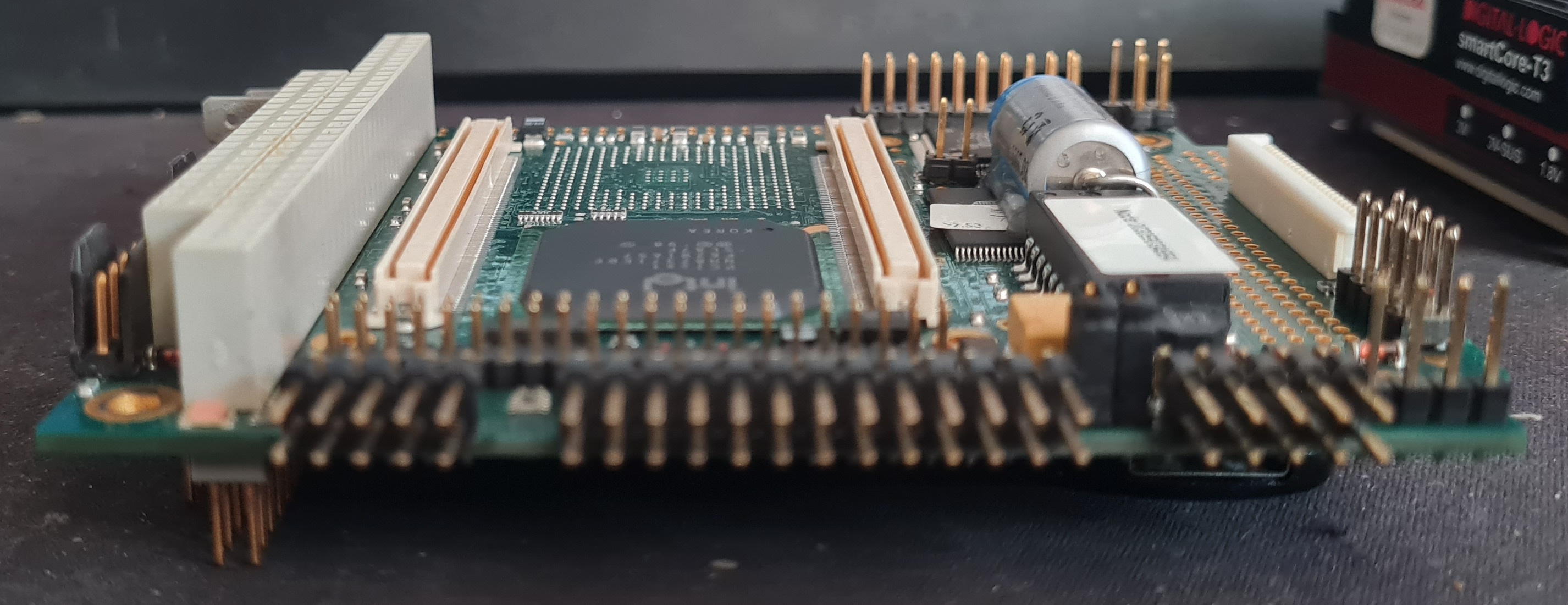

Image 2 of 6 (Xeon3D)

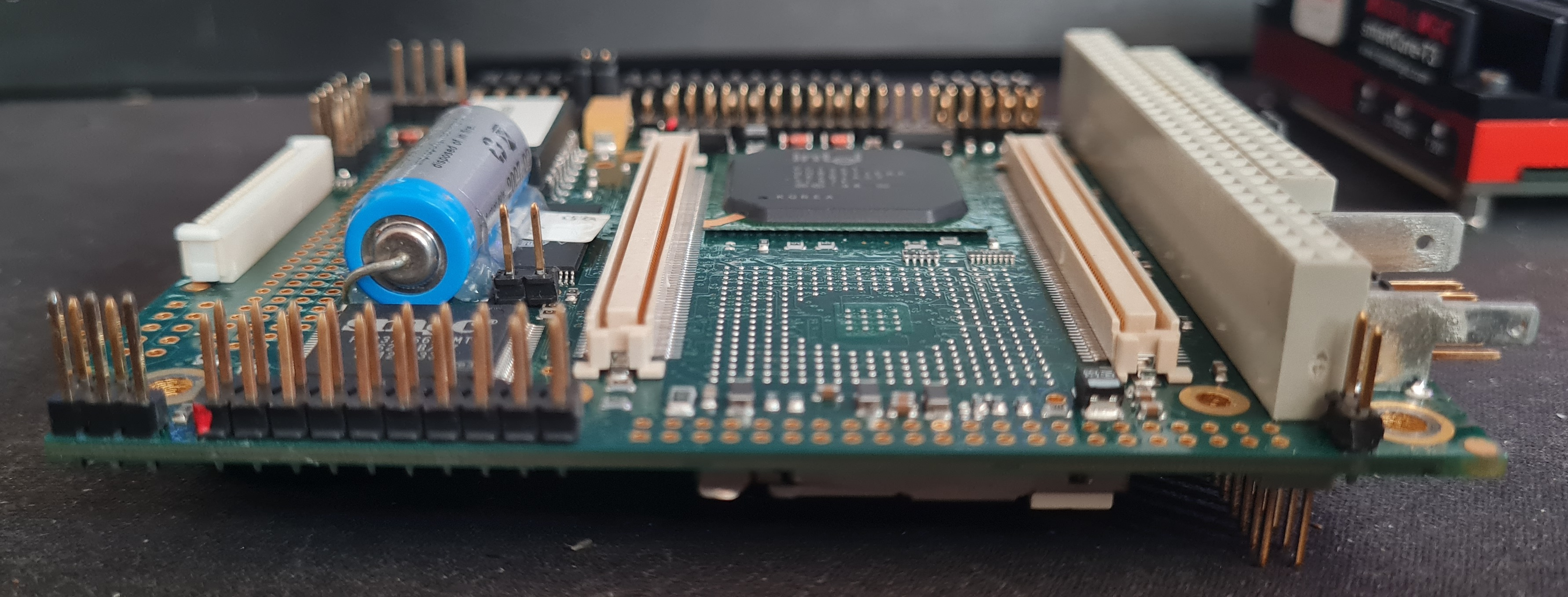

Image 3 of 6 (Xeon3D)

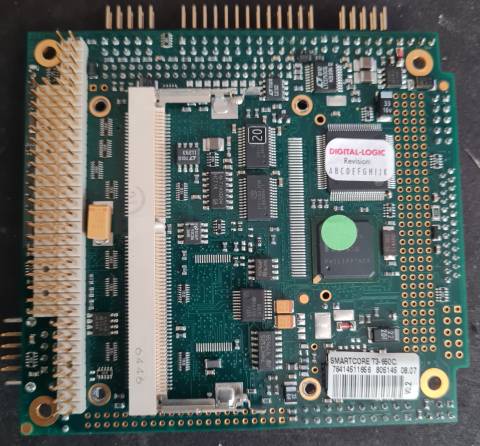

Image 4 of 6 (Xeon3D)

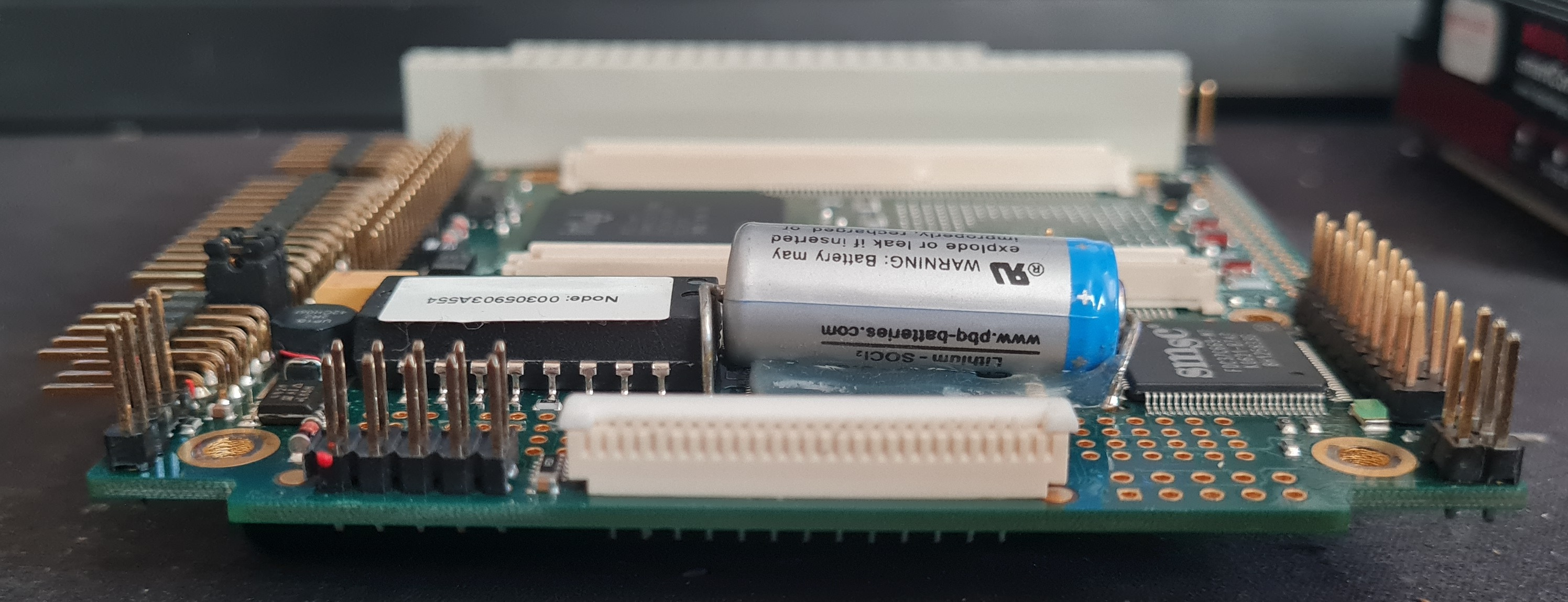

Image 5 of 6 (Xeon3D)

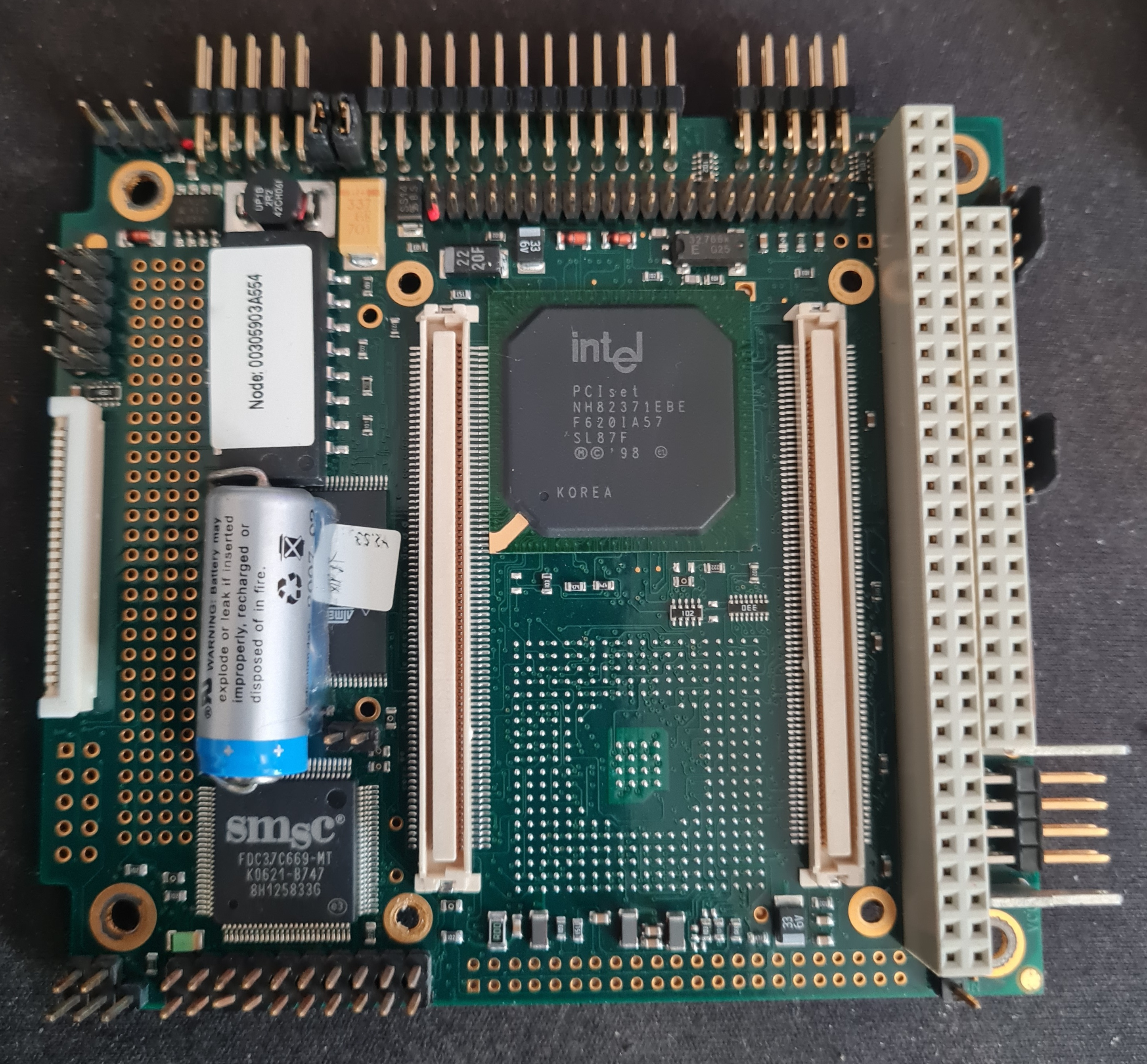

Image 6 of 6 (Xeon3D)
