Digicom 6/8/10 MHz TURBO BOARD
Logs
chipChipset
cpuSockets
DIP40 CLCC68
speedFSB speeds
6MHz8MHz10MHz
moboForm factor
AT (max 305 x 330 mm)
dimDimensions
305 x 330 mm
chipCache
None/Integrated in the CPU
ramMax RAM size
1MB
ramRAM type
DIP-16 (1bit)
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
  • Unknown WTF 860104
  • Unknown 286 6/8/10 MHz TURBO
  • Computrade NOVAS SUPER TURBO 286
connI/O ports
1x
AT Keyboard
1x
Parallel
4x
Serial
cardExpansion slots
6x
16-bit ISA
2x
8-bit ISA
wrench Known issues
  • Bad/shorted tantalum capacitors

Owners of this board have reported tantalum capacitor failures on this board. Make sure there's no short before turning on this board for the first time.

Last updated 2025-11-12T21:48:18Z
Board info score is 7.3/10
bios 1 BIOS file available

vendor Phoenix - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
1.50
BIOS version
Logs
drv No drivers available
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

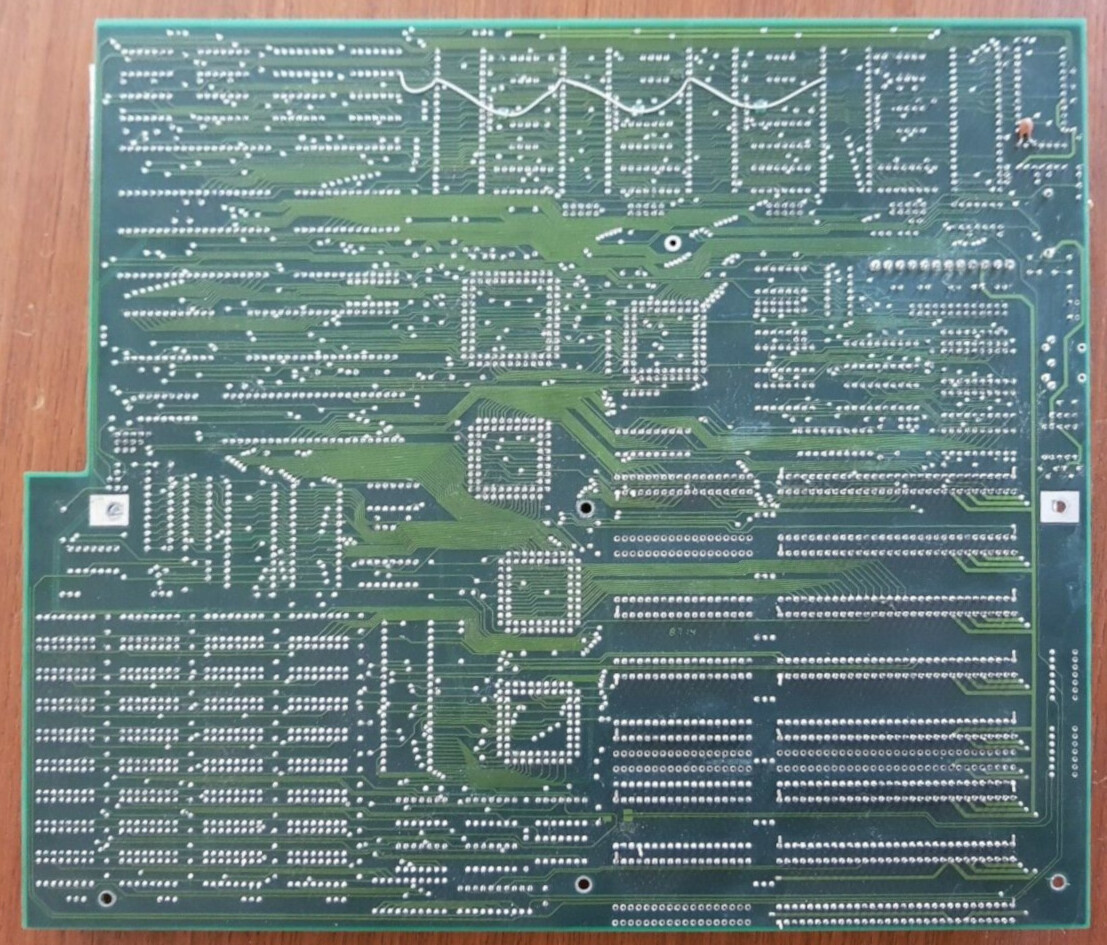

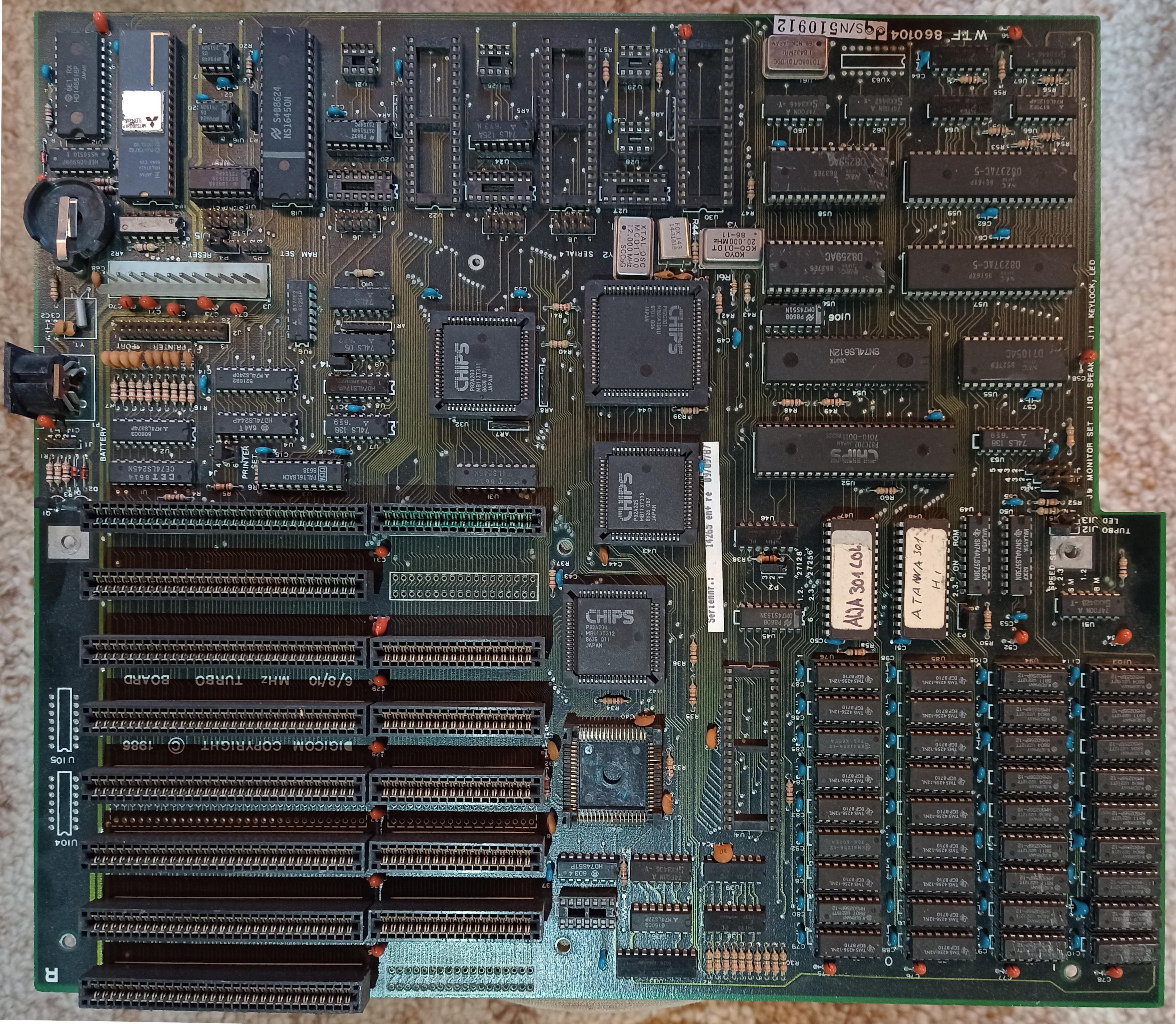

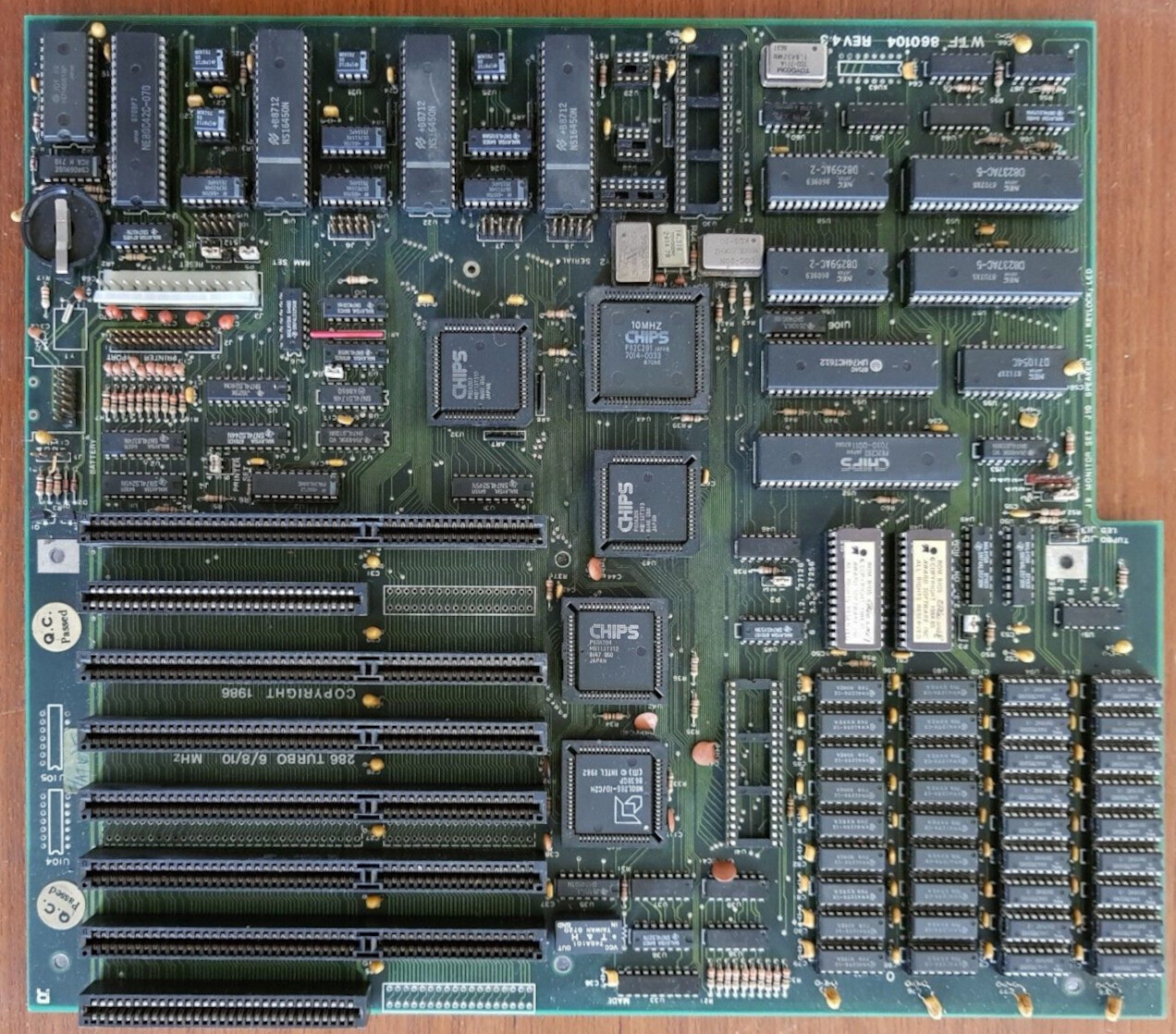

image1 Image 1 of 3 (i440bx)
image2 Image 2 of 3
image3 Image 3 of 3

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
