DFI LANParty UT P45-T3RS

Description

Chips

BIOS 9

Drivers 4

Documentation 1

Chipset

Intel P45 (Eaglelake-P+ (RAID))

Socket

Socket T (LGA775)

FSB speeds

800MHz1066MHz1333MHz1600MHz

Form factor

ATX (max 305 x 244 mm)

Dimensions

305mm x 244mm

Cache

None/Integrated in the CPU

Max RAM size

16GB

RAM type

DDR3 UDIMM

PSU connector

ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)

Also known as

DFI LANParty UT P45-T3RS

I/O ports

2x

FireWire 400

1x

Floppy interface

1x

IDE interface

1x

PS/2 keyboard

1x

PS/2 mouse

2x

RJ-45 LAN

2x

S/PDIF

8x

SATA II

1x

Serial

12x

USB 2.0

Expansion slots

3x

32-bit PCI

2x

PCIe x1

2x

PCIe x16

1x

PCIe x16 @ x8

Notes

Either 1 PCIe x16 at full speed or both PCIe x16 @x8 speed (SLI).

Last updated 2025-09-07T10:09:40Z

Board info score is 9.6/10

Chips

-> Chipset part

Intel 82P45 (MCH) Intel AF82801JIR (ICH10R)

-> Audio

Realtek ALC885 (High Definition Audio)

-> Clock Synth / PLL

ICS ICS9LPRS918BKL

-> FireWire ctrl.

VIA VT6307 (2 port FireWire 400 PCI ctrl.)

-> Network

Marvell 88E8053 (PCIe Gigabit Ethernet) Marvell 88E8052 (PCIe Gigabit Ethernet)

-> RAID ctrl.

JMicron JMB363 (PCIe to SATA II and PATA HC)

-> Super I/O

ITE IT8718F

CPU family support

9 BIOS files available

Award - 9 entries

POST string

Note

Core Ver.

BIOS Ver.

Logs

POST string

12/12/2008-Eaglelake-8A79WD49C-00

Note

Beta

Core version

v6.00PG

BIOS version

Logs

POST string

11/17/2008-Eaglelake-8A79WD49C-00

Note

Beta

Core version

v6.00PG

BIOS version

Logs

POST string

10/28/2008-Eaglelake-8A79WD49C-00

Note

Beta

Core version

v6.00PG

BIOS version

Logs

POST string

09/23/2009-Eaglelake-8A79WD49C-00

Note

Core version

v6.00PG

BIOS version

Logs

POST string

07/03/2009-Eaglelake-8A79WD49C-00

Note

Core version

v6.00PG

BIOS version

Logs

POST string

05/27/2010-Eaglelake-8A79WD49C-00

Note

Core version

v6.00PG

BIOS version

Logs

POST string

03/20/2009-Eaglelake-8A79WD49C-00

Note

Core version

v6.00PG

BIOS version

Logs

POST string

02/02/2009-Eaglelake-8A79WD49C-00

Note

Core version

v6.00PG

BIOS version

Logs

POST string

02/05/2010-Eaglelake-8A79WD49C-00

Note

Core version

v6.00PG

BIOS version

Logs

4 drivers available

Name

Version

OS support

Arch

Size

Filename

Name

Intel Chipset Device Software

Version

9.2.0.1030

OS support

Windows 2000

Windows XP/2k3

Arch

Size

Empty

Filename

infinst-autol.zip

Name

JMB36x Windows driver WHQL

Version

R1.17.39

OS support

Windows 2000

Windows Vista

Windows XP/2k3

Arch

x86 , x86-64

Size

3.8MB

Filename

jmb36x-windrv-r1-17-39whql.zip

Name

Marvell Yukon Miniport drivers

Version

11.45.4.3

OS support

Windows 7

Windows 8.x

Windows Vista

Windows XP/2k3

Arch

x86 , x86-64

Size

1.8MB

Filename

marvell-yukon-setup-v11-45-4-3.zip

Name

Realtek HD audio driver

Version

R2.74

OS support

Windows 2000

Windows 7

Windows Vista

Windows XP/2k3

Arch

Size

30.7MB

Filename

0001-wdm-r274.zip

1 board document available

Release date

File

Logs

Release date

2008-01-01

File

Logs

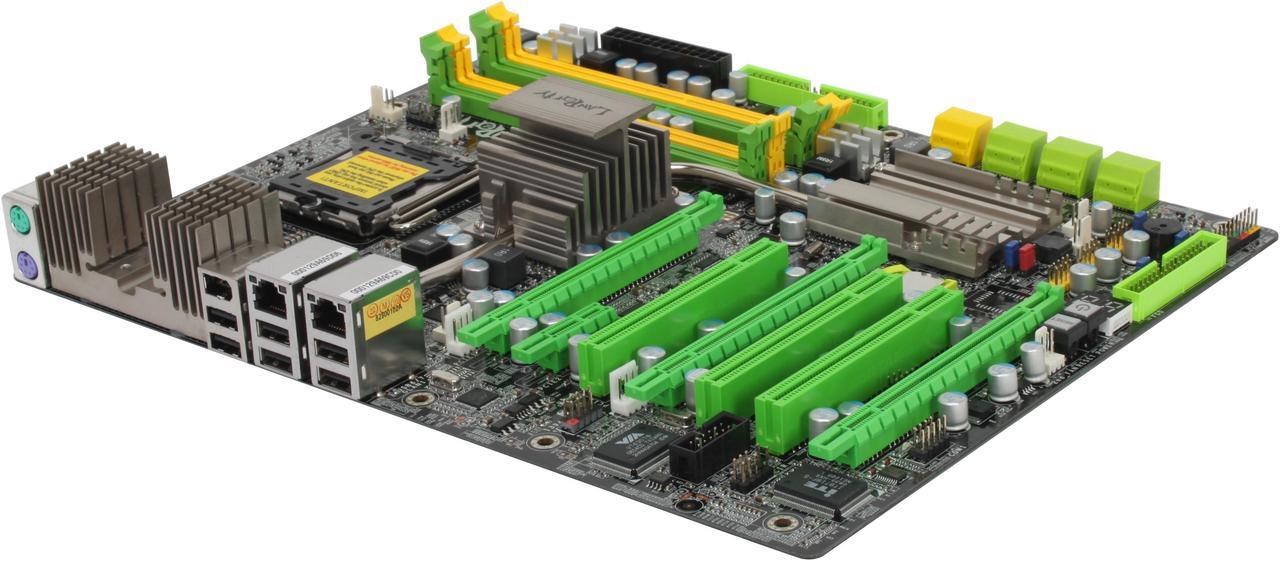

Image 1 of 4 (DFI)

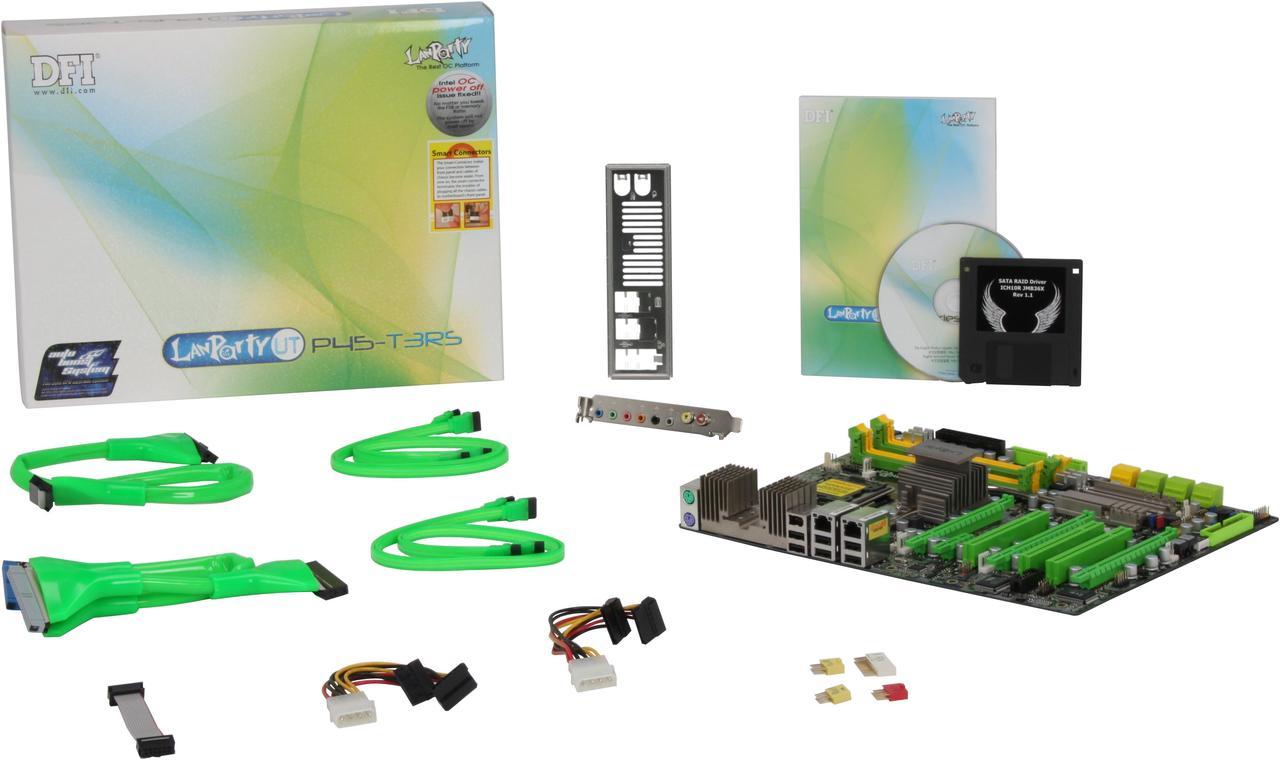

Image 2 of 4 (DFI)

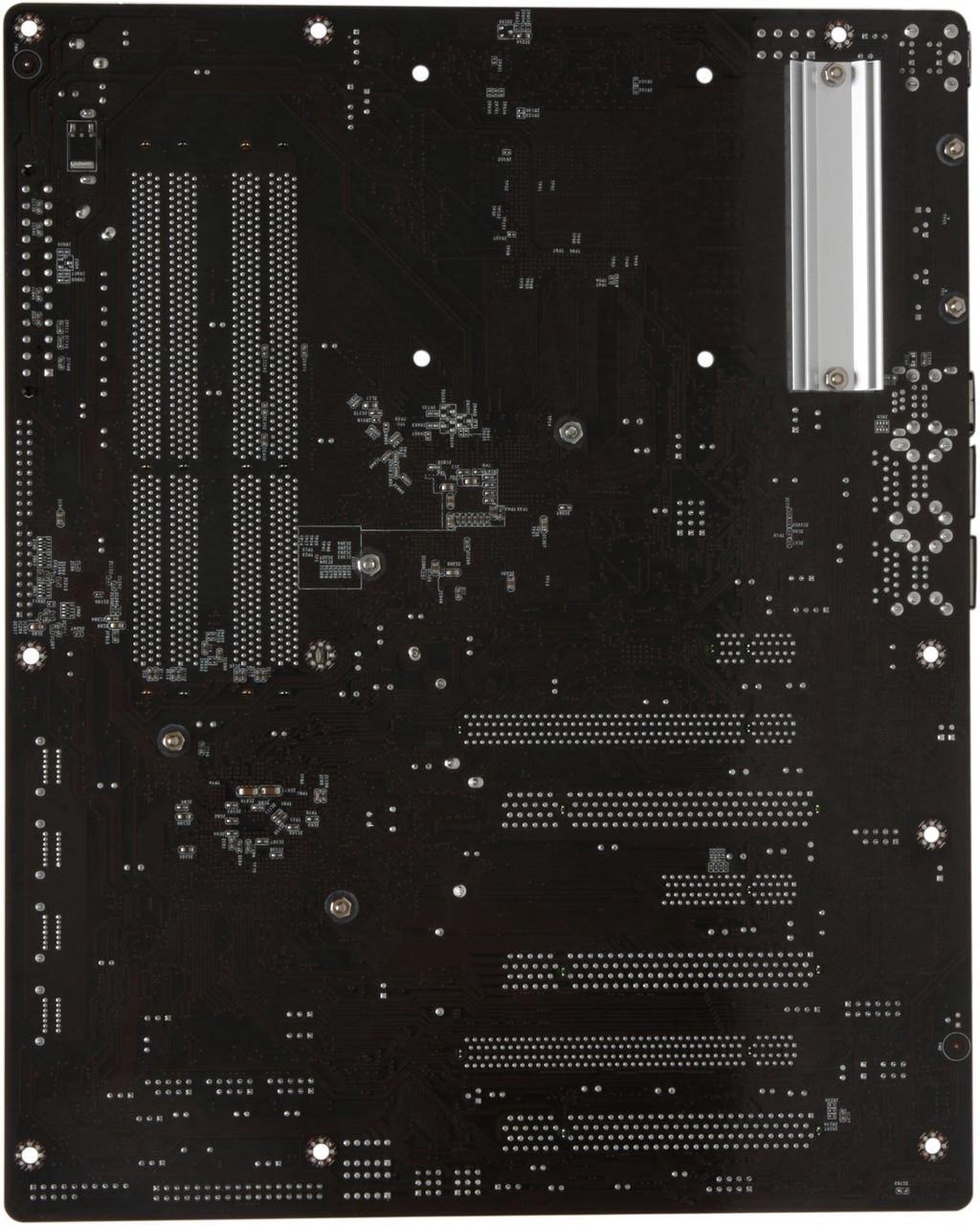

Image 3 of 4 (DFI)

Image 4 of 4 (DFI)
