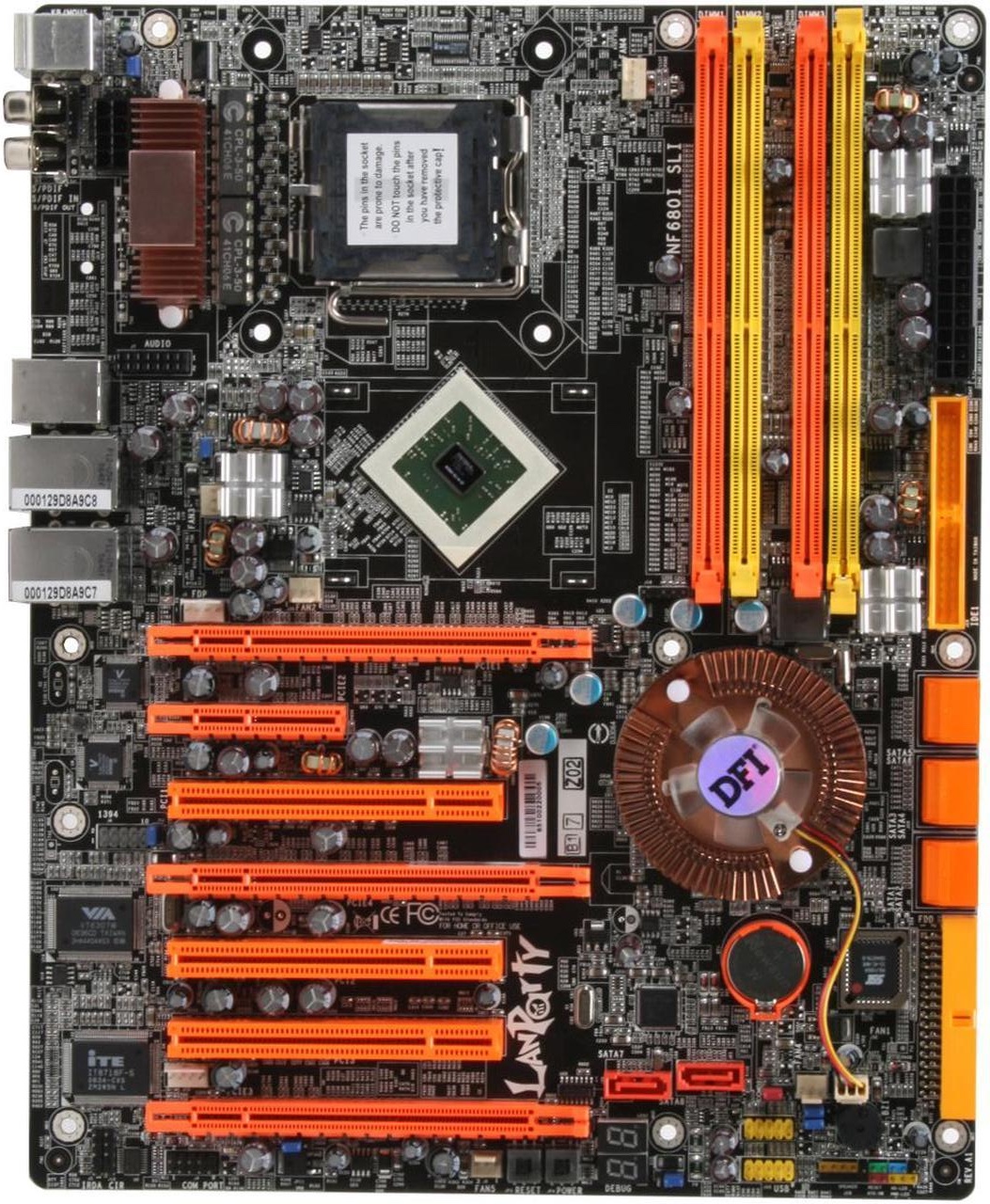

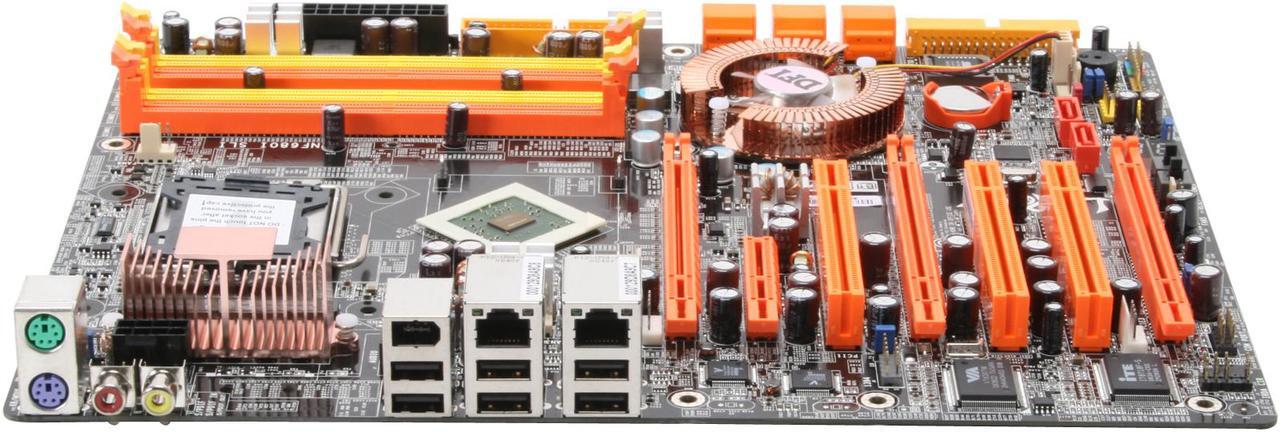

DFI LANParty UT NF680i LT SLI-T2R
Logs
chipChipset
cpuSocket
Socket T (LGA775)
speedFSB speeds
800MHz1066MHz1333MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)

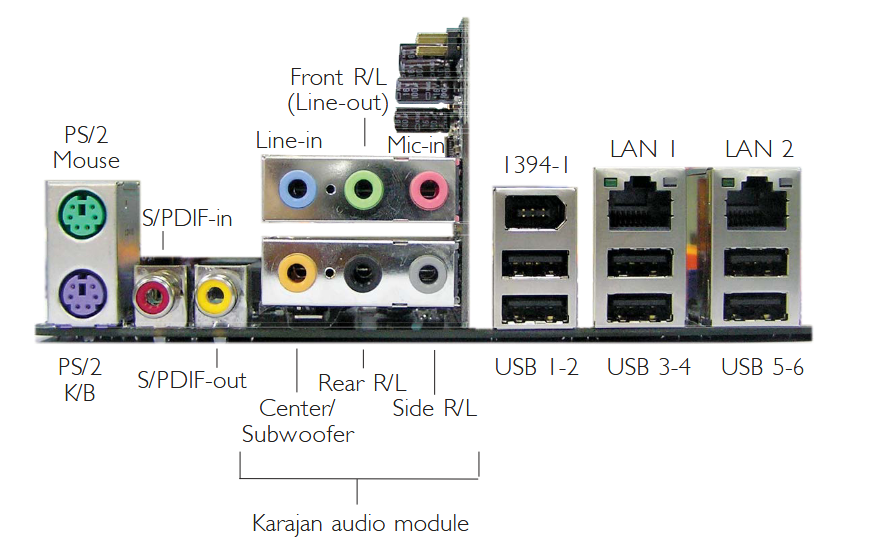

connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
2x
RJ-45 LAN
2x
S/PDIF
8x
SATA II
1x
Serial
10x
USB 2.0
cardExpansion slots
3x
32-bit PCI
2x
PCIe x16
1x
PCIe x16 @ x8
1x
PCIe x4
Last updated 2025-09-07T09:59:54Z
Board info score is 8.7/10
bios 16 BIOS files available

vendor Award - 17 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
04/24/2007-C55XE-MCP55XE-6A61ID49C-00
Note
Test Bios For QX6700
Core version
v6.00PG
BIOS version
Logs
POST string
04/23/2007-C55XE-MCP55XE-6A61ID49C-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
11/15/2007-C55-MCP55-6A61ID49C-61
Note
Beta Bios
Core version
v6.00PG
BIOS version
Logs
POST string
12/21/2007-C55-MCP55-6A61ID49C-63
Note
Beta Bios
Core version
v6.00PG
BIOS version
Logs
POST string
10/18/2007-C55-MCP55-6A61ID49C-52
Note
Beta Bios
Core version
v6.00PG
BIOS version
Logs
POST string
09/28/2007-C55-MCP55-6A61ID49C-50
Note
Beta Bios
Core version
v6.00PG
BIOS version
Logs
POST string
09/10/2007-C55-MCP55-6A61ID49C-44
Note
Beta Bios
Core version
v6.00PG
BIOS version
Logs
POST string
07/23/2007-C55-MCP55-6A61ID49C-42
Note
Core version
v6.00PG
BIOS version
Logs
POST string
Note
This BIOS Kills boards - So not available but does exist
Core version
v6.00PG
BIOS version
N5FD612
Logs
POST string
03/20/2008-C55-MCP55-6A61ID49C-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
06/25/2007-C55XE-MCP55XE-6A61ID49C-00
Note
Beta Bios
Core version
v6.00PG
BIOS version
Logs
POST string
06/20/2007-C55XE-MCP55XE-6A61ID49C-00
Note
Beta Bios
Core version
v6.00P
BIOS version
Logs
POST string
05/21/2007-C55XE-MCP55XE-6A61ID49C-00
Note
Beta Bios
Core version
v6.00PG
BIOS version
Logs
POST string
05/04/2007-C55XE-MCP55XE-6A61ID49C-00
Note
Beta Bios
Core version
v6.00PG
BIOS version
Logs
POST string
05/21/2007-C55XE-MCP55XE-6A61ID49C-00
Note
Beta Bios
Core version
v6.00PG
BIOS version
Logs
POST string
05/04/2007-C55XE-MCP55XE-6A61ID49C-00
Note
Beta Bios
Core version
v6.00PG
BIOS version
Logs
POST string
04/24/2007-C55XE-MCP55XE-6A61ID49C-00
Note
Test Bios For QX6XXX
Core version
v6.00PG
BIOS version
Logs
drv 7 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
9.16
OS support
Windows XP/2k3
Arch
x86
Size
32MB
Filename
Name
Version
9.14
OS support
Windows XP/2k3
Arch
x86-64
Size
30.9MB
Filename
Name
Version
6.08
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
71.7MB
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
26.8KB
Filename
Name
Version
N/A
OS support
Windows XP/2k3
Arch
Size
26.8KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
37.8MB
Filename
Version
OS support
Windows XP/2k3
Arch
x86
Size
50.9MB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2007-02-23
File
Logs
Chip
Release date
2004-08-24
File
Logs
Chip
Release date
2009-09
File
Logs
Chip
Release date
2002-10-01
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
2007-10
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
2007-03
File
Logs
Family
Release date
2008-08
File
Logs
Family
Release date
File
Logs
Family
Release date
2009-06
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
File
Logs
Family
Release date
2008-10
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2008-12
File
Logs
Family
Release date
2009-01
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2008-12
File
Logs
Family
Release date
File
Logs
Family
Release date
2007-06
File
Logs
Family
Release date
2007-10-30
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2007-08
File
Logs
Family
Release date
2007-08
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2007-04
File
Logs
Family
Release date
2007-04
File
Logs
Family
Release date
2007-10
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2007-11-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2005-02
File
Logs
Family
Release date
2005-05
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
2007-01
File
Logs
Family
Release date
2007-07
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-10
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2006-02
File
Logs
Socket
Release date
2004
File
Logs

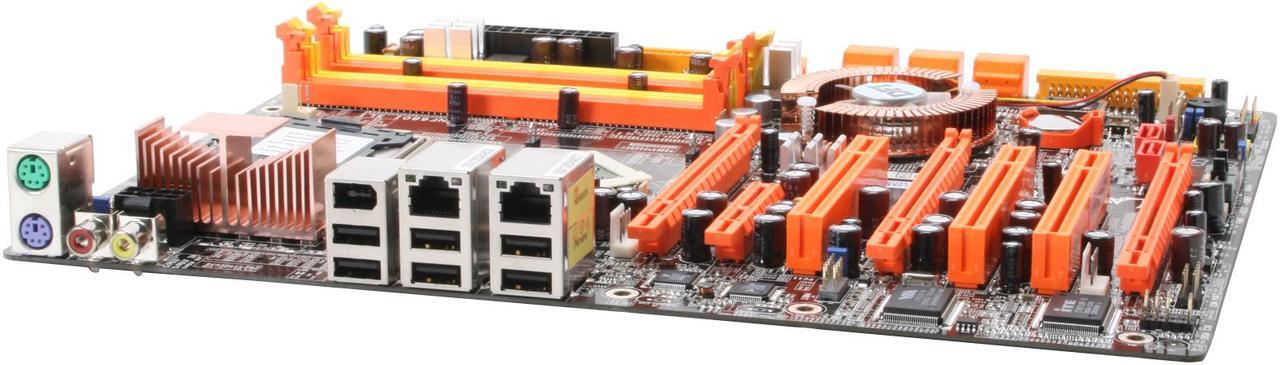

image1 Image 1 of 12 (DFI)

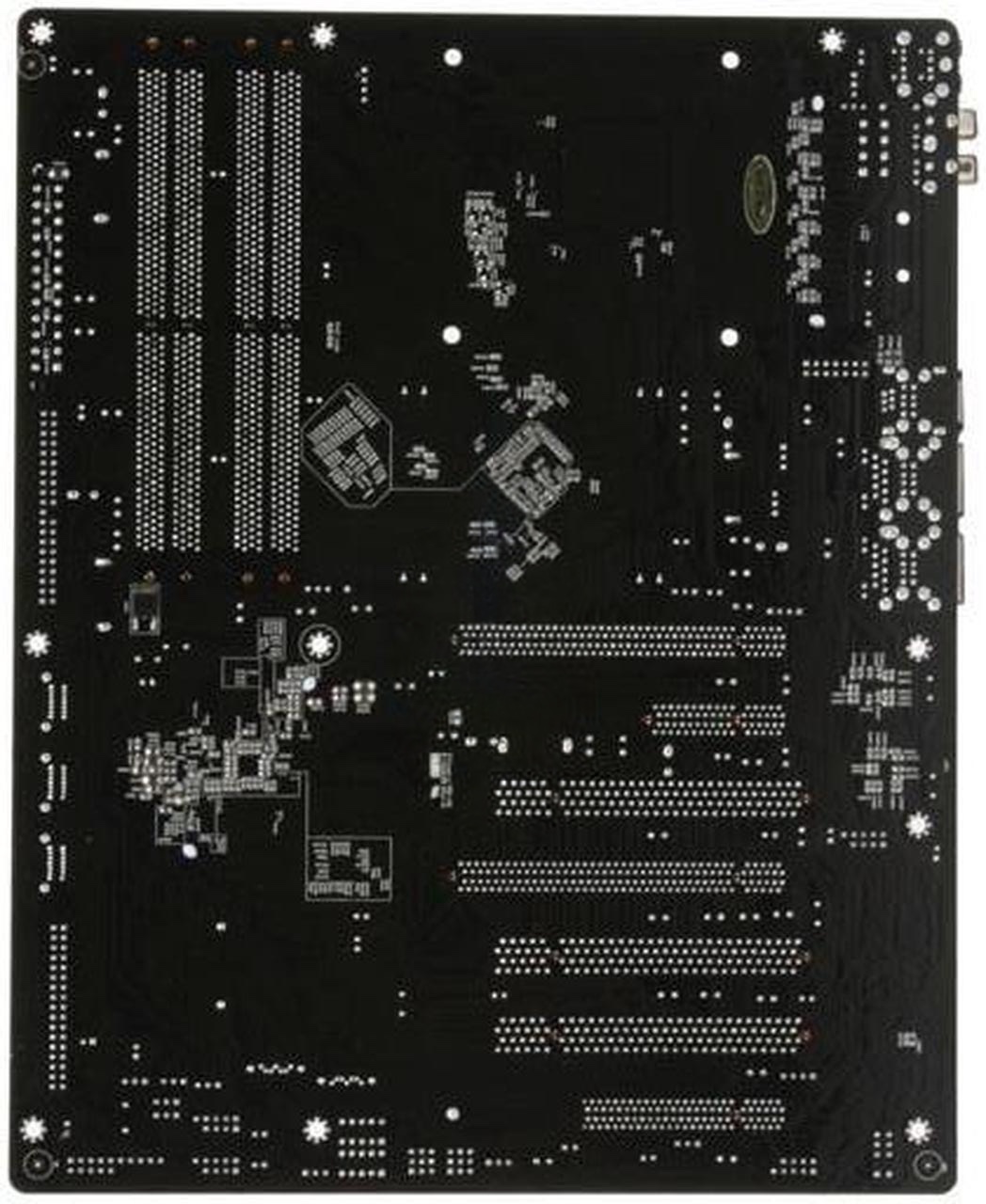

image2 Image 2 of 12 (DFI)

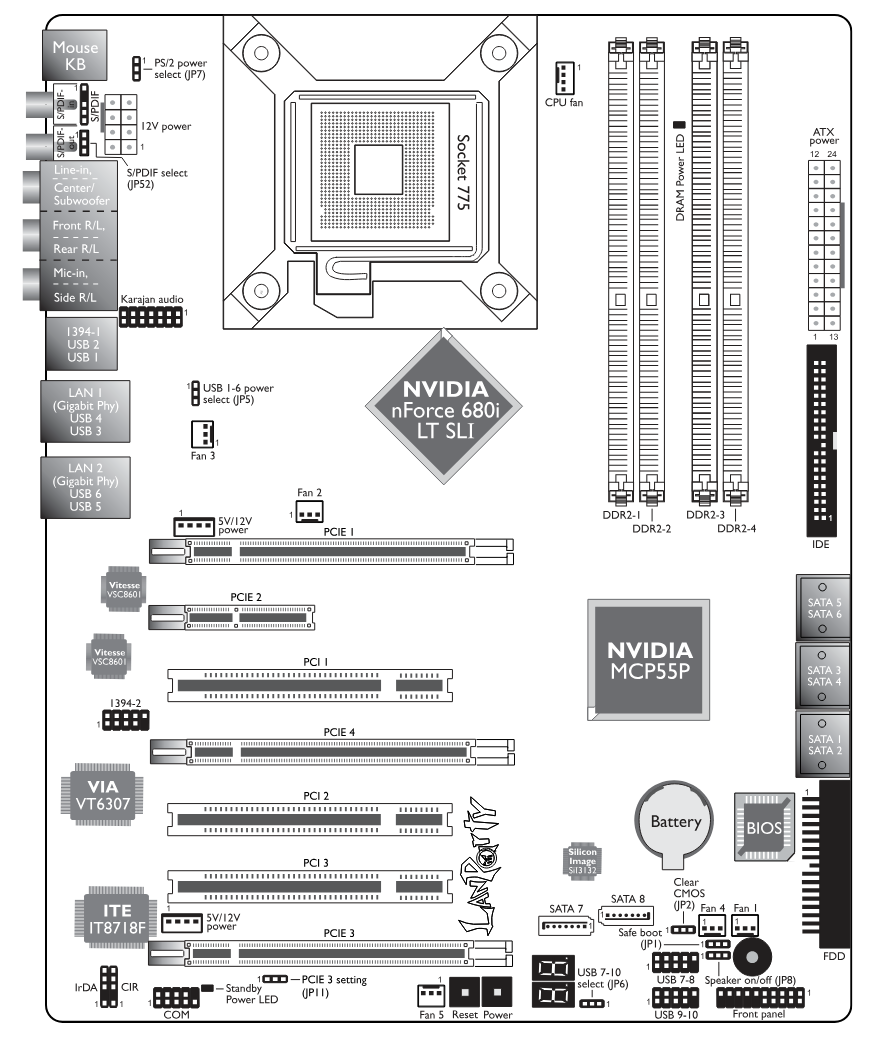

image3 Image 3 of 12 (DFI)
image4 Image 4 of 12 (DFI)
image5 Image 5 of 12 (DFI)
image6 Image 6 of 12 (DFI)
image7 Image 7 of 12 (DFI)
image8 Image 8 of 12 (DFI)
image9 Image 9 of 12 (DFI)

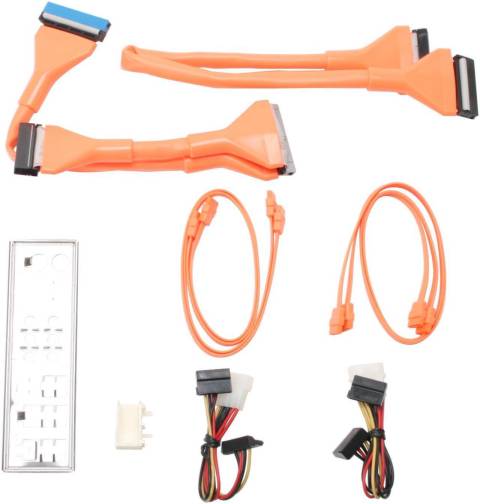

image10 Image 10 of 12 (DFI)
image11 Image 11 of 12 (DFI)
image12 Image 12 of 12 (DFI)
