DFI LanParty UT 790FX-M2R
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940) Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
tag Also known as
connI/O ports
2x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
2x
RJ-45 LAN
1x
S/PDIF
6x
SATA II
1x
Serial
10x
USB 2.0
cardExpansion slots
3x
32-bit PCI
3x
PCIe x16
1x
PCIe x4
notes Notes

Bios on Sapphire and DFI are identical , You can crossflash

Last updated 2025-09-09T19:32:44Z
Board info score is 9.4/10
bios 35 BIOS files available

vendor Award - 35 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
12/11/2007-RD790-SB600-6A66AD4ZC-00
Note
Sapphire Bios
Core version
6.00PG
BIOS version
Logs
POST string
12/06/2007-RD790-SB600-6A66AD4ZC-00
Note
Sapphire Bios
Core version
6.00PG
BIOS version
Logs
POST string
12/01/2008-RD790-SB600-6A66AD4ZC-00
Note
Sapphire Bios
Core version
6.00PG
BIOS version
Logs
POST string
11/22/2007-RD790-SB600-6A66AD4ZC-00
Note
Sapphire Bios
Core version
6.00PG
BIOS version
Logs
POST string
11/07/2007-RD790-SB600-6A66AS49C-00
Note
Sapphire Bios
Core version
6.00PG
BIOS version
Logs
POST string
11/03/2009-RD790-SB600-6A66AD4ZC-00
Note
Sapphire Bios
Core version
6.00PG
BIOS version
Logs
POST string
10/08/2008-RD790-SB600-6A66AD4ZC-00
Note
Sapphire Bios
Core version
6.00PG
BIOS version
Logs
POST string
05/06/2008-RD790-SB600-6A66AD4ZC-00
Note
Sapphire Bios
Core version
6.00PG
BIOS version
Logs
POST string
04/22/2009-RD790-SB600-6A66AD4ZC-00
Note
Sapphire Bios
Core version
6.00PG
BIOS version
Logs
POST string
02/23/2010-RD790-SB600-6A66AD4ZC-00
Note
Sapphire Bios
Core version
6.00PG
BIOS version
Logs
POST string
12/26/2008-RD790-SB600-6A66AD49C-00
Note
DFI Bios
Core version
6.00PG
BIOS version
Logs
POST string
12/21/2007-RD790-SB600-6A66AD49C-00
Note
DFI Bios
Core version
6.00PG
BIOS version
Logs
POST string
12/18/2008-RD790-SB600-6A66AD49C-00
Note
DFI Bios
Core version
6.00PG
BIOS version
Logs
POST string
12/11/2007-RD790-SB600-6A66AD4ZC-00
Note
DFI Bios
Core version
6.00PG
BIOS version
Logs
POST string
12/06/2007-RD790-SB600-6A66AD49C-00
Note
DFI Bios
Core version
6.00PG
BIOS version
Logs
POST string
12/01/2008-RD790-SB600-6A66AD49C-00
Note
DFI Bios
Core version
6.00PG
BIOS version
Logs
POST string
11/22/2007-RD790-SB600-6A66AD49C-00
Note
DFI Bios
Core version
6.00PG
BIOS version
Logs
POST string
11/07/2007-RD790-SB600-6A66AD49C-00
Note
DFI Bios
Core version
6.00PG
BIOS version
Logs
POST string
07/06/2009-RD790-SB600-6A66AD49C-00
Note
DFI Bios
Core version
6.00PG
BIOS version
Logs
POST string
06/12/2008-RD790-SB600-6A66AD49C-00
Note
DFI Bios
Core version
6.00PG
BIOS version
Logs
POST string
05/05/2008-RD790-SB600-6A66AD49C-00
Note
DFI Bios
Core version
6.00PG
BIOS version
Logs
POST string
04/25/2008-RD790-SB600-6A66AD49C-00
Note
DFI Bios
Core version
6.00PG
BIOS version
Logs
POST string
04/22/2009-RD790-SB600-6A66AD49C-00
Note
DFI Bios
Core version
6.00PG
BIOS version
Logs
POST string
04/16/2008-RD790-SB600-6A66AD49C-00
Note
DFI Bios
Core version
6.00PG
BIOS version
Logs
POST string
04/15/2008-RD790-SB600-6A66AD49C-00
Note
DFI Bios
Core version
6.00PG
BIOS version
Logs
POST string
03/31/2008-RD790-SB600-6A66AD49C-00
Note
DFI Bios
Core version
6.00PG
BIOS version
Logs
POST string
03/26/2009-RD790-SB600-6A66AD49C-00
Note
DFI Bios
Core version
6.00PG
BIOS version
Logs
POST string
03/12/2008-RD790-SB600-6A66AD49C-00
Note
DFI Bios
Core version
6.00PG
BIOS version
Logs
POST string
03/07/2008-RD790-SB600-6A66AD49C-00
Note
DFI Bios
Core version
6.00PG
BIOS version
Logs
POST string
02/23/2010-RD790-SB600-6A66AD49C-00
Note
DFI Bios
Core version
6.00PG
BIOS version
Logs
POST string
02/12/2008-RD790-SB600-6A66AD49C-00
Note
DFI Bios
Core version
6.00PG
BIOS version
Logs
POST string
01/30/2008-RD790-SB600-6A66AD49C-00
Note
DFI Bios
Core version
6.00PG
BIOS version
Logs
POST string
01/21/2009-RD790-SB600-6A66AD49C-00
Note
DFI Bios
Core version
6.00PG
BIOS version
Logs
POST string
01/16/2009-RD790-SB600-6A66AD49C-00
Note
DFI Bios
Core version
6.00PG
BIOS version
Logs
POST string
09/27/2007-RD790-SB600-6A66AD49C-00
Note
Sapphire Bios
Core version
6.00PG
BIOS version
Logs
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
11.45.4.3
OS support
Windows 7 Windows 8.x Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
1.8MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
26.8KB
Filename
Name
Version
N/A
OS support
Windows XP/2k3
Arch
Size
26.8KB
Filename
doc 7 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-04-20
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-10-18
File
Logs
Chip
Release date
2007-02-23
File
Logs
Chip
Release date
2004-08-24
File
Logs
Chip
Release date
2002-10-01
File
Logs

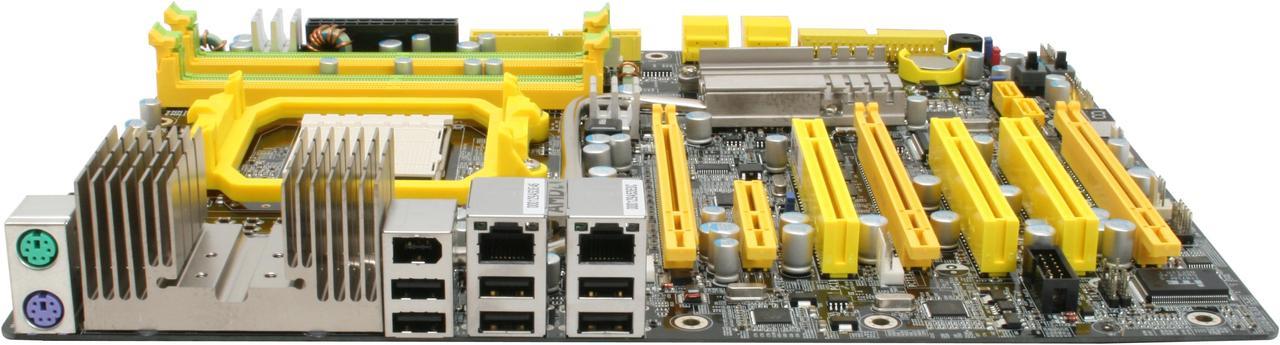

image1 Image 1 of 15 (DFI)
image2 Image 2 of 15 (DFI)

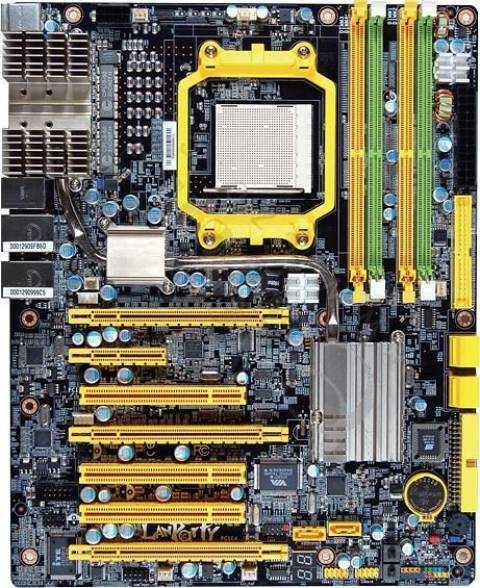

image3 Image 3 of 15 (DFI)

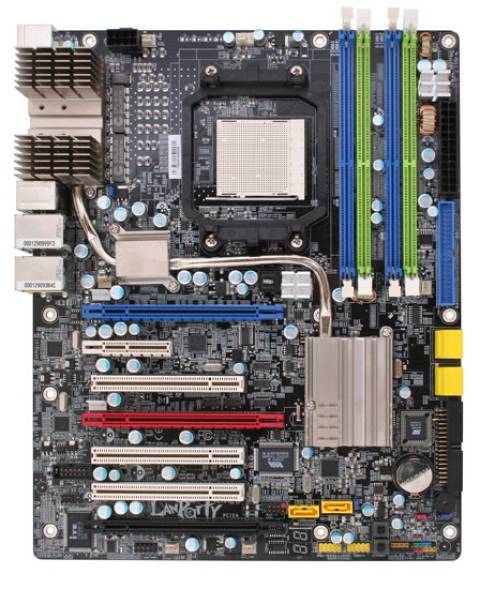

image4 Image 4 of 15 (Sapphire)

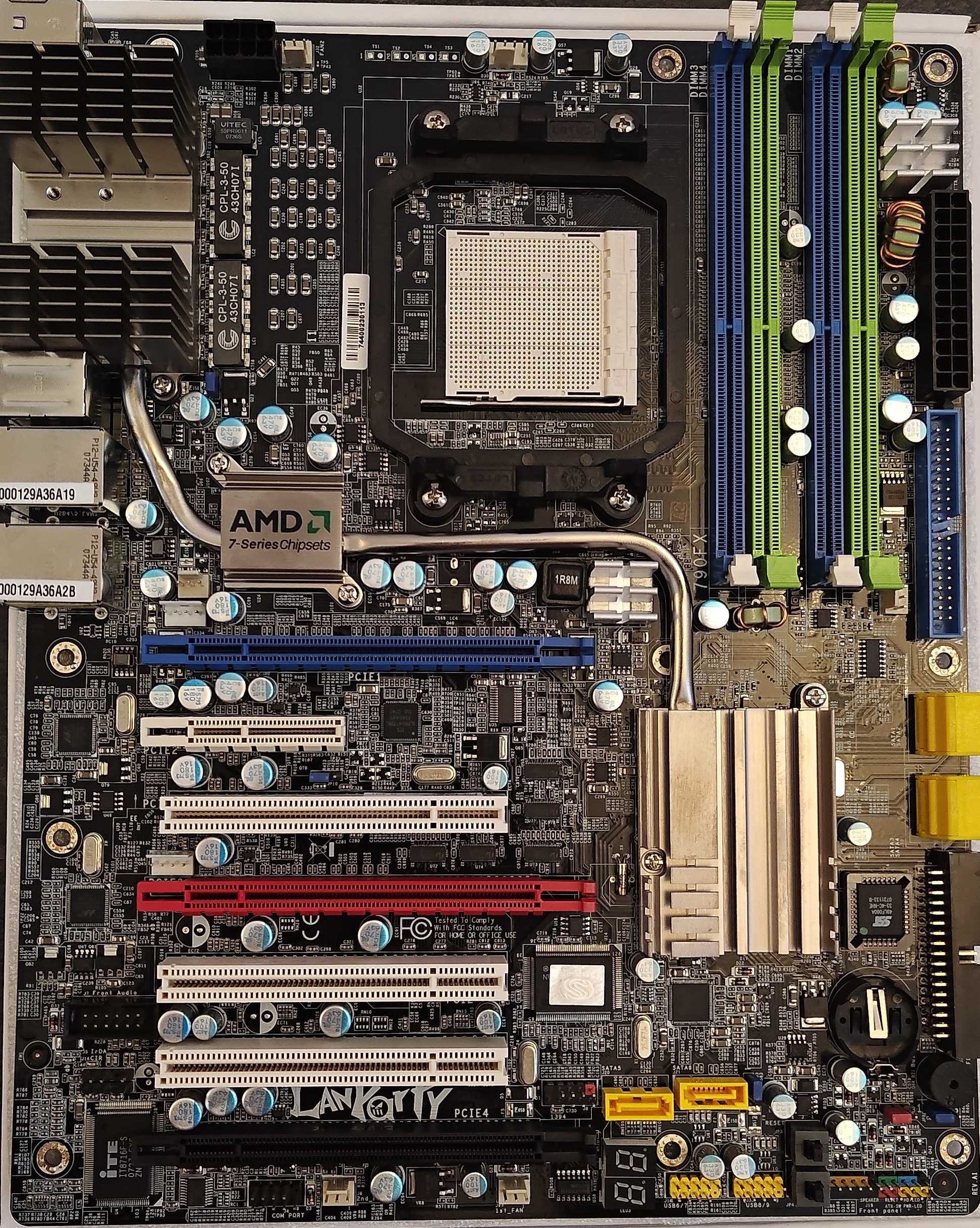

image5 Image 5 of 15 (Ashley98)
image6 Image 6 of 15 (DFI)
image7 Image 7 of 15 (DFI)

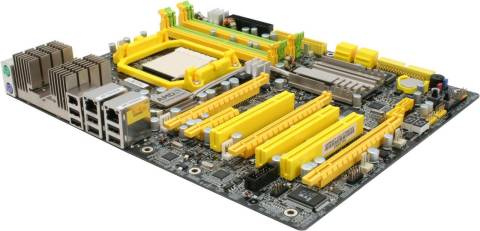

image8 Image 8 of 15 (DFI)

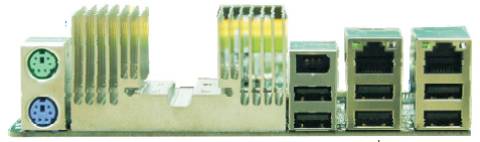

image9 Image 9 of 15 (DFI)
image10 Image 10 of 15 (DFI)
image11 Image 11 of 15 (DFI)

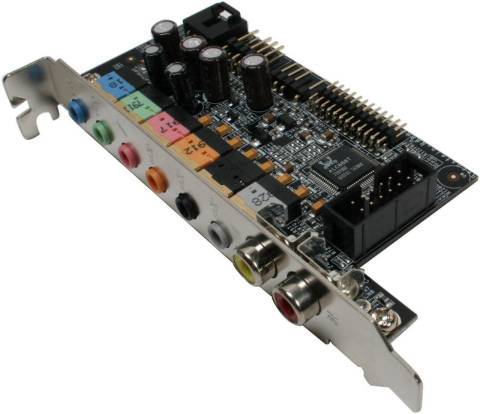

image12 Image 12 of 15 (DFI)
image13 Image 13 of 15 (DFI)
image14 Image 14 of 15 (Ashley98)
image15 Image 15 of 15 (Ashley98)
