DFI LANParty JR 790GX-M2RS
Logs
chipChipset
cpuSocket
Socket AM2+ (mPGA940)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM types
DDR2 UDIMMDDR2 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)

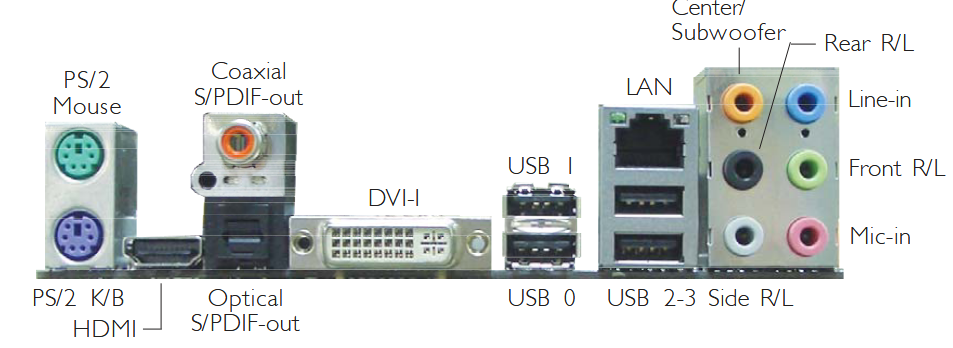

connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
Floppy interface
1x
HDMI
1x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
1x
S/PDIF
6x
SATA II
1x
Serial
1x
Toslink
12x
USB 2.0
cardExpansion slots
1x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x8
Last updated 2025-09-07T00:36:52Z
Board info score is 9.3/10
bios 18 BIOS files available

vendor Award - 18 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
12/30/2008-RS780D-SB750-8A660D4ZC-00
Note
Beta
Core version
6.00PG
BIOS version
Logs
POST string
11/21/2008-RS780D-SB750-8A660D4ZC-00
Note
Beta
Core version
6.00PG
BIOS version
Logs
POST string
10/30/2008-RS780D-SB750-8A660D4ZC-00
Note
Beta
Core version
6.00PG
BIOS version
Logs
POST string
10/17/2008-RS780D-SB750-8A660D4ZC-00
Note
Beta
Core version
6.00PG
BIOS version
Logs
POST string
10/12/2009-RS780D-SB750-8A660D4ZC-00
Note
Beta
Core version
6.00PG
BIOS version
Logs
POST string
09/18/2008-RS780D-SB750-8A660D4ZC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
09/11/2008-RS780D-SB750-8A660D4ZC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
09/08/2008-RS780D-SB750-8A660D4ZC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
08/28/2008-RS780D-SB750-8A660D4ZC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
08/20/2009-RS780D-SB750-8A660D4ZC-00
Note
Beta
Core version
6.00PG
BIOS version
Logs
POST string
07/06/2009-RS780D-SB750-8A660D4ZC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
04/22/2009-RS780D-SB750-8A660D4ZC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
04/15/2009-RS780D-SB750-8A660D4ZC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
03/26/2009-RS780D-SB750-8A660D4ZC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
02/25/2009-RS780D-SB750-8A660D4ZC-00
Note
Beta
Core version
6.00PG
BIOS version
Logs
POST string
02/13/2009-RS780D-SB750-8A660D4ZC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
01/21/2009-RS780D-SB750-8A660D4ZC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
01/19/2009-RS780D-SB750-8A660D4ZC-00
Note
Core version
6.00PG
BIOS version
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
11.45.4.3
OS support
Windows 7 Windows 8.x Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
1.8MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename

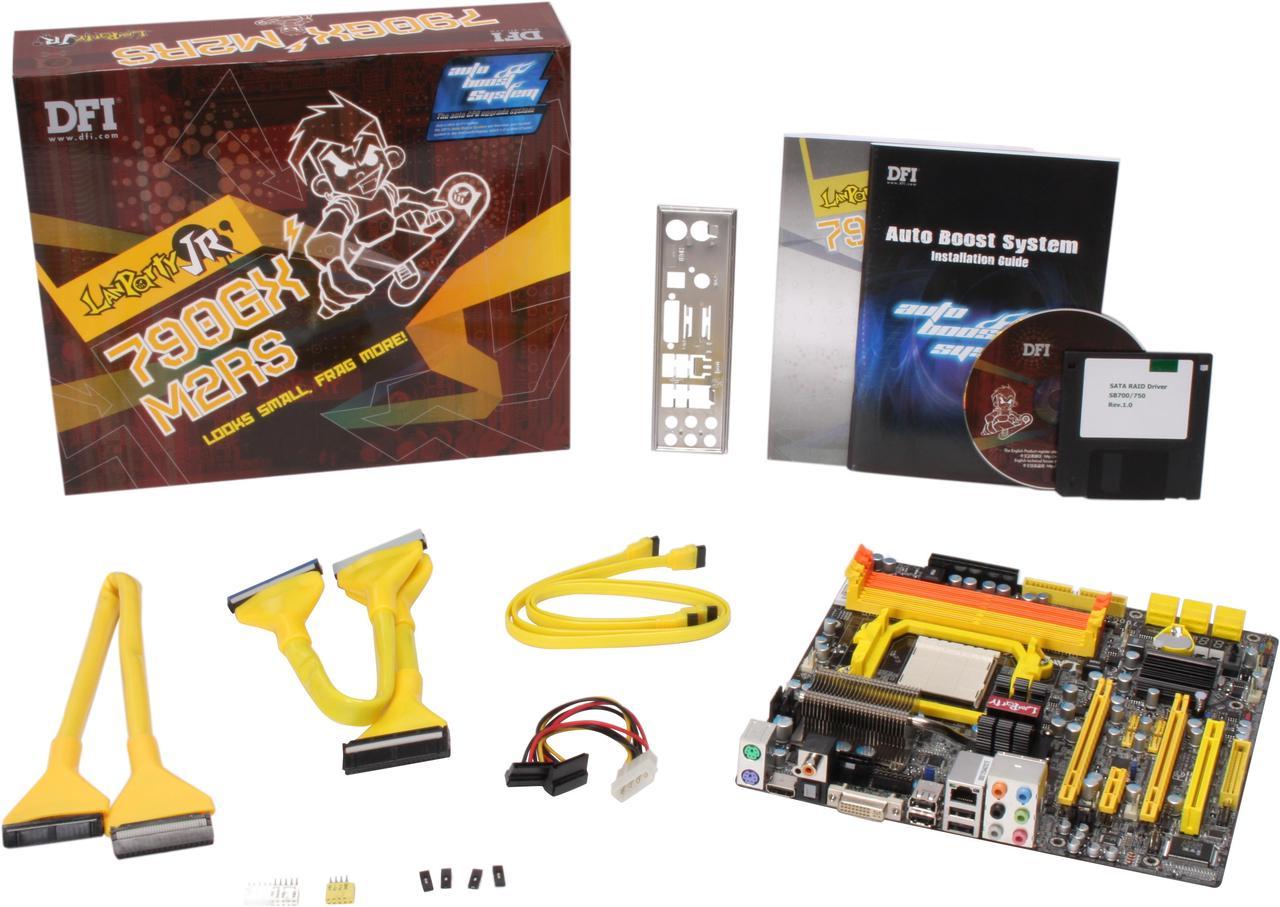

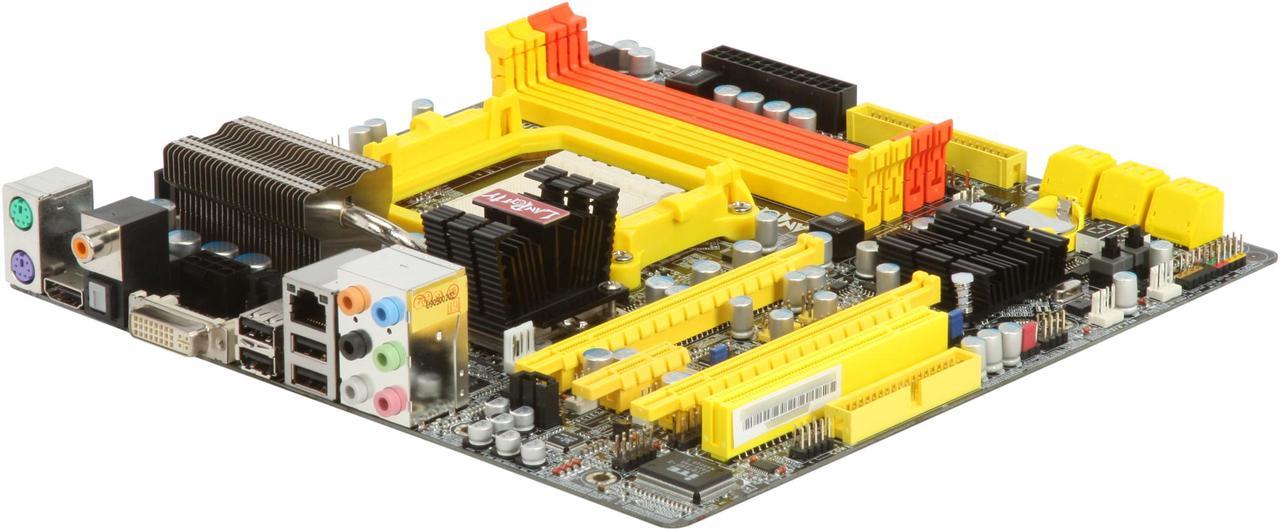

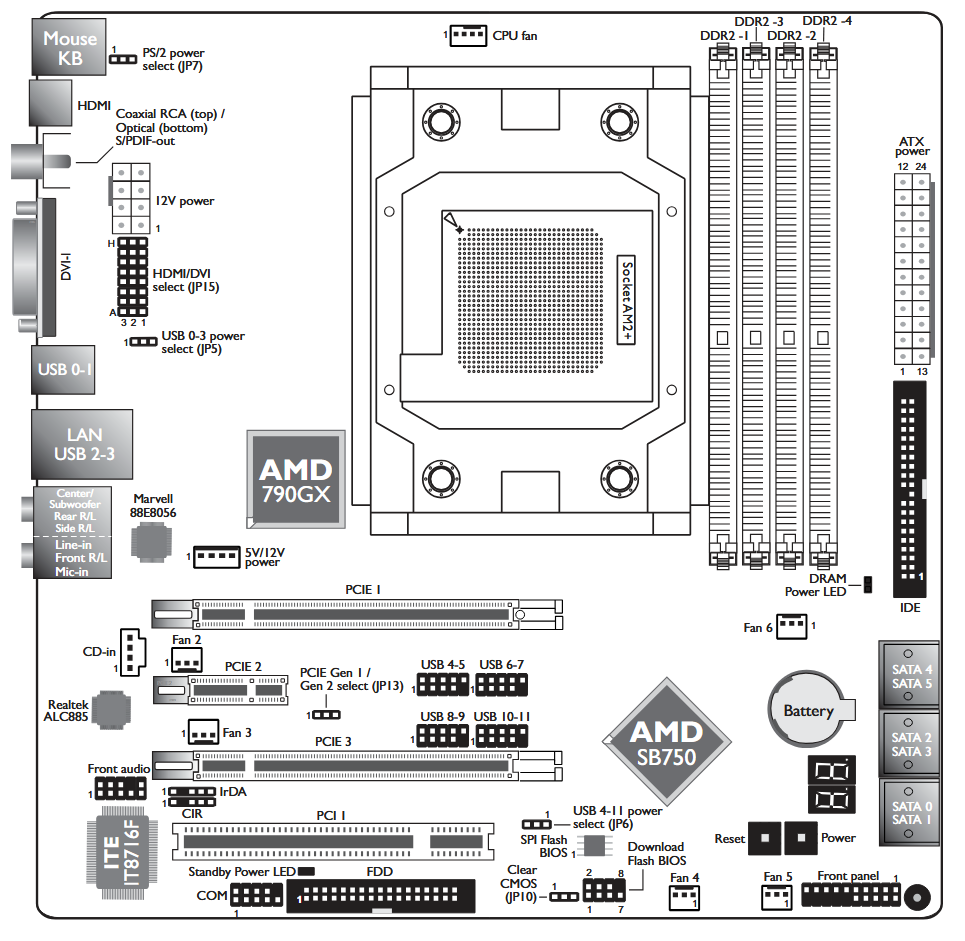

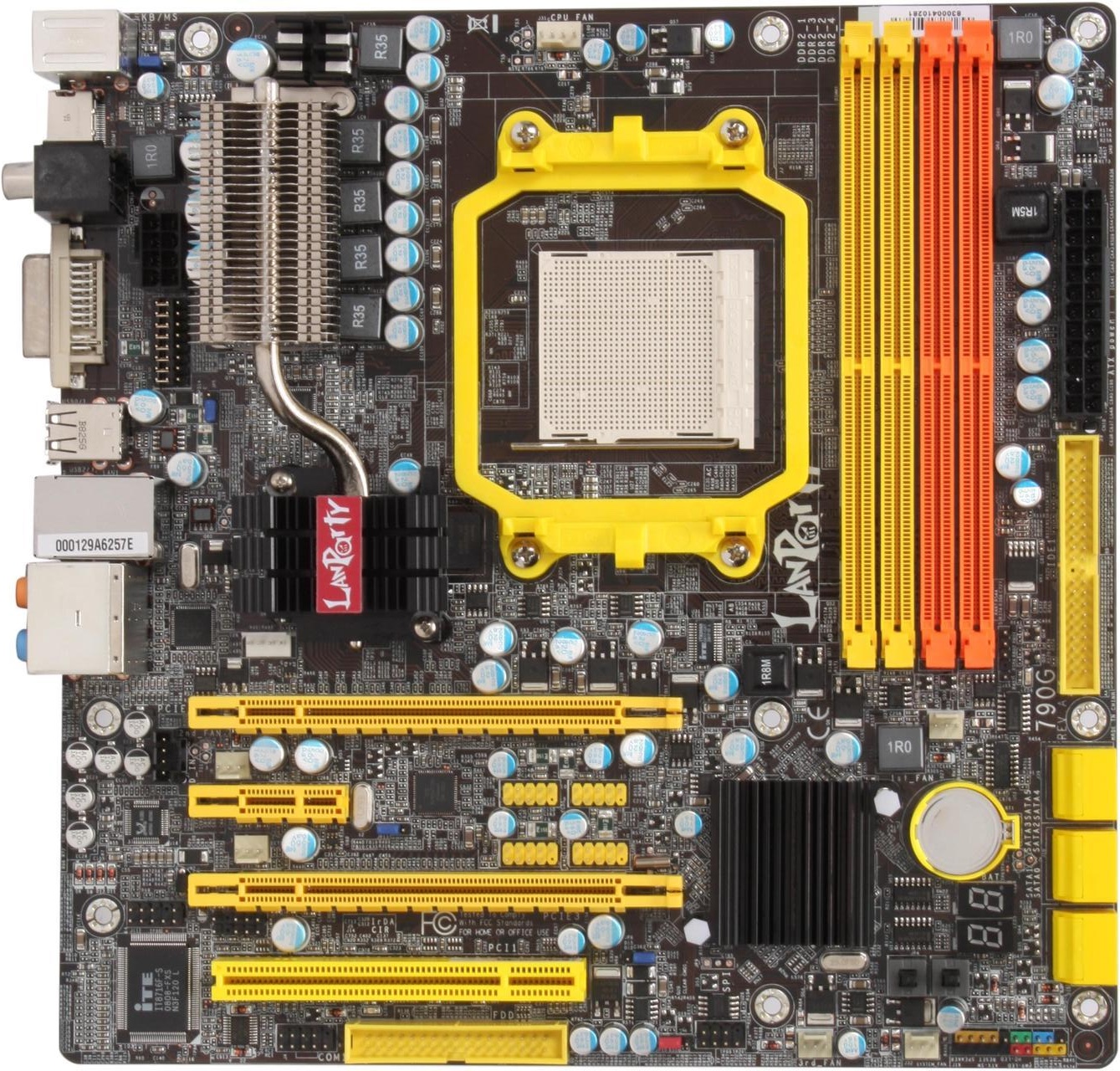

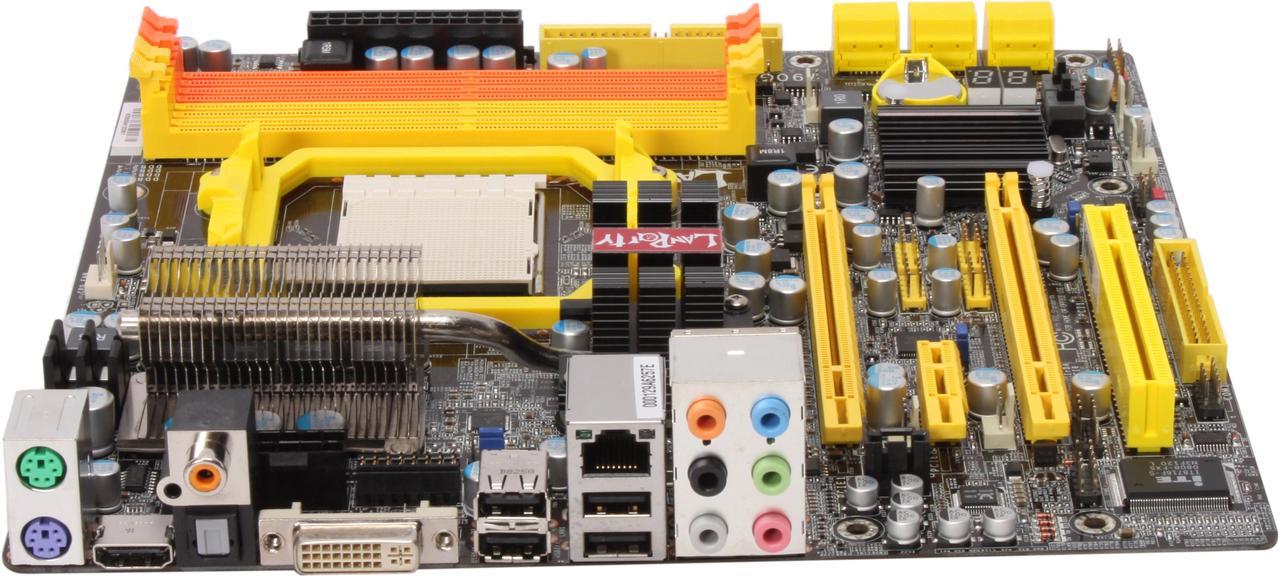

image1 Image 1 of 7 (DFI)
image2 Image 2 of 7 (DFI)

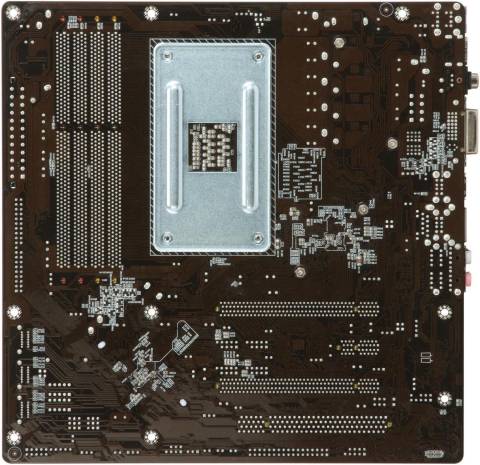

image3 Image 3 of 7 (DFI)
image4 Image 4 of 7 (DFI)
image5 Image 5 of 7 (DFI)
image6 Image 6 of 7 (DFI)
image7 Image 7 of 7 (DFI)
