DFI HM960-QM87
Chipset
Socket
FSB speed Empty
Form factorCOM Express Basic (125 x 95 mm)
Dimensions125mm x 95mm
Cache
None/Integrated in the CPU
Max RAM size
16GB
RAM type 204-pin DDR3 SO-DIMM
PSU connector
Empty
I/O ports3x
DDI Port
1x
GPIO
1x
LVDS
1x
RJ-45 LAN
4x
SATA III
2x
Serial
8x
USB 2.0
4x
USB 3.0
1x
VGA
Expansion slots1x
COM Express Type 6
Notes
- Supports 1x PCIe x16 Gen 3 Interface
- Supports 7x PCIe x1 Interfaces
Last updated 2025-06-24T18:28:01Z
Board info score is 7/10
Chips
-> Chipset part
-> Bridge Interface
-> Network
CPU family support
0 BIOS files available
No drivers available
6 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2013-06
File
Logs
Chip
Release date
2014-05
File
Logs
Chip
Release date
2020-01
File
Logs

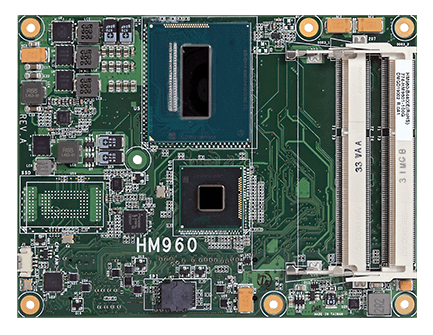

Image 1 of 3 (DFI)

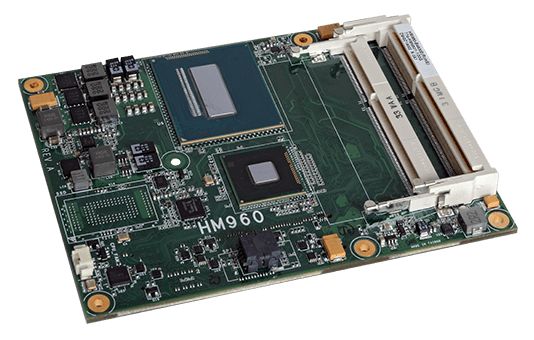

Image 2 of 3 (DFI)

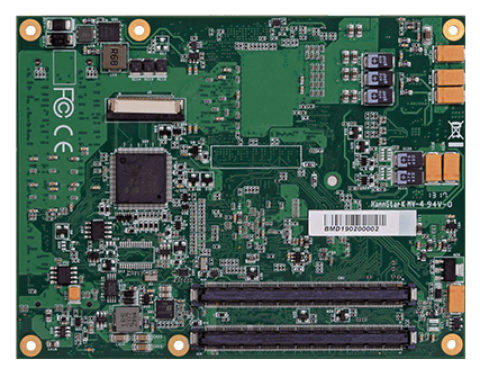

Image 3 of 3 (DFI)
