DFI G586VPM (rev. C+)
Logs
chipChipset
cpuSocket
Socket 5 (PGA320)
speedFSB speeds
50MHz60MHz66MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
330mm x 220mm
chipCache
256KB512KB1MB
ramMax RAM size
512MB
ramRAM type
72-pin FPM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
maxcpuMulti CPU support
2 CPUs
connI/O ports
1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
cardExpansion slots
4x
16-bit ISA
4x
32-bit PCI
Last updated 2023-02-09T13:05:07Z
Board info score is 8.9/10
bios 3 BIOS files available

vendor Award - 3 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
03/14/96-VLSI-590-2A5G7D4AC-00
Note
Core version
4.50PG
BIOS version
Logs
POST string
01/25/96-VLSI-590-2A5G7D4AC-00
Note
Core version
4.50PG
BIOS version
Logs
POST string
01/23/96-VLSI-590-2A5G7D4AC-00
Note
Core version
4.50PG
BIOS version
Logs
drv No drivers available
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
image1 Image 1 of 2 (Microhouse)

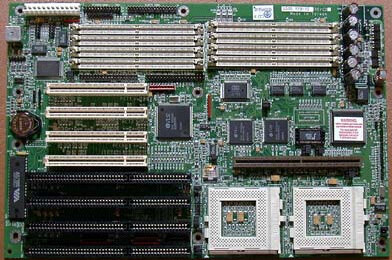

image2 Image 2 of 2 (AT House)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
