DFI G586IPV/E (rev. C)
Chipset
Socket
FSB speeds 50MHz60MHz66MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions250mm x 220mm
Cache
512KB
Max RAM size
128MB
RAM types 72-pin FPM72-pin EDO
PSU connector
I/O ports1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
Expansion slots3x
16-bit ISA
4x
32-bit PCI
1x
COAST Slot
Notes

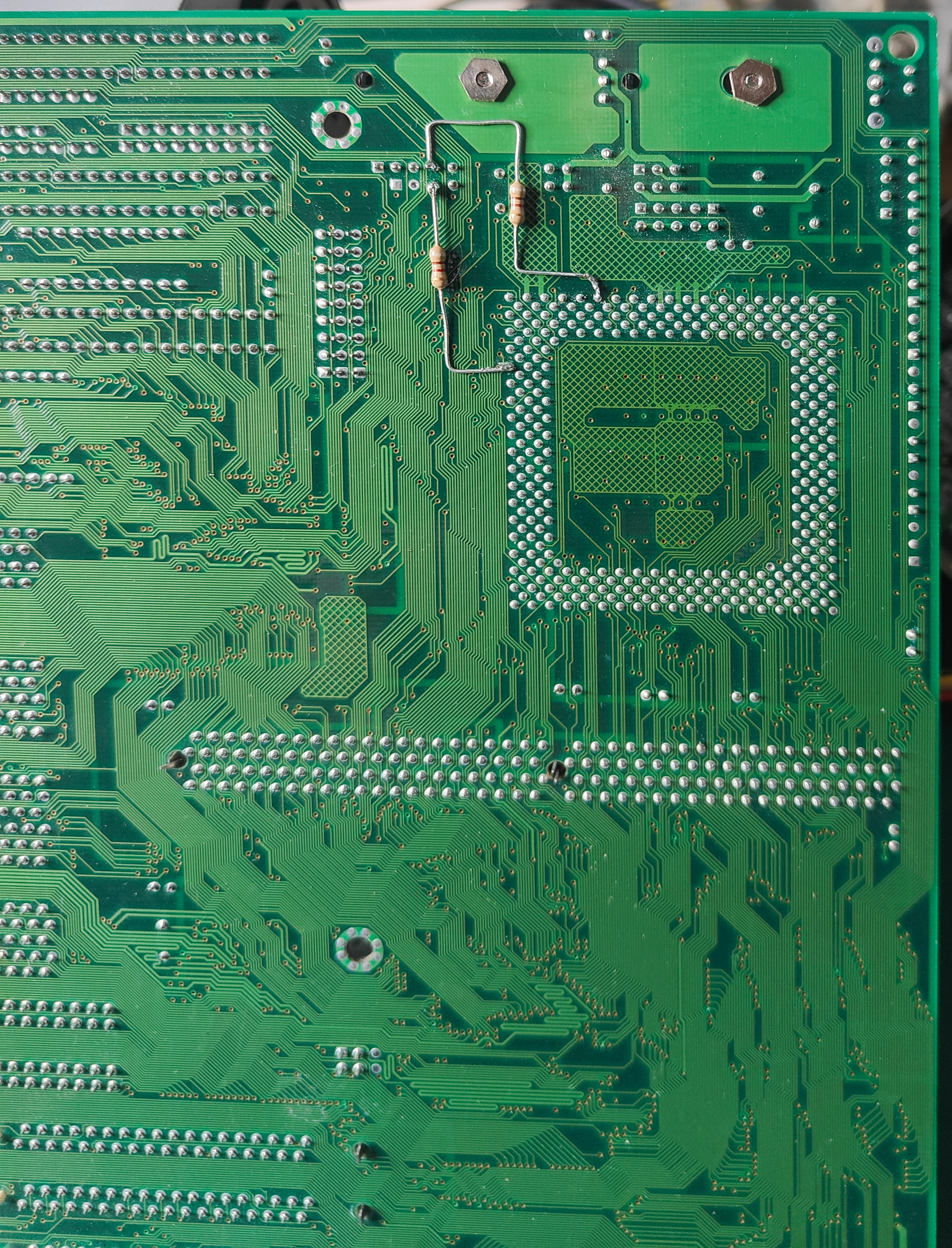

Modification to add Pentium 200 MMX detection: Adding 9–10 kΩ pull-up resistors to Vcc2 on JP8 pin 1 (BF0) and pin 3 (BF1) resolves the issue and allows correct detection of the multiplier. See photo.
Some revisions have no COAST slot.
Last updated 2025-06-26T13:47:24Z
Board info score is 9.8/10
Chips
-> Chipset part
-> Clock Synth / PLL
-> Real-Time Clock
-> Super I/O
4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x
Windows NT 3.5x
Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 Warp 3.x
Windows 3.1x
Windows 9x
Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2000-03-16
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1998-01
File
Logs

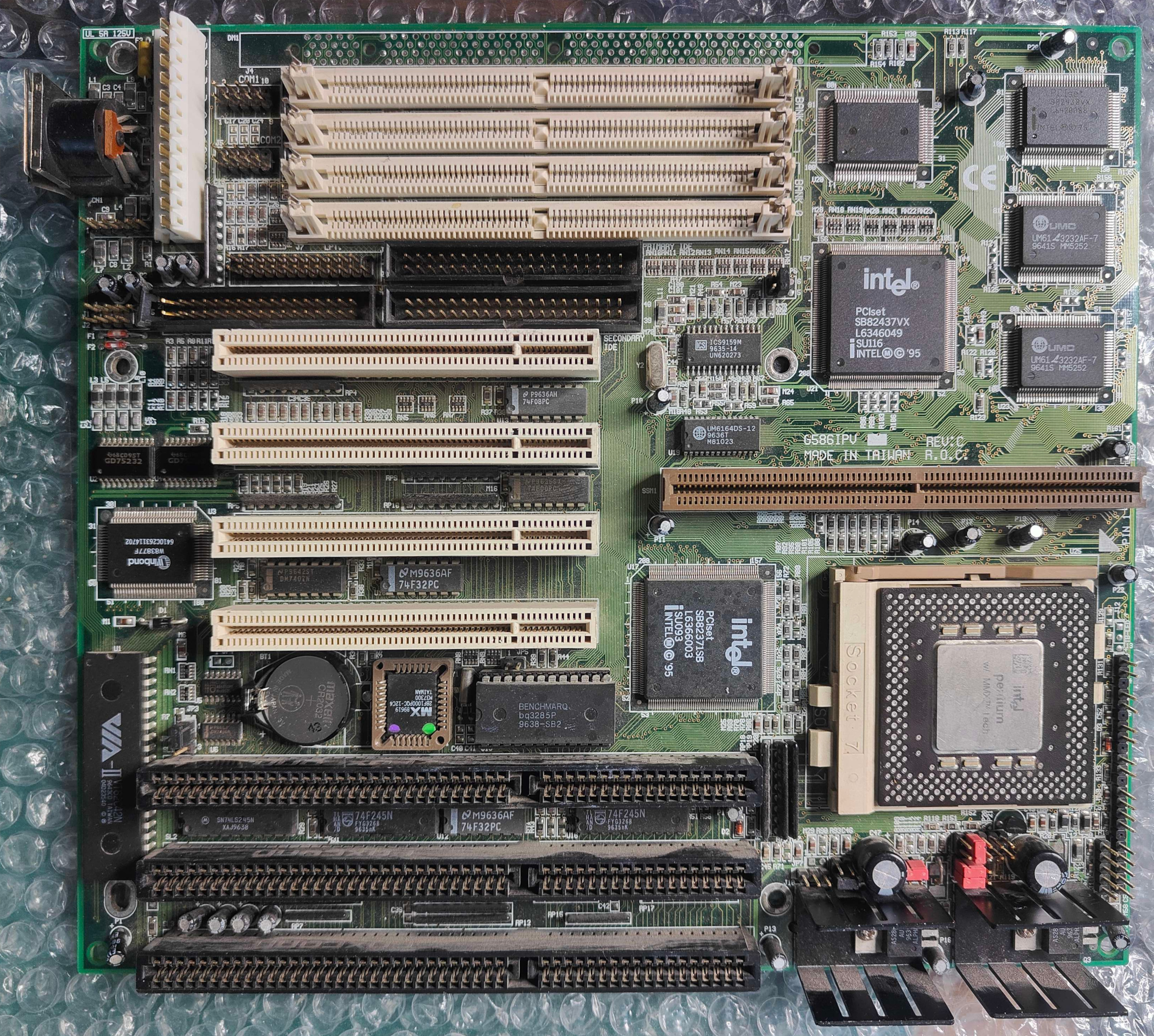

Image 1 of 4 (Microhouse)

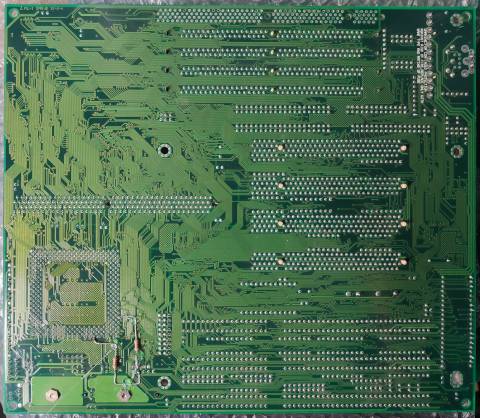

Image 2 of 4 (retroleaks)
Image 3 of 4 (retroleaks)
Image 4 of 4 (retroleaks)
