DFI 286-AIO
Chipset
Sockets
FSB speeds 12.5MHz16MHz
Form factorLPX (max 229 x 330 mm)
Dimensions220mm x 220mm
Cache
None/Integrated in the CPU
Max RAM size
4MB
RAM type 30-pin SIMM
PSU connector
I/O ports1x
AT Keyboard
1x
Floppy interface
1x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
Expansion slotsEmpty
Known issues
- Leaky Ni-Cd clock battery
The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta
- Expansion slots are on proprietary riser
The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
Last updated 2025-06-29T10:38:58Z
Board info score is 8.3/10
Chips
-> Chipset part
-> Human Interface
-> Real-Time Clock
-> Signal transmitter/receiver
-> Super I/O
0 BIOS files available
AMI - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
D286-1211-061390-KF
Note
Core version
061390
BIOS version
Logs
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.01
OS support
MS-DOS
Arch
Size
56.4KB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs

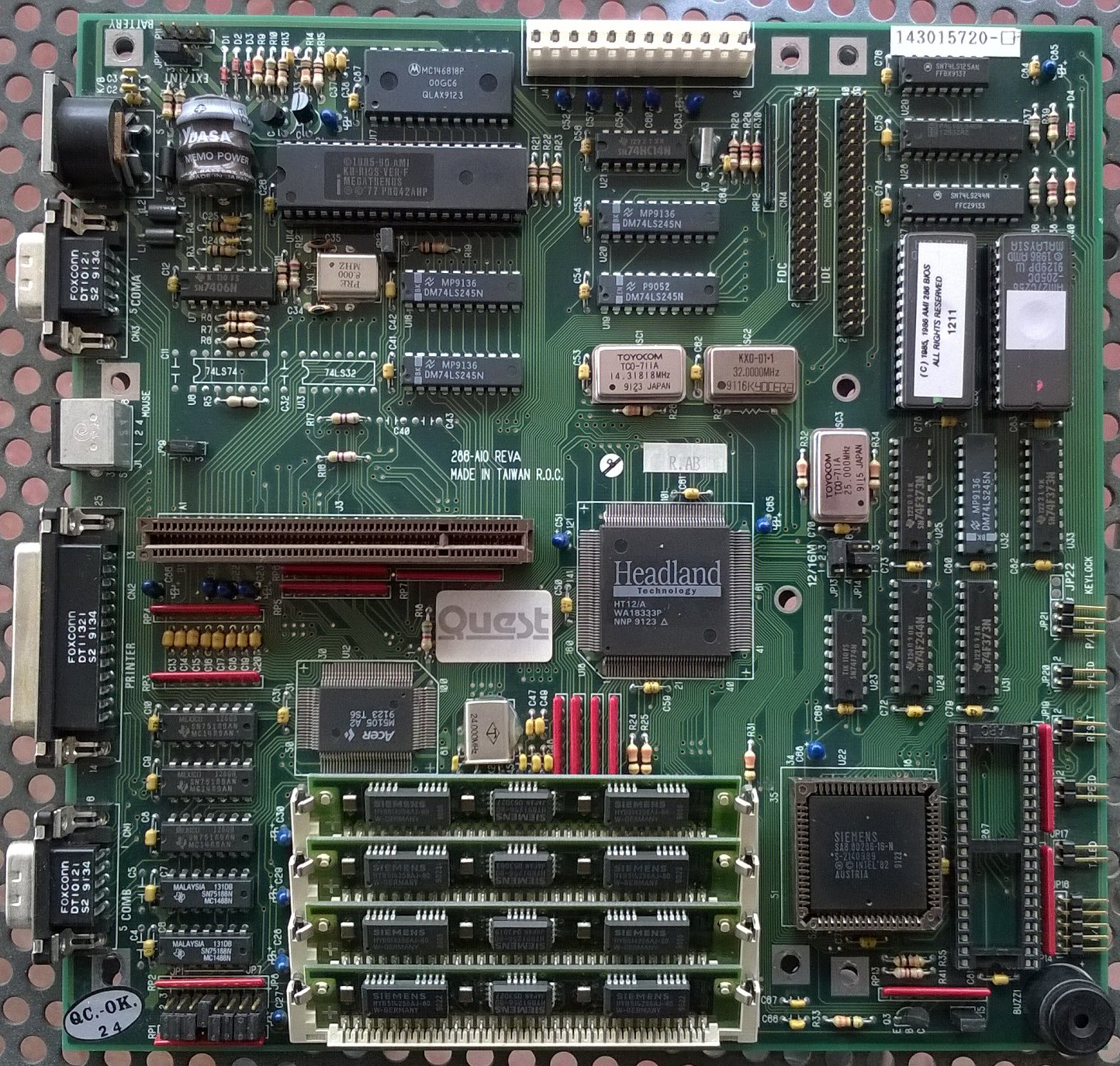

Image 1 of 2 (Microhouse)
Image 2 of 2 (keropi)
