Delta 236-1.1-0696
Logs
chipChipset
cpuSocket
Socket 3 (PGA237)
speedFSB speeds
25MHz33MHz40MHz50MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
Empty
ramRAM type
72-pin FPM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
Parallel
2x
Serial
cardExpansion slots
3x
16-bit ISA
2x
32-bit PCI
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

Last updated 2024-09-30T10:08:01Z
Board info score is 7.6/10
chip Chips
-> Chipset part
SiS 85C496 (PCM) SiS 85C497 (ATM)
cpufam CPU family support
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
41-0109-428005-00101111-101094-SIS4967
Note
Core version
101094
BIOS version
Logs
drv 2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS OS/2 Warp 3.x Windows 3.1x Windows NT 3.1 Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
Empty
Filename
Version
OS support
MS-DOS NetWare Server 3 OS/2 1.x Windows 3.0 Windows NT 3.1
Arch
x86
Size
97.9KB
Filename
doc No board documents available
Family
Release date
File
Logs
Family
Release date
1995-12
File
Logs
Family
Release date
1989-04
File
Logs
Family
Release date
1990
File
Logs
Family
Release date
1992-10
File
Logs
Family
Release date
1992-02
File
Logs

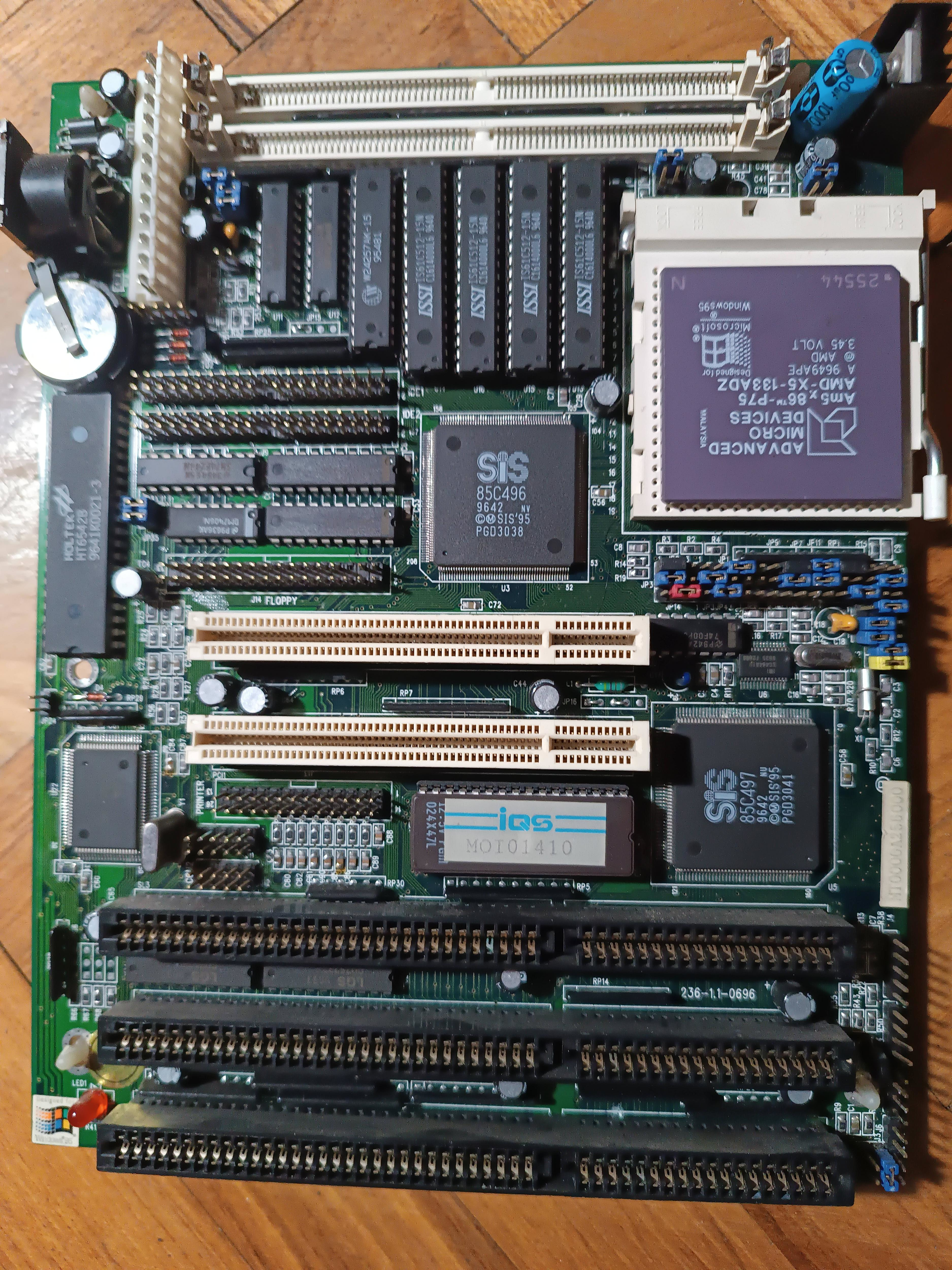

image1 Image 1 of 2 (ReL)

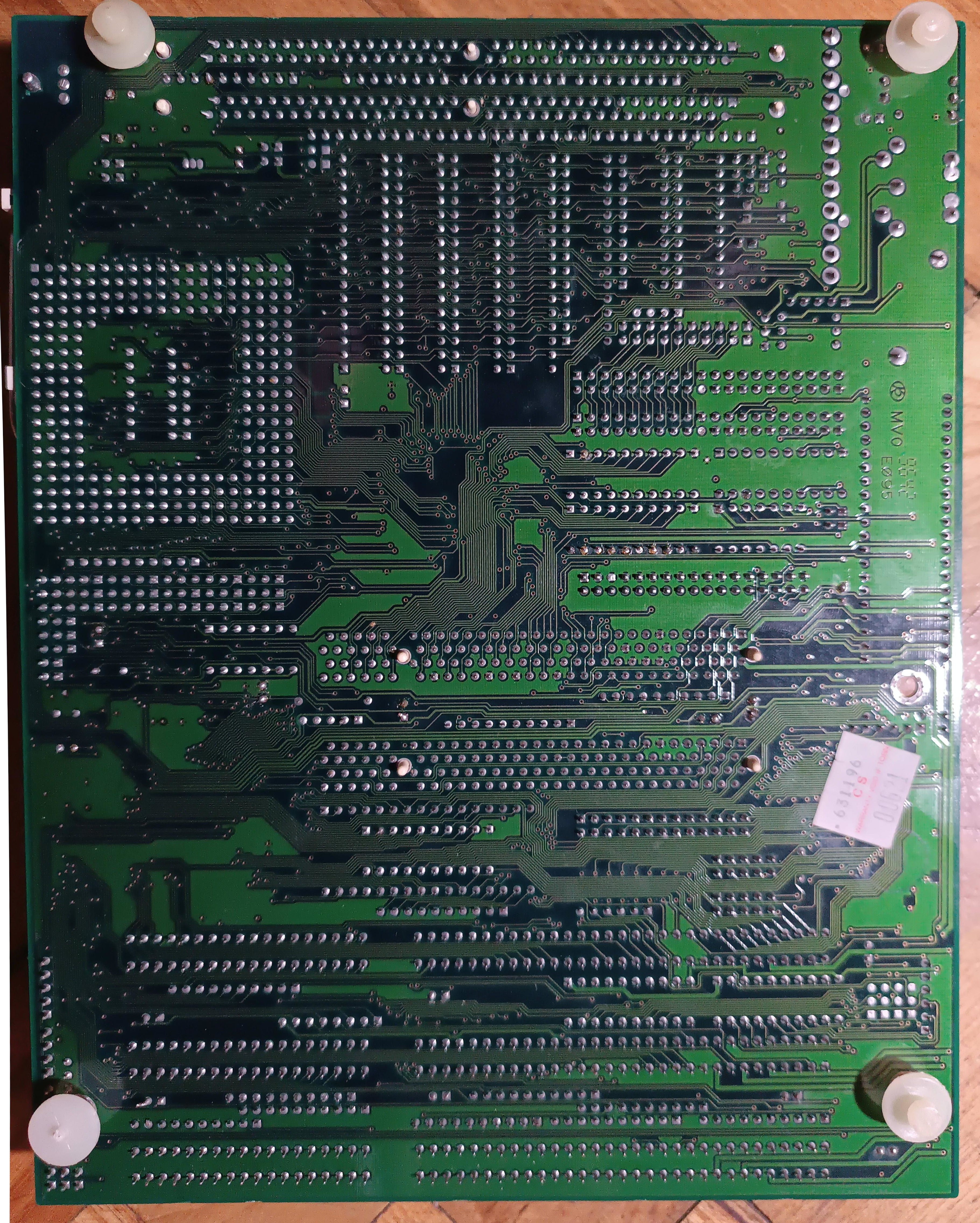

image2 Image 2 of 2 (ReL)
