Dell System 486/L
Logs
chipChipset
cpuSocket
speedFSB speeds
25MHz33MHz50MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
330mm x 218mm
ramMax VRAM size
1MB
chipCache
128KB
ramMax RAM size
64MB
ramRAM type
72-pin FPM
pwrPSU connector
Empty
tag Also known as
  • Dell System 4xx/L, 4xxs/L
  • Dell System 425/L, 425s/L
  • Dell System 433/L, 433s/L
  • Dell System 450/L, 450s/L
  • Dell System 466/L, 466s/L
connI/O ports
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
cardExpansion slots
Empty
wrench Known issues

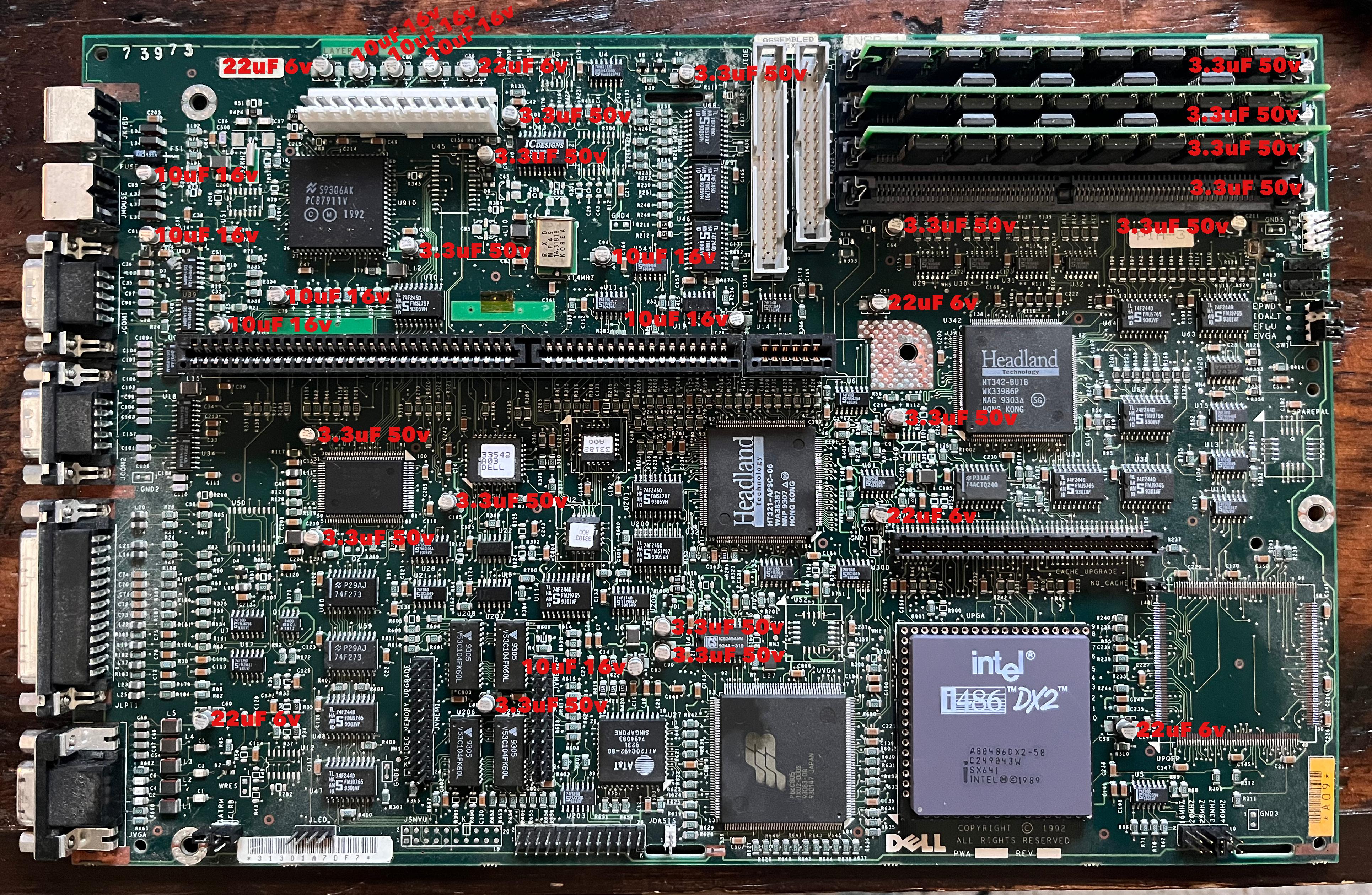

  • Faulty or Leaking Electrolytic Capacitors

Some motherboards may contain faulty or leaking electrolytic capacitors, which can negatively impact system performance or stability. These capacitors may exhibit issues such as bulging, leaking, or even exploding, potentially damaging other components on the motherboard. Users should inspect their capacitors regularly and replace any that are faulty or leaking to avoid damage or system instability.

  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

Last updated 2025-11-12T07:08:43Z
Board info score is 8.6/10
chip Chips
-> Chipset part -> Video
cpufam CPU family support
bios 1 BIOS file available

vendor Phoenix - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
486/ISA 04/14/95
Note
Core version
Dell
BIOS version
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.41
OS support
Windows 3.1x
Arch
x86
Size
445.7KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
