Dell 0YKH50
Logs
chipChipset
cpuSocket
Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
Micro BTX / uBTX (max 264 × 267 mm)
dimDimensions
Empty
ramMax VRAM size
512MB
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB(DDR3-1066)
ramRAM type
DDR3 UDIMM
pwrPSU connector
OEM/Proprietary ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
DisplayPort
1x
HDMI
1x
Parallel
1x
RJ-45 LAN
3x
SATA II
1x
Serial
8x
USB 2.0
1x
VGA
1x
eSATA II
cardExpansion slots
1x
PCIe x16
1x
PCIe x16 @ x4
notes Notes

Manufactured by MiTAC for Dell

Uses 24-pin Molex microfit power connector.

Last updated 2025-10-22T07:57:20Z
Board info score is 8.5/10
bios 1 BIOS file available

vendor Phoenix - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
ROM BIOS PLUS 1.10 (Dell)
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

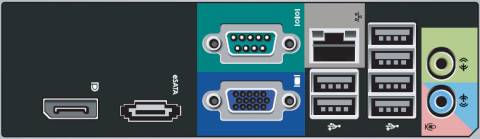

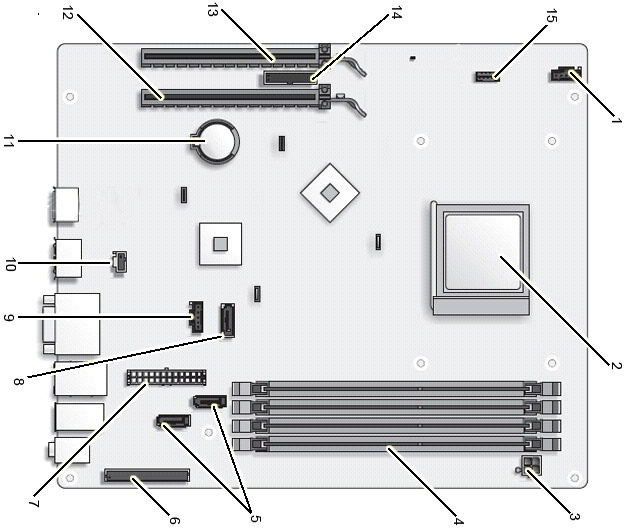

image1 Image 1 of 3
image2 Image 2 of 3 (Carlos S. M.)
image3 Image 3 of 3

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
