Dell 0WF887
Logs
chipChipset
cpuSocket
Socket 478 (mPGA478)
speedFSB speeds
400MHz533MHz800MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
Empty
ramMax VRAM size
64MB
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB(DDR-333)
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
6x
USB 2.0
1x
VGA
cardExpansion slots
3x
32-bit PCI
notes Notes

Made by Intel for Dell

DDR-333 memory operates at 320MHz when used with an 800MHz FSB.

Last updated 2025-09-17T13:02:02Z
Board info score is 9.3/10
bios 2 BIOS files available

vendor Phoenix - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
DE051A01
Core version
PLUS 1.10
BIOS version
Logs
POST string
Note
DE051A00
Core version
PLUS 1.10
BIOS version
Logs
drv 8 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
14.17.0.4396
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
6.3.0.1007
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
Empty
Filename
Name
Version
3.40.1001
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
Size
Empty
Filename
Version
OS support
Windows NT 4.0
Arch
Size
Empty
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Linux MS-DOS NetWare Server 3 NetWare Server 4 Netware Client32 OS/2 2.x Windows 2000 Windows 9x Windows NT 4.0
Arch
x86
Size
64.3MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
7.2MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2009-10
File
Logs
Chip
Release date
2013-04
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-11
File
Logs
Chip
Release date
2025-10
File
Logs
Chip
Release date
2002-10-20
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-04
File
Logs
Chip
Release date
2003-09
File
Logs
Chip
Release date
2004-02
File
Logs
Chip
Release date
2004-03
File
Logs
Chip
Release date
2003-09
File
Logs
Chip
Release date
2003-10
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-05
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-01
File
Logs
Chip
Release date
2002-10-20
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2005-02
File
Logs
Family
Release date
2005-05
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-10
File
Logs
Family
Release date
2001-08
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2001-10
File
Logs
Socket
Release date
2002-05
File
Logs
Socket
Release date
2002-10
File
Logs
Socket
Release date
2001-08
File
Logs

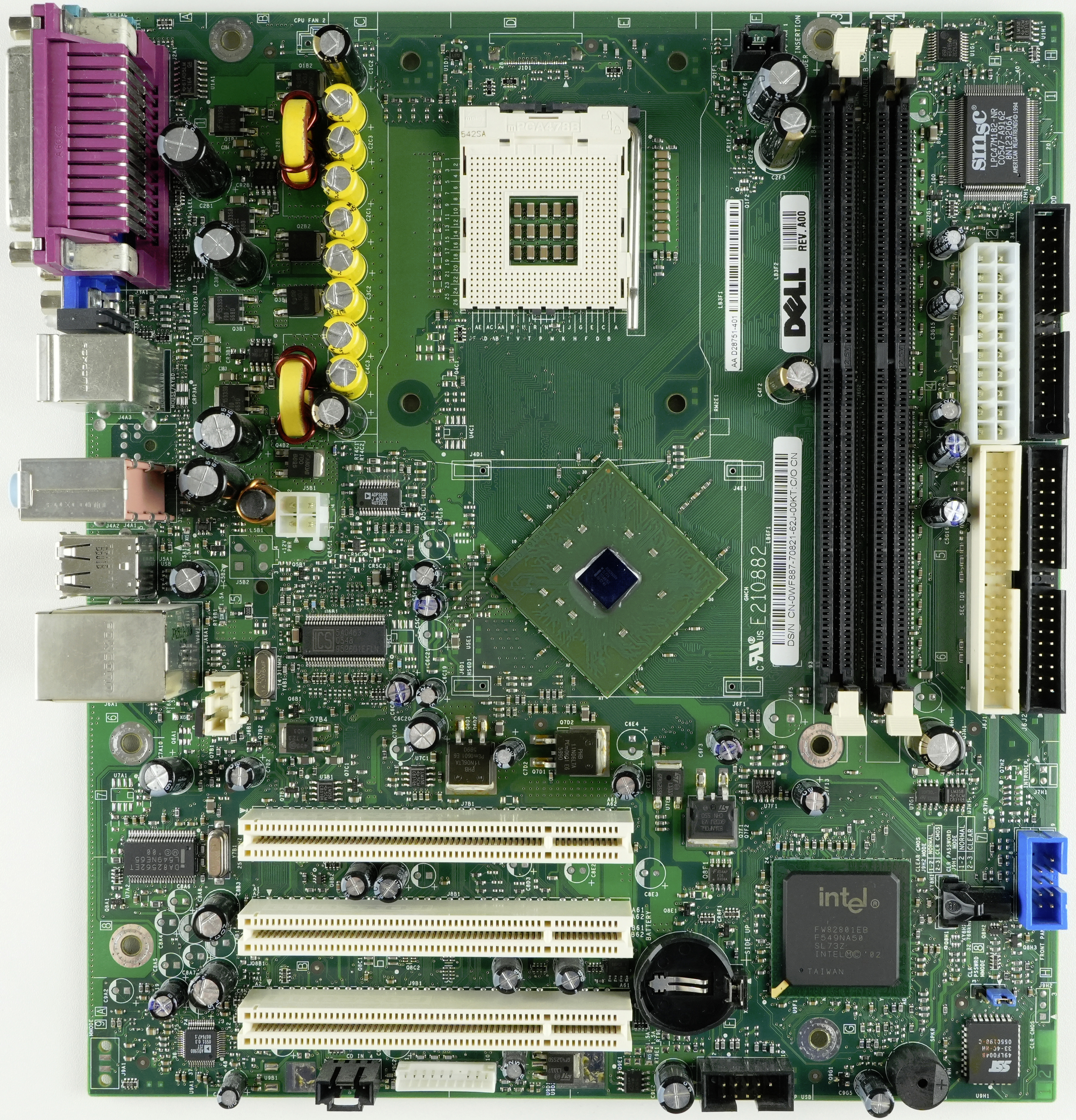

image1 Image 1 of 6

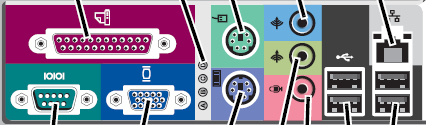

image2 Image 2 of 6 (vvolcano)

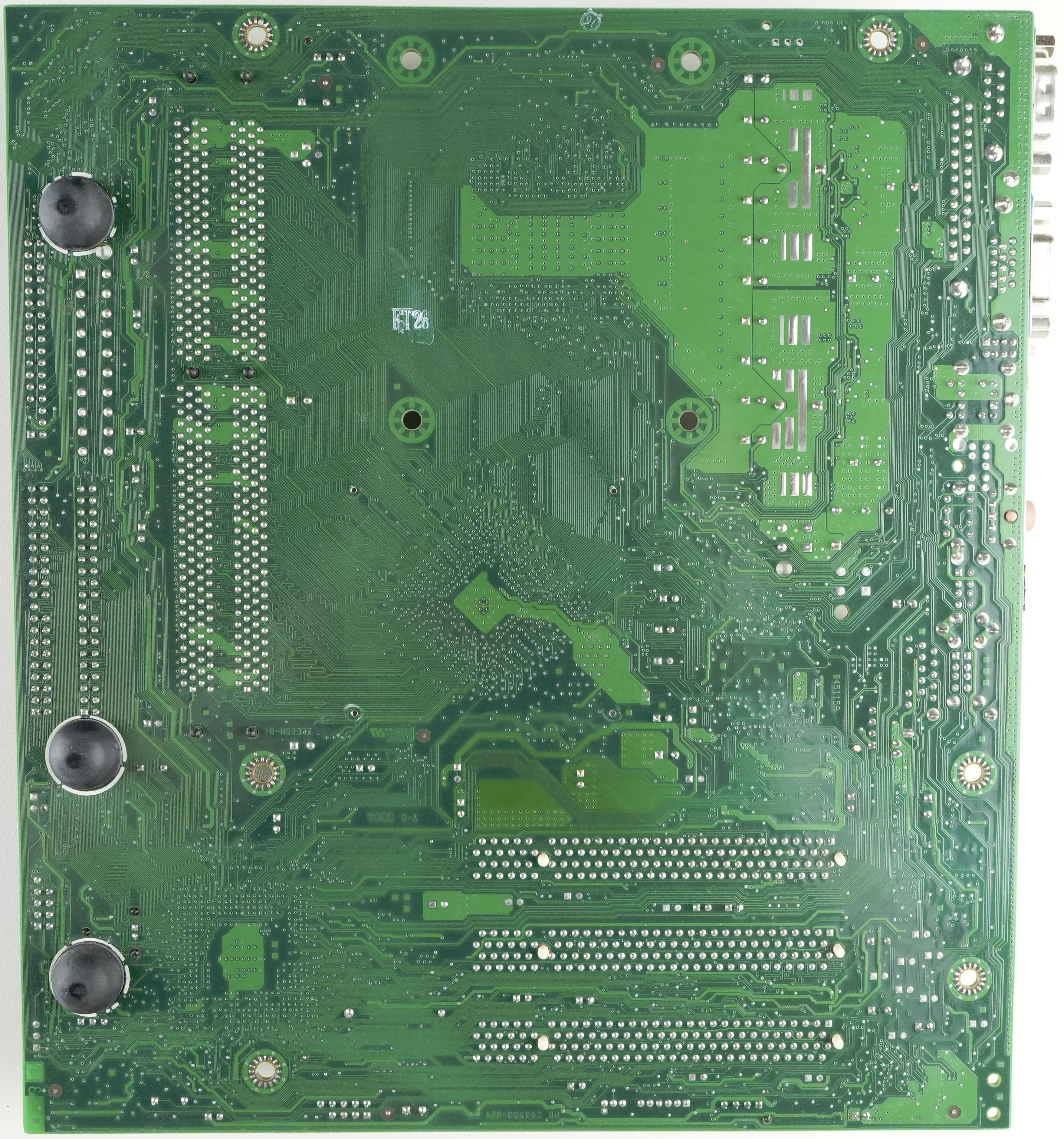

image3 Image 3 of 6 (vvolcano)

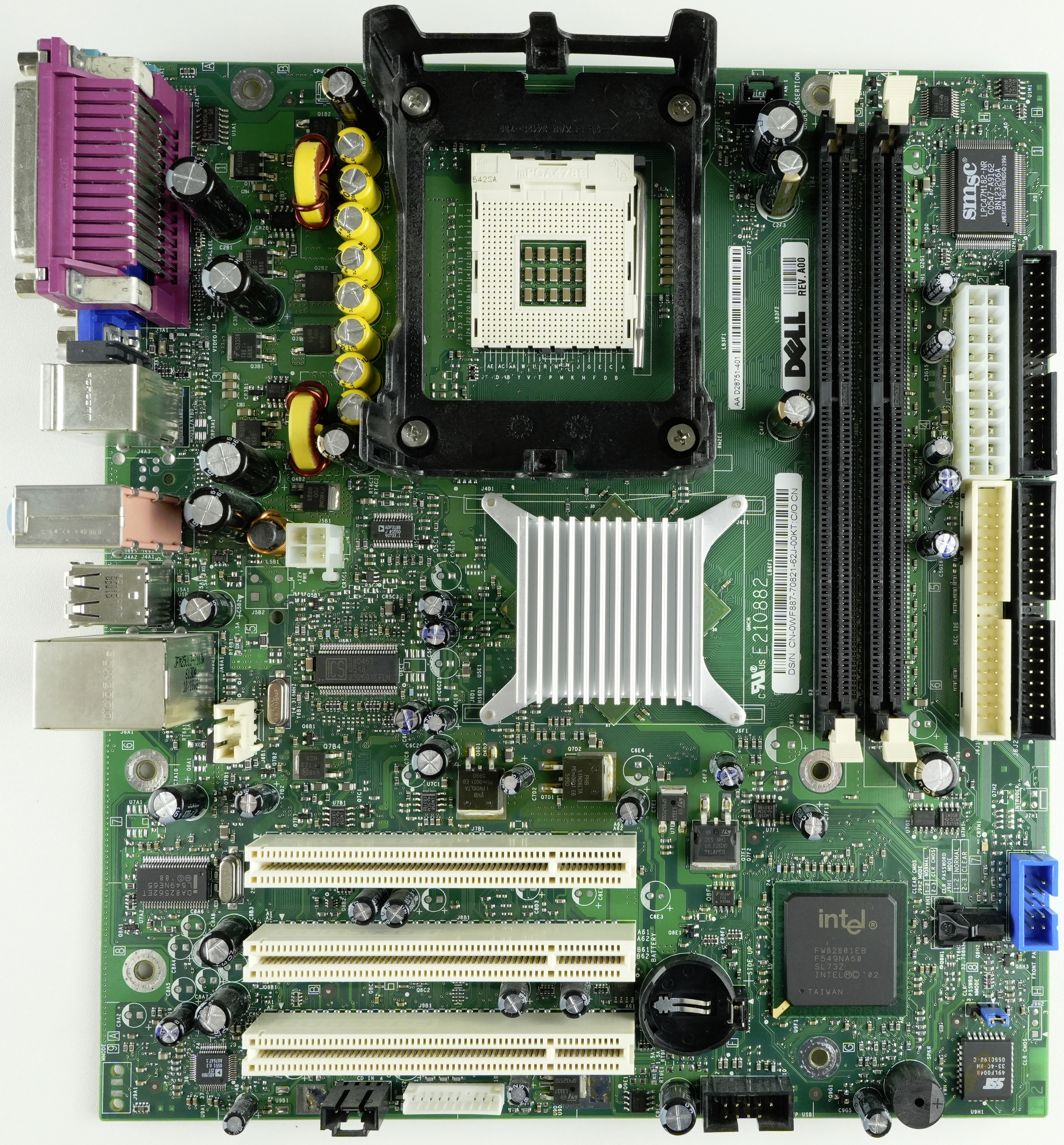

image4 Image 4 of 6 (vvolcano)

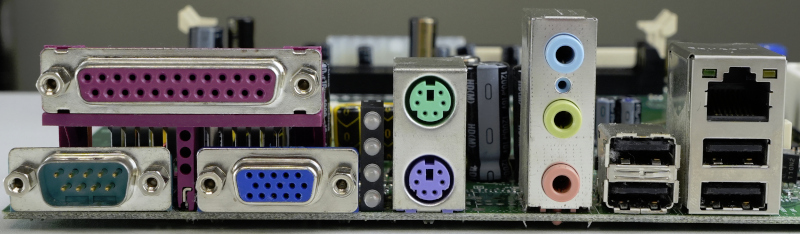

image5 Image 5 of 6 (vvolcano)
image6 Image 6 of 6
