Dell 0PP150

Description

Chips

BIOS 3

Drivers 2

Documentation 2

Logs

Chipset

Nvidia nForce 650i SLI

Socket

Socket T (LGA775)

FSB speeds

800MHz1066MHz1333MHz

Form factor

ATX (max 305 x 244 mm)

Dimensions

Empty

Cache

None/Integrated in the CPU

Max RAM size

8GB(DDR2-800)

RAM type

DDR2 UDIMM

PSU connector

ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)

Also known as

Dell XPS 630
Dell XPS 630i
MiTAC/Trigon 411769600152
MiTAC/Trigon PWA-DRUID

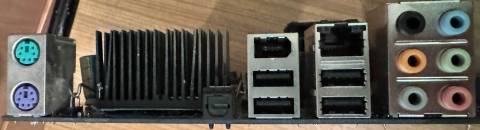

I/O ports

3.5mm Audio Combo

FireWire 400

PS/2 keyboard

PS/2 mouse

RJ-45 LAN

S/PDIF

USB 2.0

Expansion slots

32-bit PCI

PCIe x1

PCIe x16 @ x8

PCIe x8 @ x1

Notes

Manufactured by MiTAC for Dell

The PCIe x1 slot is disabled when using the second PCIe x16 slot

The motherboard comes with a proprietary daughter board (a.k.a Master I/O Board) for some of the front ports of the case, marked Dell 0CY260. It should be connected to the MIO_USB header on the motherboard, otherwise the BIOS will throw a related error on each startup. Alternatively, the error can be manually skipped by pressing the F1 key.

IEEE 1394 (FireWire) connector is optional and is not present on all motherboards

Last updated 2025-12-04T15:56:43Z

Board info score is 9.3/10

Chips

-> Chipset part

Nvidia MCP51 Nvidia C55 (Crush55)

-> FireWire ctrl.

Agere FW322 (3 port FireWire 400 PCI ctrl.)

-> Super I/O

ITE IT8718F
