Dell 02H240
Logs
chipChipset
cpuSocket
Socket 370 (PGA370)
speedFSB speeds
66MHz100MHz133MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
Empty
ramMax VRAM size
32MB
chipCache
None/Integrated in the CPU
ramMax RAM size
512MB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
4x
USB 1.x
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
ADD (add-on card AGP)
wrench Known issues
  • BIOS ROM Chip may be faulty

The motherboard's BIOS flash chip may be faulty, causing issues with BIOS updates or functionality. Owners of this board have reported instances of BIOS ROM failures, resulting in an inability to boot the system. If your board is experiencing these issues, attempting to flash the BIOS to a new ROM chip may be necessary.

notes Notes

Made by Foxconn for Dell

PCI2 slot has an extension so it can be used as riser slot.

Last updated 2025-12-04T15:35:38Z
Board info score is 8.9/10
bios 6 BIOS files available

vendor Phoenix - 6 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
Dell
BIOS version
Logs
POST string
Note
Core version
Dell
BIOS version
Logs
POST string
Note
Core version
Dell
BIOS version
Logs
POST string
Note
Core version
Dell
BIOS version
Logs
POST string
Note
Core version
Dell
BIOS version
Logs
POST string
Note
Core version
Dell
BIOS version
Logs
drv 10 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
5.4
OS support
MS-DOS NetWare Server 3 NetWare Server 4 Windows 2000 Windows 3.1x Windows 9x Windows NT 4.0
Arch
x86
Size
1.4MB
Filename
Name
Version
3.5.1.6
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
18.5MB
Filename
Name
Version
4.1
OS support
Windows 2000 Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
4.2MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Windows 2000 Windows 9x
Arch
x86
Size
1.5MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
Empty
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Windows 9x
Arch
Size
Empty
Filename
Version
OS support
Windows NT 4.0
Arch
Size
Empty
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2000-06
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2000-02
File
Logs
Family
Release date
2001-06
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1997-05
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-04
File
Logs
Socket
Release date
1999-12
File
Logs
Socket
Release date
2000-07
File
Logs

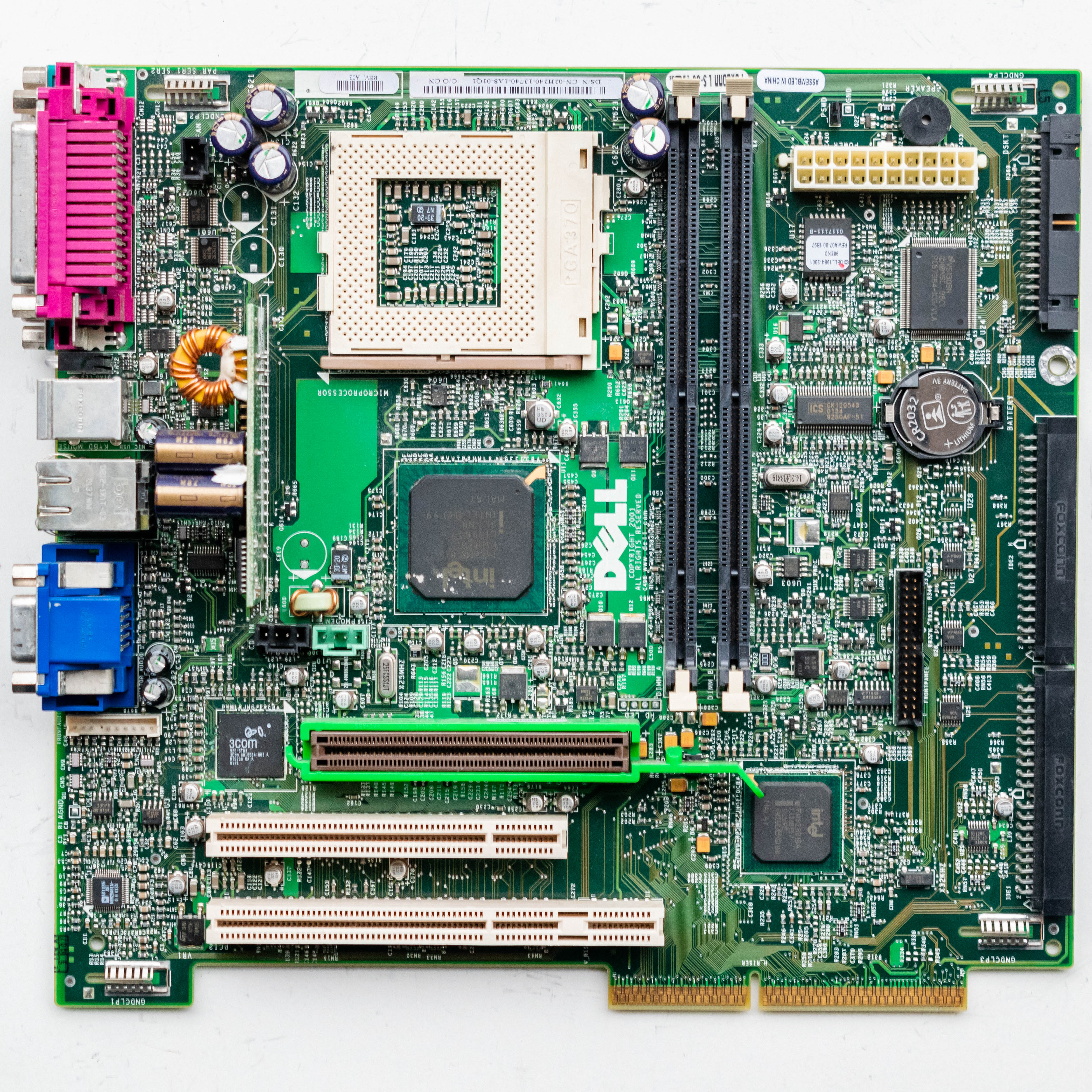

image1 Image 1 of 3 (Motherboard Continuum)

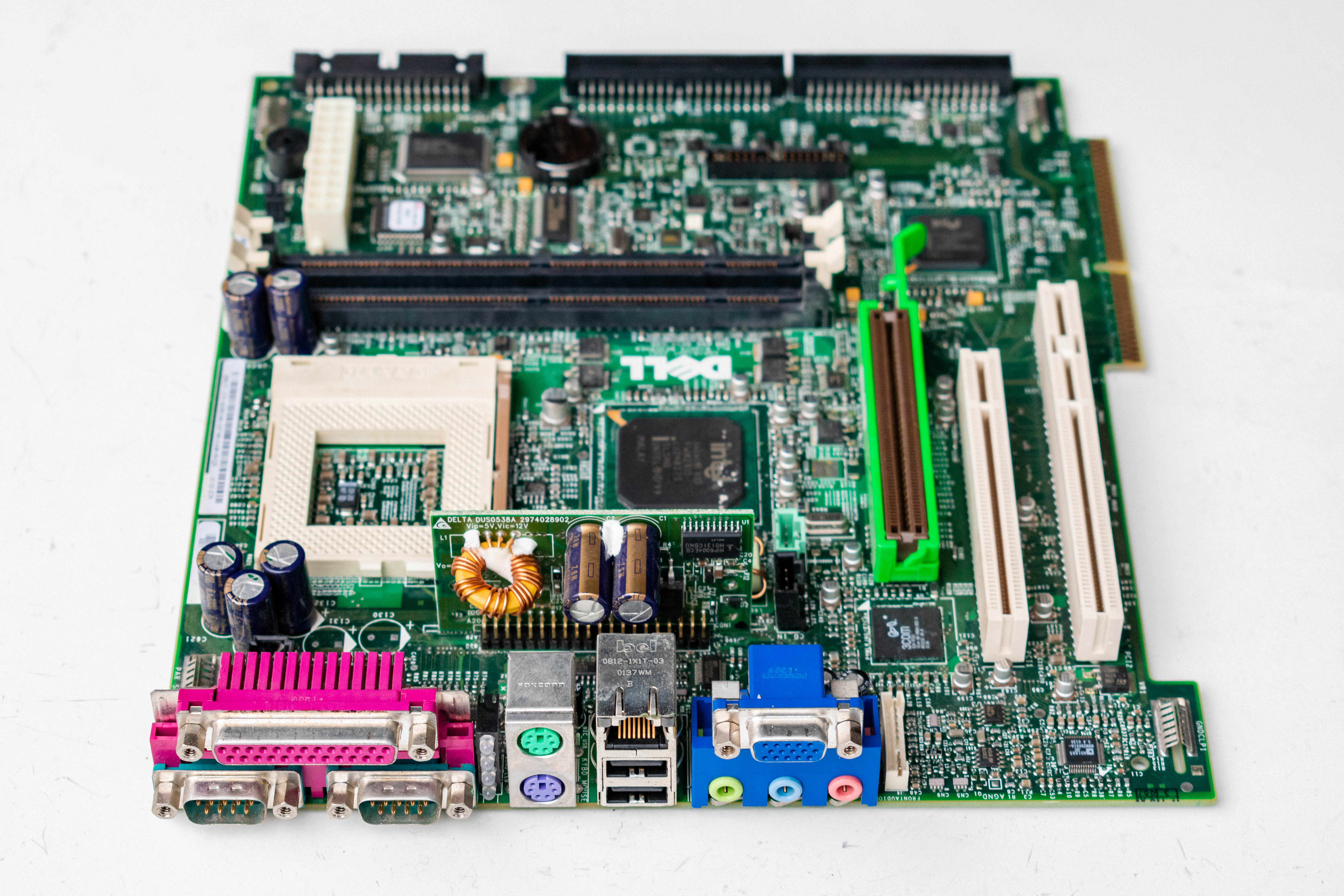

image2 Image 2 of 3 (Motherboard Continuum)

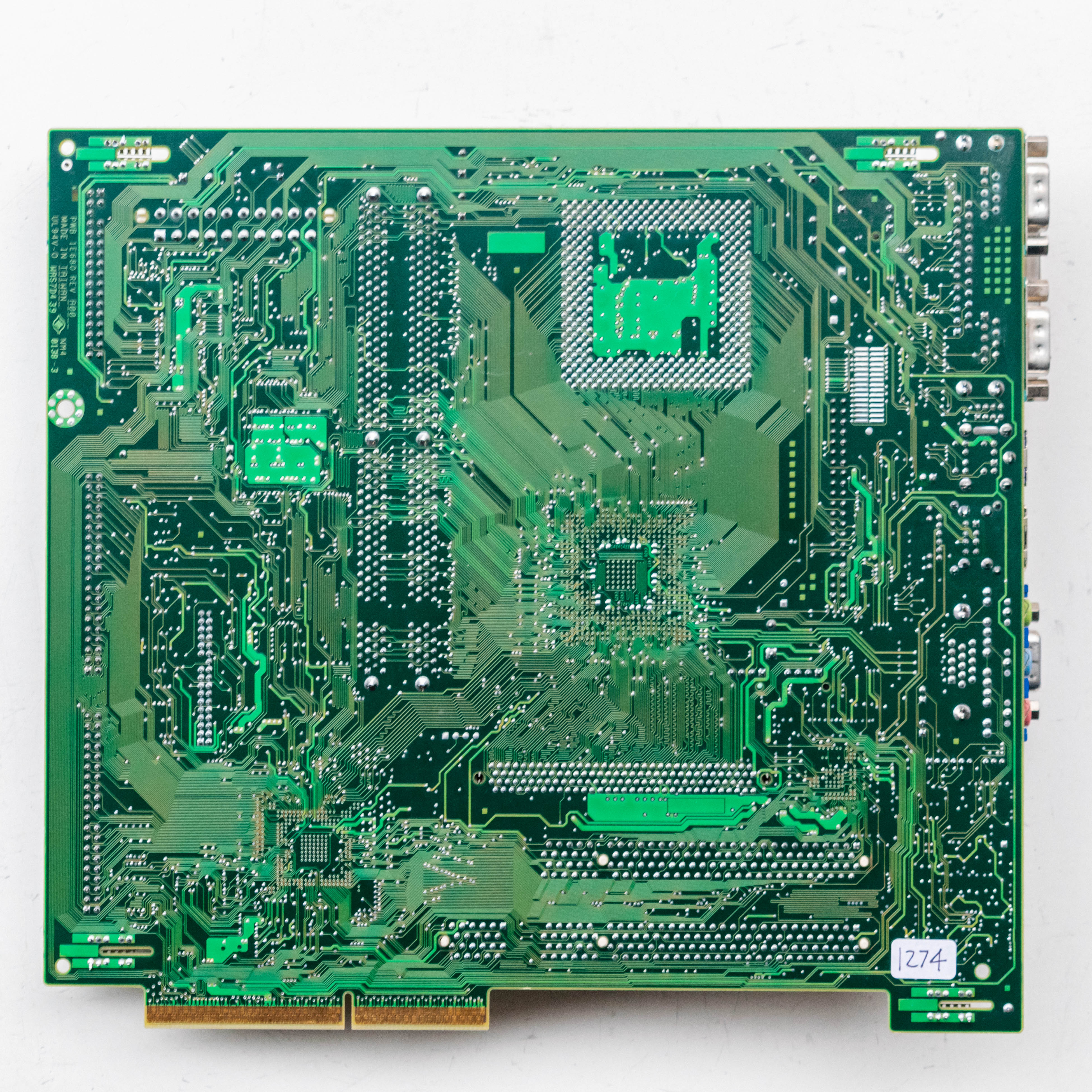

image3 Image 3 of 3 (Motherboard Continuum)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
