DEC CELEBRIS GL (VER. 2), VENTURIS GL (VER. 2)
Logs
chipChipset
cpuSocket
Socket 8 (PGA387)
speedFSB speeds
60MHz66MHz
moboForm factor
OEM / Proprietary
dimDimensions
330mm x 218mm
ramMax VRAM size
8MB
chipCache
None/Integrated in the CPU
ramMax RAM size
192MB
ramRAM type
72-pin EDO
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
  • DEC Celebris GL 6200
  • DEC Digital PC 5400
connI/O ports
1x
3.5mm Audio Combo
1x
Coax 10Base-2 LAN
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
2x
16-bit ISA
2x
32-bit PCI
notes Notes

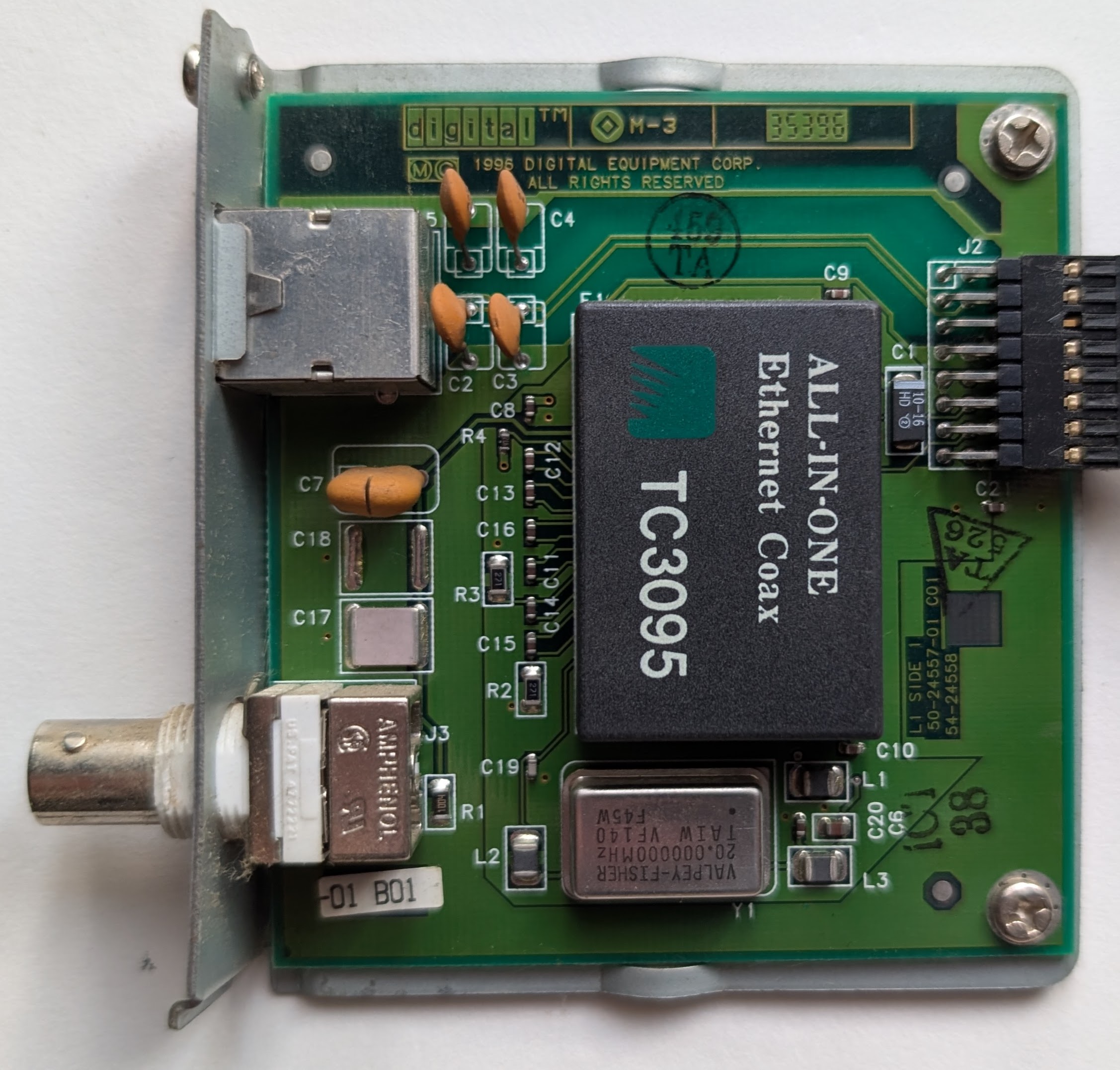

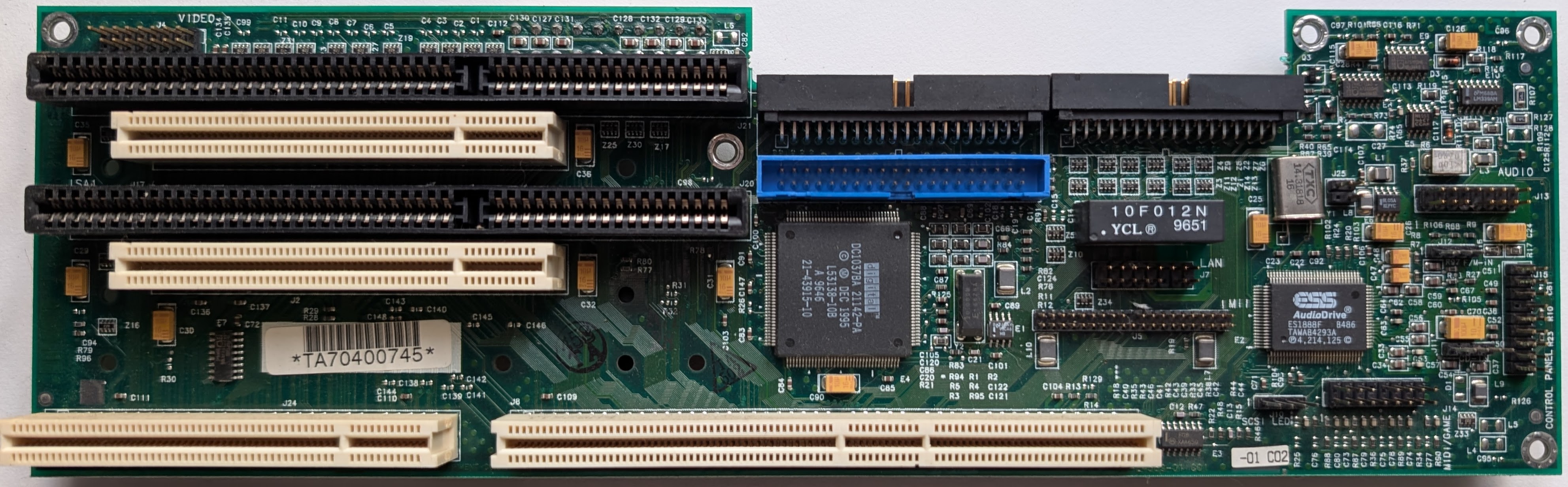

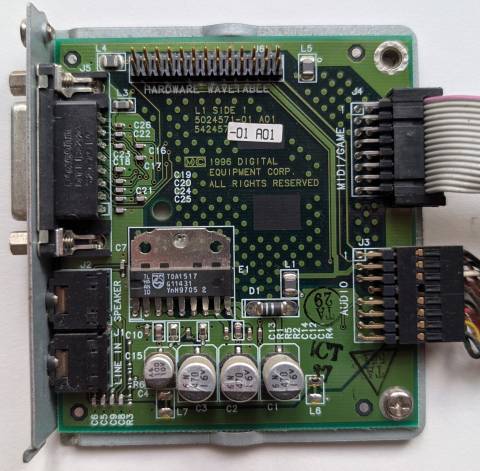

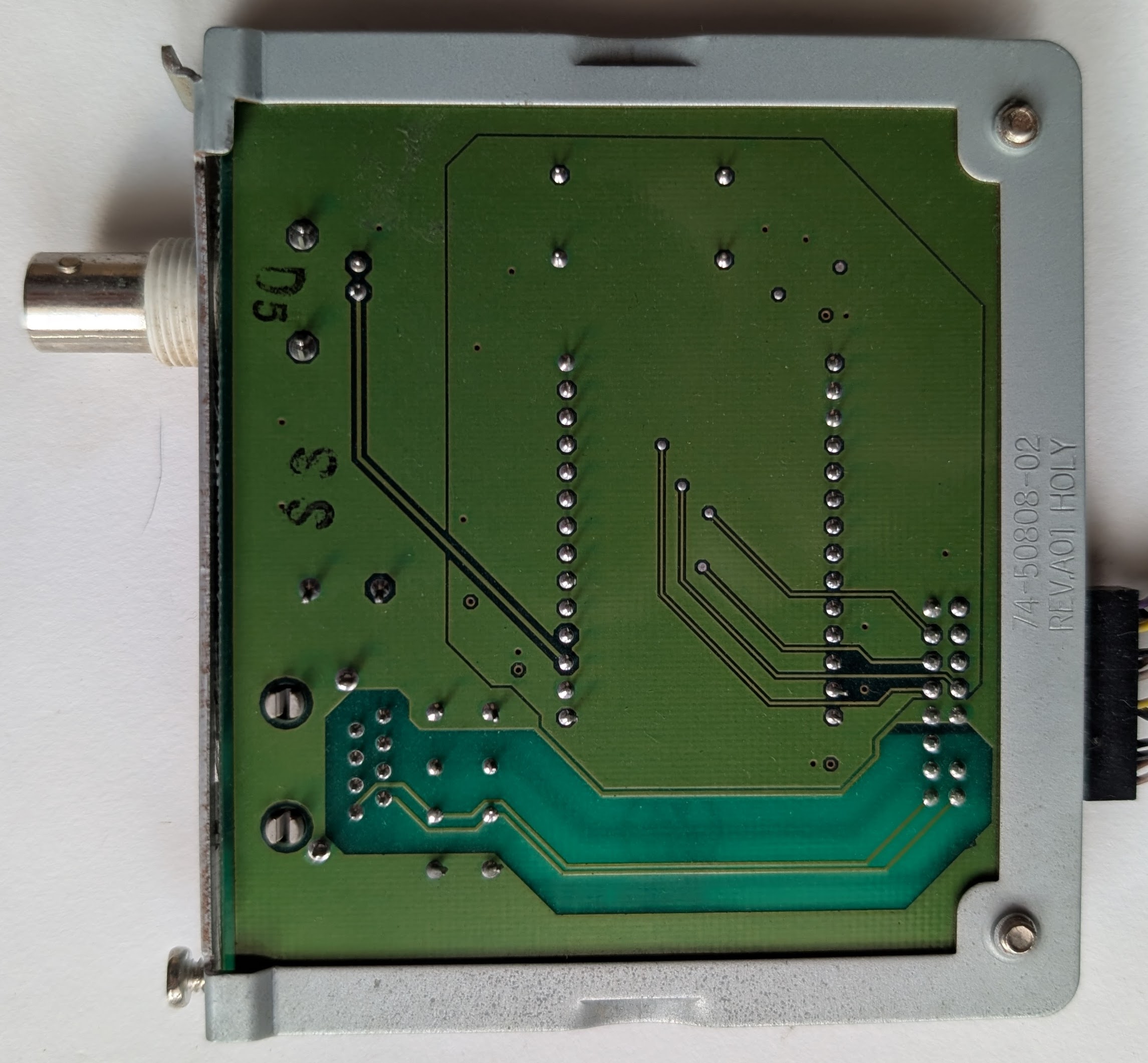

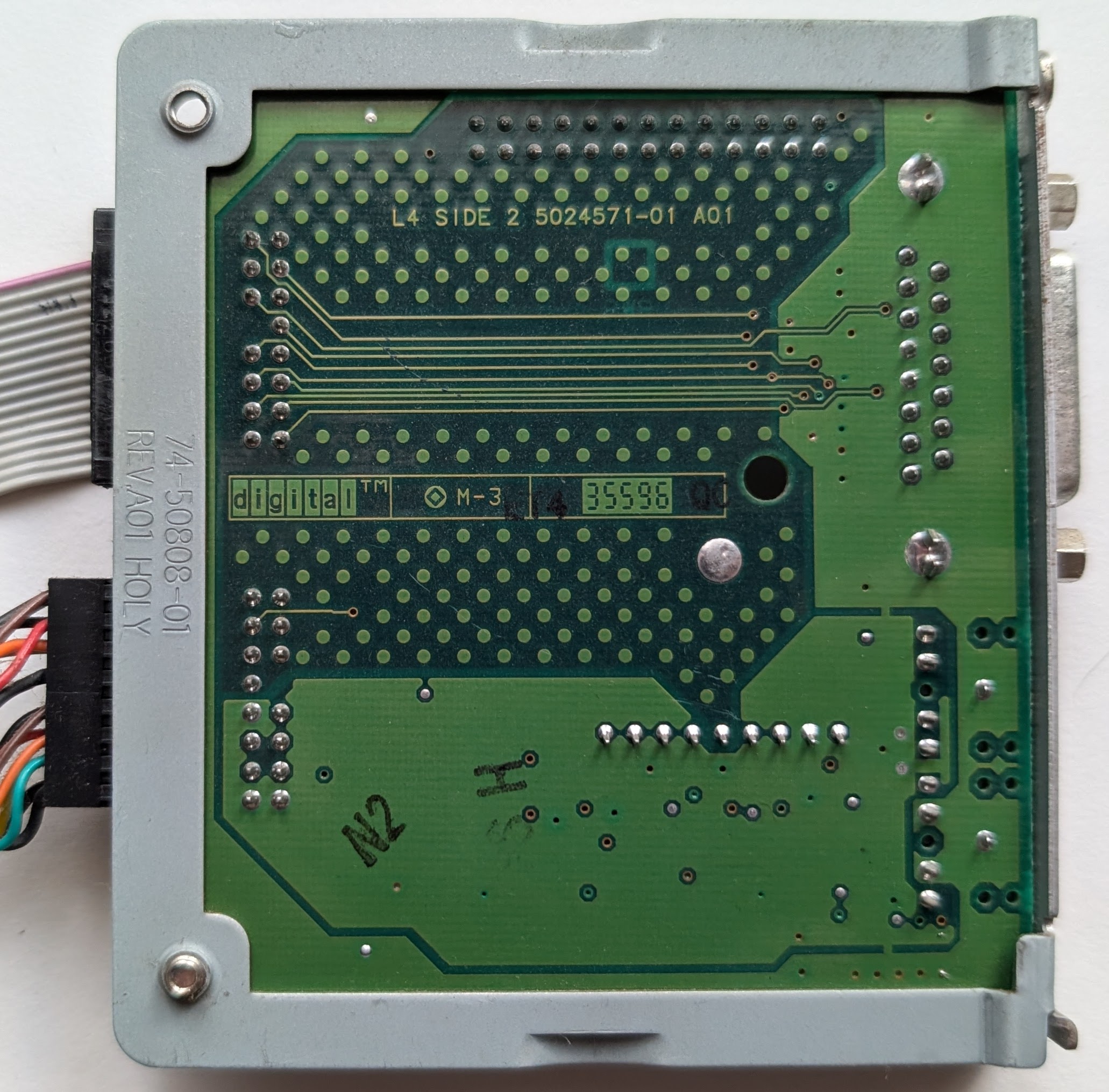

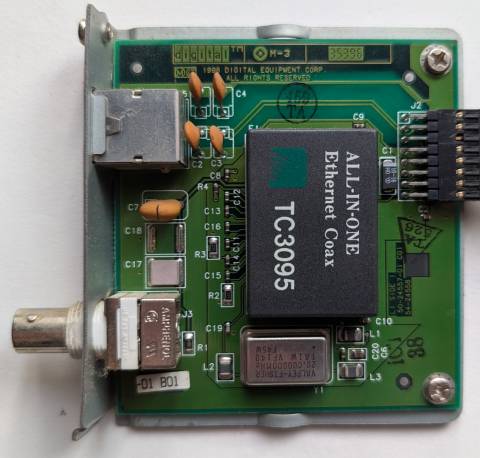

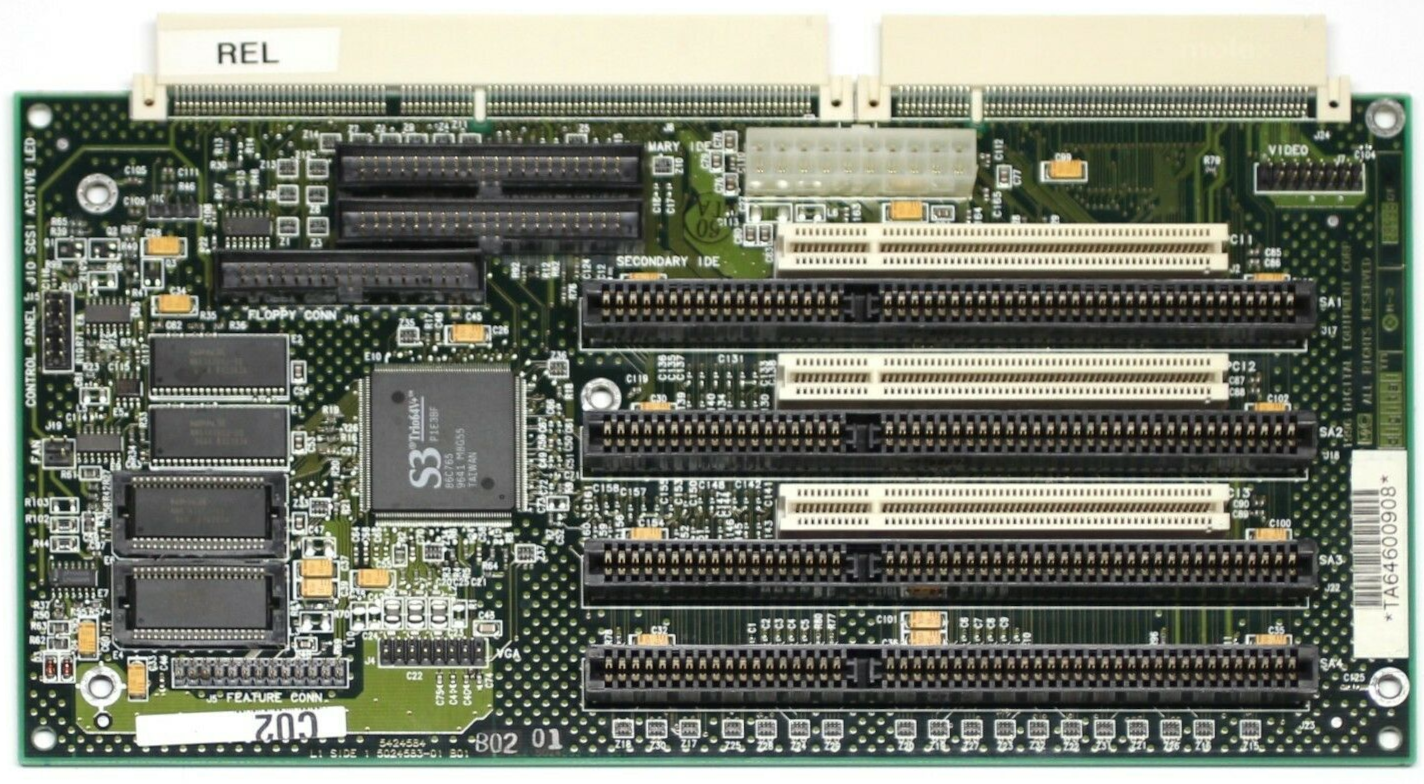

Integrated Audio was optional and lives on the riser board when present. While both the ethernet and audio chips live on the riser, the external ports live on separate boards which plug into the riser The audio board contains the amplifier, game port and wavetable interface. While the integrated DEC 21140 ethernet is 10/100 capable, 100Mbps operation was optional - some machines had a 10baseT/10base2 board, while others had a 10Base-T/100Base-TX board. Models without integrated Matrox video were available with S3 video on the riser board.

Last updated 2025-10-29T20:19:36Z
Board info score is 9.4/10
bios 2 BIOS files available

vendor Phoenix - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
system bios
Core version
BIOS version
Logs
POST string
Note
crisis recovery diskette
Core version
BIOS version
Logs
drv 21 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.62
OS support
MS-DOS OS/2 2.x Windows 3.1x Windows 9x
Arch
Size
130KB
Filename
Name
Version
5.05
OS support
Windows 2000 Windows 9x Windows NT 4.0
Arch
Size
538.2KB
Filename
Name
Version
2.61
OS support
MS-DOS
Arch
x86
Size
38KB
Filename
Name
Version
3.11
OS support
NetWare Server 3 NetWare Server 4 Netware Client32
Arch
x86
Size
390.9KB
Filename
Name
Version
4.2.2
OS support
UnixWare
Arch
Size
182.6KB
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
2.51
OS support
Windows NT 3.5x
Arch
x86
Size
639.9KB
Filename
Name
Version
2.58
OS support
OS/2 1.x
Arch
x86
Size
1.3MB
Filename
Name
Version
2.51
OS support
Windows NT 3.5x
Arch
x86
Size
639.9KB
Filename
Name
Version
4.05.02
OS support
Windows 9x
Arch
x86
Size
358.1KB
Filename
Name
Version
2.41.07
OS support
Windows 9x
Arch
x86
Size
183.6KB
Filename
Name
Version
1.70.04
OS support
Windows 3.1x
Arch
x86
Size
606.1KB
Filename
Name
Version
1.6
OS support
OS/2 1.x OS/2 2.x OS/2 Warp 3.x
Arch
x86
Size
1.2MB
Filename
Name
Version
2.01.09
OS support
Windows 9x
Arch
x86
Size
124.2KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
569.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
577.8KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
1.6MB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
2.3MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-12
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1996-02-29
File
Logs
Chip
Release date
1996-07
File
Logs
Chip
Release date
1996-02
File
Logs
Chip
Release date
1995-07
File
Logs
Family
Release date
File
Logs
Family
Release date
1997
File
Logs
Family
Release date
1998-05
File
Logs
Family
Release date
1995-11
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1996
File
Logs
Family
Release date
1996-03
File
Logs
Family
Release date
1997-05
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1995-11
File
Logs
Family
Release date
1999-01
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1997-02
File
Logs
image1 Image 1 of 19 (Microhouse)
image2 Image 2 of 19 (davidg)
image3 Image 3 of 19 (KIDH)
image4 Image 4 of 19 (davidg)
image5 Image 5 of 19 (BreakPoint)
image6 Image 6 of 19 (davidg)
image7 Image 7 of 19 (davidg)
image8 Image 8 of 19 (davidg)
image9 Image 9 of 19 (davidg)
image10 Image 10 of 19 (KIDH)
image11 Image 11 of 19 (davidg)
image12 Image 12 of 19 (davidg)
image13 Image 13 of 19 (davidg)
image14 Image 14 of 19 (BreakPoint)
image15 Image 15 of 19 (KIDH)
image16 Image 16 of 19 (KIDH)
image17 Image 17 of 19 (Microhouse)
image18 Image 18 of 19 (Microhouse)
image19 Image 19 of 19

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
