DEC CELEBRIS 560
Chipset
Sockets
FSB speeds 50MHz60MHz66MHz
Form factorLPX (max 229 x 330 mm)
Dimensions330mm x 218mm
Max VRAM size2MB
RAM type
PSU connector
Also known as
I/O ports1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
Expansion slots4x
16-bit ISA
2x
32-bit PCI
Known issues

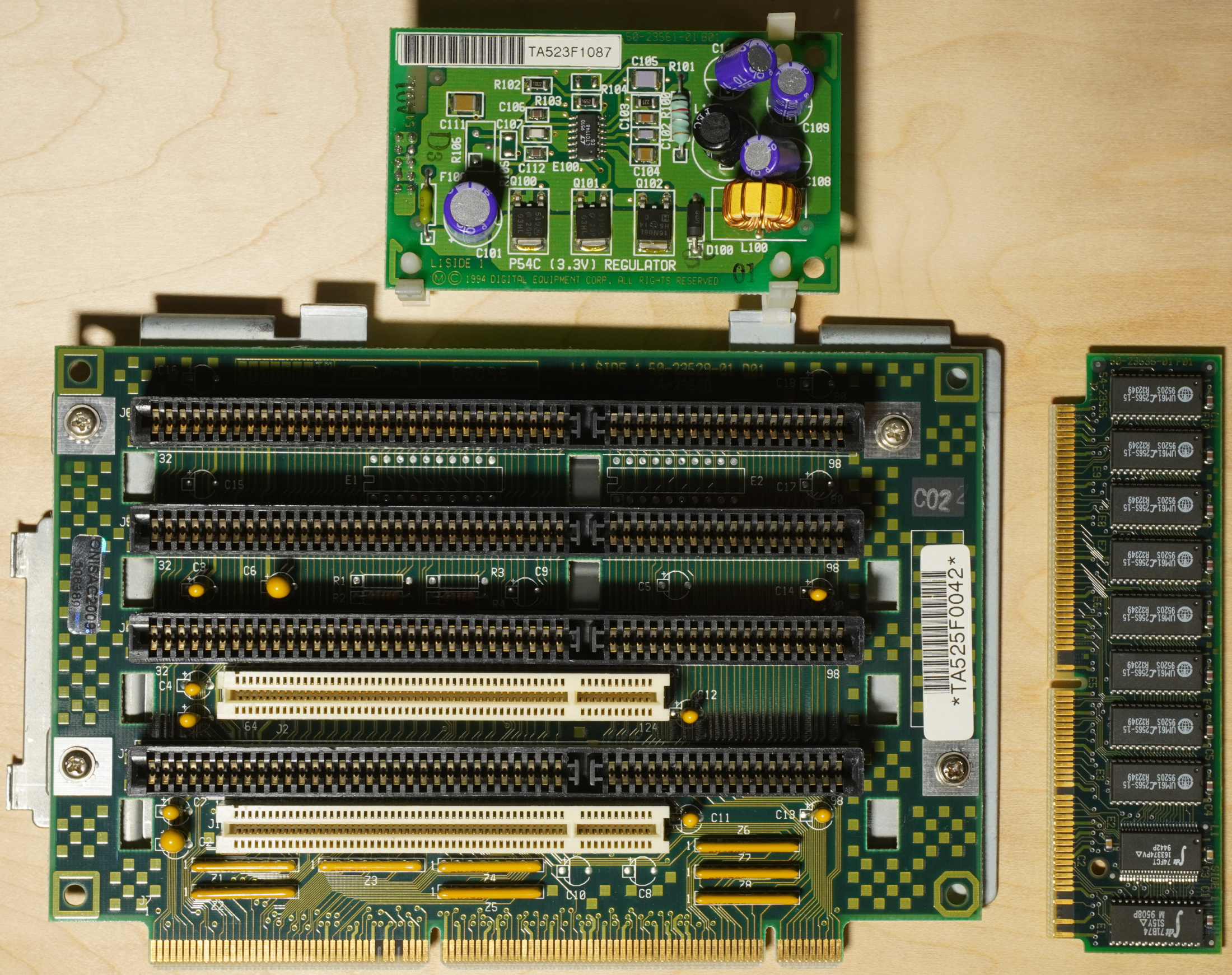

- Expansion slots are on proprietary riser
The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
- Faulty IDE Controller
The IDE controller(s) is known to be faulty, which may cause problems with IDE devices such as data corruption or lockups.
Last updated 2025-06-28T20:21:21Z
Board info score is 9.2/10
Chips
-> Chipset part
VLSI VL82C591 (System Controller)
VLSI VL82C593 (PCI to ISA Bridge)
VLSI VL82C592 (Host to PCI Bridge)
-> Clock Synth / PLL
-> Human Interface
-> IDE ctrl.
-> RAMDAC
-> Signal transmitter/receiver
-> Super I/O
-> Video
CPU family support
1 BIOS file available
Phoenix - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
v2.09
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 2.x
SCO Unix - OpenServer
Windows NT 3.1
Windows NT 3.5x
Arch
x86
Size
691.2KB
Filename
Name
Version
2.01.09
OS support
Windows 9x
Arch
x86
Size
124.2KB
Filename
Name
Version
N/A
OS support
Windows NT 3.5x
Arch
x86
Size
64.6KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs
Family
Release date
File
Logs
Image 1 of 4 (Microhouse)

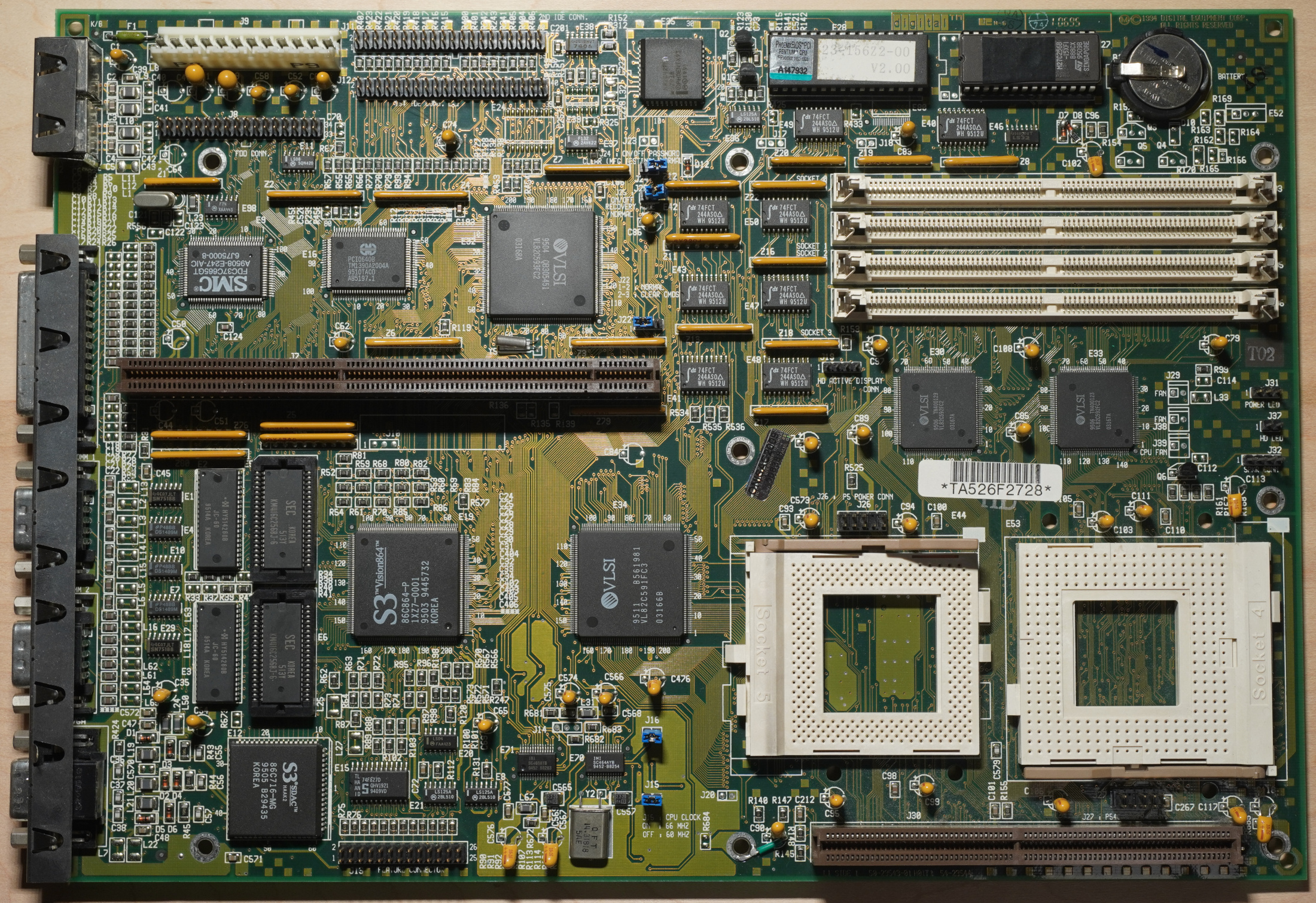

Image 2 of 4 (spacesaver1985)

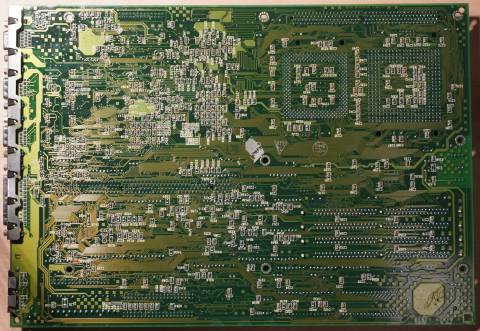

Image 3 of 4 (spacesaver1985)
Image 4 of 4 (spacesaver1985)
