DataExpert Solution 386 & 486 Ver 1.0
Chipset
Sockets
FSB speeds 16MHz20MHz25MHz33MHz
Form factorBaby AT (max 220 x 330 mm)
DimensionsEmpty
Cache
32KB64KB128KB256KB
Max RAM size
32MB
RAM type 30-pin SIMM
PSU connector
Also known as
- Unknown 4386C ISA
I/O ports1x
AT Keyboard
Expansion slots6x
16-bit ISA
2x
8-bit ISA
Known issues
- Leaky Ni-Cd clock battery
The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta
Notes
-
The Solution 88C4386C = relabeled SiS 85C360
-
Was used in HIGHSCREEN TOWER 486 DX-33
Last updated 2025-02-13T12:43:31Z
Board info score is 9.3/10
Chips
-> Chipset part
-> Human Interface
1 BIOS file available
AMI - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
40-0500-DO1107-00101111-070791-SOLUTION
Note
Core version
070791
BIOS version
Logs
No drivers available
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
1990
File
Logs
Chip
Release date
1996-08-09
File
Logs
Chip
Release date
1996-05-15
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs

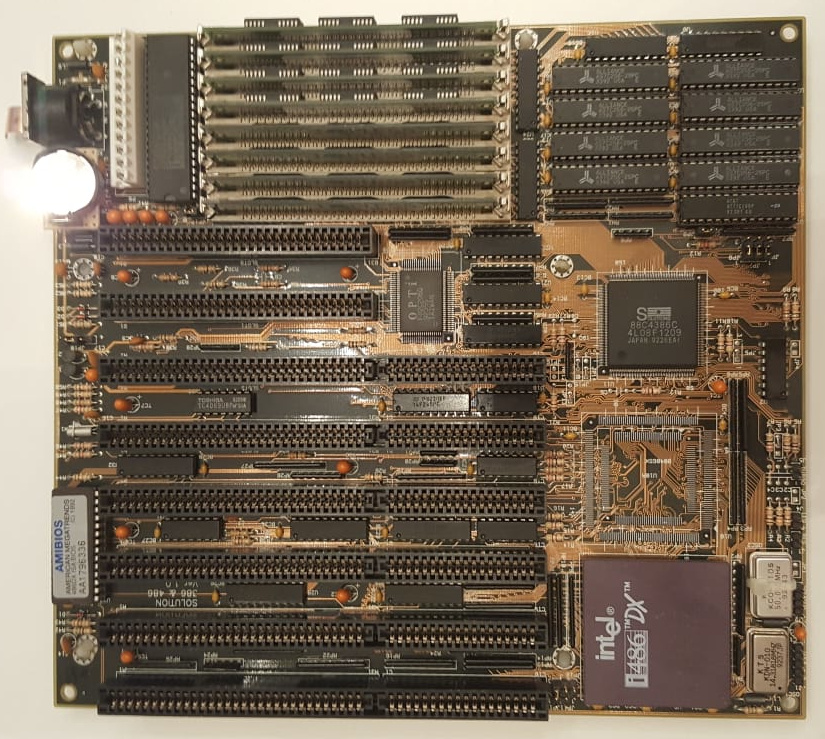

Image 1 of 4 (computerguy096)

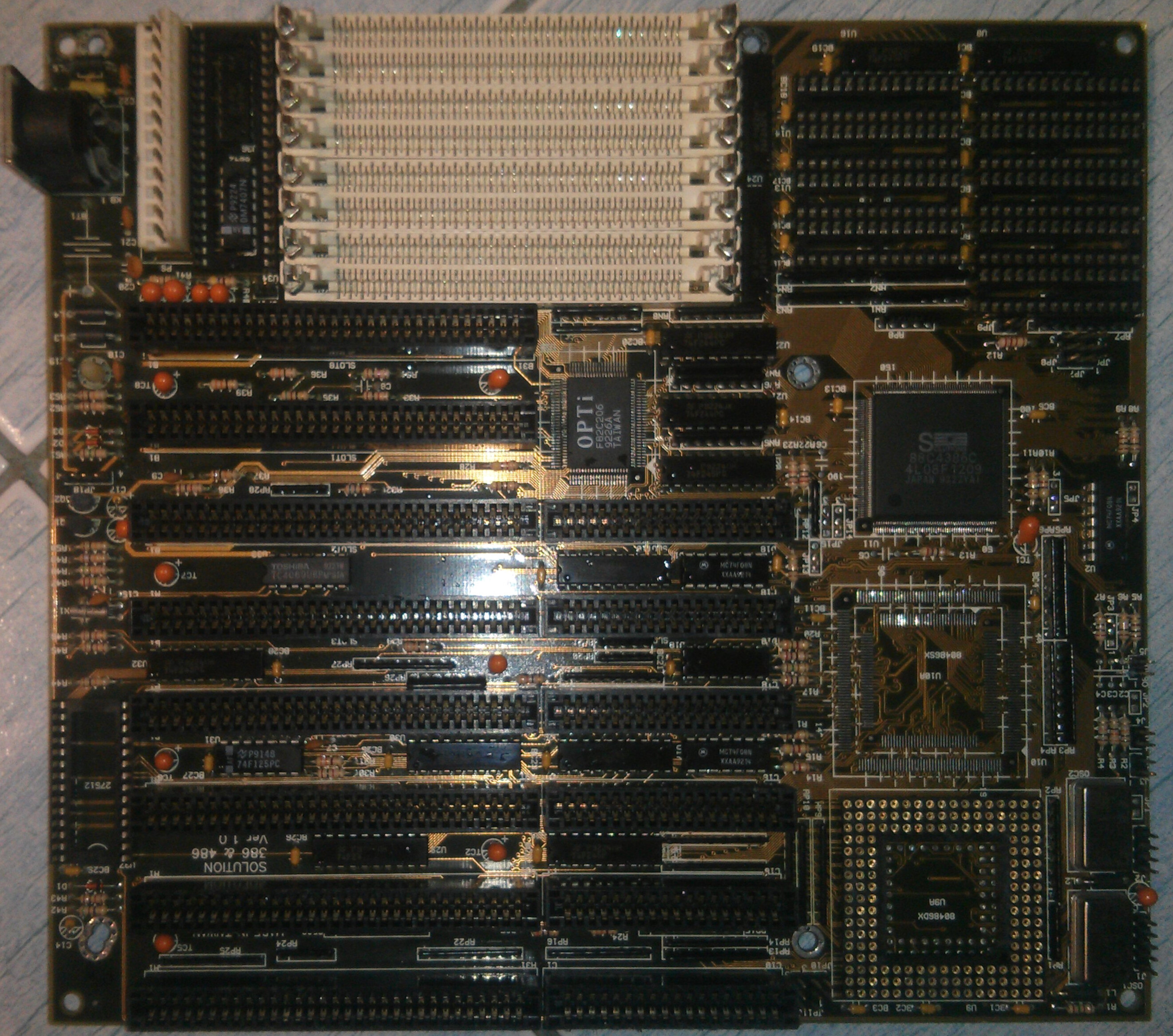

Image 2 of 4 (oOaQuaOo)

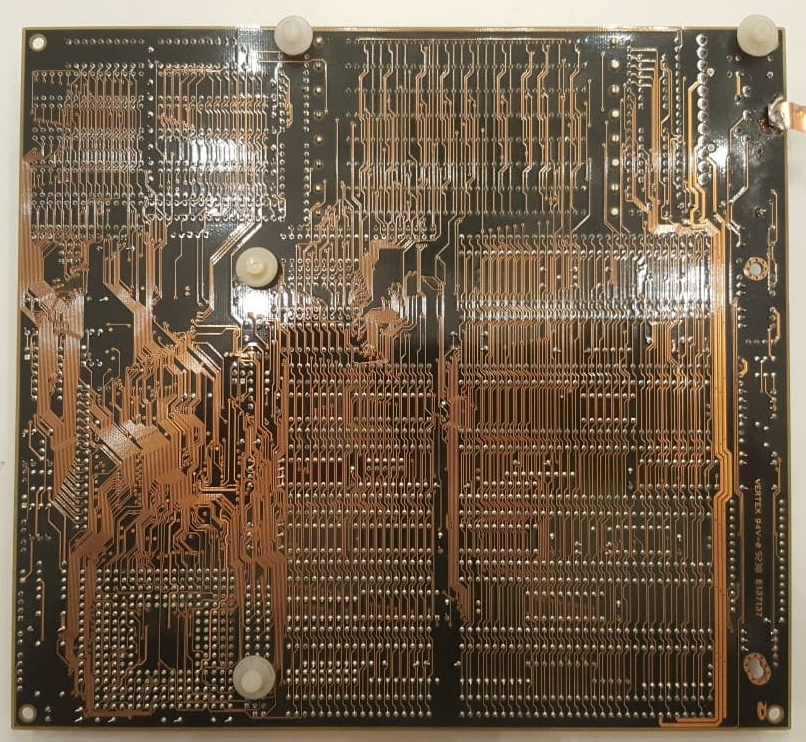

Image 3 of 4 (arteq)
Image 4 of 4 (oOaQuaOo)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
